WAGO 2206-1307 PG terminal 7.50 mm Push-in connector Green, Yellow 1 pc(s)

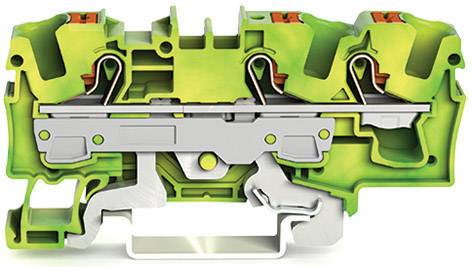

Cross-section of a terminal block, showing internal metal contacts and colour-coded plastic insulation, used in electrical junction boxes.
Image similar
Product type
PG terminal
Connection
Push-in connector
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 23 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.80 / piece)
€ 169.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Continuity and earth conductor terminal; with printer series 2206

  • 2206-1307

Technical specifications

Product type

PG terminal

Features

+ latchkey

+ CAGE CLAMP®

Connection

Push-in connector

Cross section (flexible) (min.)

0.50 mm²

Cross section (flexible) (max.)

6 mm²

Cross section (inflexible) (min.)

0.50 mm²

Cross section (inflexible) (max.)

10 mm²

AWG (min.)

20

AWG max.

8

Clamp width

7.50 mm

No. of rows

1

Pins per row

2

Number of pins

2

Factory colour

Green

Yellow

Nominal current

41 A

Nominal current - rounded value

41 A

Min. stripping length

13 mm

Stripping length (max.)

15 mm

Manufacturer part #

2206-1307

Content

1 pc(s)

Industrial packaging

Yes

Type

2206-1307

Dim

(L x W x H) 73.30 x 7.50 x 32.90 mm

Width

7.50 mm

Height

32.90 mm

Length

73.30 mm

Weight

0.0210 kg

Flammability rating

UL 94 V0

Insulation material

Thermoplastic

Material

Polyamide
