WAGO 270-574/281-483 Proximity switch terminal 5 mm Pull spring Orange 10 pc(s)

Orange terminal block rail with integrated electrical components and connections, suitable for DIN rail mounting in control cabinets.

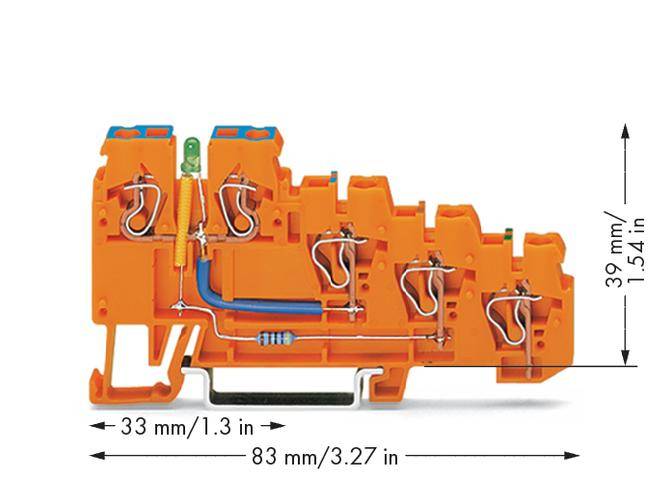

Orange terminal block with cable connections, dimensions 83 mm length, 33 mm width, 39 mm height; shows wiring examples.

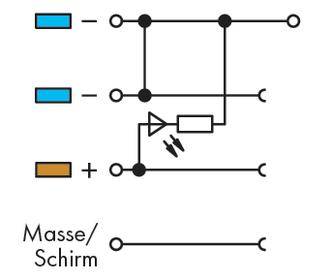

Circuit diagram shows a connection with blue and brown cables; brown cable used as ground/screen. Drawing includes an amplifier.
1/3
Product type
Proximity switch terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Content
10 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue, 12 Jan 2027
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 10 pc(s))
Total (€ 9.20 / piece)
€ 91.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

4-conductor sensor LED supply terminal block

  • 270-574/281-483
  • Industrial packaging, pack of 10

Technical specifications

  • 4L-INIT.-LED-EINSPEISEKLEMME ORANGE
Product type

Proximity switch terminal

Features

+ green LEED

Connection

Pull spring

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

2.50 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5 mm

No. of rows

4

Number of pins

5

Factory colour

Orange

Nominal voltage

24 V

Min. stripping length

6 mm

Stripping length (max.)

7 mm

Manufacturer part #

270-574/281-483

Content

10 pc(s)

Industrial packaging

Yes

Type

270-574/281-483

Dim

(W x H) 5 mm x 39 mm

Width

5 mm

Height

39 mm

Flammability rating

V0

Insulation material

Thermoplastic

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 535221 WAGO 270-574/281-483 Proximity switch terminal 5 mm Pull spring Orange 10 pc(s)

User & Safety Instructions

User & Safety Instructions 535221 WAGO 270-574/281-483 Proximity switch terminal 5 mm Pull spring Orange 10 pc(s)

Description

Green LED, DC 24 V orange.
