WAGO 280-560/281-434 Proximity switch terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Package

A grey, triangular electrical junction block with multiple coloured terminal connections. Suitable for securing wires.

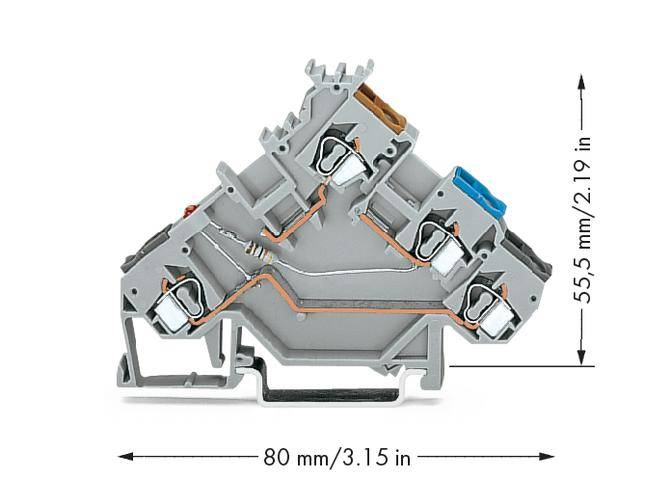

'Cross-section of an electrical connection' shows the internal wiring and two dimensions: 80 mm width, 55.5 mm height.

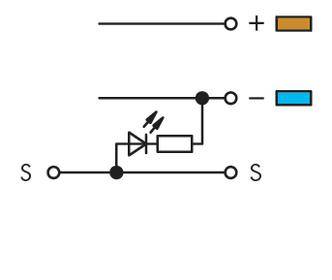

Circuit diagram with a diode and a resistor connected in series between a positive and a negative terminal, with two switches.
1/3
Packaging type
Package
Product type
Proximity switch terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 7.18 / piece)
€ 359.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Sensor LED terminal block

  • 280-560/281-434

Technical specifications

  • SENSOR TERM.BL.W.LED 24V PNP
Packaging type

Package

Product type

Proximity switch terminal

Features

+ red LED

Connection

Pull spring

Configuration

L

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

2.50 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5 mm

No. of rows

3

Number of pins

4

Factory colour

Grey

Nominal current

20 A

Nominal current - rounded value

20 A

Nominal voltage

24 V

Min. stripping length

8 mm

Stripping length (max.)

9 mm

Manufacturer part #

280-560/281-434

Content

50 pc(s)

Industrial packaging

Yes

Type

280-560/281-434

Dim

(W x H) 5 mm x 55.50 mm

Width

5 mm

Height

55.50 mm

Connector colour

Grey

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 535839 WAGO 280-560/281-434 Proximity switch terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Package

User & Safety Instructions

User & Safety Instructions 535839 WAGO 280-560/281-434 Proximity switch terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Package

Description

For PNP (plus) switching initiators, red LED, gray.
