WAGO 280-576/281-496 Proximity switch terminal 5 mm Pull spring Configuration: L Grey 10 pc(s) Package

Grey electrical terminal block with multiple colour-coded connections and a resistance element in the centre.

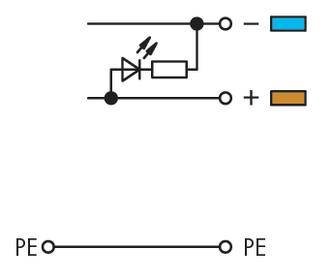

Electrical circuit diagram with diode, resistor and earthing. Shows the current flow and polarity connections, positive in Brown, negative in Blue.
1/2
Packaging type
Package
Product type
Proximity switch terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 19 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 10 pc(s))
Total (€ 11.50 / piece)
€ 114.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Sensor LED supply terminal block

  • 280-576/281-496
  • Industrial packaging, pack of 10

Technical specifications

  • SENS.SUPPLY T.BL.3COND.W.LED 24V NPN
Packaging type

Package

Product type

Proximity switch terminal

Features

+ green LEED

Connection

Pull spring

Configuration

L

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

2.50 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5 mm

No. of rows

3

Number of pins

4

Factory colour

Grey

Nominal current

20 A

Nominal current - rounded value

20 A

Nominal voltage

24 V

Min. stripping length

8 mm

Stripping length (max.)

9 mm

Manufacturer part #

280-576/281-496

Content

10 pc(s)

Industrial packaging

Yes

Type

280-576/281-496

Dim

(L x W x H) 5 x 5 x 63.50 mm

Width

5 mm

Height

63.50 mm

Length

5 mm

Connector colour

Grey

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 535913 WAGO 280-576/281-496 Proximity switch terminal 5 mm Pull spring Configuration: L Grey 10 pc(s) Package

User & Safety Instructions

User & Safety Instructions 535913 WAGO 280-576/281-496 Proximity switch terminal 5 mm Pull spring Configuration: L Grey 10 pc(s) Package

Description

Feed on the initiator side, for NPN (minus) switching initiators green LED, DC 24 V, gray.
