WAGO 280-597 Triple port continuity 5 mm Pull spring Configuration: Terre Green, Yellow 40 pc(s) Package

A multi-layered green and yellow terminal block with metal connecting elements for electrical wiring.

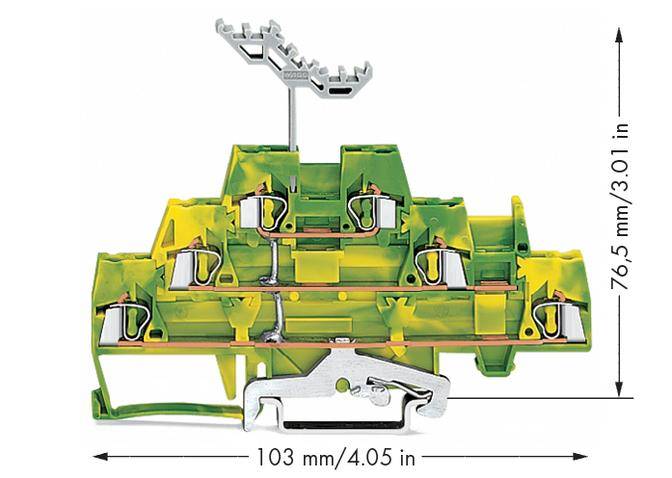

'Cross-section of a green installation material with yellow elements, showing dimensions 103 mm x 76.5 mm.'
1/2
Packaging type
Package
Product type
Triple port continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 40 pc(s))
Total (€ 13.88 / piece)
€ 555.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Triple-deck terminal block

  • 280-597
  • Industrial packaging with 40 pieces

Technical specifications

  • TRIP.DECK T.BL.GR-YEL/GR-YEL/GR-YEL
Packaging type

Package

Product type

Triple port continuity

Features

built-in jumper

Connection

Pull spring

Configuration

Terre

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

2.50 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5 mm

No. of rows

3

Pins per row

2

Number of pins

6

Factory colour

Green

Yellow

Nominal current

20 A

Nominal current - rounded value

20 A

Min. stripping length

8 mm

Stripping length (max.)

9 mm

Manufacturer part #

280-597

Content

40 pc(s)

Industrial packaging

Yes

Type

280-597

Dim

(W x H) 5 mm x 76.50 mm

Width

5 mm

Height

76.50 mm

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 535956 WAGO 280-597 Triple port continuity 5 mm Pull spring Configuration: Terre Green, Yellow 40 pc(s) Package

User & Safety Instructions

User & Safety Instructions 535956 WAGO 280-597 Triple port continuity 5 mm Pull spring Configuration: Terre Green, Yellow 40 pc(s) Package

Description

6-conductor protective conductor terminal, internally bridged green-yellow.
