Name: WAGO 2857-533 2857-533 1 pc(s)
Brand: WAGO
SKU: 1232605
Availability: BackOrder

Threshold switch for RTD sensors, Model Number 2857-0533. Suitable for potentiometer and resistance input.

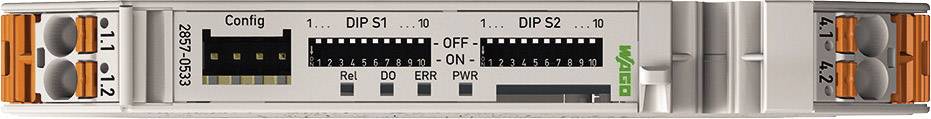

'WAGO 2857-9353' electronic module with switch, 'Config' label, LED indicators for 'Run', 'DO', 'ERR', 'PWR' and two DIP switches.

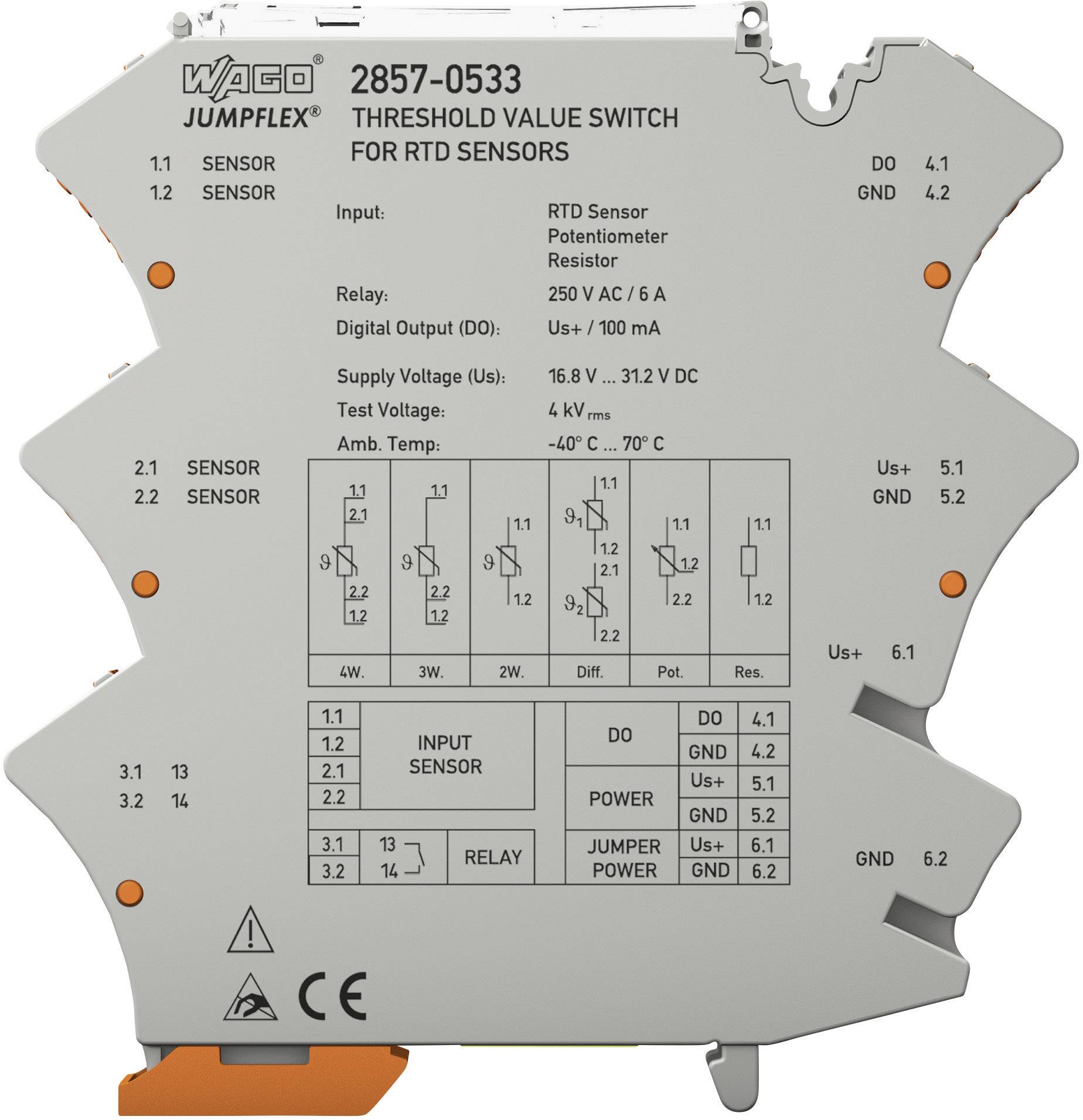

Industrial electronic switch with terminals, labels, and technical specifications for RTD sensors.

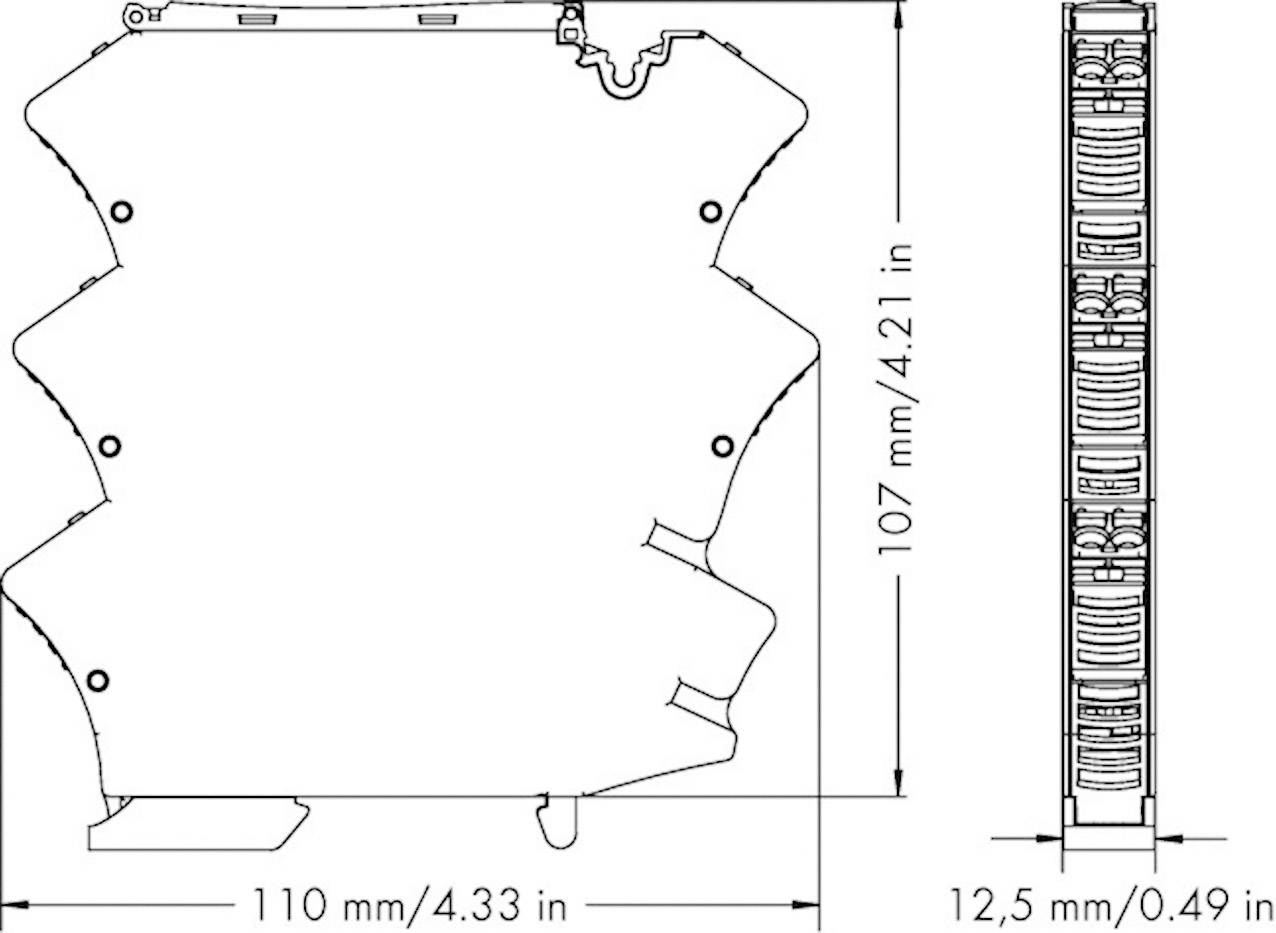

Side and front view of a technical drawing of an electronic device with dimensions: 110 mm x 107 mm x 12.5 mm.

1/4

Type

2857-533

Dim

(L x W) 110 mm x 107 mm

Content

1 pc(s)

Width

107 mm

Length

110 mm

Datasheet (PDF)

Dispatches on Wed 11 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 309.00 / piece)

€ 309.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: 2857-533

Dim: (L x W) 110 mm x 107 mm

Content: 1 pc(s)

Width: 107 mm

Length: 110 mm

Current consumption: ≤30 mA

Max. ambient temperature: +70 °C

Min. ambient temperature: -40 °C

Type: 1 normally open contact (1 a)

Connection: CAGE CLAMP ® S (picoMAX ® 5.0)

Input signal: RTD-Sensors, potentiometers and resistors

Setting: DIP Switches
Configuration Display

Supply voltage: 16,8 V…31,2 V (-30%...+30%)

: 12.5

: 107 mm

: 110 mm

: FALSE

: Spring clamp connection

: 0

: 0

: 0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1232605 WAGO 2857-533 2857-533 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1232605 WAGO 2857-533 2857-533 1 pc(s)

Description

The RTD-limit switch for RTD sensors, potentiometers and resistors is used to monitor and to report signal states of up to two switching thresholds.

Features:
A digital signal output as well as a relay with normally open contact respond when configured measuring range limits (on and off delay and limit switch function with up to two thresholds can be configured)
Free Adjustable RTD-factor
Adjustable software filter
Simulation of input and output behavior via configuration display
Secure 3-way isolation with 4 kV test voltage according to EN 61140
