Weidmüller 2485840000 Dual port continuity 3.50 mm Pull spring Beige 50 pc(s)

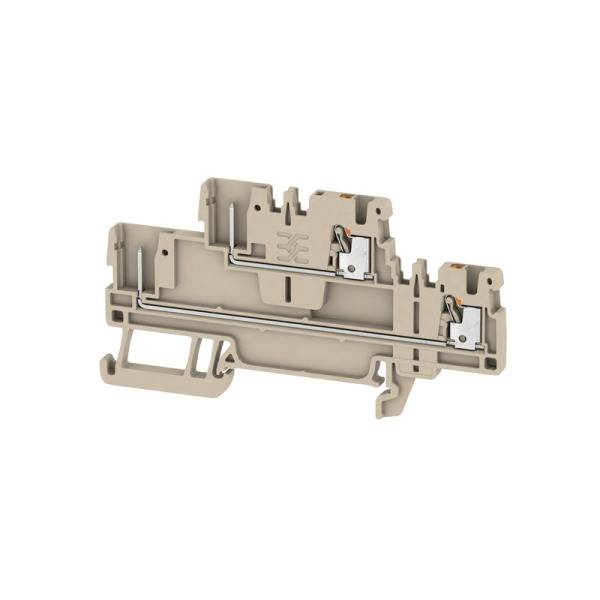

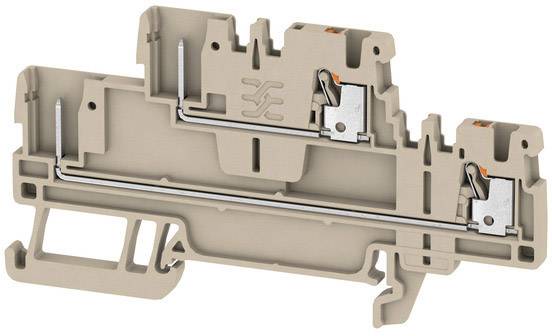

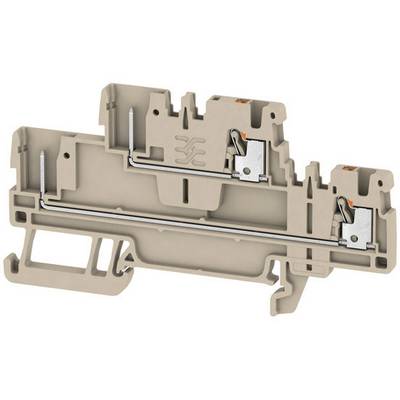

Terminal block with beige housing and metallic contact points. Used for electrical connections on DIN rails in control panels.
Image similar
Product type
Dual port continuity
Connection
Pull spring
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
5 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 1.36 / piece)
€ 67.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Set(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Double-level terminal block

  • APGTB 1.5 2T 4C/2

Technical specifications

Product type

Dual port continuity

Connection

Pull spring

Cross section (flexible) (min.)

0.50 mm²

Cross section (flexible) (max.)

1.50 mm²

Cross section (inflexible) (min.)

0.50 mm²

Cross section (inflexible) (max.)

1.50 mm²

AWG (min.)

26

AWG max.

14

Clamp width

3.50 mm

No. of rows

2

Pins per row

2

Number of pins

4

Factory colour

Beige

Nominal current

17.50 A

Nominal current - rounded value

17.5 A

Nominal voltage

500 V

Stripping length (max.)

8 mm

Manufacturer part #

2485840000

Content

50 pc(s)

Industrial packaging

Yes

Type

APGTB 1.5 2T 4C/2

Dim

(L x W x H) 45 x 3.50 x 84.50 mm

Width

3.50 mm

Height

84.50 mm

Length

45 mm

RoHS-compliant

Yes

Flammability rating

V0

Connector colour

Orange

Insulation material

Thermoplastic

UKCA

not relevant
