Name: Weller WCU Thermometer 0 - 400 °C
Brand: Weller
SKU: 3743091
Availability: InStock

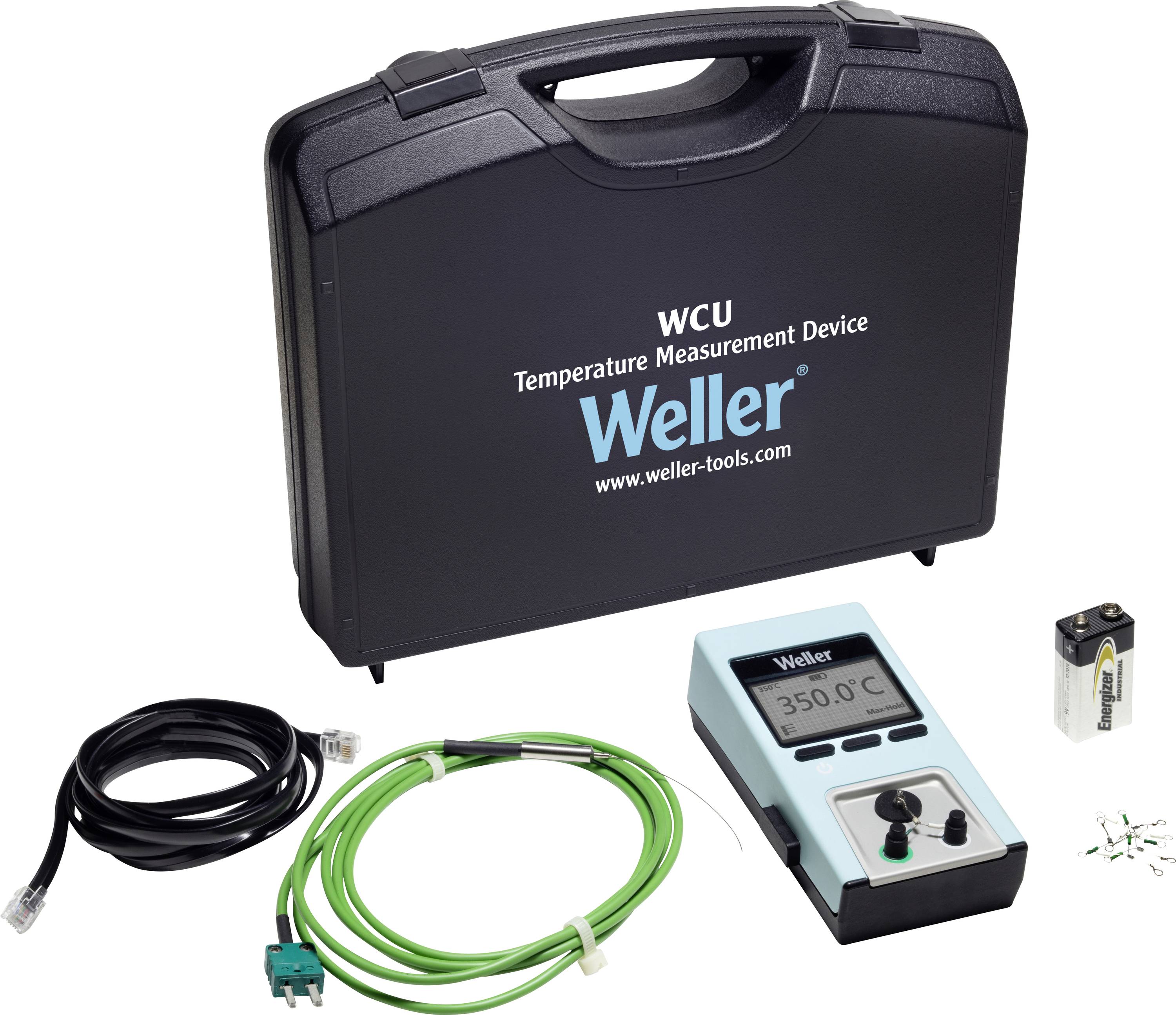

Weller WCU temperature measurement kit in carrying case with digital meter, sensor cables, and battery on white background.

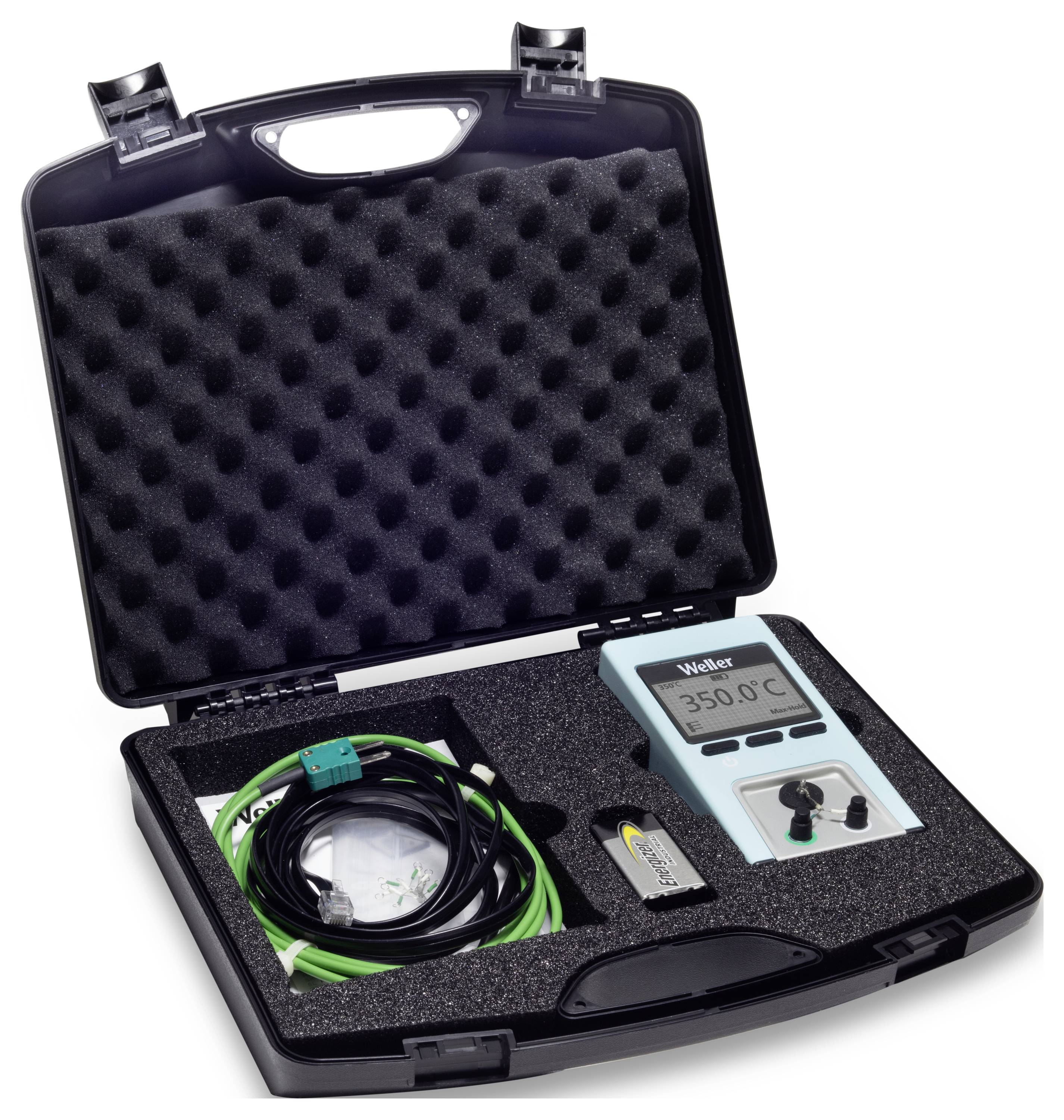

Open black carrying case with foam insert holding a handheld digital meter, coiled cable, and probe accessories.

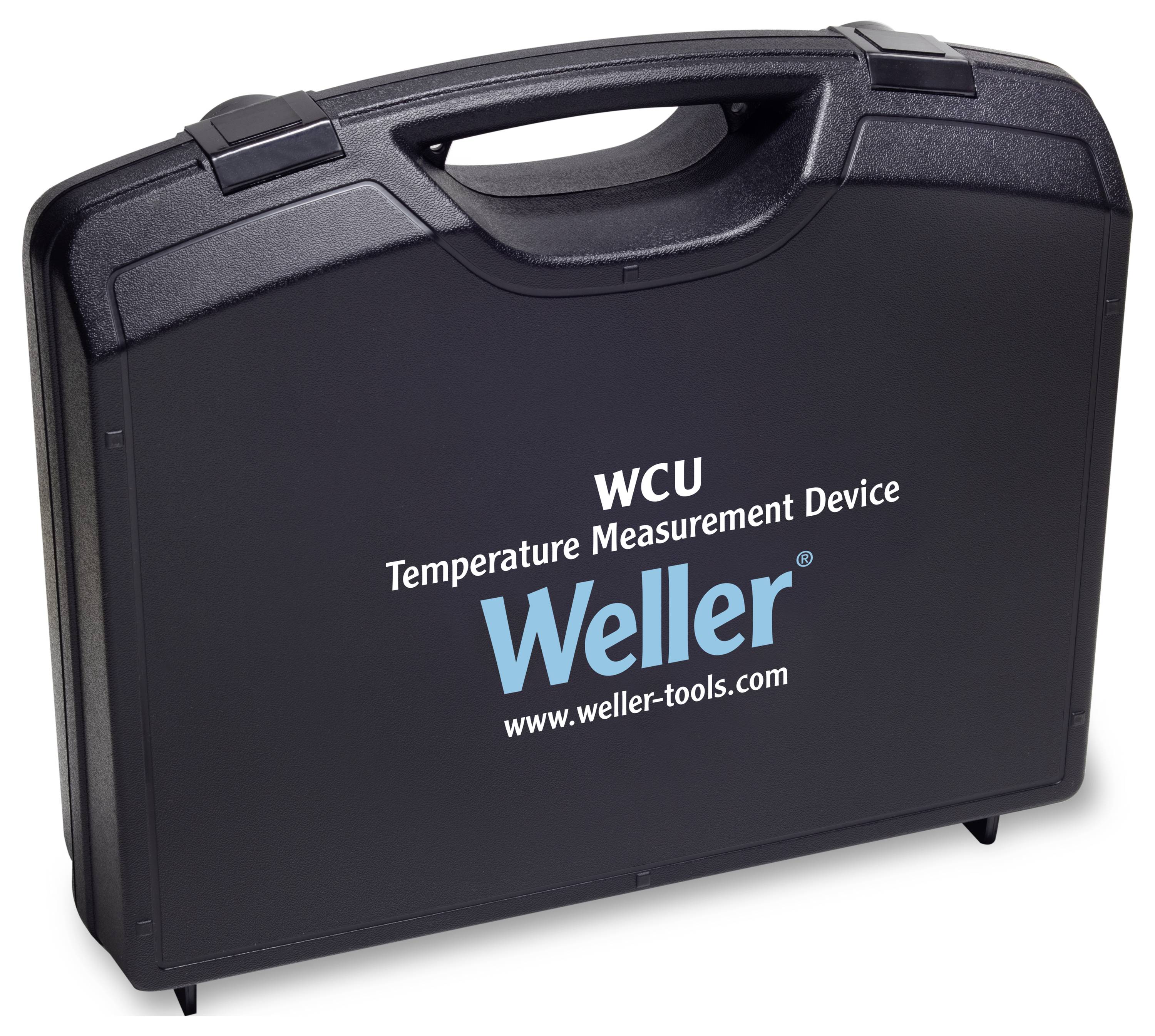

Black carrying case labeled 'WCU Temperature Measurement Device' and 'Weller' with website weller-tools.com.

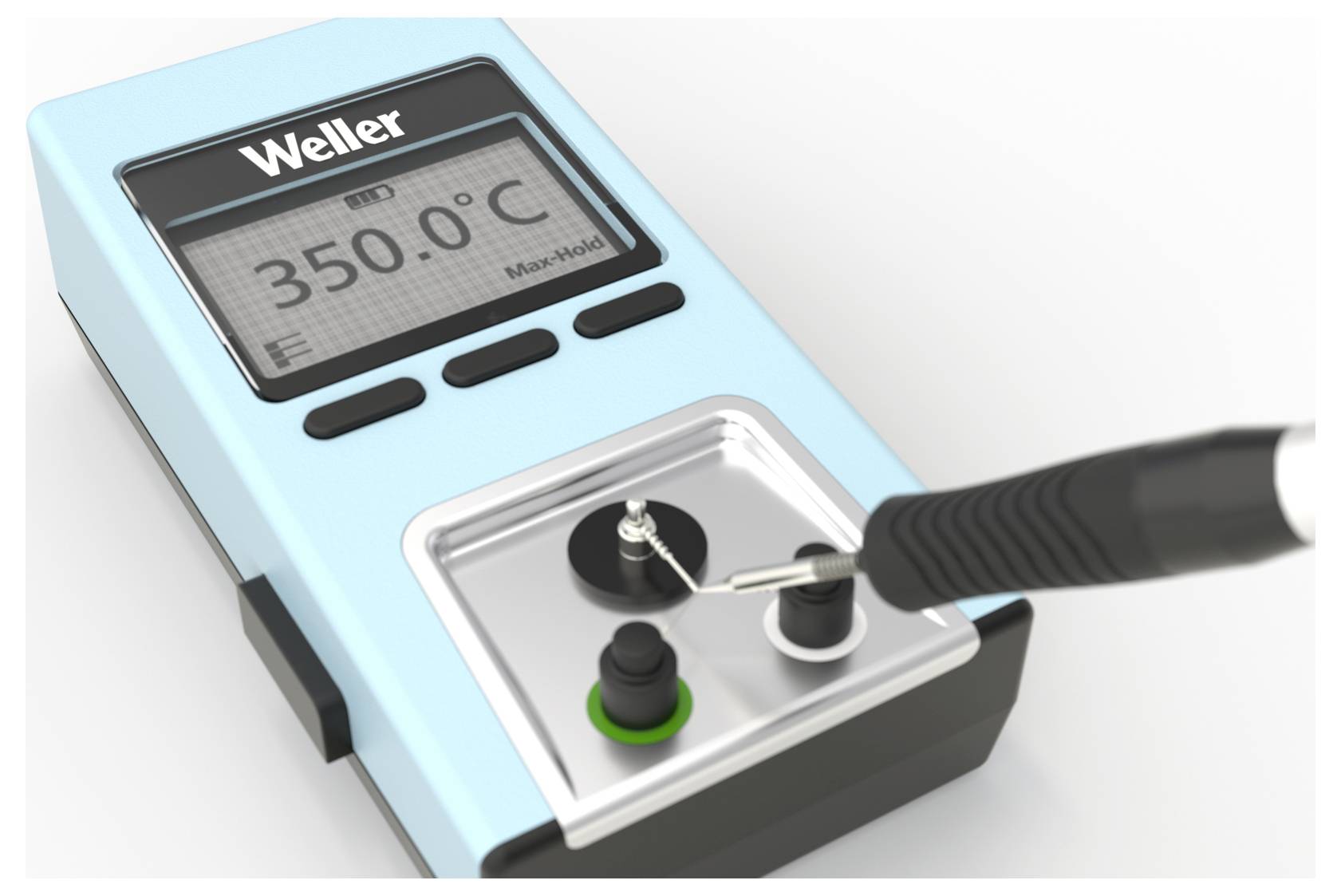

A Weller soldering station display shows '350.0°C' while a soldering iron is placed in the stand.<br>

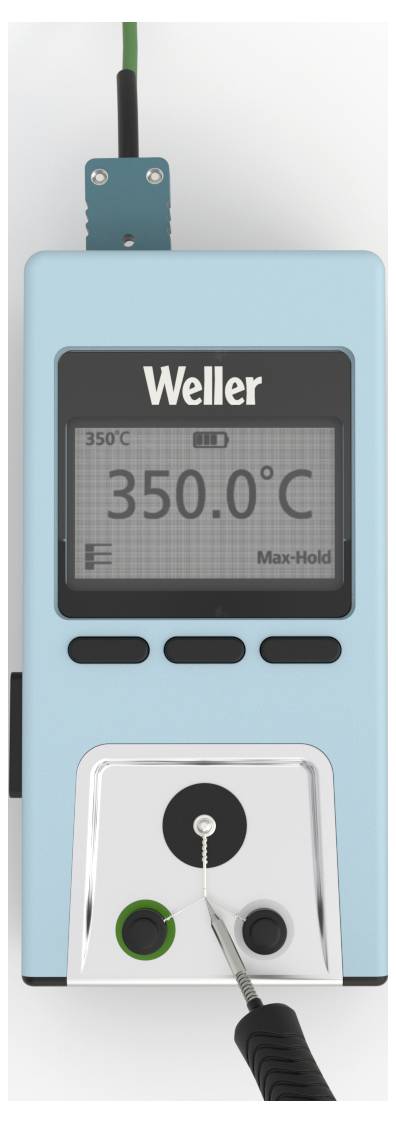

Handheld Weller soldering iron station display showing 350.0°C with control knobs and connected iron.

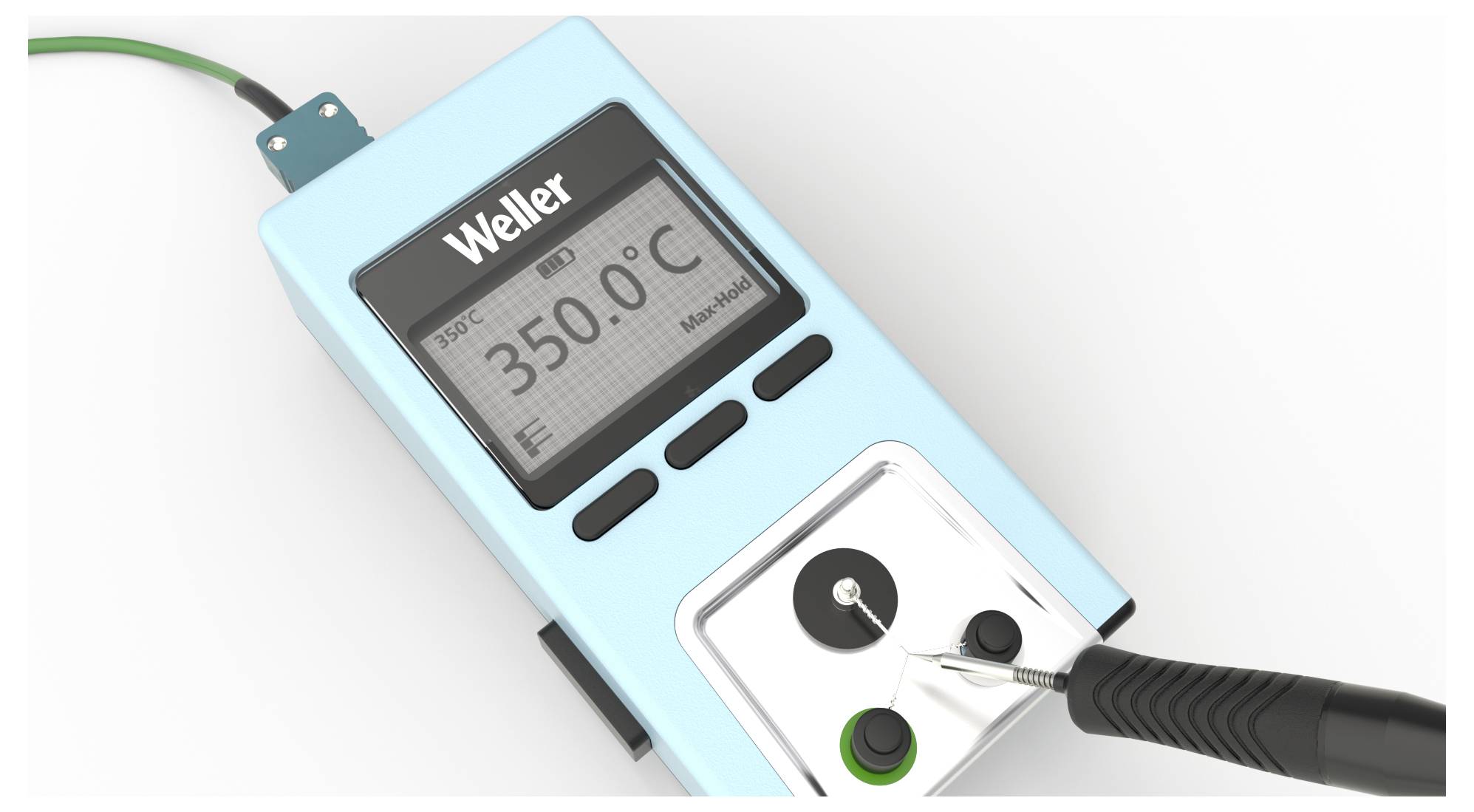

Weller soldering station display showing 350.0°C, with a soldering iron docked in the front holder and connected cable visible.

Wall-mounted ticket dispenser with a blue top panel, Ethernet port, and two USB ports above a black paper slot and output openings.<br>

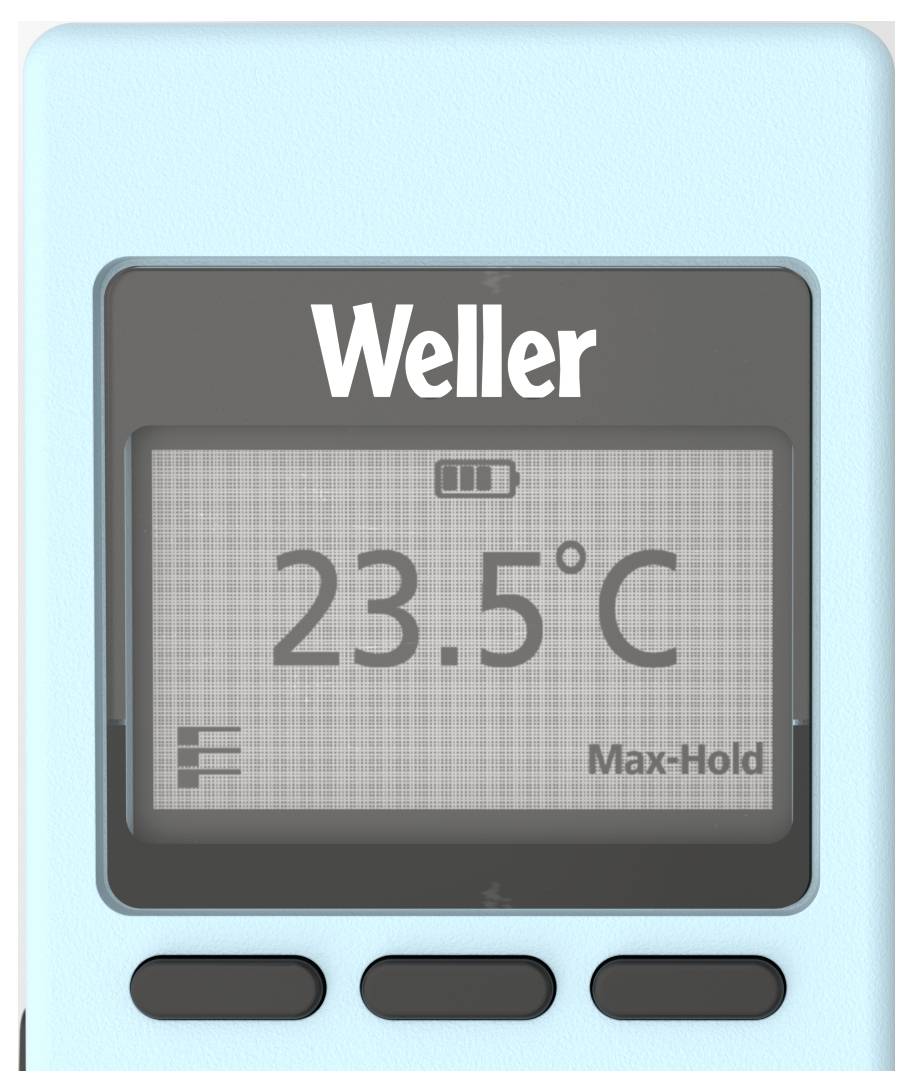

Weller digital thermometer display showing 23.5°C, battery icon, and 'Max-Hold' mode<br>

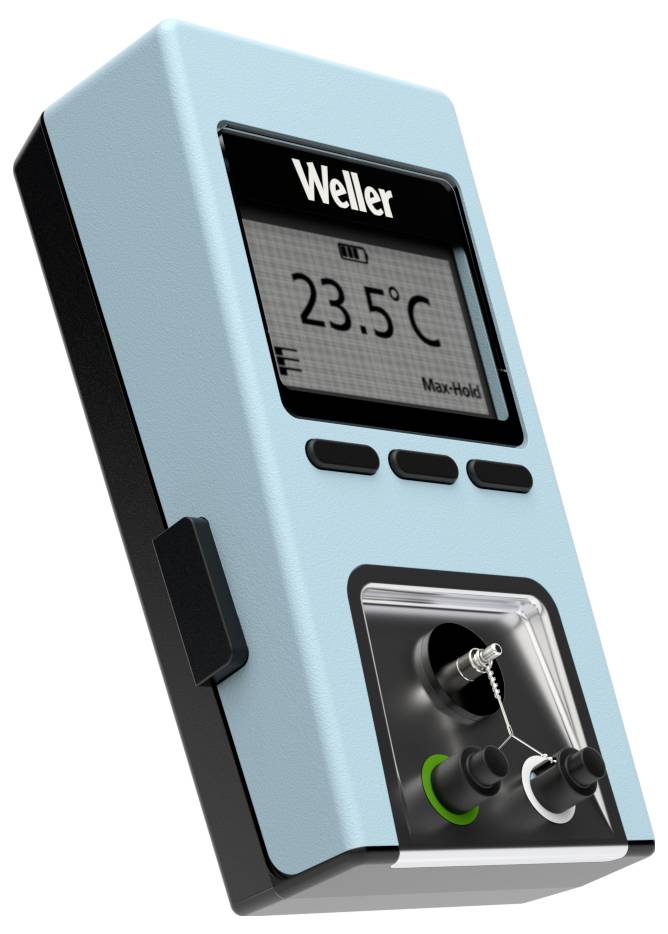

Portable Weller digital soldering station showing 23.5°C on the display and control knobs below.

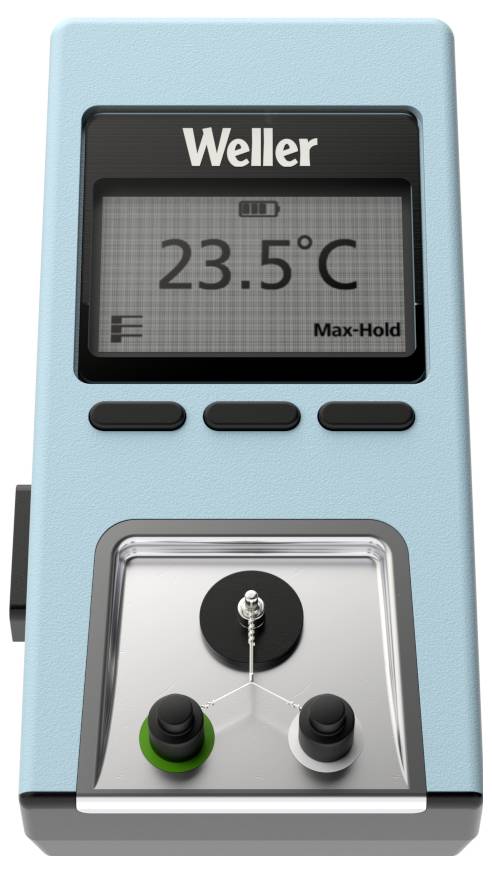

Front view of a Weller temperature-control station showing a 23.5°C display, 'Max-Hold' mode, and two control knobs below the screen.

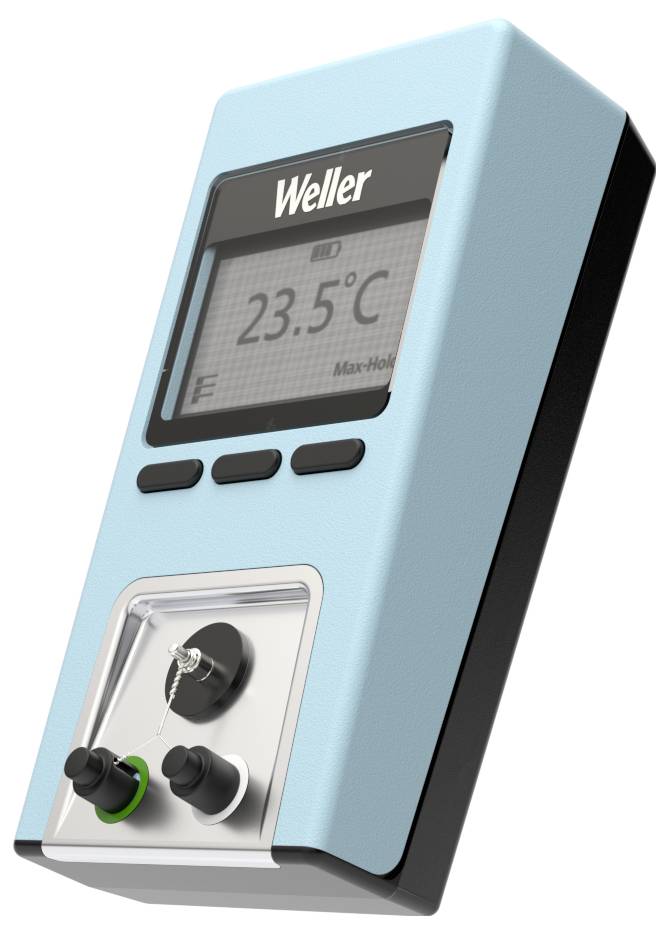

Handheld Weller soldering station showing a digital temperature of 23.5°C and three control buttons above the iron holder.

1/11

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 579.00 / piece)

€ 579.00

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Weller WCU mobile kit with high-precision thermometer

High-precision temperature meter
Fast change of the temperature unit between °C and °F and other functions
Simultaneous monitoring of temperature of soldering tip and solder bath
Max Hold function
Auto switch-off timer
ESD protection.

Technical specifications

Weight: 120 g (without battery)
Suitable sensor: K (CA) type thermocouple
Power supply: 9 V dry-battery. Alkaline cells are recommended.
Recommended battery: Ansmann XPower alkaline battery 9 V E-Block

Product type: Thermometer

Max. temperature: 400 °C

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 138 x 73 x 43 mm

Weight: 120 g

Width: 73 mm

Height: 43 mm

Length: 138 mm

Min. temperature: 0 °C

Type: WCU

Documents & Downloads

Datasheet

Datasheet 3743091 Weller WCU Thermometer 0 - 400 °C

User & Safety Instructions

User & Safety Instructions 3743091 Weller WCU Thermometer 0 - 400 °C

Description

The compact and highly precise Weller WCU temperature measurement device enables you to perform the most accurate temperature measurements quickly. It was developed especially for users, who quickly and easily have to perform a temperature measurement with the highest accuracy. It has a large display without backlight.

This text is machine translated.

Features

High-precision temperature measuring device: Effortless auto calibration in less than 10 seconds so that the operator can concentrate on the important soldering tasks and obtain a precise temperature for best productivity
The auto-calibration function can be used with the following devices: WX 1, WX 2, WXD 2, WXA 2, WXR 3, WXsmart
The battery-operated, highly precise and compact temperature measuring device of Weller can be used without any problem in different work places
Fast change of the temperature unit between °C and °F and other functions
Simultaneous monitoring of temperature of soldering tip and solder bath
(Weller thermocouple type K Ø 0, 1 mm T0058755782)
(Weller thermocouple type K Ø 0, 5 mm T0053119099)
Number of peak temperature measurements is counted automatically. This function can be useful for controlling the sensors
Max Hold function: The WCU display shows and maintains the maximum temperature measured
Auto-switch-off timer switches the device off after 10 minutes without use and thus saves energy
ESD-safe: Exchange sensor WCU, 10 pc. T005771712

Scope of delivery

Weller WCU calibration unit
5x WCU sensors
Ansmann XPower alkaline battery 9V E Block
Thermal element type K Ø 0.5 mm
WX connection cable
Mobile WCU kit case

Hints

NOTE: An RS-232 cable (part number: T0058764710) must be purchased separately for the auto calibration function.
