Name: Weller WXUPS Soldering kit 150 W 100 - 450 °C
Brand: Weller
SKU: 2987790
Availability: SoldOut

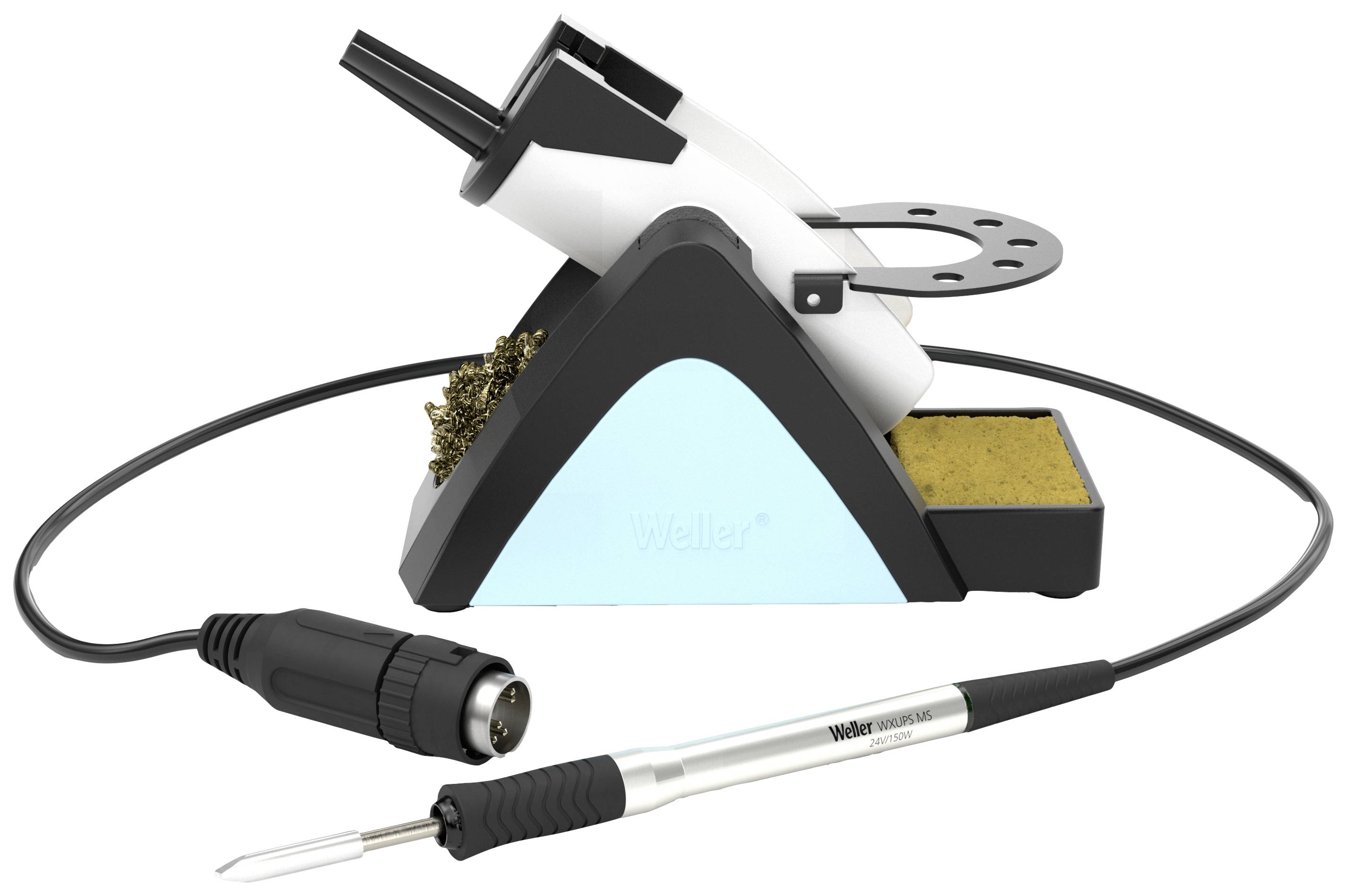

Soldering station with electric soldering iron, stand, cleaning sponge, and connection cable; suitable for precision soldering work.

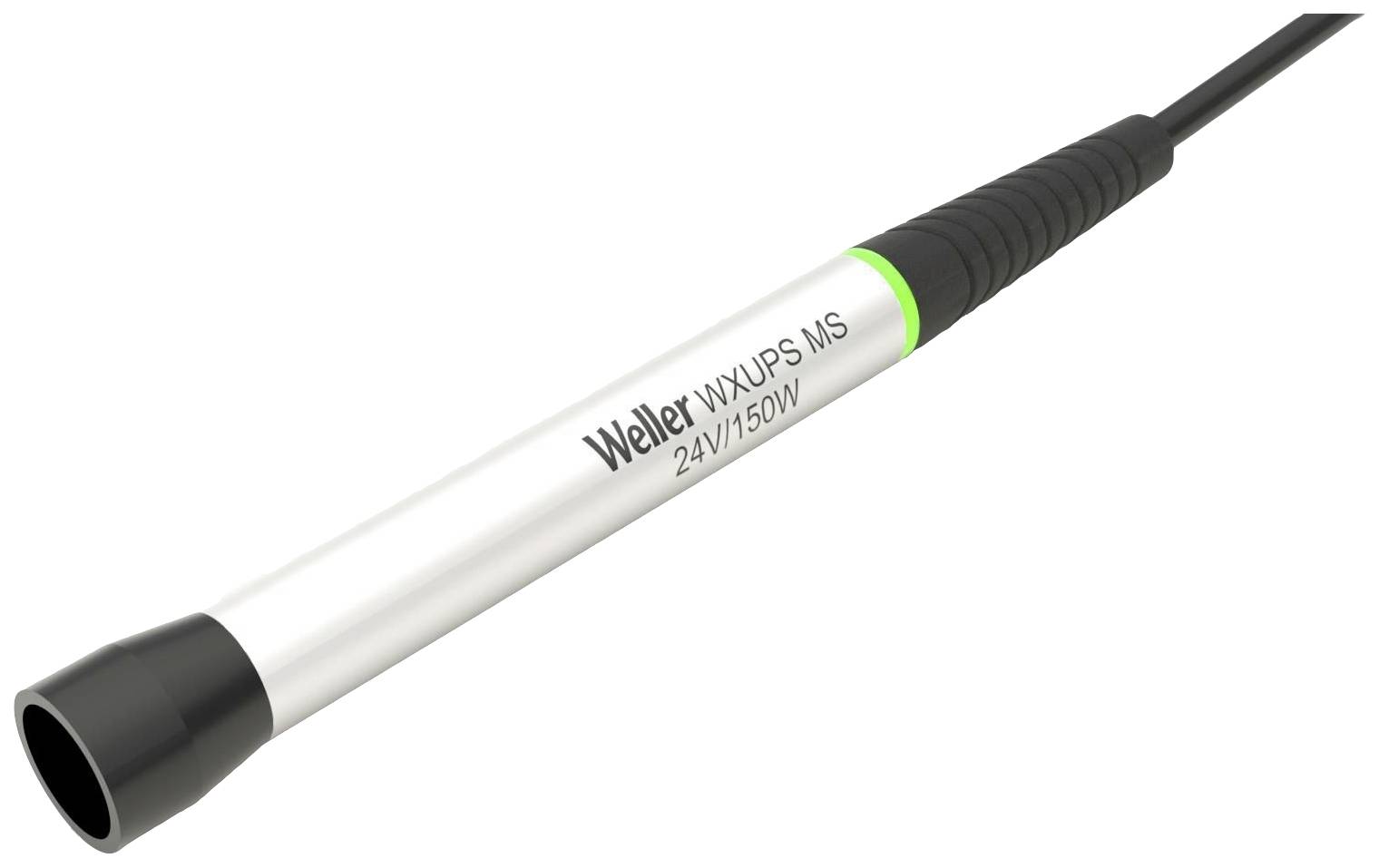

Weller soldering iron, model WXUPS MS, 24V/150W, with black and green design, suitable for precision soldering work.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 405.00 / piece)

€ 405.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

WXUPS MS handset
Heating-up time: 7 sec.
RTUS 032 MS soldering tip
Tip size 3.2 x 0.8 mm
Tip form: Chisel

Product type: Soldering kit

Max. power: 150 W

Max. temperature: 450 °C

Preheat time: 7 s

Operating voltage: 24 V AC

Min. temperature: 100 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987790 Weller WXUPS Soldering kit 150 W 100 - 450 °C

Information

Information 2987790 Weller WXUPS Soldering kit 150 W 100 - 450 °C

Description

Soldering iron set for high demands. Highest performance with the new soldering iron kit. Weller Smart has developed tips to meet the increasing demands of complex, high-performance soldering applications. These tips have an integrated chip in each tip, which offers the user many new functions. The ultra soldering tips provide optimized heat transfer with a maximum power of 150 W and a power of 24 V for very large components.

This text is machine translated.

Features

Efficiency and quick heating-up times
The high-power soldering iron WXUPS uses the Active Tip Technology (cartridge) of Weller for an optimized heat transfer with 150 W maximum power at 24 V. The extremely fast heating time of 7 seconds offers an excellent heat transfer and recovery time during the soldering process for a powerful, continuous work routine. The short distance between tip and handle ensures maximum precision during soldering.
Accurate and fast heat transfer as well as fast recovery time
The optimal position of the sensor close to the soldering tip provides for an outstanding heat transfer, maximum power and recovery time.
High performance to the point
Thermal Core Technology delivers 150 W power and conducts the heat through the connection, even in case of precisely soldered multilayer PCBs.
Simple tool identification with visual process control
The identification of the attached tool is fast and easy owing to the integrated RGB ring light. You can easily adjust the light colors to your own preferences.
Complete process control
Smart soldering tips with an individual serial number, smart tools for storing data parameters and a smart soldering station ensure a complete process control and complete traceability of the calibration history.
Quick, safe and simple tip change
The patented Weller RT cartridge tips can be changed quickly in spite of the hot temperatures and without the need for additional tools, holder or pad.
Reduced power consumption thanks to a motion sensor
The soldering iron goes into "standby mode" when it is not in use. Just move the soldering iron to regain the working temperature within seconds.
Maximum protection
The intelligent soldering irons and soldering tips from WXMPS MS (military standard) fully comply with the IPC-industry standards (IPC-TM-650 2.5.33 Measurement of Electrical Overstress from Soldering Hand Tools) and are also MIL-SPEC-compliant. This ensures maximum protection for the circuit board as well as the components and excellent results while keeping operating costs low.

Scope of delivery

T0052923599 WXUPS MS Ultra soldering iron handset 150W, 24V for RTUS MS Ultra soldering tips
T0050113299 RTUS 032 S MS Ultra Soldering tip, chisel 3.2 x 0.8 mm

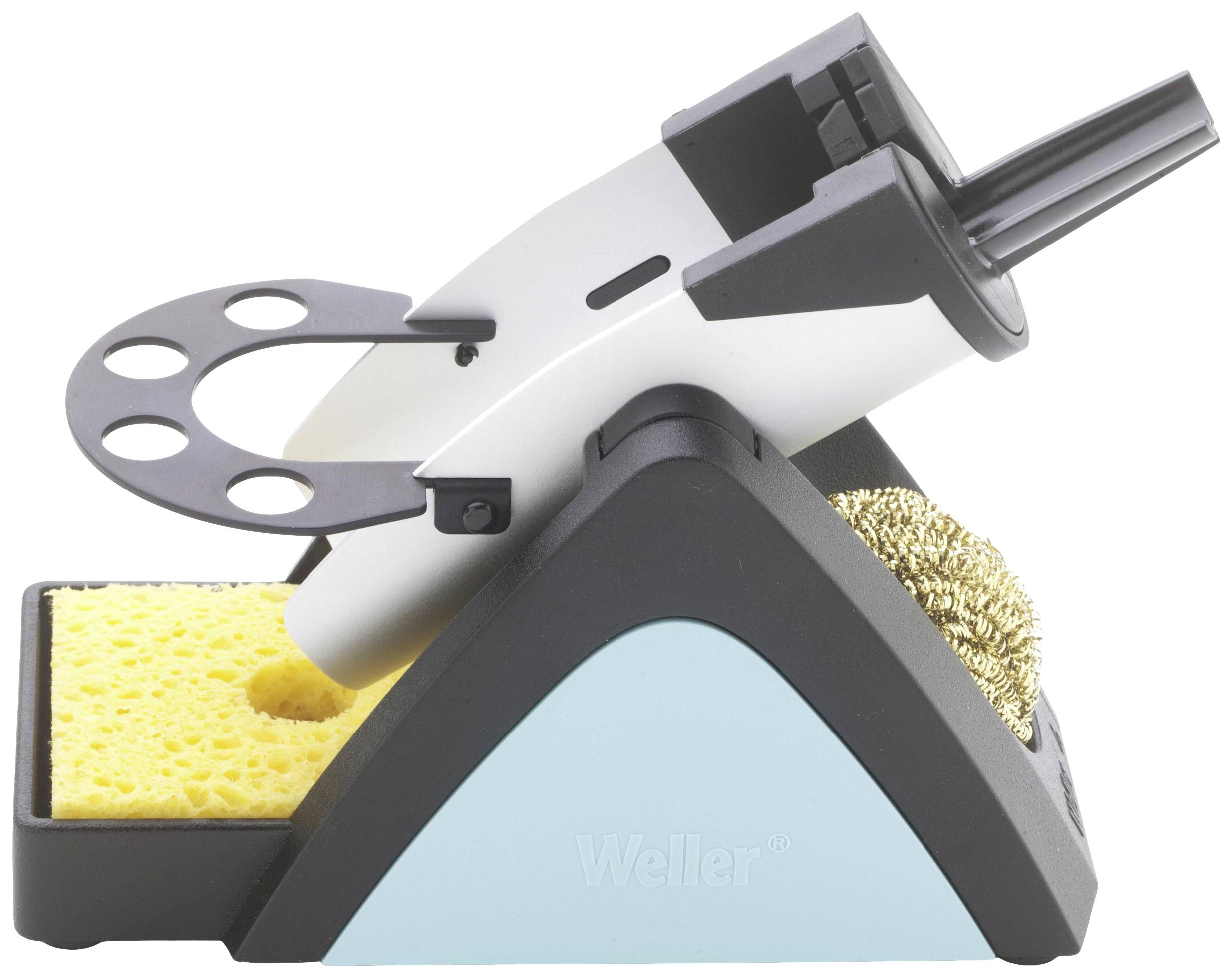

T0051517499N WSR 200 safety rack
