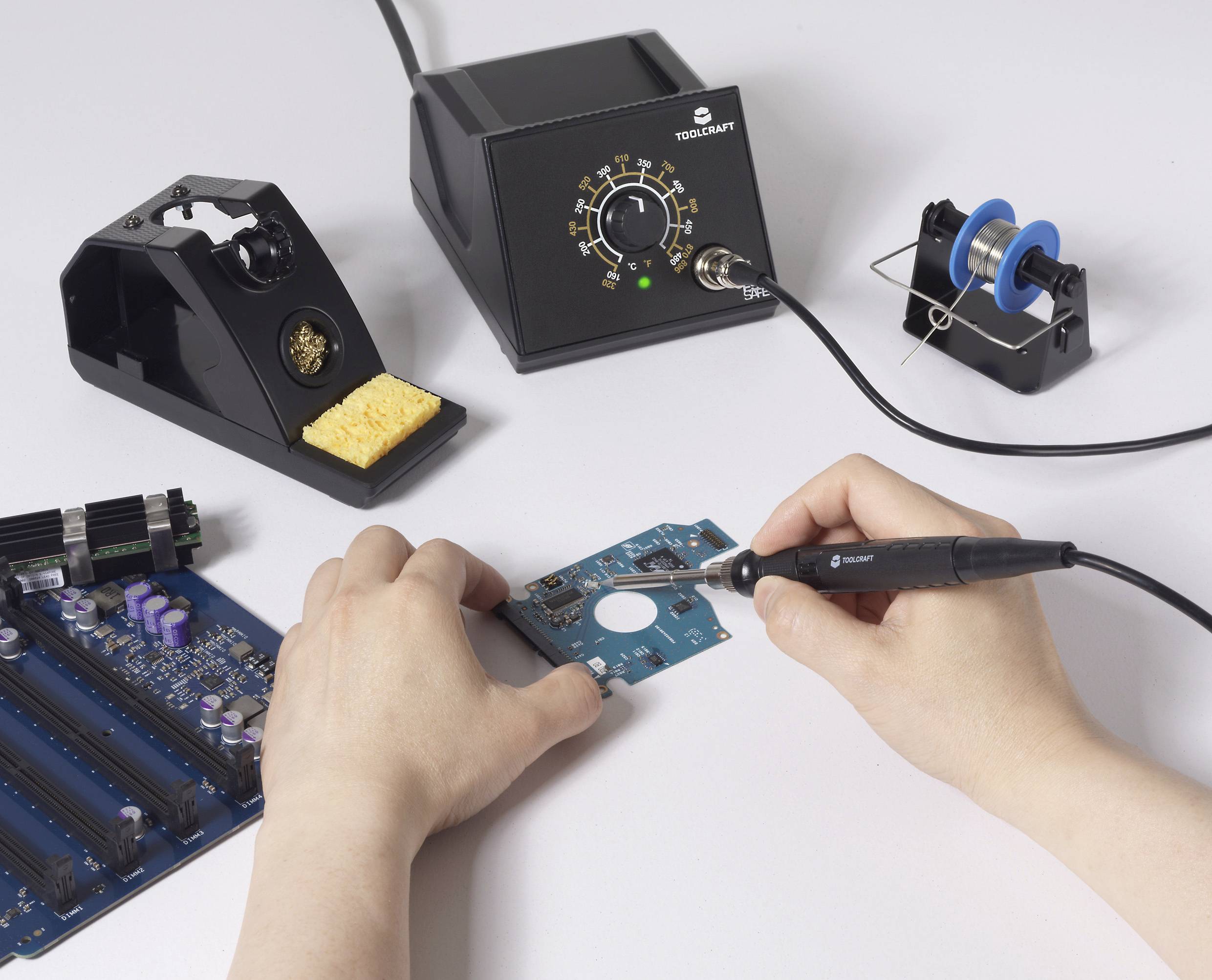

A person soldering electronic components on a circuit board using a soldering iron, with a soldering station and spool nearby.

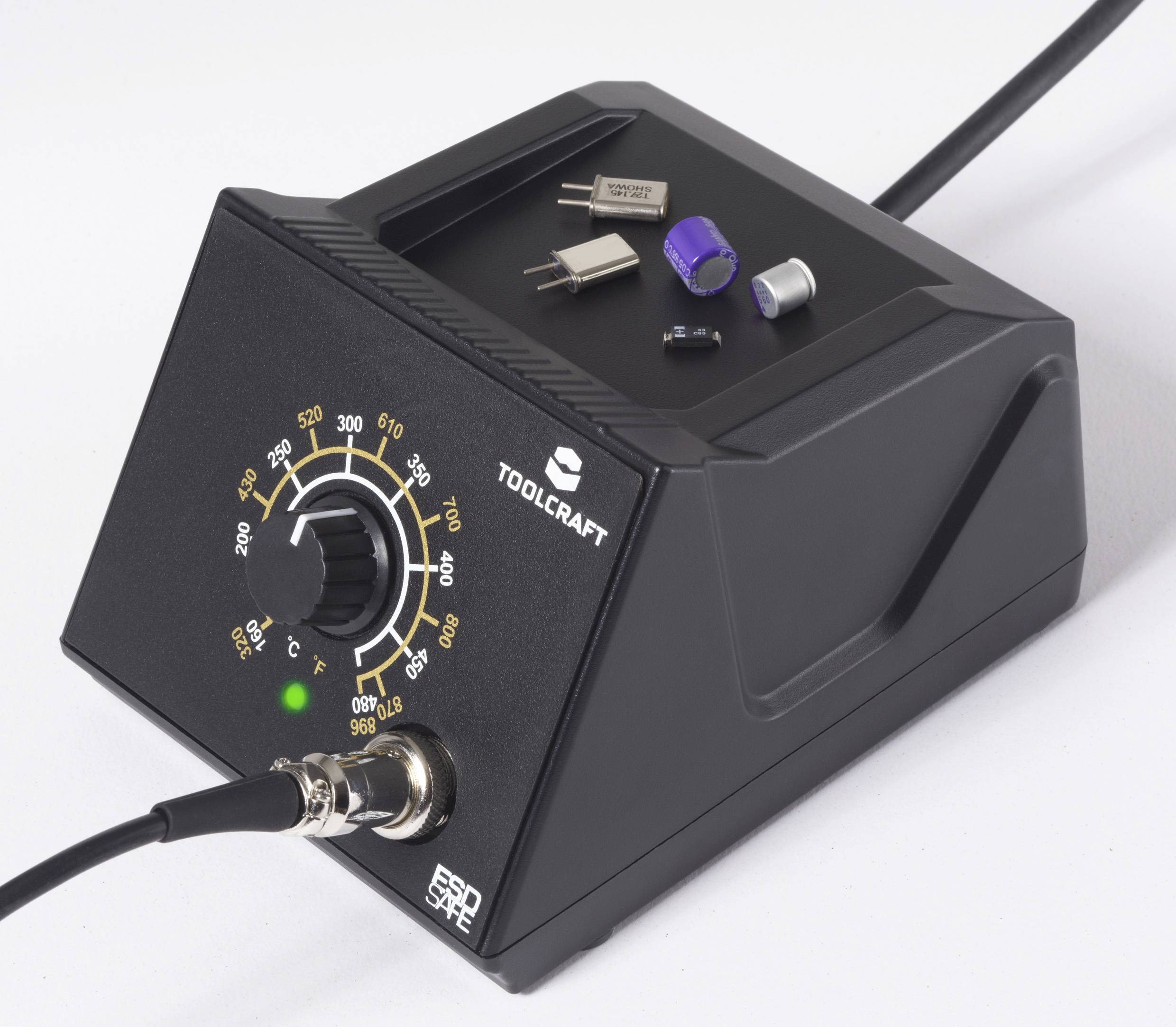

A black soldering station with a dial showing temperature settings from 60°C to 620°C. Small electronic components rest on top.

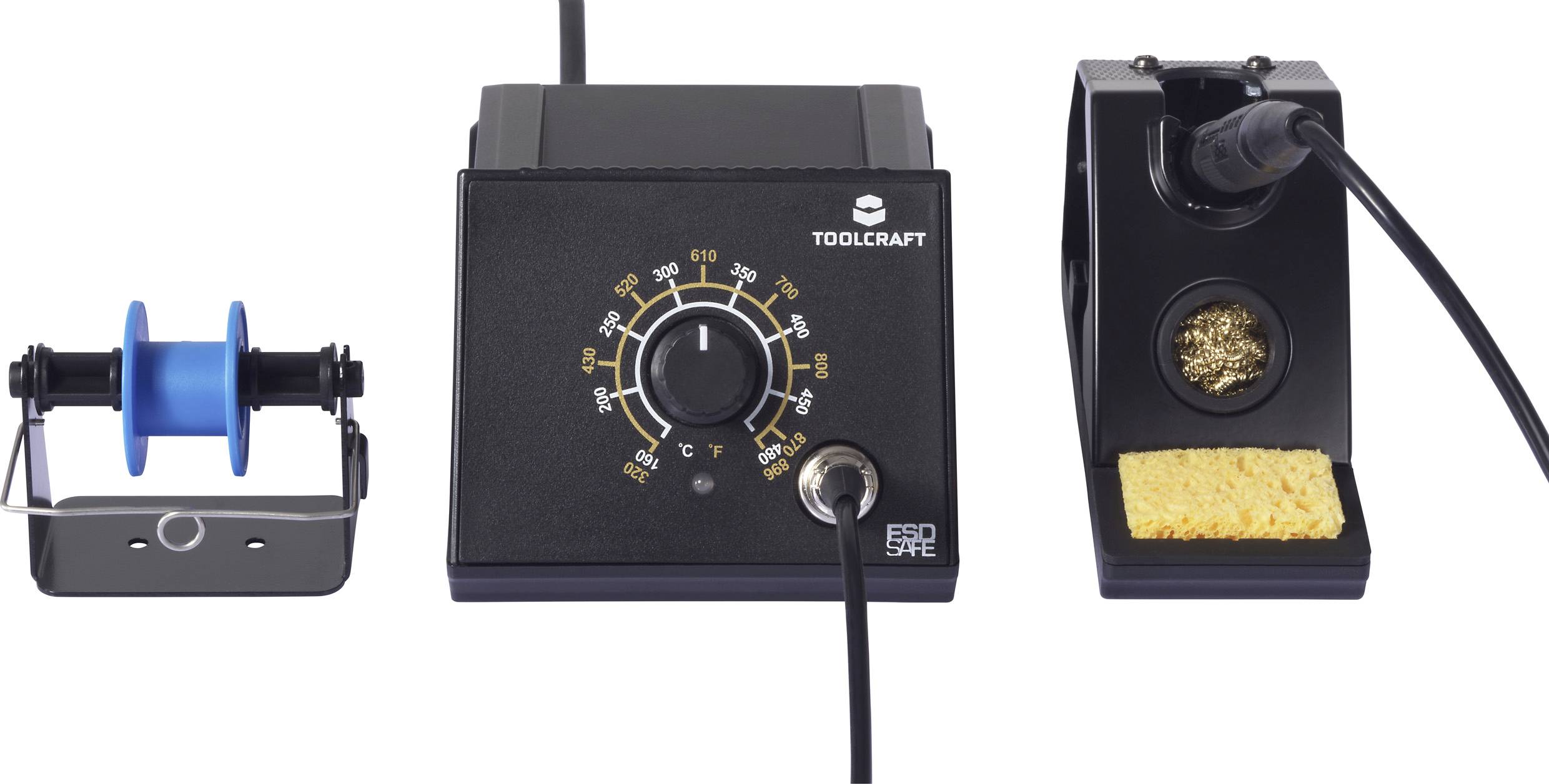

Soldering station set with temperature control unit, solder spool holder on the left, and soldering iron with a cleaning sponge on the right.

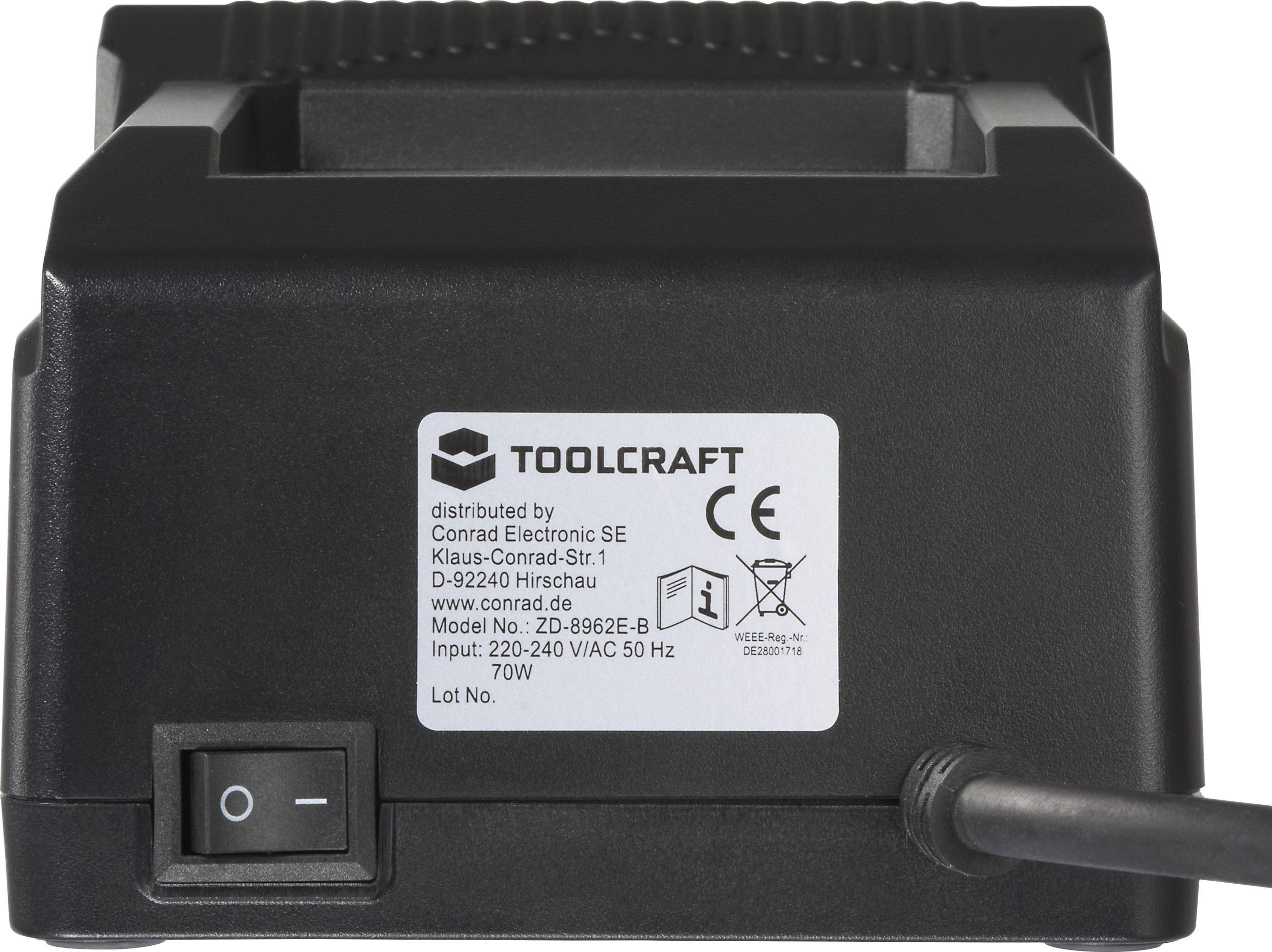

'TOOLCRAFT' black power adapter with a switch and label showing electrical specifications and compliance marks.

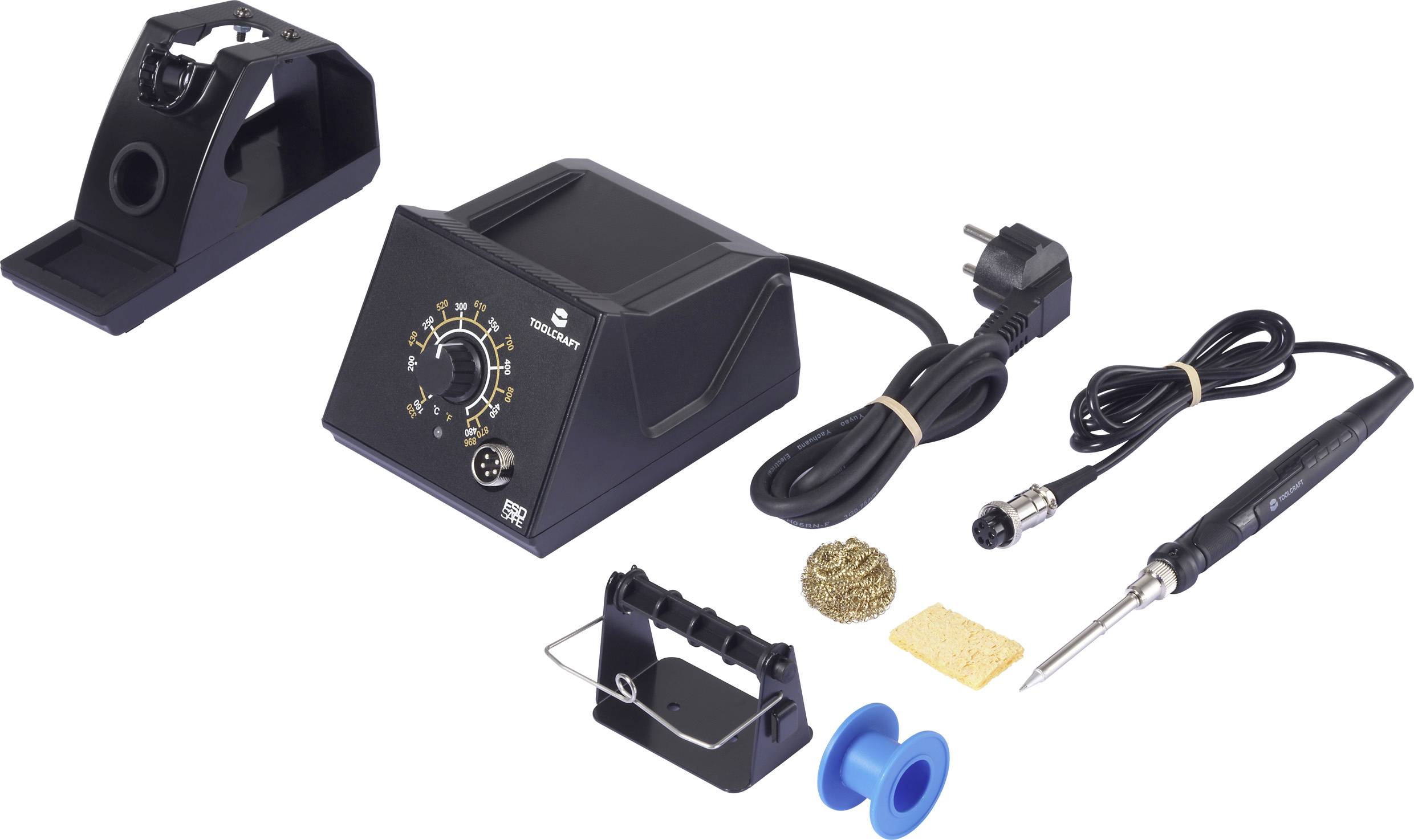

'Soldering station kit with adjustable temperature control unit, iron holder, soldering iron, cleaning sponge, wire tip cleaner, and power cord.'

1/6

TOOLCRAFT

Our service for you

Datasheet (PDF)

English

Fast track dispatch on Wed, 23 Sep

1687 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 35.29 / piece)

€ 35.29

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

TOOLCRAFT TO-ZD-8962E-B analogue soldering station, 70 W

Temperature range: 160 to 480 °C
Rapid heating (heating time 10 s to 300 °C)
Temperature control knob with LED light indicating the temperature status in real time
Include sleep mode and temperature preset function
Temperature unit conversion (°C/°F)
Automatically switches to standby mode if not used for 5 minutes
Standby mode temperature 200 °C

Technical specifications

Colour: Black
Product material: ABS
Cable length: 1.25 m
Soldering iron cable length: 1.1 m

Product type: Soldering station

Max. power: 70 W

Power supply (LOV): mains-powered

Max. temperature: 480 °C

Display: Analogue

Dim: (L x W x H) 115 x 157 x 92 mm

Preheat time: 10 s to 300 °C

Operating voltage: 230 V AC

Weight: 2.05 kg

Soldering iron features: + soldering tip

Width: 157 mm

Height: 92 mm

Length: 115 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

English

Datasheet 3411542 TOOLCRAFT TO-ZD-8962E-B Soldering station Analogue 70 W 480 °C (max) + soldering tip

User & Safety Instructions

User & Safety Instructions 3411542 TOOLCRAFT TO-ZD-8962E-B Soldering station Analogue 70 W 480 °C (max) + soldering tip

Warranty Terms

Warranty Terms 3411542 TOOLCRAFT TO-ZD-8962E-B Soldering station Analogue 70 W 480 °C (max) + soldering tip

Description

Features

LED light for indicating the temperature status:
Red LED on when the it is heating up
Green LED on when the set temperature is achieved
Green LED blinks indicator signifies standby mode
Power consumption: 70 W
Microprocessor-controlled
High-quality ceramic heating element
Iron tip dry cleaner
Tip tray
Compact soldering iron

Scope of delivery

Soldering station with power cord
Soldering iron with tip
Soldering iron stand with soldering wire holder
Sponge
Clean ball
User manual
