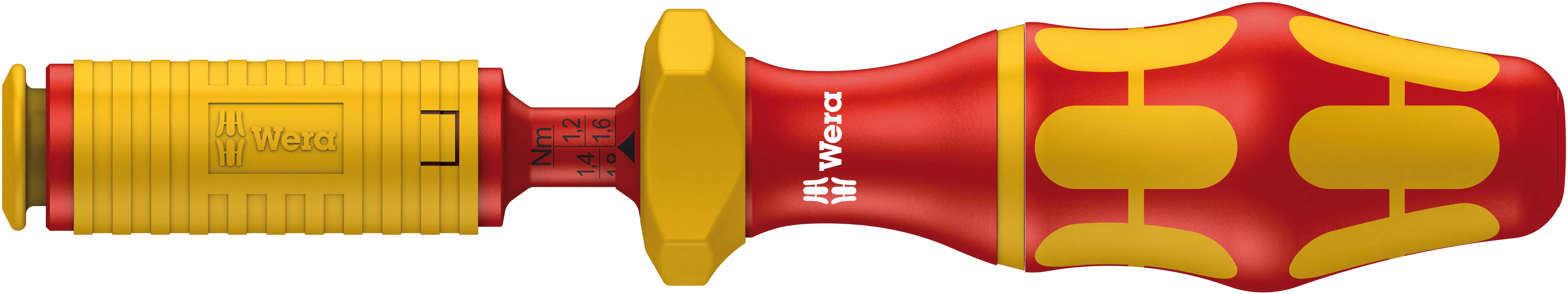

Wera 7400 VDE Torque screwdriver 1.2 - 3 Nm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
Only 9 Piece(s) available
Highlights & Details
VDE power form adjustable torque hand holder 7400 Series
- Adjustable torque from 1.2-3.0 Nm
- Simple to set torque value
- Distinctly audible and noticeable signal when the pre-set torque is reached
- Insulated VDE blades for safe working with loads up to 1,000 volts
Technical specifications
- Product type
Torque screwdriver
- Range of use
VDE
- Drive
9 mm
- Torque (min.)
1.2 Nm
- Torque (max.)
3 Nm
- Tolerance ±
6 %
- Length
192 mm
- Width
70 mm
- Height
40 mm
- Weight
220 g
- DIN standard
DIN EN ISO 6789
- Screwdriver features
Multi-purpose tool grip
adjustable
- EN standard
EN ISO 6789
- Standards
EN ISO 6789
TRUE
220 kg/m
200 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 408088 Wera 7400 VDE Torque screwdriver 1.2 - 3 Nm
User & Safety Instructions
User & Safety Instructions 408088 Wera 7400 VDE Torque screwdriver 1.2 - 3 Nm
Description
Torque VDE hand-holder for safe working up to 1000 Volts. With adjustable torque of 1,2-3.0 Nm. Clearly audible and perceptible rotational torque triggered upon reaching the set value Unlimited manual loosening torque. For power compact form VDE-blades: the handle/Blade System can lightning-fast exchange of the required blade and thus a wide range of applications.
Features
- Application: Only for Wera Kraftform Compact VDE - interchangeable blades
- Precision: ±6% (EN ISO 6789). Numerical torque value display. With click-signal
- Handle: Force Form with roll-off protection, multi-component.
Hints
This text is machine translated.
