Wiha 45218 Handheld multimeter Digital CAT III 600 V, CAT IV 300 V

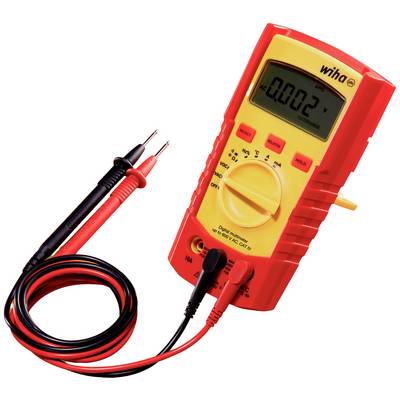

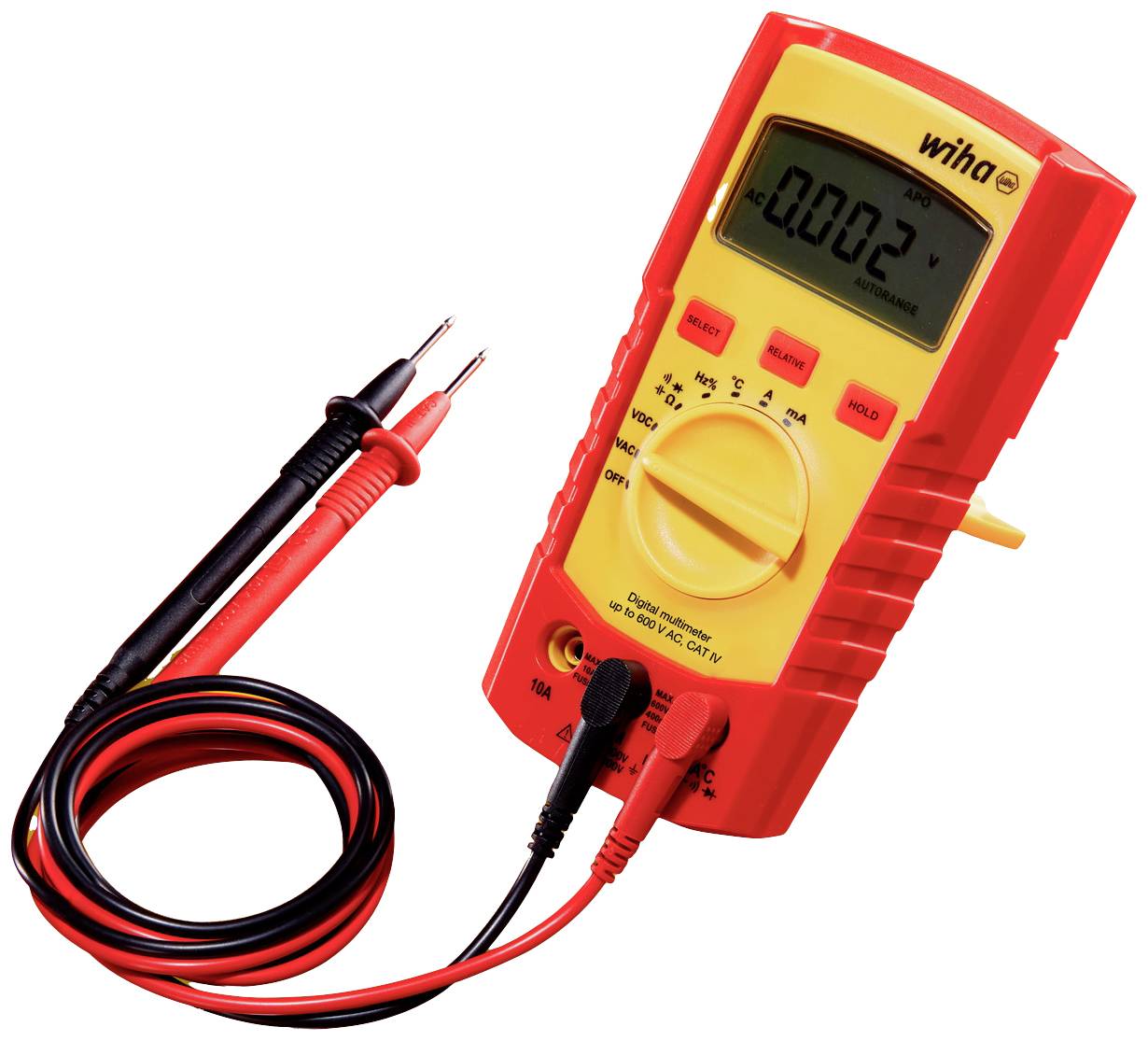

Digital multimeter with red and yellow casing. Displaying '0.002' on the screen. Black and red test leads connected.

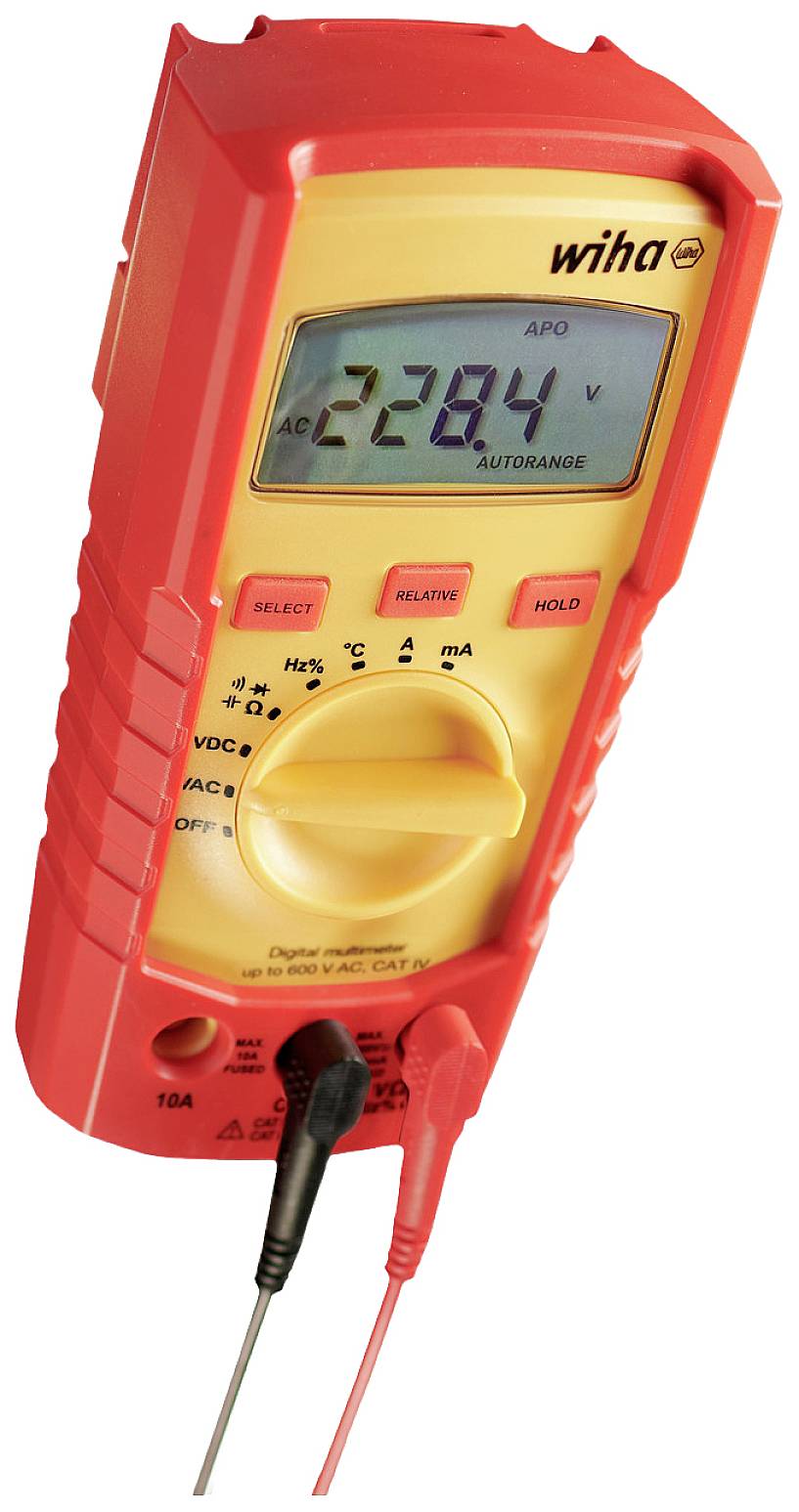

Red digital multimeter shows a measured value of 228.4 volts. The device has a rotary switch and two measurement leads, black and red.

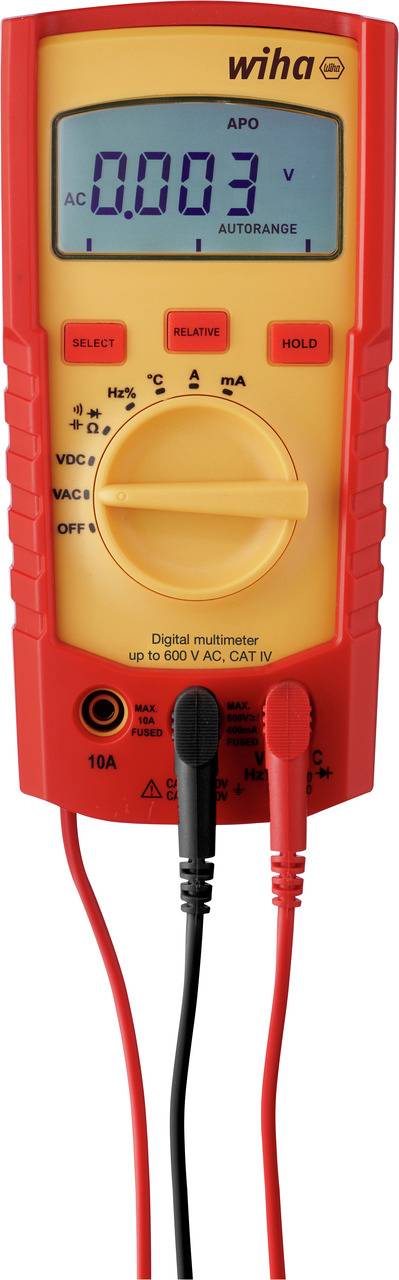

A digital multimeter displays '0.003 V AC'. It has red and black test leads. The device measures voltage and resistance.

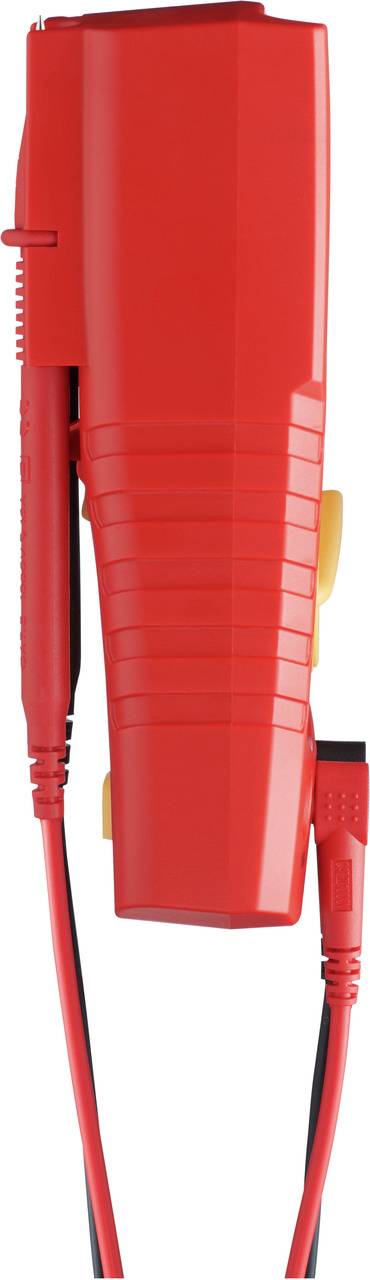

Red test probe with cables, ergonomic design. Used for electrical measurements, side view.

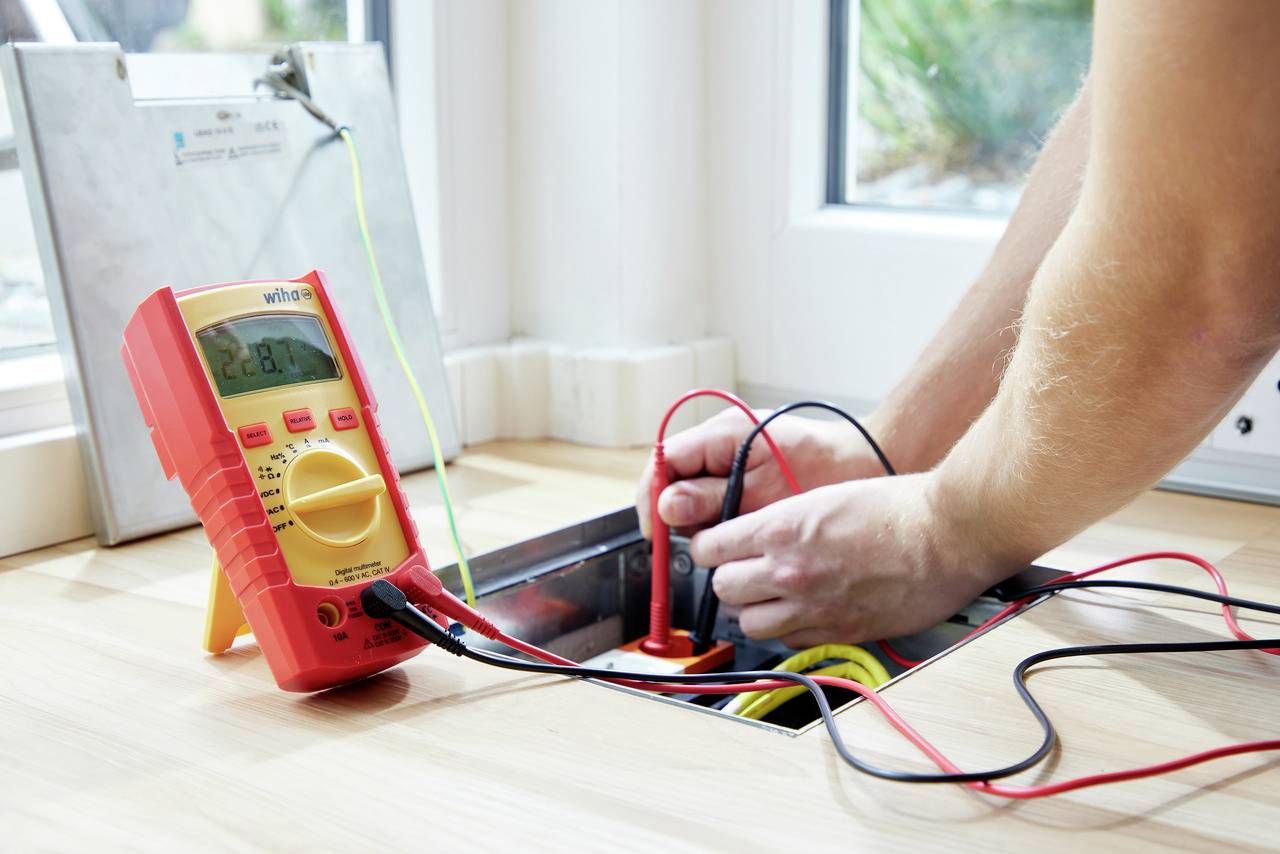

A person is measuring the electrical voltage in a cable chamber using a digital multimeter. Cables are connected.

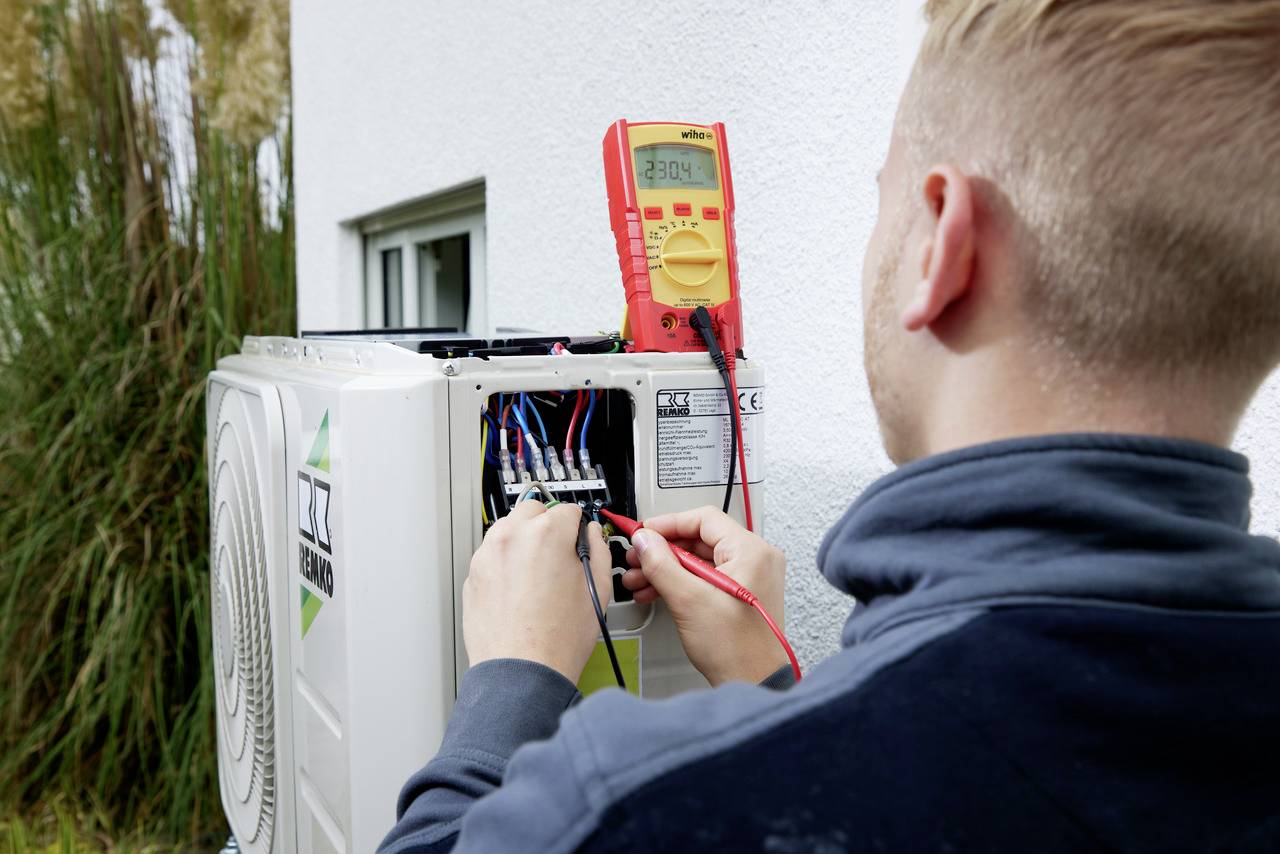

A technician is checking the cable connections of an installed heat pump on an exterior wall using a multimeter.

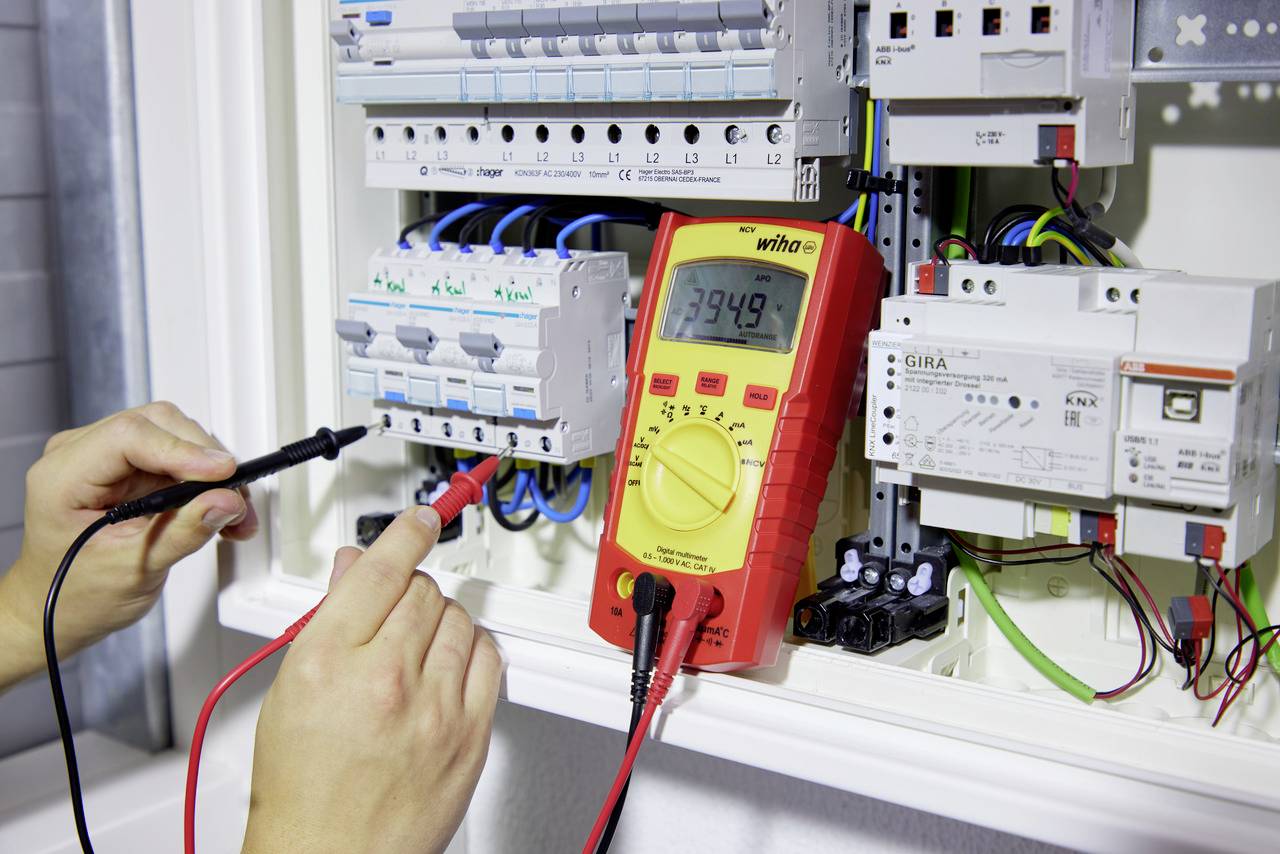

Two hands are using a multimeter on an open electrical cabinet to test electrical connections, focusing on the measured value of 394.9.

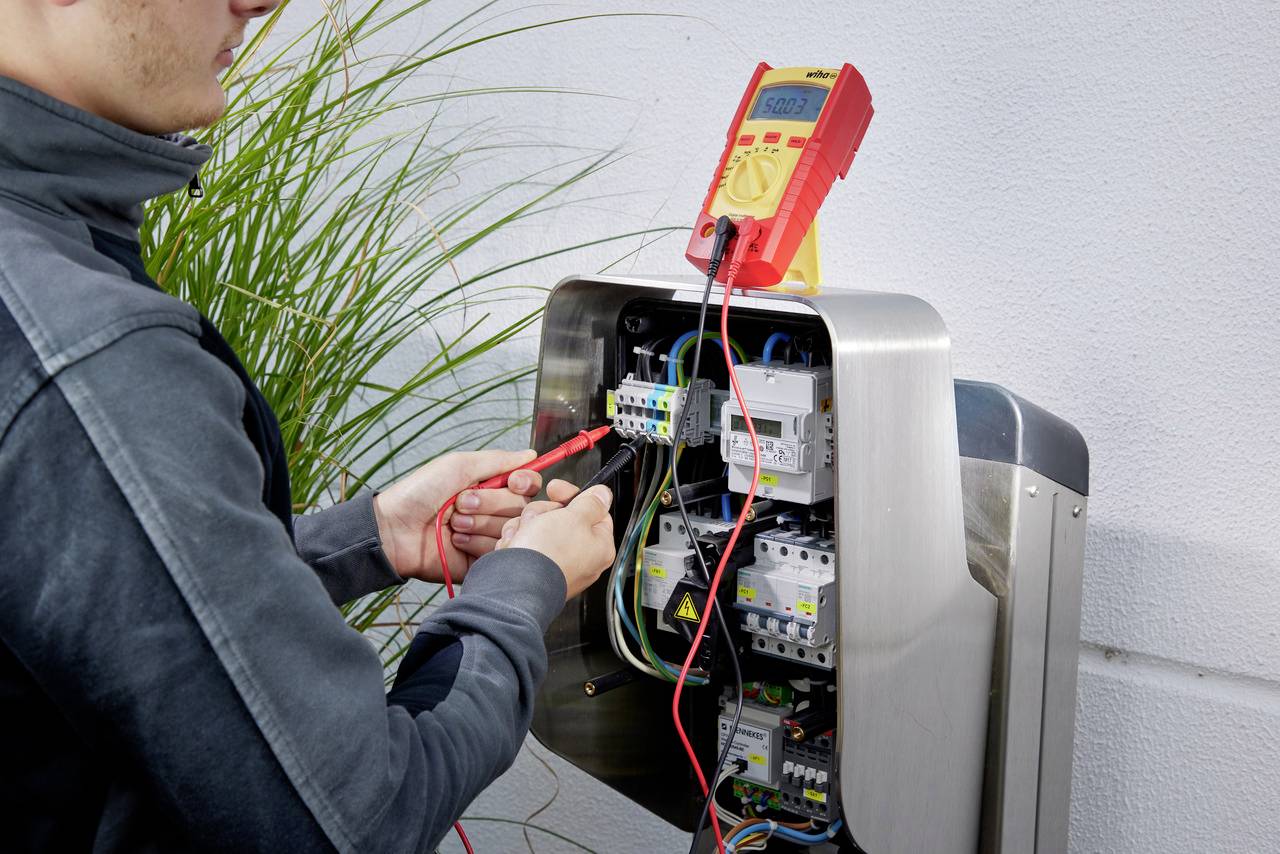

A person is checking electrical connections in an open control panel with a multimeter.

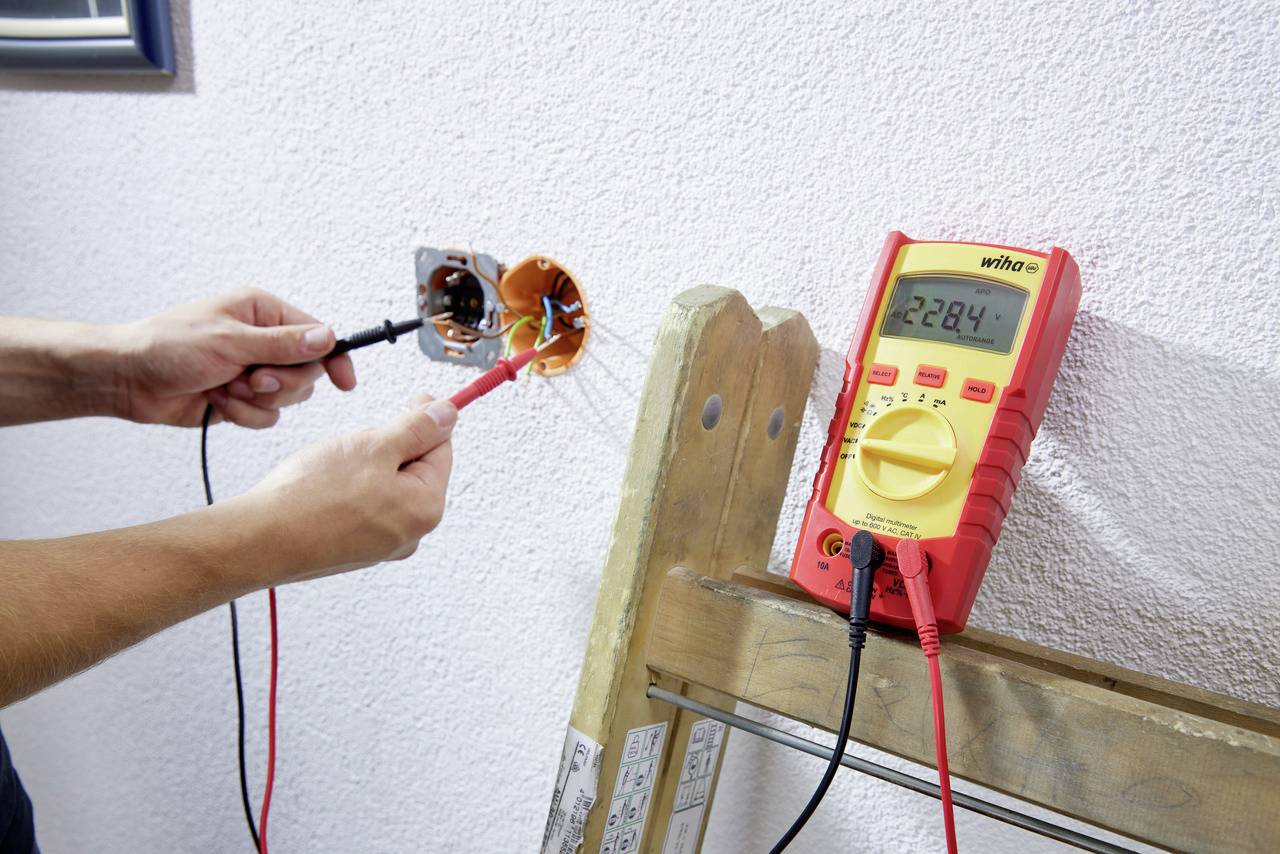

A person is measuring the voltage in a socket with a multimetre standing on a ladder, which indicates 228.4 V.

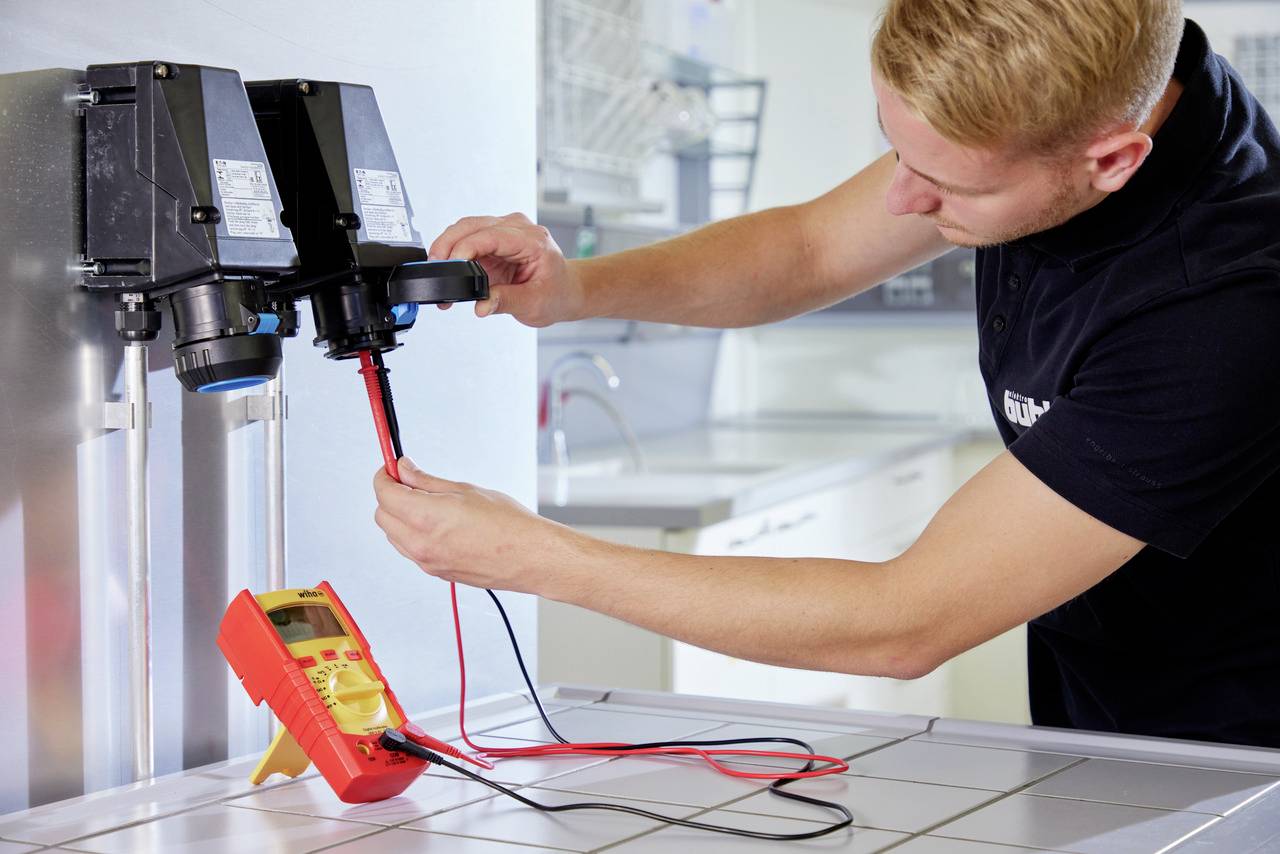

A man is measuring electrical values with a multimetre on an industrial machine in a workshop environment.

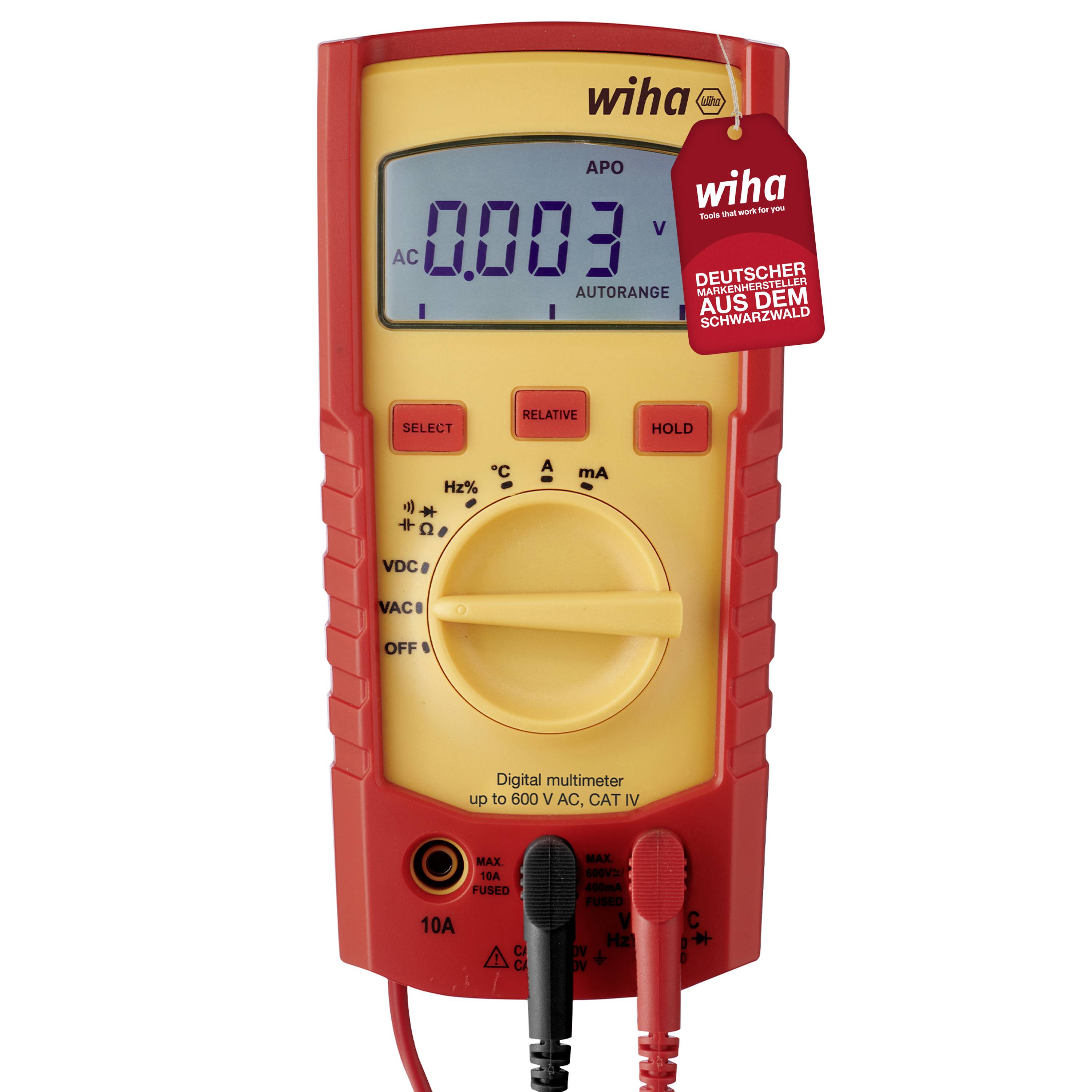

Digital multimeter by Wiha with a red casing, large display and multiple measurement functions. Label reads: 'Made in Germany, Black Forest region'.

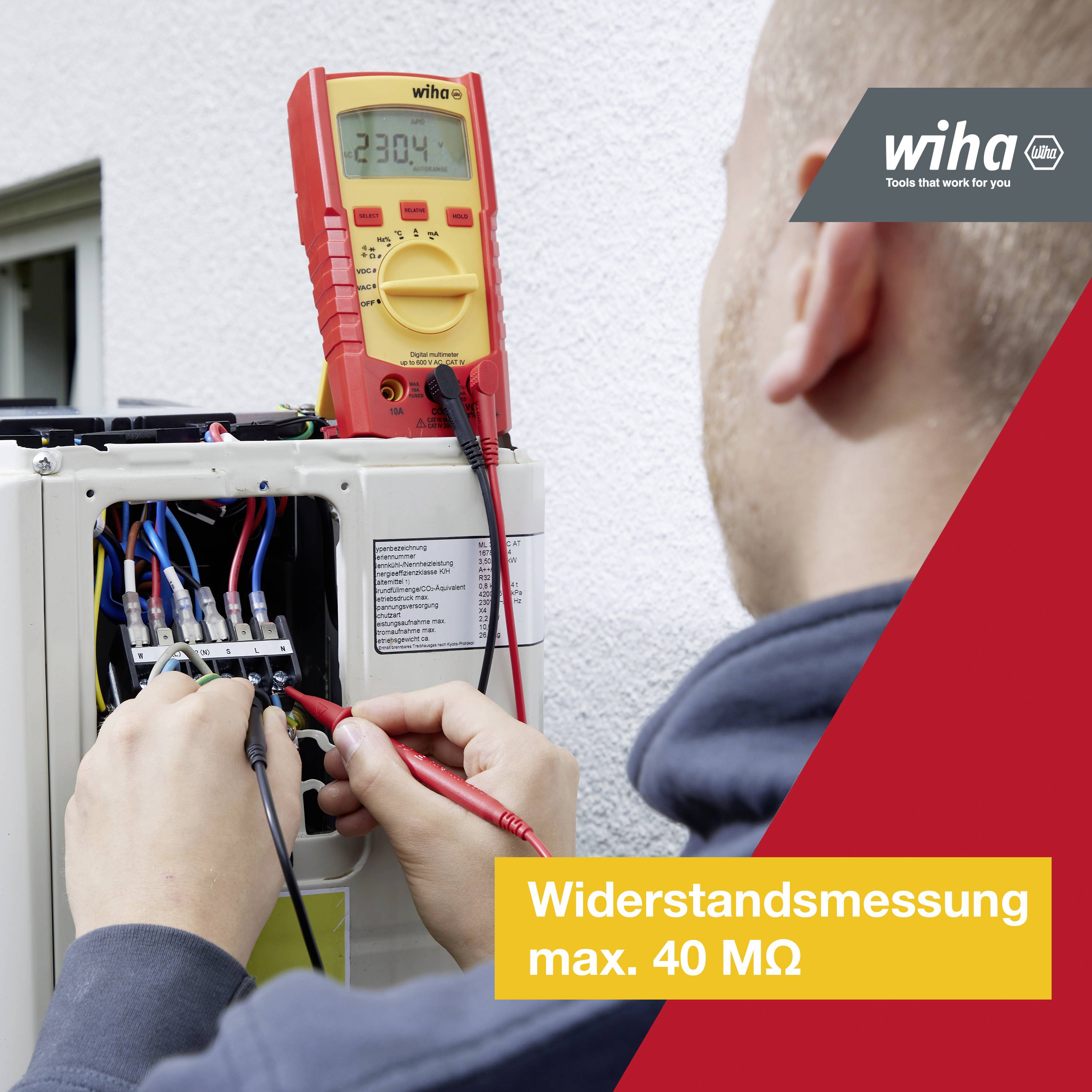

A person is measuring the electrical resistance in an open switchboard. A multimeter displays 230.4.

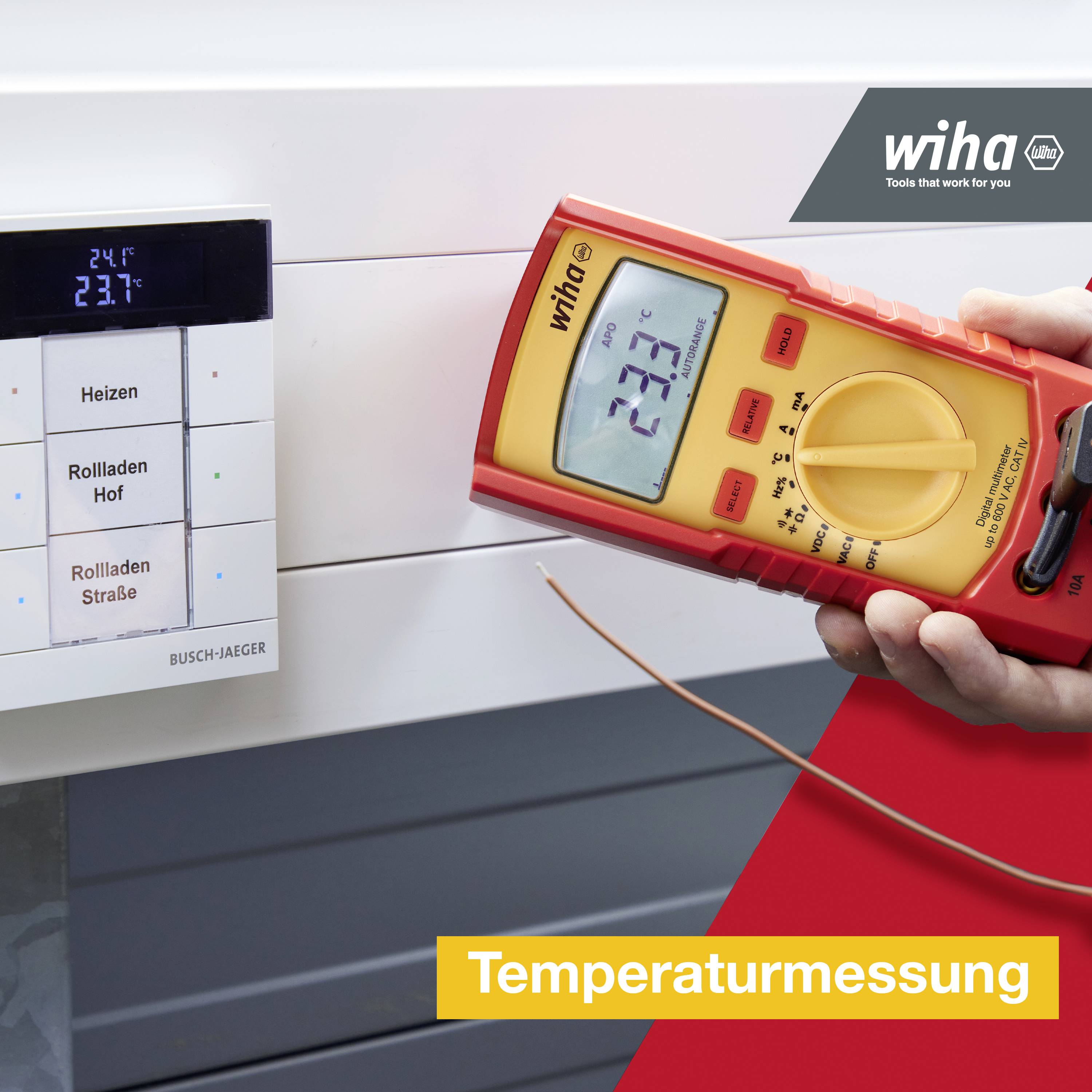

A person is measuring the temperature with a multimeter next to a digital wall thermostat; inscription: 'Temperature Measurement'.

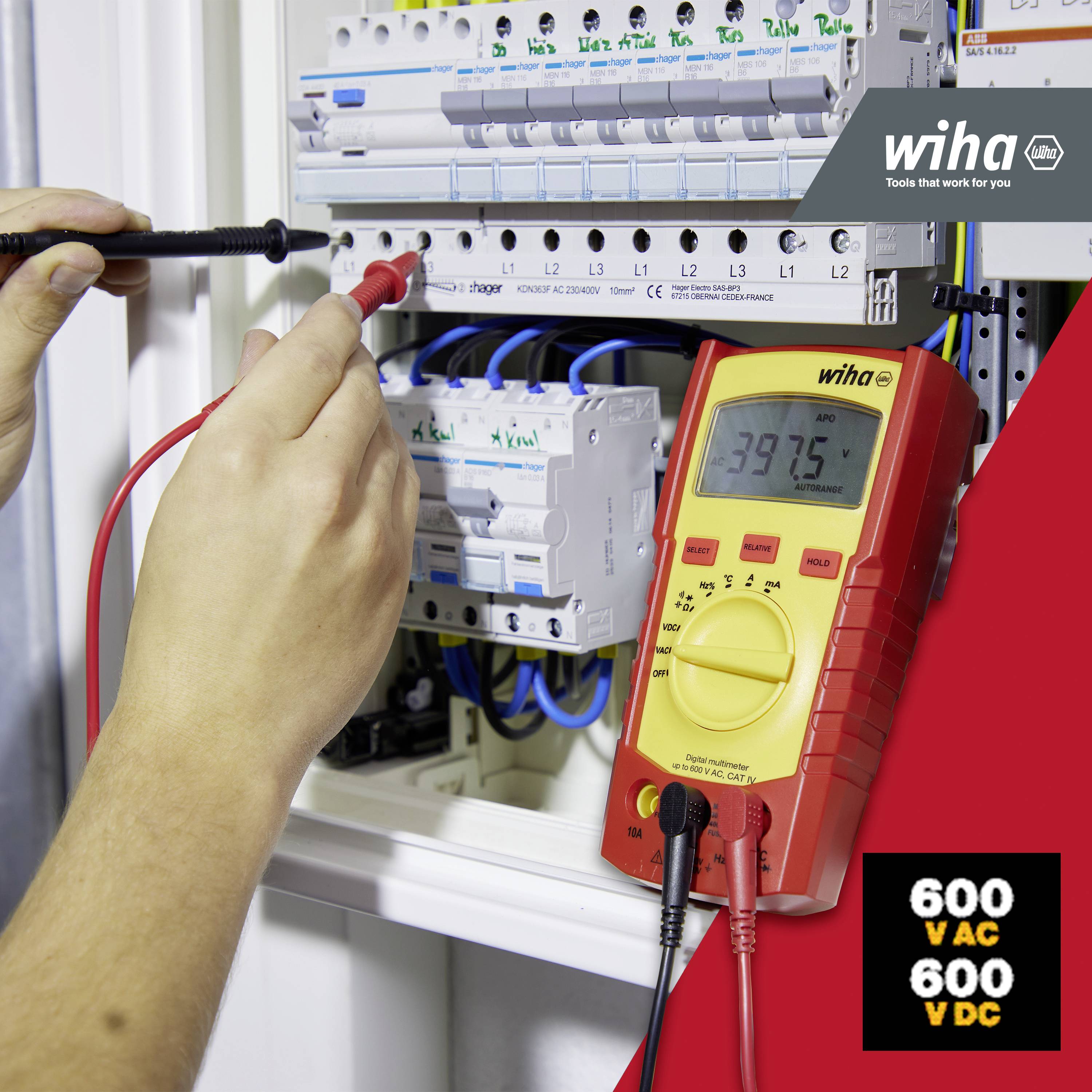

A person is measuring voltage in an electrical box with a multimeter. The display shows 397.5 V. Bottom right is written '600 VAC 600 VDC'.

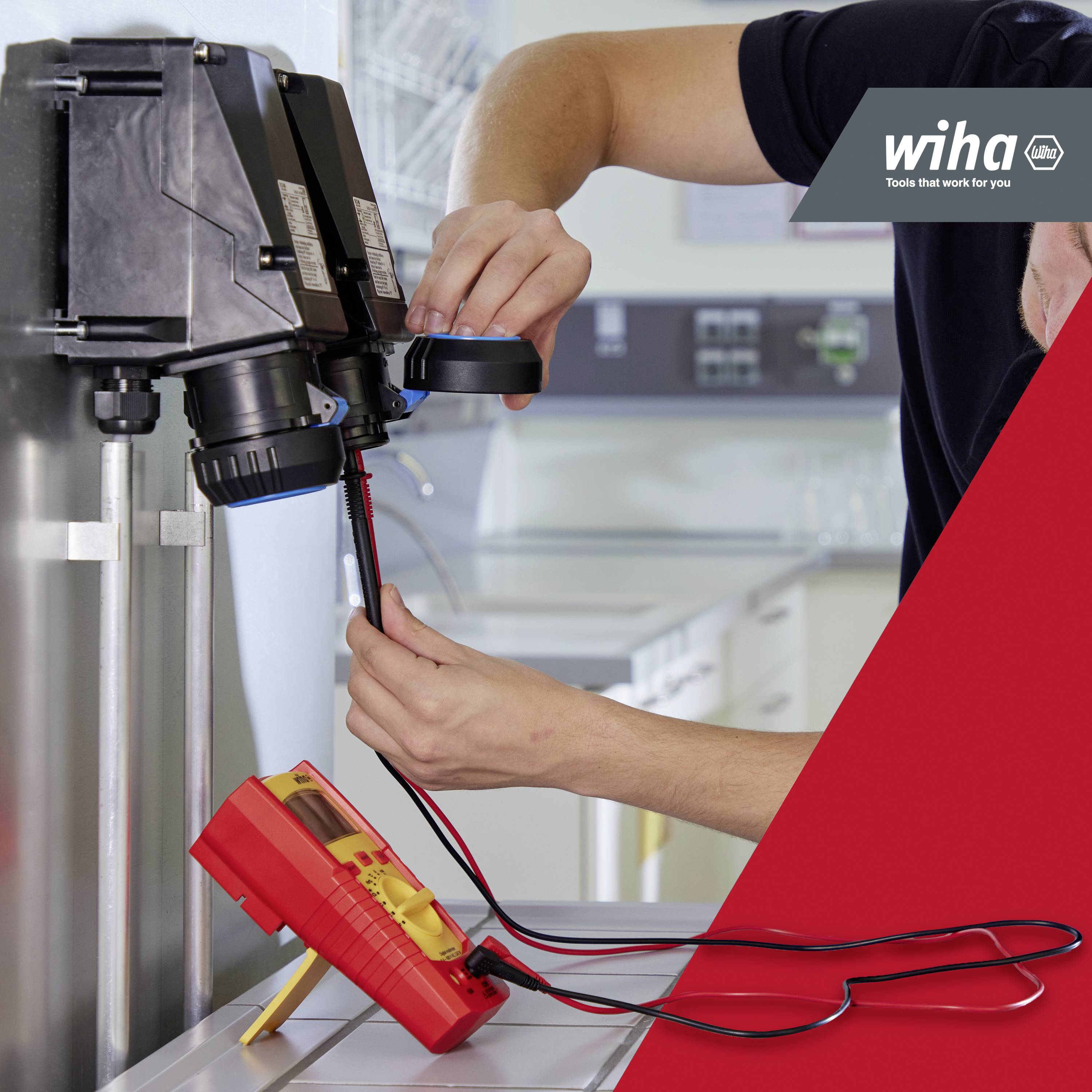

A tradesman is using a voltage tester on an electrical installation in a workshop. The 'Wiha' logo is visible.

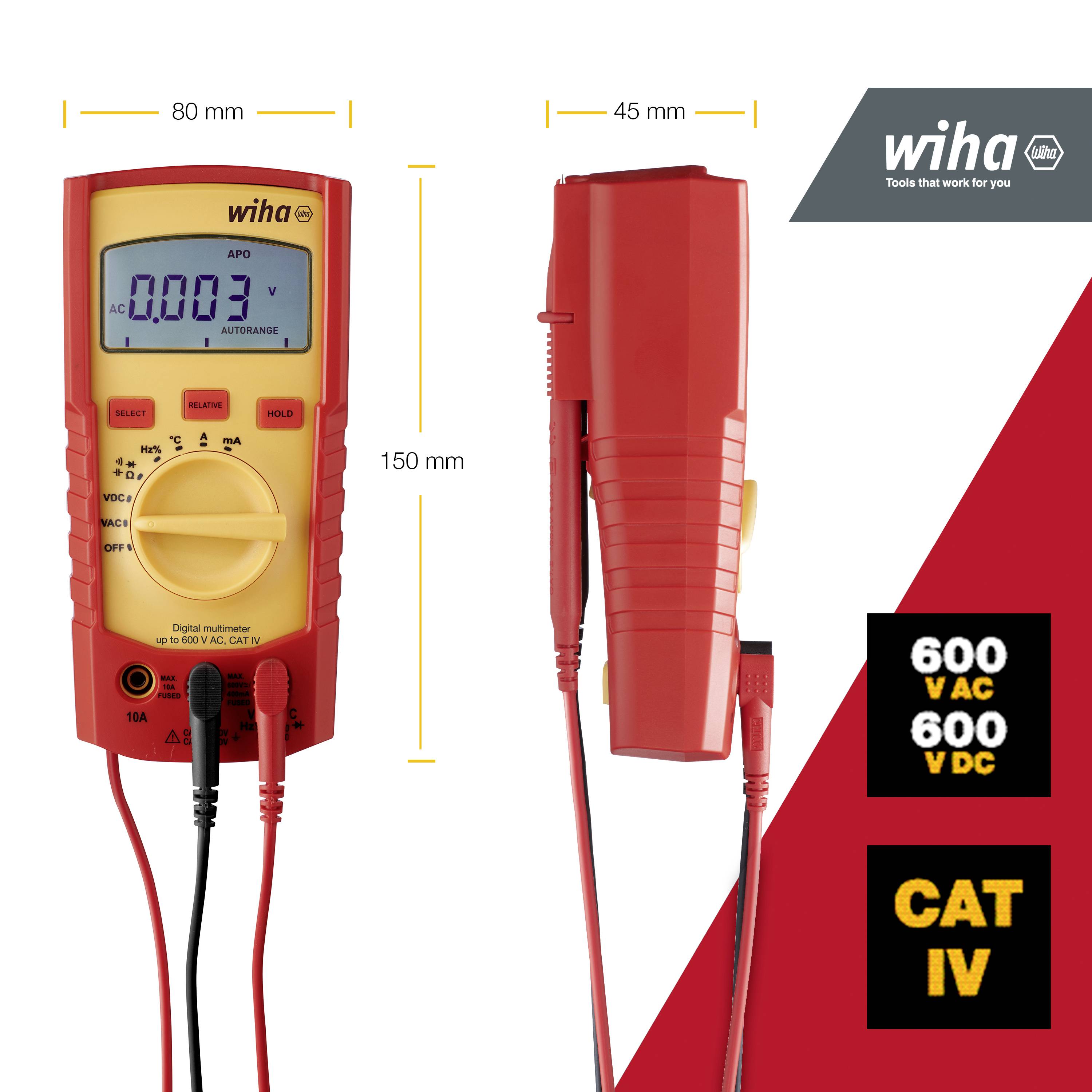

Multimeter in red-orange with digital display for voltage and current, product name 'Wiha'. Notes: 600 V AC/DC, CAT IV. Dimensions: 150 mm x 80 mm x 45 mm.
1/16
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 159.99 / piece)
€ 159.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

45218

  • CAT III 600 V, CAT IV 300 V

Technical specifications

Product type

Handheld multimeter

Voltage DC reading range (max.)

600 V

V AC reading range (min.)

0.1 V

V AC reading range (max.)

600 V

A DC reading range (max.)

10 A

Amperage reading range AC (max.)

10 A

Height

150 mm

Width

80 mm

Length

45 mm

Weight

640 g

Manufacturer's standards (no certificate)

Reading category

CAT III 600 V

CAT IV 300 V

Current reading

AC/DC

Type

45218

Display

Digital

Dim

(L x W x H) 45 x 80 x 150 mm

Factory colour

Multicolour

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2586303 Wiha 45218 Handheld multimeter Digital CAT III 600 V, CAT IV 300 V

Description

With the digital multimeter from Wiha you are optimally equipped for the most varied measurements. This one tool can be used to measure voltage, current, resistance, frequency, capacitance and temperature. Continuity tests and diode tests are also possible. The measurement results can be read immediately and beyond the measurement process thanks to a large LCD display with data hold function. An additional signal tone signals the current flow during the continuity test. Thanks to the automatic measuring range selection, manual pre-selection of specific measuring ranges is not necessary. A further advantage is the relative measurement. The storage of previous and comparison with future measurement results allows a wide range of control options. According to cat III to 600 V and cat IV to 300 V, the digital multimeter from Wiha offers maximum safety for work in the area of building installation as well as directly at sources of low-voltage installation. EN 61010-1, EN 61010-2-033, EN 61010-031.

This text is machine translated.

Scope of delivery

  • Digital multimeter
  • 2x AAA battery
