Wisualarm DHI-HY-GC20C Carbon monoxide detector network-compatible battery-powered detects Carbon monoxide
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Only 6 Piece(s) available
Highlights & Details

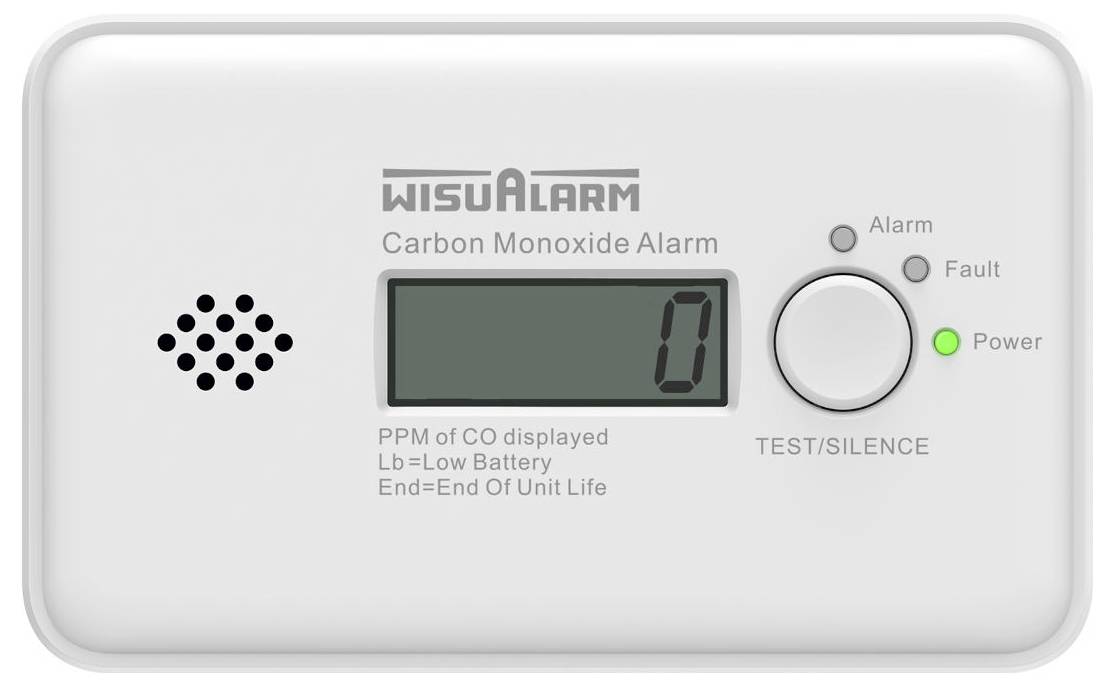

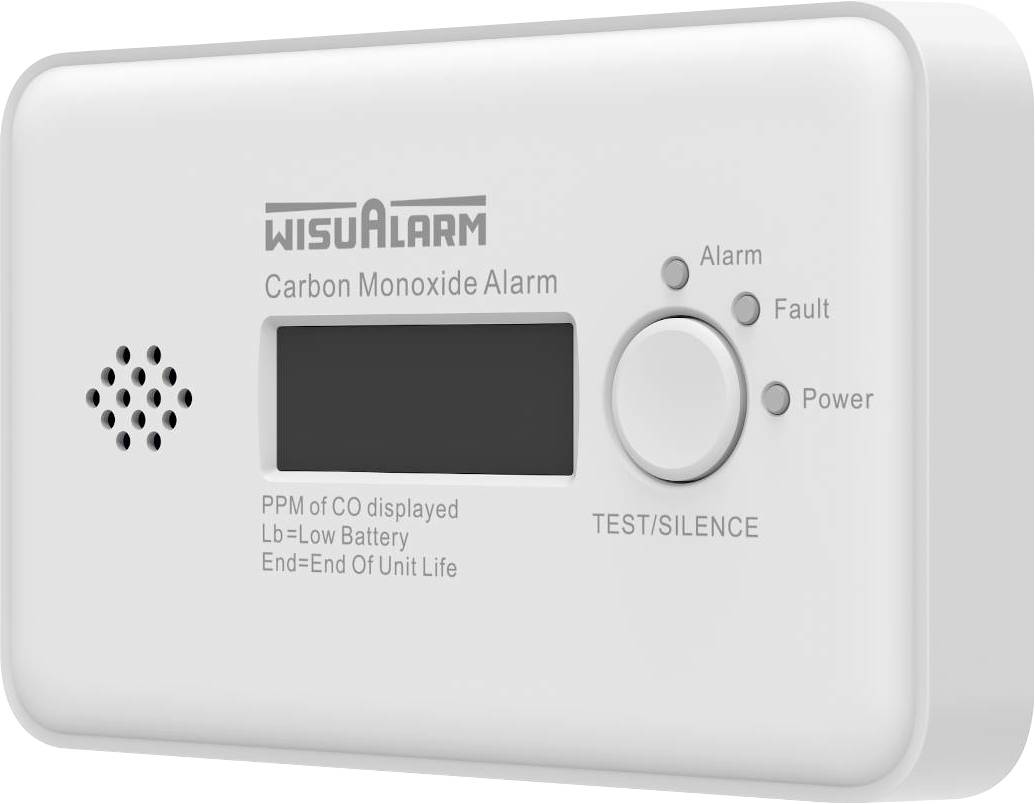

Wisualarm by Dahua DHI-HY-GC20C Standalone carbon monoxide detector / CO detector
- Electrochemical CO sensor with fast response time
- LCD display to indicate CO concentration
- Loud alarm signal with 85 dB(A) at a 3 m distance and LED signal
- Battery life-span: Up to 10 years
- Supports self-test and mute function
- LED status display for alarm, fault and operation
Technical specifications
- Electrochemical Figaro sensor, alarm volume: 85 dB(A) at a distance of 3 m and LED signaling
- Product type
Carbon monoxide detector
- Detector features
network-compatible
- Alarm at gas/gas mixture
50 ppm (60–90 min) / 100 ppm (10–40 min) / 300 ppm (3 min)
- detects
Carbon monoxide
- Power supply (LOV)
battery-powered
- Width
116.4 mm
- Height
71.7 mm
- Depth
28.3 mm
- Weight
125 g
- Content
1 pc(s)
- Dim
(W x H x D) 116.4 x 71.7 x 28.3 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3782459 Wisualarm DHI-HY-GC20C Carbon monoxide detector network-compatible battery-powered detects Carbon monoxide
User & Safety Instructions
User & Safety Instructions 3782459 Wisualarm DHI-HY-GC20C Carbon monoxide detector network-compatible battery-powered detects Carbon monoxide
Description
The Wisualarm DHI-HY-GC20C is a self-contained carbon monoxide detector for continuous monitoring of indoor CO concentration. The device uses an electro-chemical sensor for the precise detection of carbon monoxide and reacts quickly to increased concentrations.
Once the alarm value is reached, the device activates an acoustic and visual alarm to alert you of potential hazards. The built-in signal transmitter achieves a sound level of over 85 dB(A) at a distance of three meters.

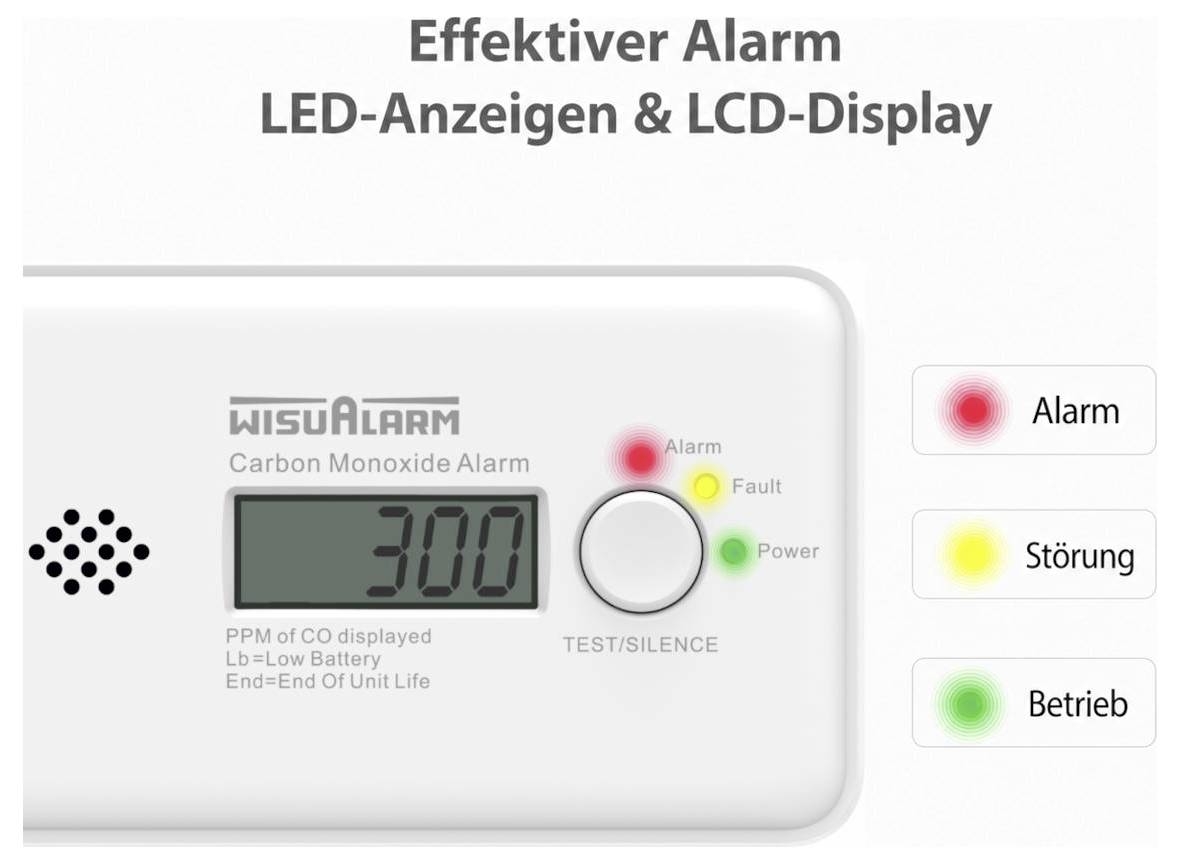

The integrated LCD-display informs about the current CO-concentration. In addition, three LED displays show the operating status, error statuses and active alarms.

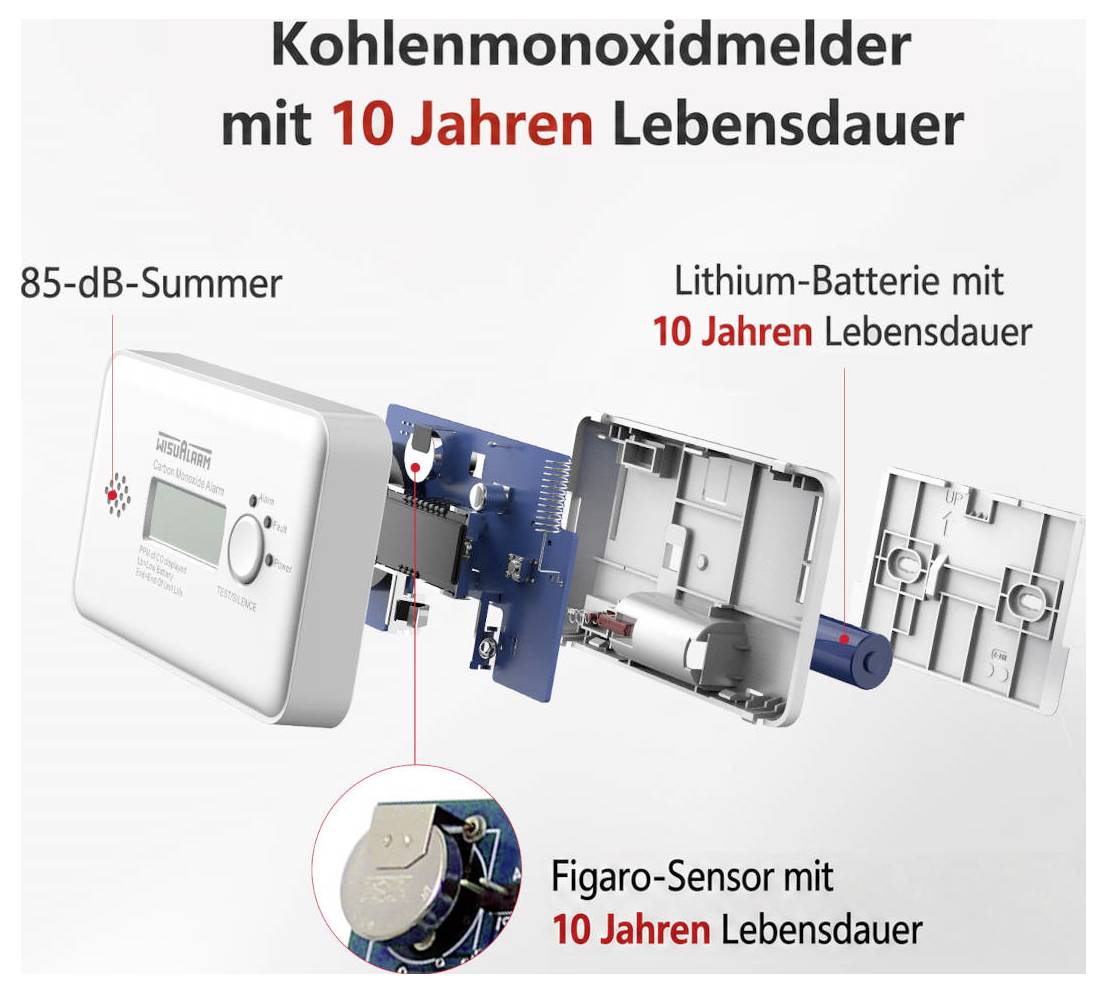

The carbon monoxide detector supports mute, self-test, and low battery warning. The replaceable CR123A lithium battery is designed for a service life of up to ten years.
Due to its compact design, the device is suitable for wall mounting in apartments, restaurants, hotels and other interior spaces.
Technical data
Recognition type: Carbon monoxide (CO)
Sensor type: Electrochemical
Alarm types: CO alarm, fault warning, low battery warning
Alarm volume: Above 85 dB(A) at a distance of 3 m.
Alarm mode: Audible and visual alarms
Mute function: Supported
Mute time: Approx. 45 seconds

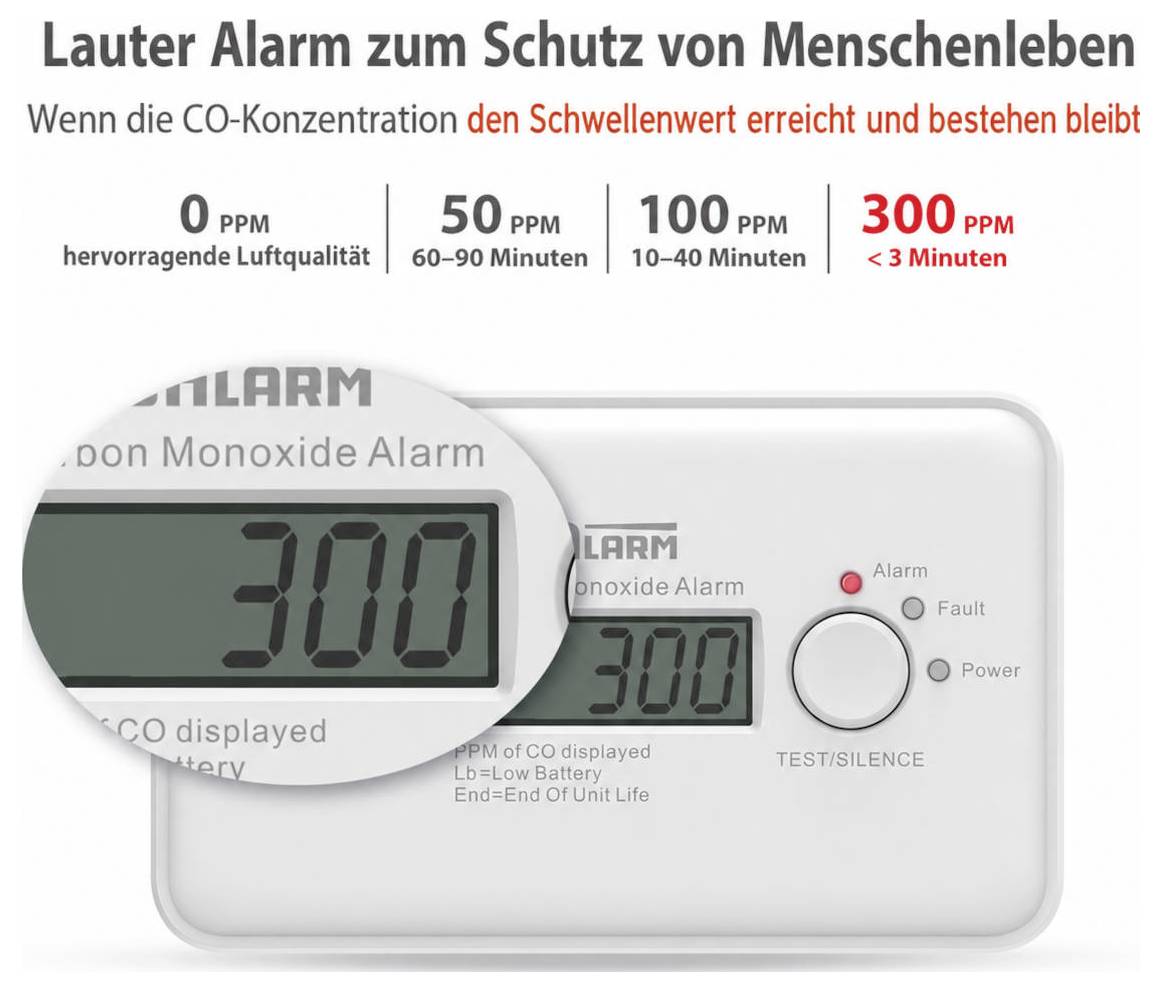

Alarm thresholds: 50 ppm: 60–90 minutes / 100 ppm: 10–40 minutes / 300 ppm: < 3 minutes
LCD display
LED-displays: Red / yellow / green
Battery service life 10 years.
Power supply: 3 V CR123A lithium battery (replaceable)
Monitoring current ≤ 20 µA
Alarm current ≤ 10 mA
Operating Environment: Indoor only
Operating temperature: -10 °C to + +40 °C.
Relative humidity: ≤ 95% RH (non-condensing)
PC + ABS casing
Colour: White

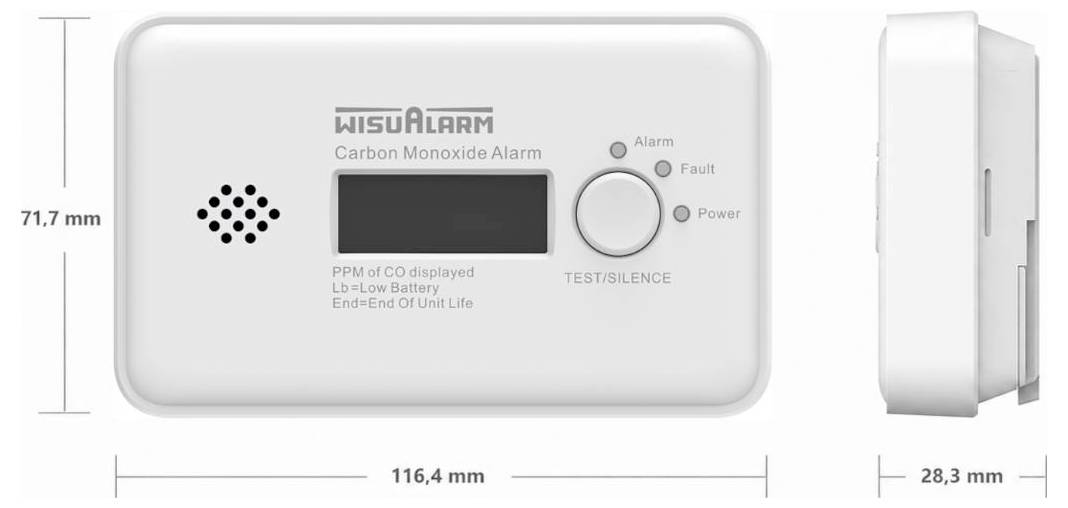

Product dimensions 116.4 × 71.7 × 28.3 mm
Product weight 125 g
Mounting type: Wall mounting
This text is machine translated.
Once the alarm value is reached, the device activates an acoustic and visual alarm to alert you of potential hazards. The built-in signal transmitter achieves a sound level of over 85 dB(A) at a distance of three meters.
The integrated LCD-display informs about the current CO-concentration. In addition, three LED displays show the operating status, error statuses and active alarms.
The carbon monoxide detector supports mute, self-test, and low battery warning. The replaceable CR123A lithium battery is designed for a service life of up to ten years.
Due to its compact design, the device is suitable for wall mounting in apartments, restaurants, hotels and other interior spaces.
Technical data
Recognition type: Carbon monoxide (CO)
Sensor type: Electrochemical
Alarm types: CO alarm, fault warning, low battery warning
Alarm volume: Above 85 dB(A) at a distance of 3 m.
Alarm mode: Audible and visual alarms
Mute function: Supported
Mute time: Approx. 45 seconds
Alarm thresholds: 50 ppm: 60–90 minutes / 100 ppm: 10–40 minutes / 300 ppm: < 3 minutes
LCD display
LED-displays: Red / yellow / green
Battery service life 10 years.
Power supply: 3 V CR123A lithium battery (replaceable)
Monitoring current ≤ 20 µA
Alarm current ≤ 10 mA
Operating Environment: Indoor only
Operating temperature: -10 °C to + +40 °C.
Relative humidity: ≤ 95% RH (non-condensing)
PC + ABS casing
Colour: White
Product dimensions 116.4 × 71.7 × 28.3 mm
Product weight 125 g
Mounting type: Wall mounting
This text is machine translated.
Scope of delivery
- Wisualarm DHI-HY-GC20C carbon monoxide detector
- Fixings
- User manual
