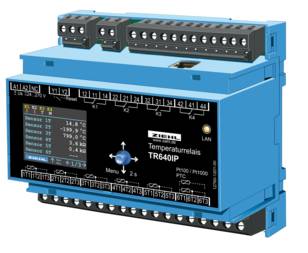

Ziehl TR640IP Bang-bang Temperature controller Pt100 -199.9 up to +800 °C (L x W x H) 58 x 105 x 90 mm
EAN:
Part number:
Item no:
Product type
Temperature controller
Thermostat type
Bang-bang
Max. temperature reading
+800 °C
No. of relay outputs
4
Sensor type
Pt100
Datasheet (PDF)
Number
Total (€ 772.27 / piece)
€ 772.27
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Temperature relay
- Including data logger and TCP/ IP Modbus TCP
Technical specifications
- Product type
Temperature controller
- Type
TR640IP
- Thermostat type
Bang-bang
- Reading range
-199.9 up to +800 °C
- Max. temperature reading
+800 °C
- Min. temperature reading
-199.9 °C
- No. of relay outputs
4
- Outputs
4x changer
- Dim
(L x W x H) 58 x 105 x 90 mm
- Factory colour
Blue
- Height
90 mm
- Length
58 mm
- Width
105 mm
IP30
- Sensor type
Pt100
- Manufacturer part #
T224390
- Recess depth
55 mm
- Mounting type
Recess-mount
- Sensor type
Pt 100, Pt 1000, PTC
- Weight
250 g
- AEC compliance
AEC-Q101
Documents & Downloads
Datasheet
Datasheet 2202129 Ziehl TR640IP Bang-bang Temperature controller Pt100 -199.9 up to +800 °C (L x W x H) 58 x 105 x 90 mm
User & Safety Instructions
User & Safety Instructions 2202129 Ziehl TR640IP Bang-bang Temperature controller Pt100 -199.9 up to +800 °C (L x W x H) 58 x 105 x 90 mm
Description
Temperature relay Type TR640IP monitors up to 6 sensors at the same time on up to 4 limit values. Thus different sensor types, for example PTC thermistor and Pt 100 can be attached and evaluated. Applications include monitoring motors, generators or transformers. In addition, the device is suitable for use as a 2- or 3-point controller with additional alarms for over/under temperature and as a differential temperature monitor. Numerous preset programs simplify the start-up, e.g. transformer protection with/without monitoring of the core temperature and with/without controlling a fan. If the evaluation "2 OFF x" is activated with several connected sensors, an alarm is only triggered when the limit value in 2 sensors is exceeded. This prevents false alarms from being triggered due to a fault in a sensor. The operation takes place comfortably on the device or with the in-built web-server via Ethernet.
This text is machine translated.
This text is machine translated.
Features
- 6 inputs for sensors Pt 100, Pt 1000 and PTC, even mixed
- 4 Alarms / output relay
- Alarm 2 off X = Alarm only when threshold value is in min. 2 sensors are reached
- Monitoring of temperature differences
- Monitoring the rise-time speed of the temperature
- Recording of temperature history and history
- Preset program for motor protection, transformer protection and others
- Network connection Ethernet TCP/IP, querying of values via Modbus TCP
- Parameterization with browser via TCP/IP or with joystick on the device
- Coloured LCD-display for clear display of the operating conditions
- AC/DC 24-270 V AC/DC AC VOLTAGE SUPPLY
