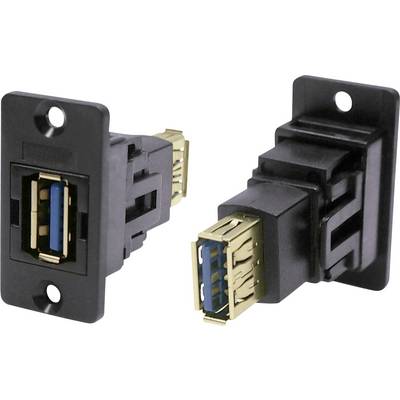

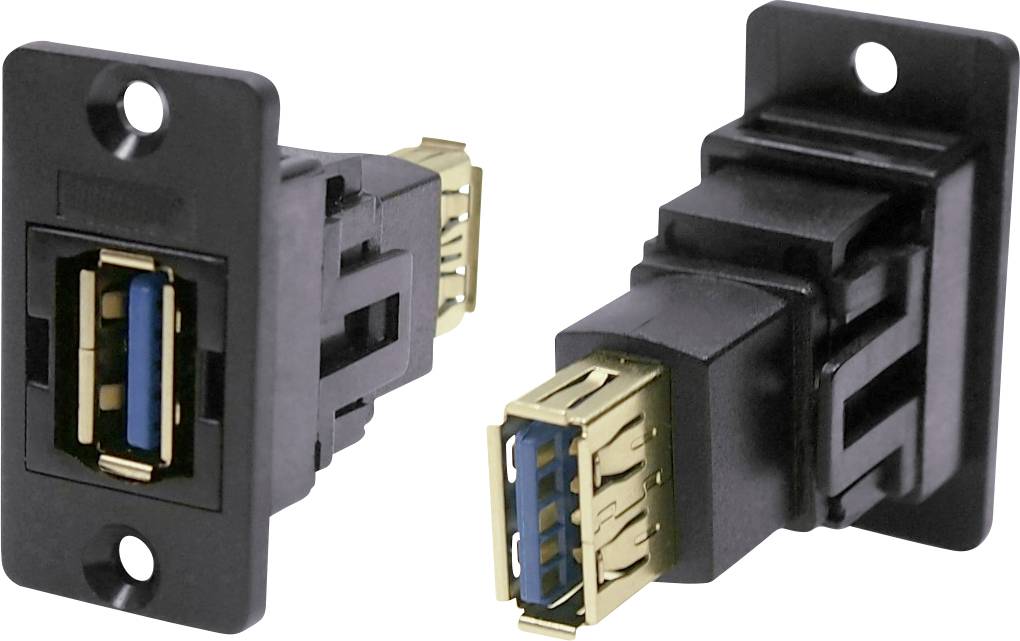

Adapter, Socket, built-in USB-SOCKET Type A ⇔ USB-SOCKET Type A CP30605NX Cliff Content: 1 pc(s)
EAN:
Part number:
Item no:
Connector type
Adapter
Socket, built-in
Type
CP30605NX
Type
USB 3.0
Type
USB-SOCKET Type A ⇔ USB-SOCKET Type A
Type A
USB 3.2 1st Gen port A (USB 3.0)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
Technical specifications
- Installation depth: 41.70 mm
- Mounting type: Control panel installation, flange
- Type
CP30605NX
- Type
USB 3.0
- Connector type
Adapter
Socket, built-in
- Type
USB-SOCKET Type A ⇔ USB-SOCKET Type A
- Type A
USB 3.2 1st Gen port A (USB 3.0)
- Type B
USB 3.2 1st Gen port A (USB 3.0)
- Bore Ø
2.5 mm
- Case material
Polyamide 6.6 UL 94V-HB
- Manufacturer part #
CP30605NX
- Factory colour
Black
- Content
1 pc(s)
- Width
19 mm
- Length
35.50 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2354839 Adapter, Socket, built-in USB-SOCKET Type A ⇔ USB-SOCKET Type A CP30605NX Cliff Content: 1 pc(s)
