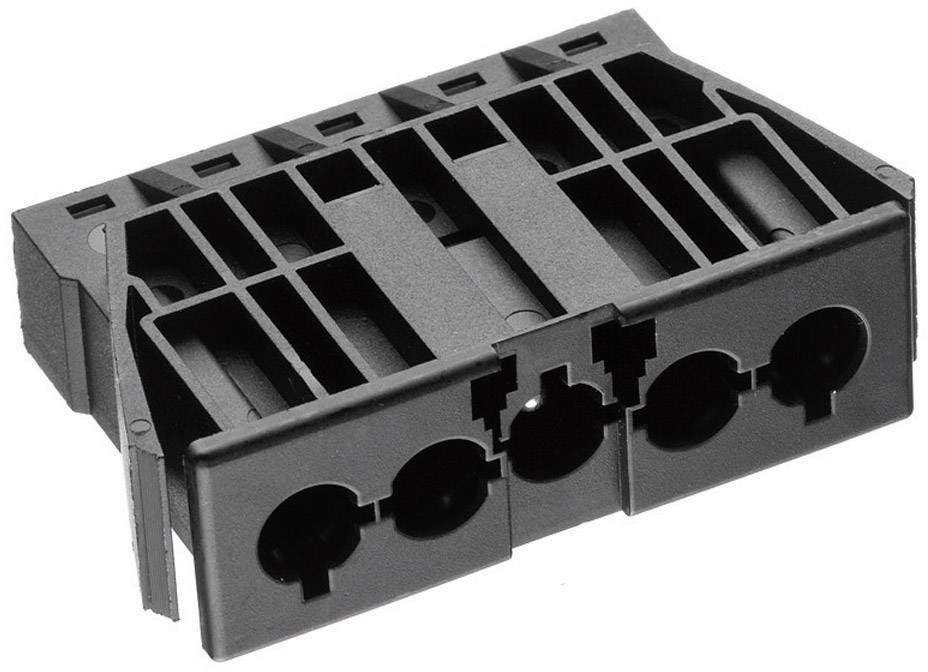

Adels-Contact 168765 Mains connector AC Plug, mount Total number of pins: 4 + PE 16 A Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mains connector
Connector type
Plug, mount
Total no. of pins
4 + PE
Connection
Pull spring
Nominal voltage
400 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
Highlights & Details
Built-in plug connector series AC 166 G
Our service for you
Technical specifications
- Product type
Mains connector
- Connector type
Plug, mount
- Total no. of pins
4 + PE
- Connection
Pull spring
- Nominal voltage
400 V
- Factory colour
Black
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Manufacturer part #
168765
- Cable Ø (max.)
2.5 mm²
- Cable Ø up to
0.5 mm²
- Cable Ø range
0.5 - 2.5 mm²
- Contact material
Brass
- Material (details)
Polyamide 6.6
- Compatible with (details)
Housing wall thickness 0.5 - 1.2 mm
- Number of pins
4
- RoHS-compliant
Yes
IP20/IP40 (when connected)
- Series
AC
- Temperature range
Up to +110 °C
- Type
AC 166 GEST/ 5
- Leading contact (PE)
Yes
- Cable cross section
0.5 - 2.5 mm²
