Ansmann 147678 Charger for cylindrical cells NiMH AAA , AA

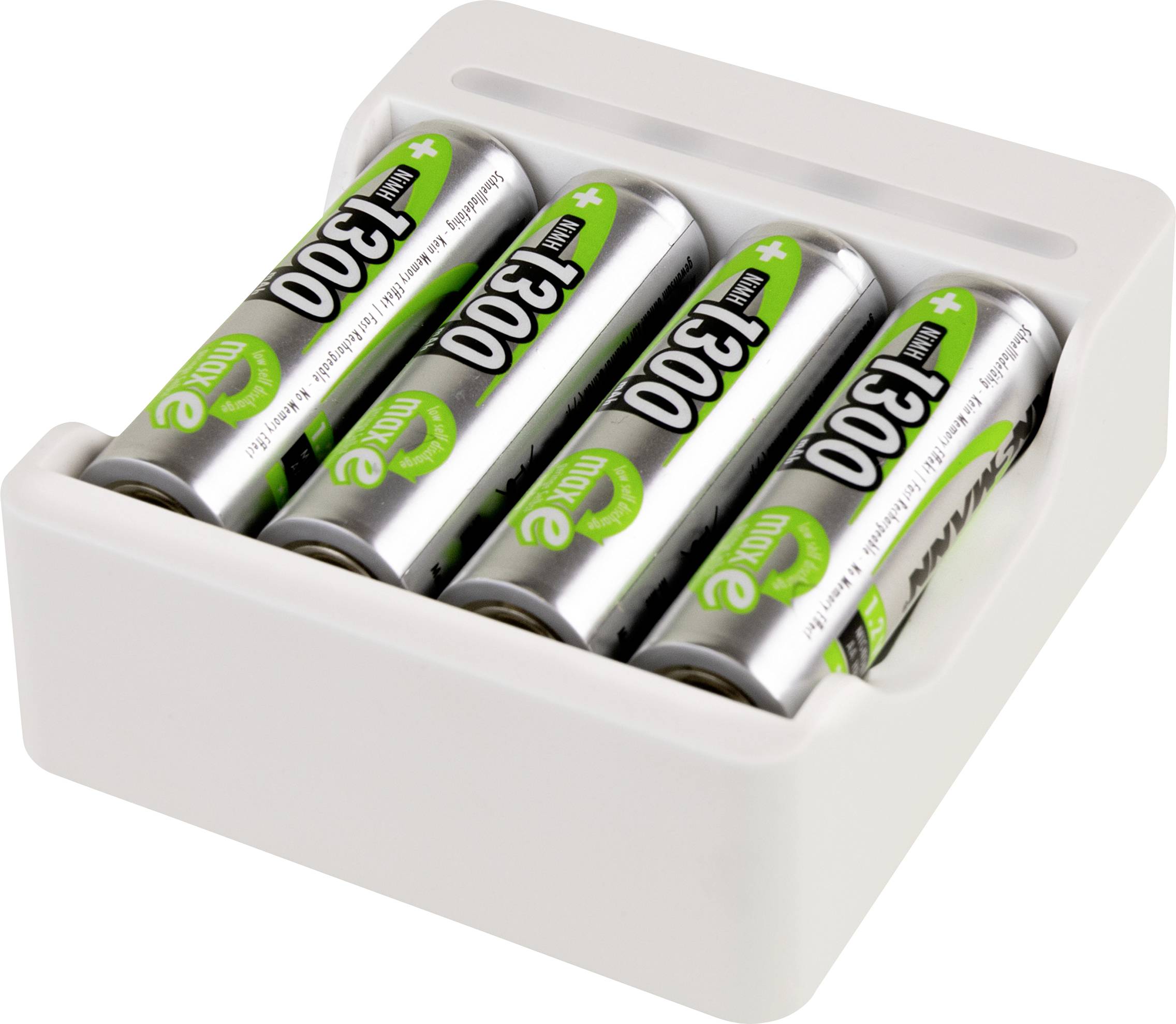

Four rechargeable AA batteries in a white charger, ready to be charged. The batteries are silver with a green print 'Energy 1300'.

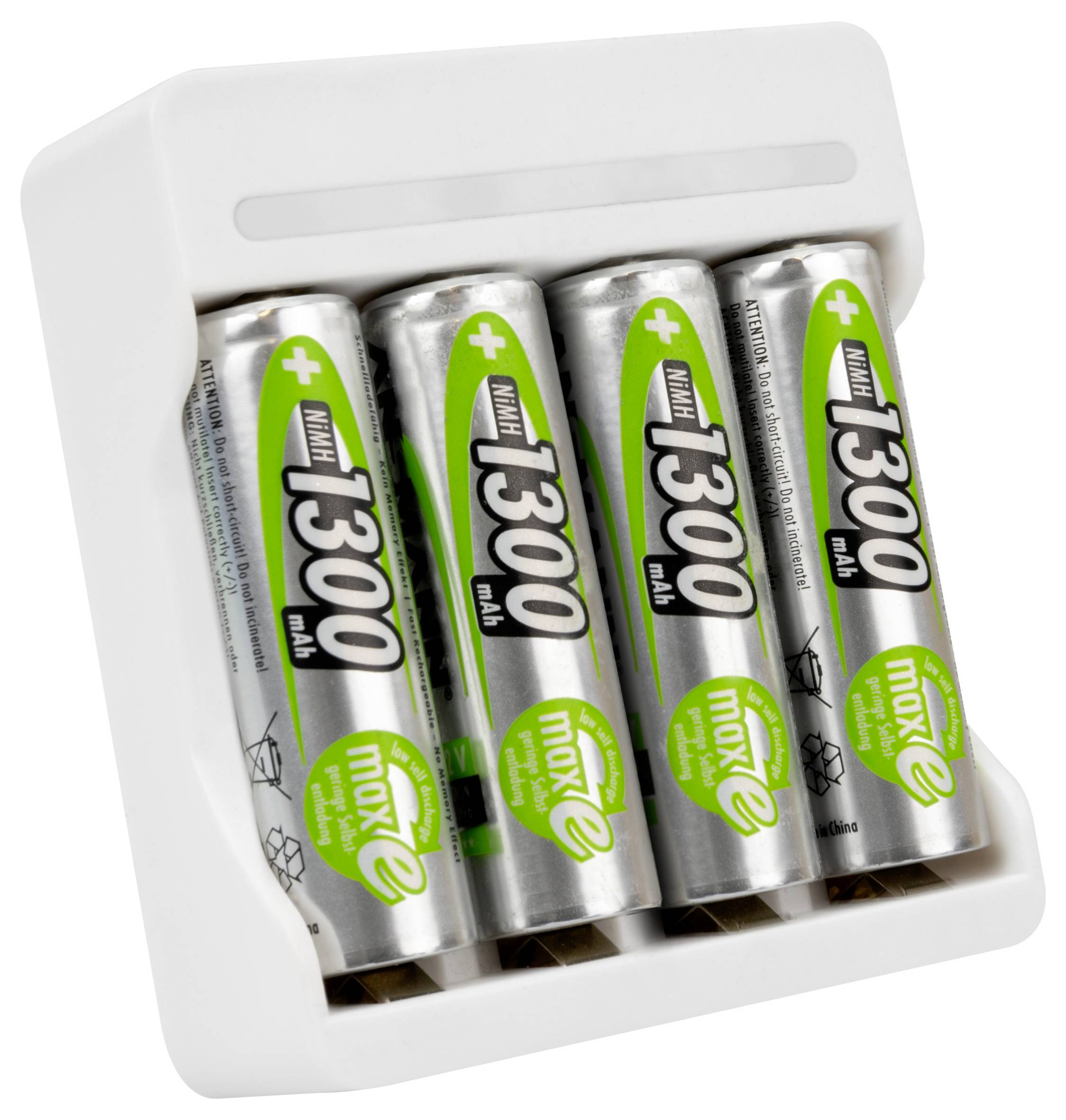

Four rechargeable 1300 mAh AA batteries in a white charger.

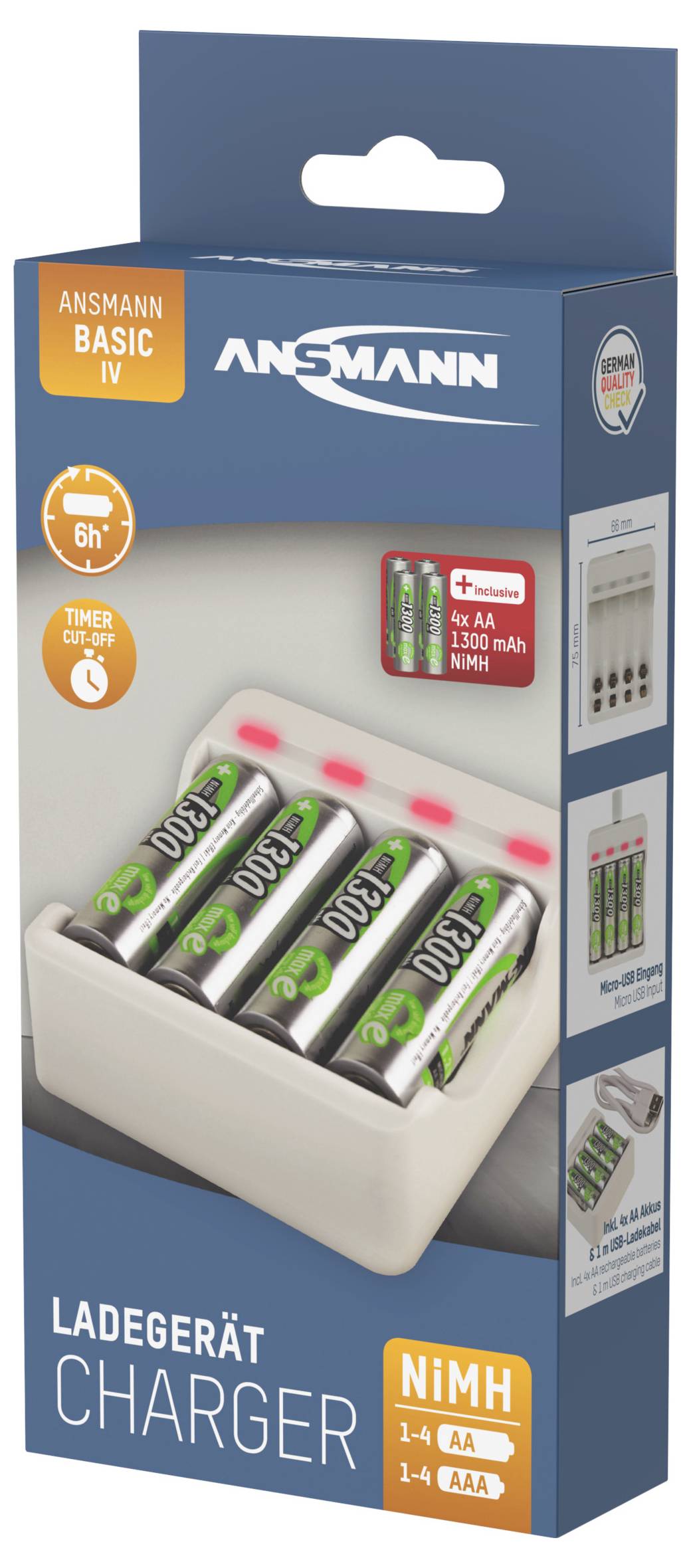

Battery charger for AA and AAA batteries; includes four rechargeable batteries and LED indicators. Packaged in blue with brand logo.
Collage of charging interfaces: Laptop, smartphone, adapter. Text: Powered by USB.
A person is holding an open pack of four AA batteries with the 'Power' label printed on it.

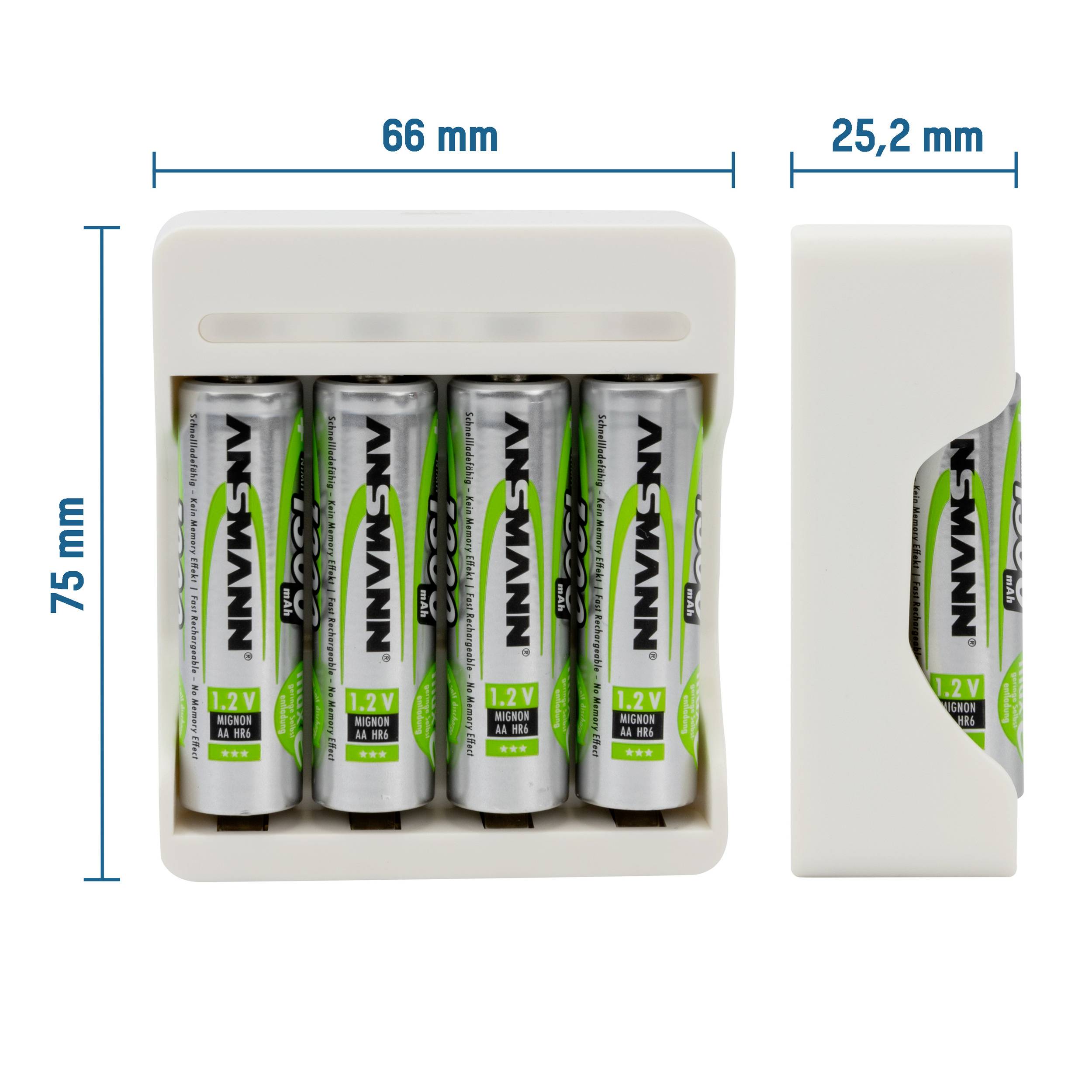

White battery housing with four batteries, 75 mm high, 66 mm wide. Width per battery: 25.2 mm.

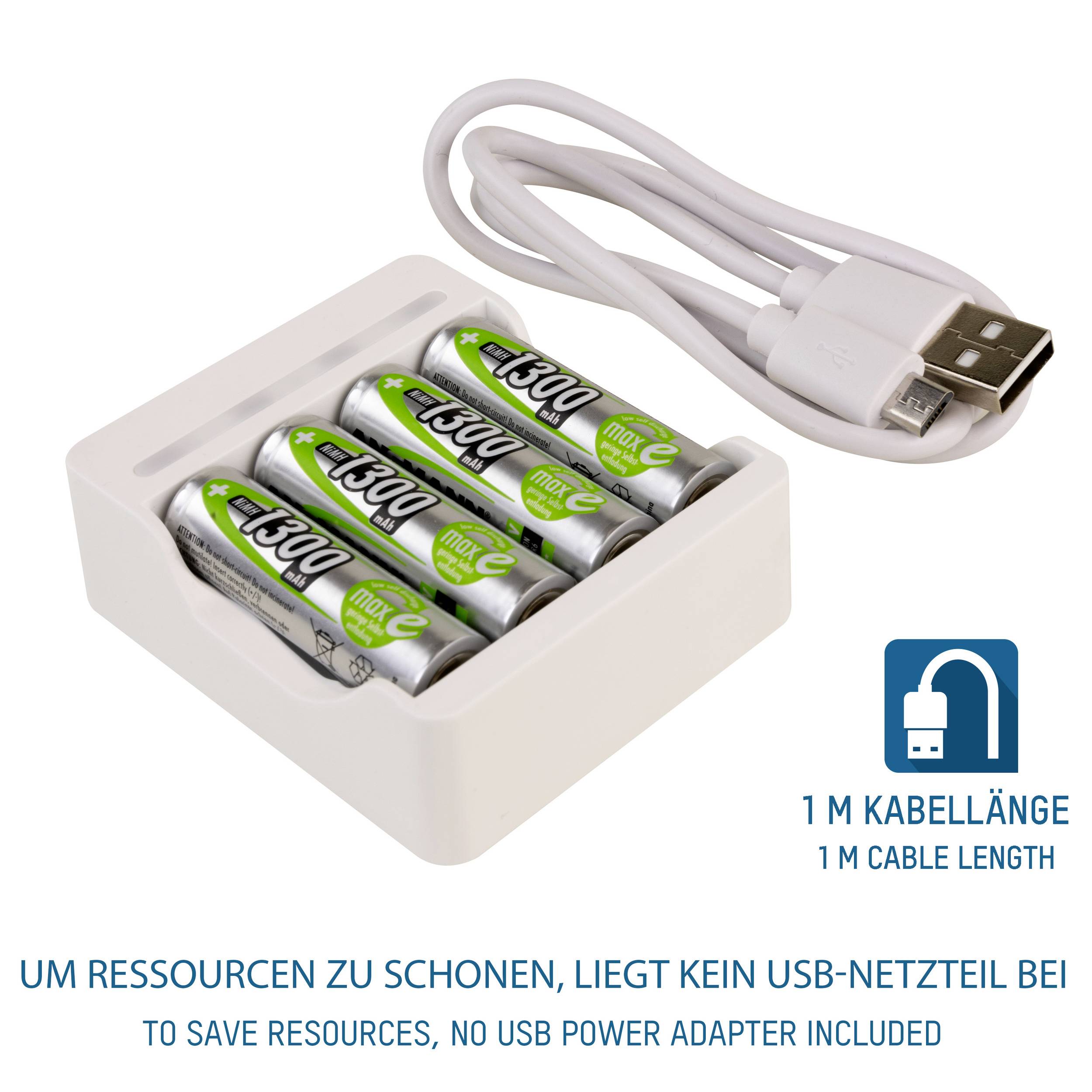

Three AA batteries in a charger with a USB cable. Text: 'To conserve resources, no USB power adapter is included.'

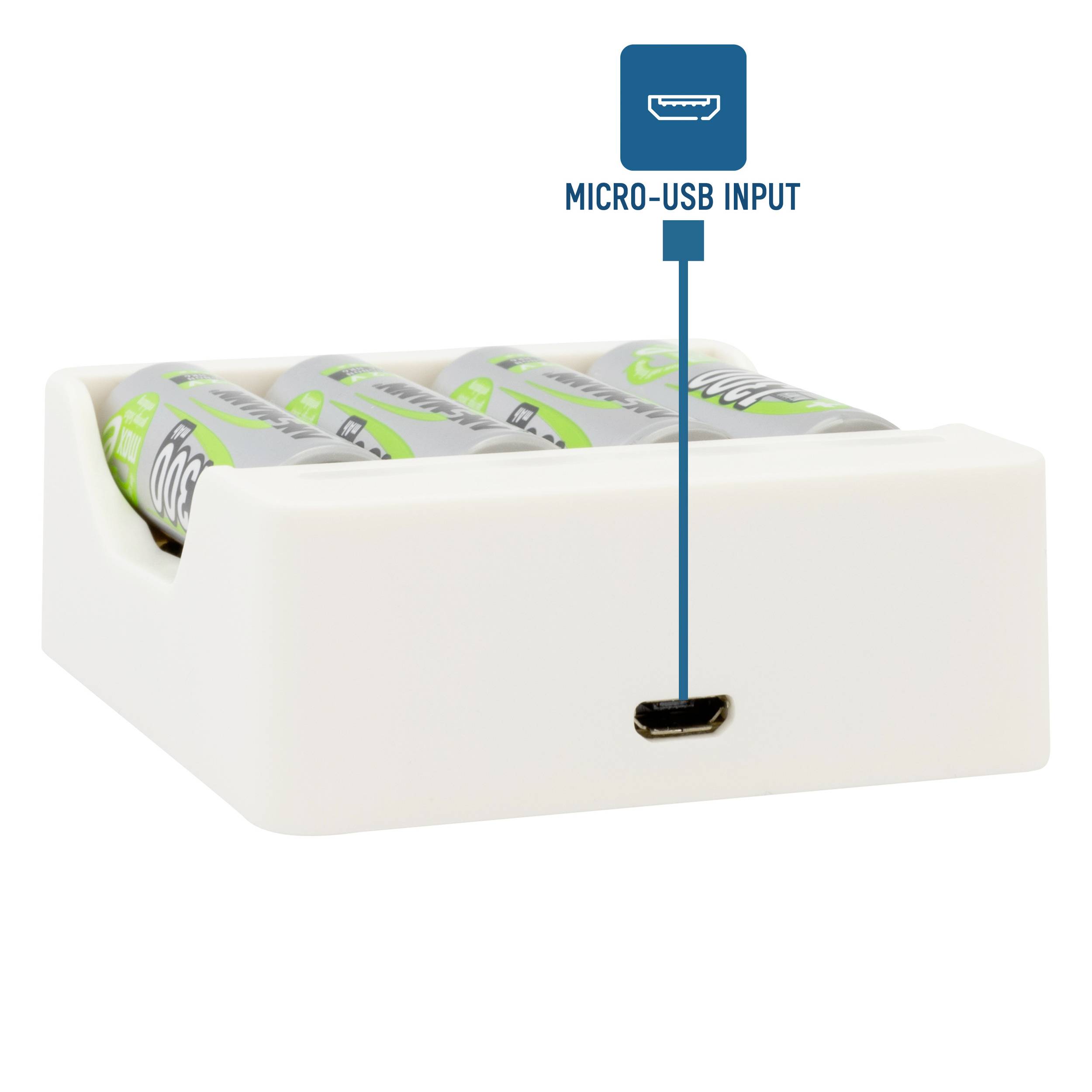

White charger with four green batteries, back shows Micro-USB input. Text at top: 'Micro-USB Input'.
1/8
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
30 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 20.99 / piece)
€ 20.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Ansmann charger Basic IV + 4× AA 1300mAh

  • Charger with USB input for 1-4 NiMH AAA/AA rechargeable batteries
  • Incl. 4 mignon size AA batteries 1300mAh
  • Time-controlled charging
  • LED charging indicator
  • Automatic adjustment of the charging current
  • Reverse polarity protection

Technical specifications

Matching rechargeable battery

NiMH

Product type

Charger for cylindrical cells

Suitable for battery size

AAA

AA

Charging slots

4

AAA

4

AA

4

Operating voltage

5 V via USB

Width

66 mm

Height

25 mm

Depth

75 mm

Weight

150 g

Dim

(W x H x D) 66 x 25 x 75 mm

Wireless charging

No

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3345373 Ansmann 147678 Charger for cylindrical cells NiMH AAA , AA

User & Safety Instructions

User & Safety Instructions 3345373 Ansmann 147678 Charger for cylindrical cells NiMH AAA , AA

Description

The Ansmann basic IV charger is easy to use. The charger starts the timer as soon as it is connected to the power supply. The charging indicator for each accumulator lights up red. After approx. 18h, the charging process is terminated automatically and the charging indicator goes out. It charges 1-4 NiMH batteries of AA/Mignon/AAA/Micro size, regardless of the number of batteries inserted | Max. Charging capacity AA 3000 mAh/AAA 1500mAh. Safety for rechargeable batteries and charger thanks to reverse polarity protection, auto cut-off, overcharge protection, safety timer switches off the charger automatically after 18 h. The charger has a light and compact design for traveling and while traveling. Flexible application worldwide owing to USB input

This text is machine translated.

Scope of delivery

  • Charger Basic IV, 4× AA NiMH rechargeable batteries, USB cable, operating instructions
