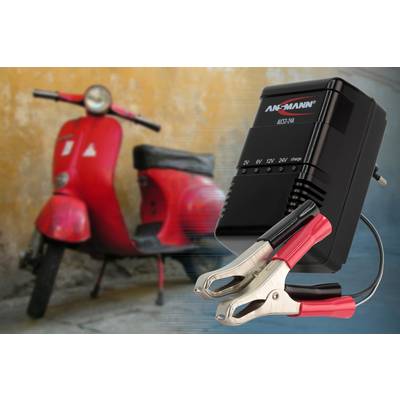

Ansmann VRLA charger ALCS 2-24 A 2 V, 6 V, 12 V, 24 V Charging current (max.) 0.9 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Highlights & Details
Lead-acid rechargeable battery plug charger ALCS 2-24A
- For 2, 6, 12 und 24 V Lead acid batteries
- Rechargeable battery capacities 2 - 24 Ah
- Automatic detection of rechargeable battery type
Technical specifications
- Product type
VRLA charger
- Matching rechargeable battery
Lead-acid
SLA
Lead acid membrane
- Suitable for lead-type rechargeables
2 V
6 V
12 V
24 V
- Recommended battery capacity (min.)
1.3 Ah
- Recommended battery capacity (max.)
15 Ah
- Charging slots
1
- Operating voltage
230 V / AC
- Charging current (max.)
0.9 A
- Charging current at 2 V
0.9 A
- Charging current at 6 V
0.7 A
- Charging current at 12 V
0.6 A
- Charging current at 24 V
0.3 A
- Charge Voltage
2.3 V
6.9 V
13.8 V
27.6 V
- Width
66 mm
- Height
106 mm
- Depth
50 mm
- Weight
400 g
- Dim
(W x H x D) 66 x 106 x 50 mm
- Recommended battery capacity
2, 24 Ah
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 250239 Ansmann VRLA charger ALCS 2-24 A 2 V, 6 V, 12 V, 24 V Charging current (max.) 0.9 A
User & Safety Instructions
User & Safety Instructions 250239 Ansmann VRLA charger ALCS 2-24 A 2 V, 6 V, 12 V, 24 V Charging current (max.) 0.9 A
Conformity certificate
Conformity certificate 250239 Ansmann VRLA charger ALCS 2-24 A 2 V, 6 V, 12 V, 24 V Charging current (max.) 0.9 A
Warranty Terms
Warranty Terms 250239 Ansmann VRLA charger ALCS 2-24 A 2 V, 6 V, 12 V, 24 V Charging current (max.) 0.9 A
Description
With this battery charger, you can't go wrong as far as voltage is concerned. Rechargeable battery type recognition adjusts the charging voltage automatically according to the capacity of the lead-acid rechargeable battery being charged. No settings are required at the charger at all, just connect it, and the process starts.
Features
- Electronic protection from short-circuit and reverse polarity
- Automatic recharging
- Charging according to IU-characteristics
- Voltage selector switch
- Trickle charging
- Overcharge protection
- LED status indicator
Scope of delivery
- Battery connection terminals
- Operating instructions.
