Name: Arduino Board UNO WIFI REV2 Core
Brand: Arduino
SKU: 1969870
Price: 61.99 EUR
Availability: InStock

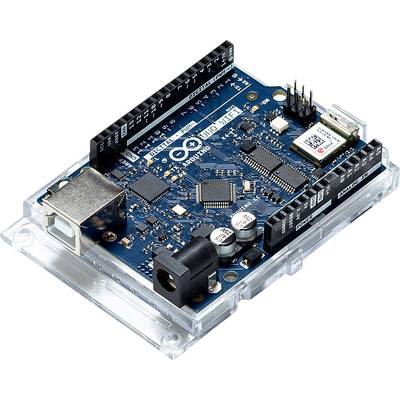

Arduino Uno board with blue circuit traces and black connector strips on a transparent case. Contains various chips and connectors.

Arduino board visible in an open cardboard box, next to a transparent plastic sleeve and two cards reading 'Thank you for supporting Arduino' and 'DIY'.

'Arduino Uno WiFi Rev2' board with microcontroller, digital and analogue pins. USB port on the left, WiFi module on the right.

Arduino board with 'UNO WIFI' label, blue background, antenna connector on the right. Texts indicate an open-source platform.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

30 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

An Arduino UNO with WiFi

With Arduino Uno WiFi, you can add WiFi to your devices. It's basically an Arduino Uno Rev3 with more kick: It comes with a brand new 8-bit microprocessor from Microchip and an integrated IMU (Inertial Measurement Unit). The WiFi connection is secured with the new ECC608 Cryptochip Accelerator.

Technical specifications

Type: Arduino UNO

Series: Core

Clock speed: 16 MHz

Memory type: FLASH

Memory capacity: 48 kB

External ports: ICSP

Wi-Fi: built-in

Length: 68.6 mm

Width: 53.4 mm

Product type: Board

MC layout: 8-bit

Interfaces: Wi-Fi

Technology: 8-bit MCU

Tool type: Demo board

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1969870 Arduino Board UNO WIFI REV2 Core

User & Safety Instructions

User & Safety Instructions 1969870 Arduino Board UNO WIFI REV2 Core

Description

When you add this board to a device, you can connect it to a Wi-Fi network using the ECC608 Secure Cryptochip Accelerator. The Arduino Uno WiFi is functionally identical to the Arduino Uno Rev3, but with the addition of WiFi and some other improvements. It includes a brand new 8-bit microprocessor from Microchip and has an integrated inertial measurement unit (IMU). The Wi-Fi module is a standalone SoC with an integrated TCP/IP protocol stack that can allow access to a Wi-Fi network or act as an access point. The Arduino Uno WiFi has 14 digital input/output pins - 5 can be used as PWM outputs with pin 11, which is not PWM like the analogueue inputs of the UNO Rev3 -6, a USB port, a power source, an ICSP header and a reset button. It contains everything was needed to support the microcontroller. Simply connect it to a computer via a USB cable or operate it with a power supply or a battery to get started.

This text is machine translated.

Features

Microcontroller ATMEGA4809 operating voltage 5V input voltage (recommended) 7 - 12V input voltage (limit) 6 - 12V digital I/O pins 14 - 5 provision PWM output PWM digital I/O pins 5 analogueue input pins 6 DC current per I/O pin 20 mA DC current for 3.3V pin 50 mA flash memory 48 KB (ATMEGA4809) SRAM 6,144 B (ATMEGA4809) EEPROM 256 bytes (ATMEGA4809) clock frequency 16 MHz LED_BUILTIN 25 length 68.6 mm width 53.4 mm weight 25 g.

Scope of delivery

Arduino® Uno WiFi Rev2

Description

Features

Microcontroller ATMEGA4809 operating voltage 5V input voltage (recommended) 7 - 12V input voltage (limit) 6 - 12V digital I/O pins 14 - 5 provision PWM output PWM digital I/O pins 5 analogueue input pins 6 DC current per I/O pin 20 mA DC current for 3.3V pin 50 mA flash memory 48 KB (ATMEGA4809) SRAM 6,144 B (ATMEGA4809) EEPROM 256 bytes (ATMEGA4809) clock frequency 16 MHz LED_BUILTIN 25 length 68.6 mm width 53.4 mm weight 25 g.
