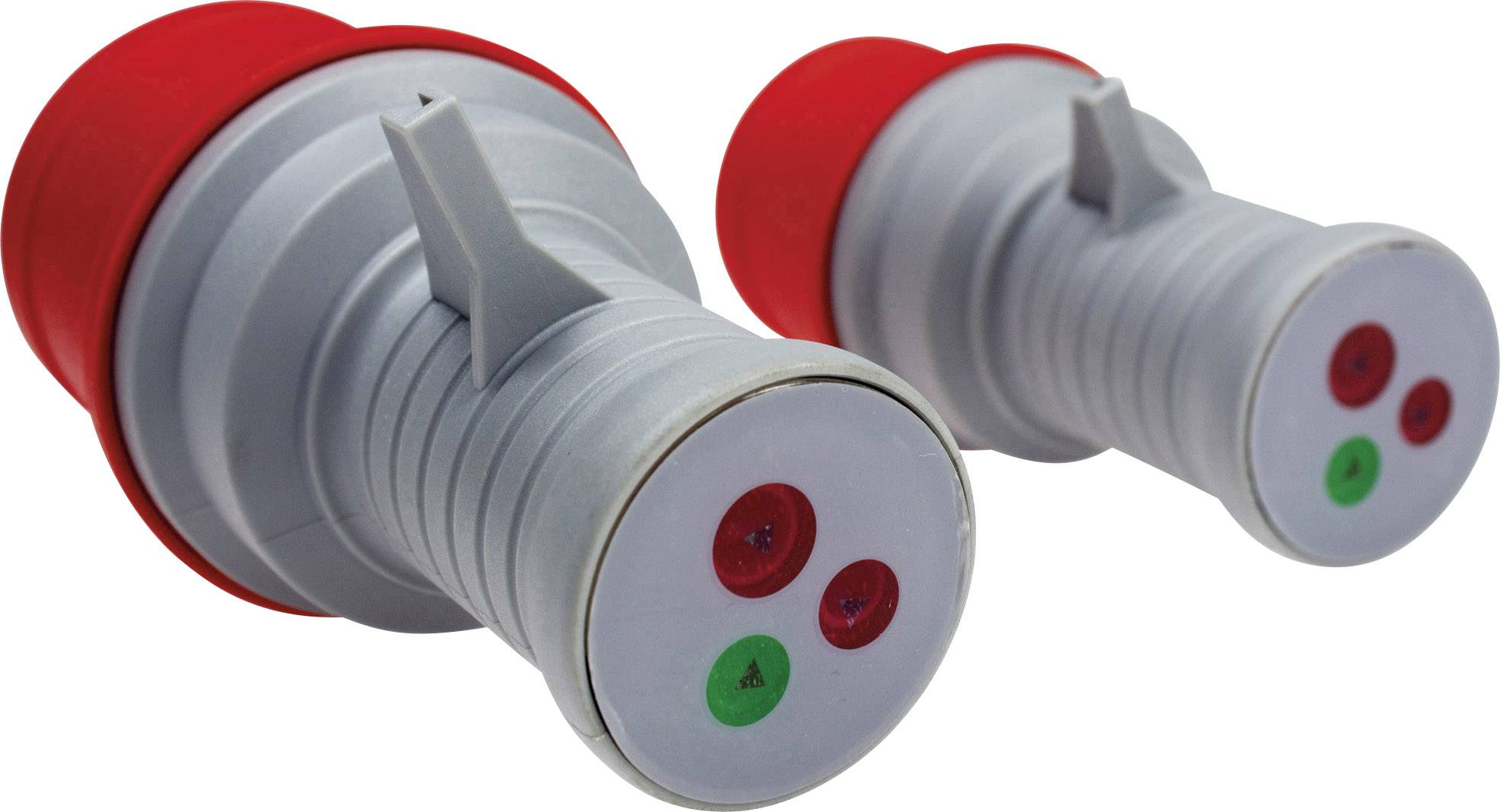

AS Schwabe 61477 Rotating EMF tester LED
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.08
3
4% = € 1.35
€ 29.73
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 31.08 / piece)
€ 31.08
plus VAT.
14 days return policy included
Highlights & Details
Connection and rotating field test plug 16 A
- Connection and rotating field test plug for CEE sockets
- With impact-resistant, splash-proof housing made of polyamide
- IP44: foreign bodies and splash-proof
Technical specifications
- Product type
Rotating EMF tester
- Reading type
Rotating magnetic field
- Display
LED
IP44
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 12.7 x 6.4 x 7.7 cm
- Width
6.4 cm
- Height
7.7 cm
- Length
12.7 cm
- Type
61477
- Factory colour
Red
Grey
Documents & Downloads
Datasheet
Datasheet 1857409 AS Schwabe 61477 Rotating EMF tester LED
User & Safety Instructions
User & Safety Instructions 1857409 AS Schwabe 61477 Rotating EMF tester LED
Description
The test plug is used for the safe control of the rotating field direction in CEE sockets. According to VDE 0100 § 31b 5, three-phase sockets must be connected in such a way that – when viewed from the front in a clockwise direction – the sockets result in a clockwise rotating field to the right. The test plug shows a right or left rotating field or the absence of a phase via three indicator lights.
