Name: B + B Thermo-Technik 0551 1220 Duct immersion probe -40 up to +125 °C
Brand: B + B Thermo-Technik
SKU: 3089241
Availability: BackOrder

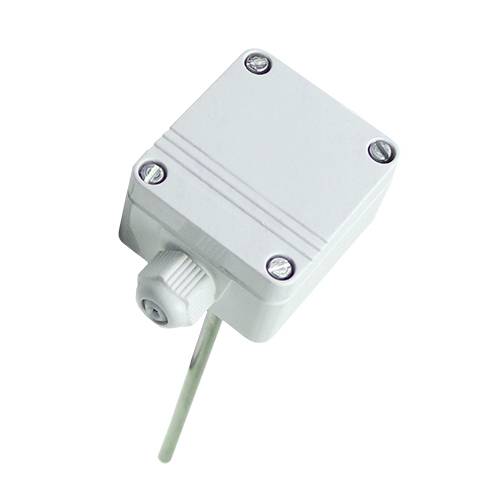

A square measuring device with four screws at the corners and a cable gland, which is likely used for temperature or humidity monitoring.

Image similar

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Channel sensor Temperature | 4...20 mA | Without display

-40 up to +125 °C
Screw terminals

Technical specifications

Connection: Screw terminals 0.2 mm² to 1.5 mm² (AWG 26 to 16)
Cable gland: M16x1.5; clamping range 6.0...9.5 mm
Response time temperature
> 20 s
Output signal
4...20 mA
Operating voltage
16...24 V DC
Designation
Temperature sensor;
Display
Without display
Working temperature of the sensor tip
-40...+125 °C.
Operating temperature housing
-30...+70 °C
Housings
Plastic housing
59 x 65 x 38 mm
Accuracy
±0.2 K (0...90 °C)
±0.5 K (-40...+125 °C)
Sleeve diameter
12 mm
Sleeve length
195 mm
Sleeve material
Stainless steel 1.4571
"Measurement range, temperature"
-40...+125 °C.
Scaling adjustable via DIP switches
Measured parameter
Temperature
Protective filter
Polyethylene: 25 µm
Ø 12 x 30 mm
Sensor
Digital humidity/temperature sensor
Temperature drift of the measurement electronics
±0.01% / K referring to 23 °C.
Environmental data
RoHS and REACH compliant

Product type: Duct immersion probe

Temperature reading range (min.): -40 °C

Temperature reading range (max.): +125 °C

Dim: (Ø x H) 12 mm x 38 mm

Probe length: 195 mm

Connector: Screw terminals

Temperature reading range: -40 up to +125 °C

Temperature accuracy: ±0.2 °C

Width: 65 mm

Height: 38 mm

Length: 59 mm

(Ø): 12 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3089241 B + B Thermo-Technik 0551 1220 Duct immersion probe -40 up to +125 °C

Description

High-quality and precise sensor with integrated transducer for building management or industrial applications. Measuring variables: Temperature, humidity Optionally with display output signal 0-10V or 4-20mA
