Name: B + B Thermo-Technik 0551 3130 Corded probe -40 up to +125 °C 0 up to 100 RH
Brand: B + B Thermo-Technik
SKU: 3089223
Availability: BackOrder

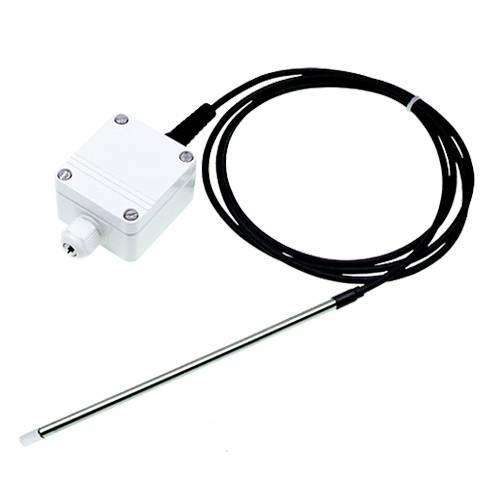

An electronic temperature sensor with a long probe and attached cable, used for measuring ambient or liquid temperatures.

Image similar

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 159.99 / piece)

€ 159.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Humidity and temperature pendulum sensor | 0...10V | without display

-40 up to +125 °C
Screw terminals

Technical specifications

Connection: Screw terminals 0.2 mm² to 1.5 mm² (AWG 26 to 16)
Cable gland: M16x1.5; clamping range 6.0...9.5 mm
Response time moist
> 20 secs
Response time temperature
> 20 s
Output signal
0...10V
Max. output current 2mA
Output scale humidity
0...100% RH corresponds to 0...10 V
Operating voltage
15...24 V AC/DC
Designation
Humidity and temperature sensor
Display
Without display
Working temperature of the sensor tip
-40...+125 °C.
Operating temperature housing
-30...+70 °C
Housings
Plastic housing
59 x 65 x 38 mm
Humidity accuracy
2% RH
Accuracy
±0.2 K (0...90 °C)
±0.5 K (-40...+125 °C)
Sleeve diameter
12 mm
Sleeve length
100 mm
Sleeve material
Stainless steel 1.4571
Measuring range - humidity
0...100% RH (not condensing)
"Measurement range, temperature"
-40...+125 °C.
Scaling adjustable via DIP switches
Measured parameter
Humidity and temperature
Protective filter
Polyethylene: 25 µm
Ø 12 x 30 mm
Sensor
Digital humidity/temperature sensor
Temperature drift of the measurement electronics
±0.002% / K referring to 23 °C.
Environmental data
RoHS and REACH compliant

Product type: Corded probe

Temperature reading range (min.): -40 °C

Temperature reading range (max.): +125 °C

Dim: (Ø) 12 mm

Probe length: 100 mm

Connector: Screw terminals

Humidity reading range (max.): 100 RH

Humidity reading range (min.): 0 RH

Temperature reading range: -40 up to +125 °C

Temperature accuracy: ±0.2 °C

(Ø): 12 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3089223 B + B Thermo-Technik 0551 3130 Corded probe -40 up to +125 °C 0 up to 100 RH

Description

High-quality and precise sensor with integrated measuring transducer in the EXT design for building control systems or industrial applications Measuring variables: Temperature, humidity Optionally with display output signal 0-10V or 4-20mA
