Bauser 3801/008.3.1.0.1.2-003
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 35.99 / piece)
€ 51.99
-31 %
€ 35.99
incl. VAT
14-day return policy included
Highlights & Details

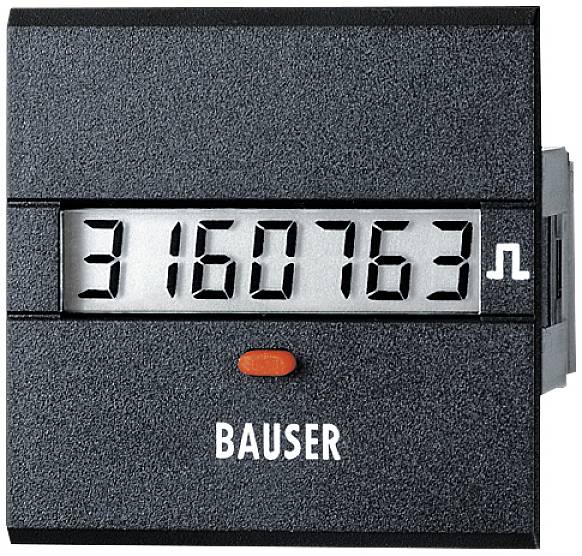

Digital timer or pulse counter - new! Twin solution
- 48 x 48 mm
- With electric + mechanical reset, with button
- Resolution 1/100 h
- Terminal connection
- AC-supplied
- This text is machine translated.
Technical specifications
- Electrical connection: Clamp connection
- Ambient temperature: -30 to +70 °C
- Counter frequency: 30 Hz for DC-counters
- Pulse counter: 10 Hz for AC-counters
- Mounting: spanning bracket
- Reading type
Time
- Type
3801/008.3.1.0.1.2-003
IP54 (front)
- Recess width
48 mm
- Recess height
48 mm
- Dim
(W x H x D) 48 x 48 x 40 mm
- Weight
39 g
- Factory colour
Black
- Width
48 mm
- Height
48 mm
- Interfaces
Terminal strip
- Digit height
7 mm
- Depth
40 mm
- Type
Timer counter 115-240 V AC
- Digits
7
- Display (details)
LCD
- Resolution
1/100 h
- Assembly dimensions
45 x 45 mm
- Total dimensions
48 x 48 mm
- Counter range
99999.99 h
- Counter type
Time counter
- Reset
Electrically/Button
- Temperature range
-30 to +70 °C
- Input voltage
115 - 240 V AC
- Operating voltage
115 - 240 V AC
Documents & Downloads
Datasheet
Datasheet 120658 Bauser 3801/008.3.1.0.1.2-003
User & Safety Instructions
User & Safety Instructions 120658 Bauser 3801/008.3.1.0.1.2-003
Description
Modern Bauser technology makes it possible Even without batteries your data is saved in the EEPROM memory! The new electronic timers and pulse counters are characterised by their attractive design, high quality and reliability. Optimally suited for the rigours of industrial applications or in commercial vehicles.
Features
- 7-digit, high-contrast LC display
- Zero position: electrical or manual/electrical
- Display: LC-display (only active during voltage supply)
- Electrical connection: Clamping connection
- Vibration resistance: 1 g (10… 500 Hz) according to IEC 68-T2-34
- Shock Resistance : 30 g (18 ms) according to IEC 68-T2-27
- EMV: EN 55011, EN 50082-2
- Industrial standard: according to EN 61010, safety class system II
- Attachment via remaining clamping jaw.
