Buy Beha Amprobe 3311961 Tachometer Mechanical, Optical 1 - 19999 U/min 1 - 99999 U/min

A red tachometer with a digital display shows '3580 rpm'. Two yellow buttons underneath. Upper button for measuring rotational speed.

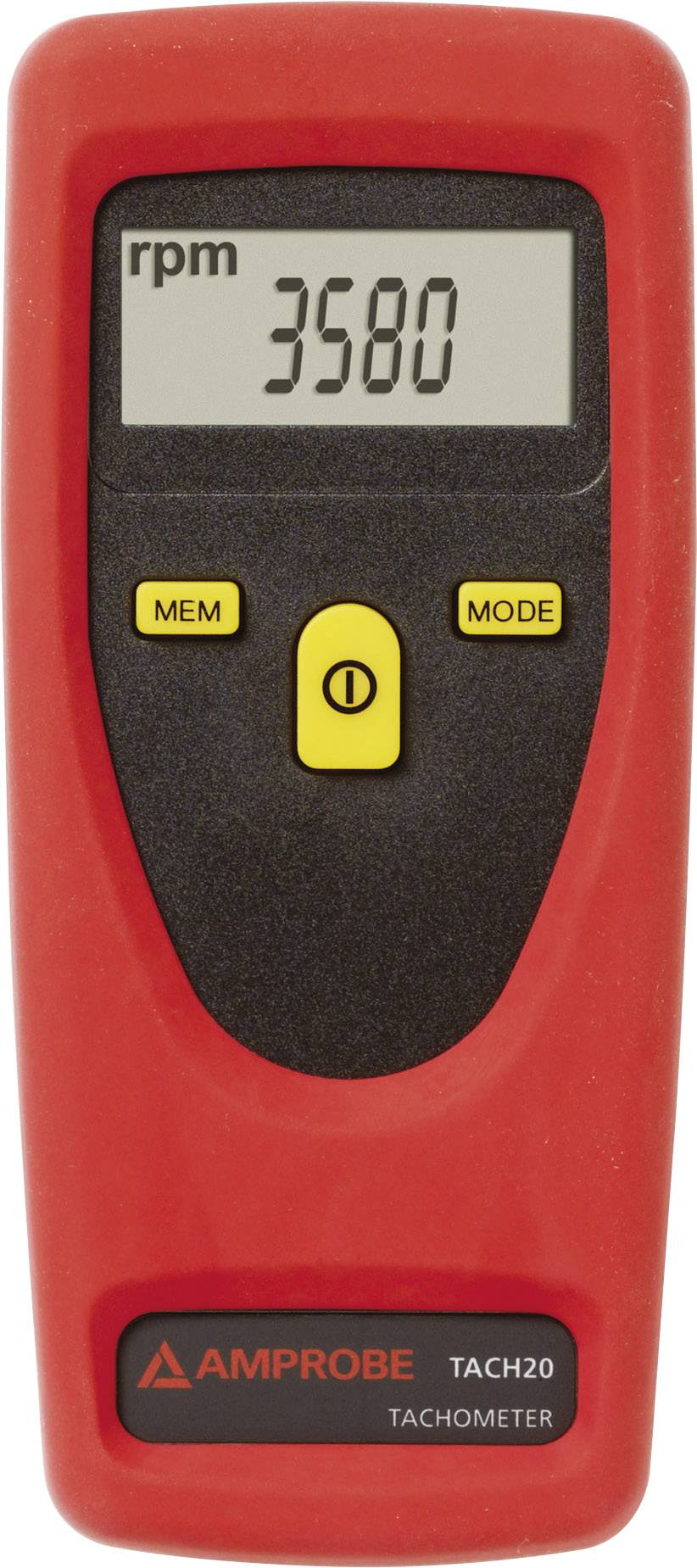

A red hand tachometer displays '3580 rpm' on the screen. Two yellow buttons are visible. Device for measuring rotational speed.

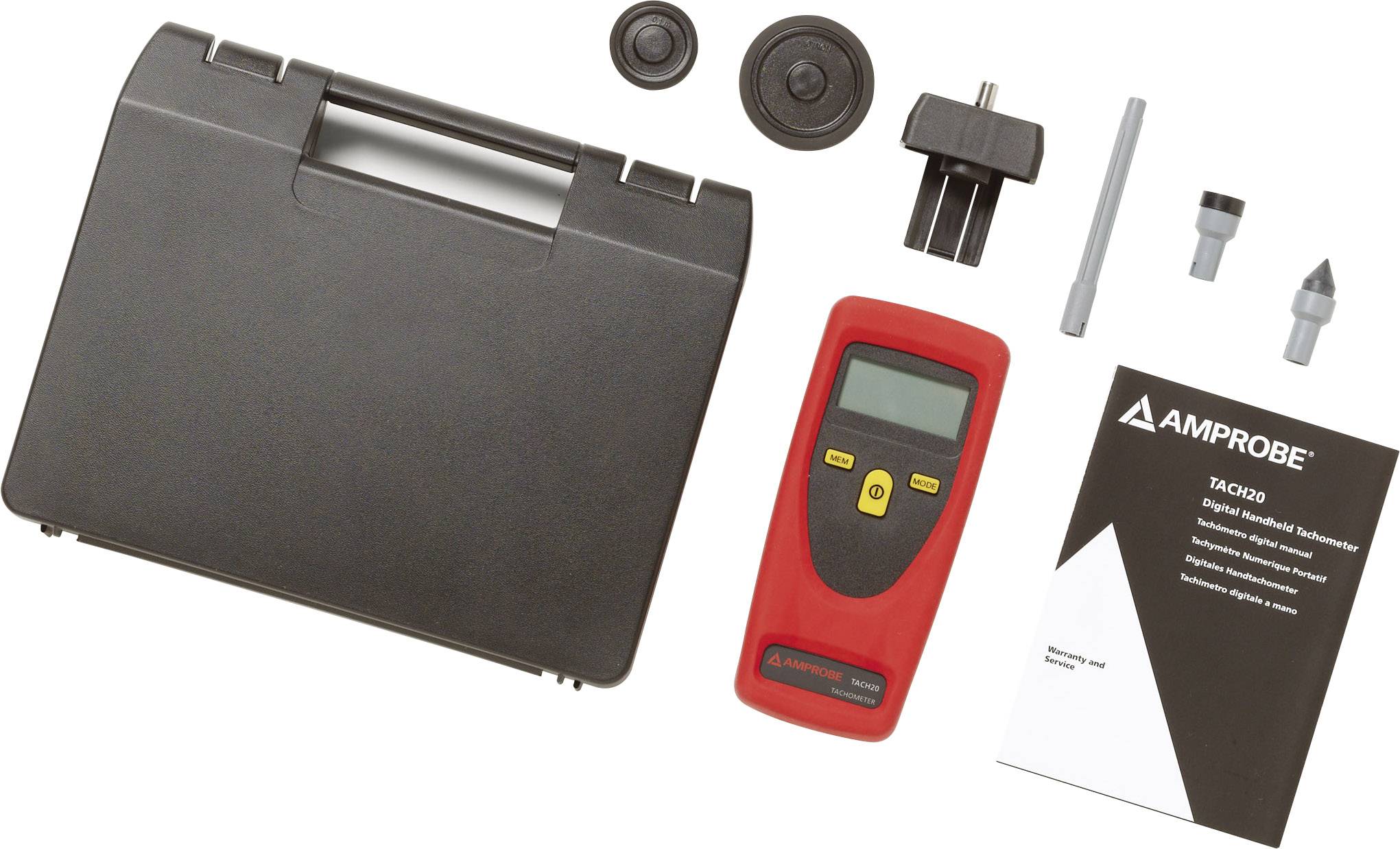

Measuring device set with red digital tachometer, accessories, a black carrying case, and an instruction manual by Amprobe.

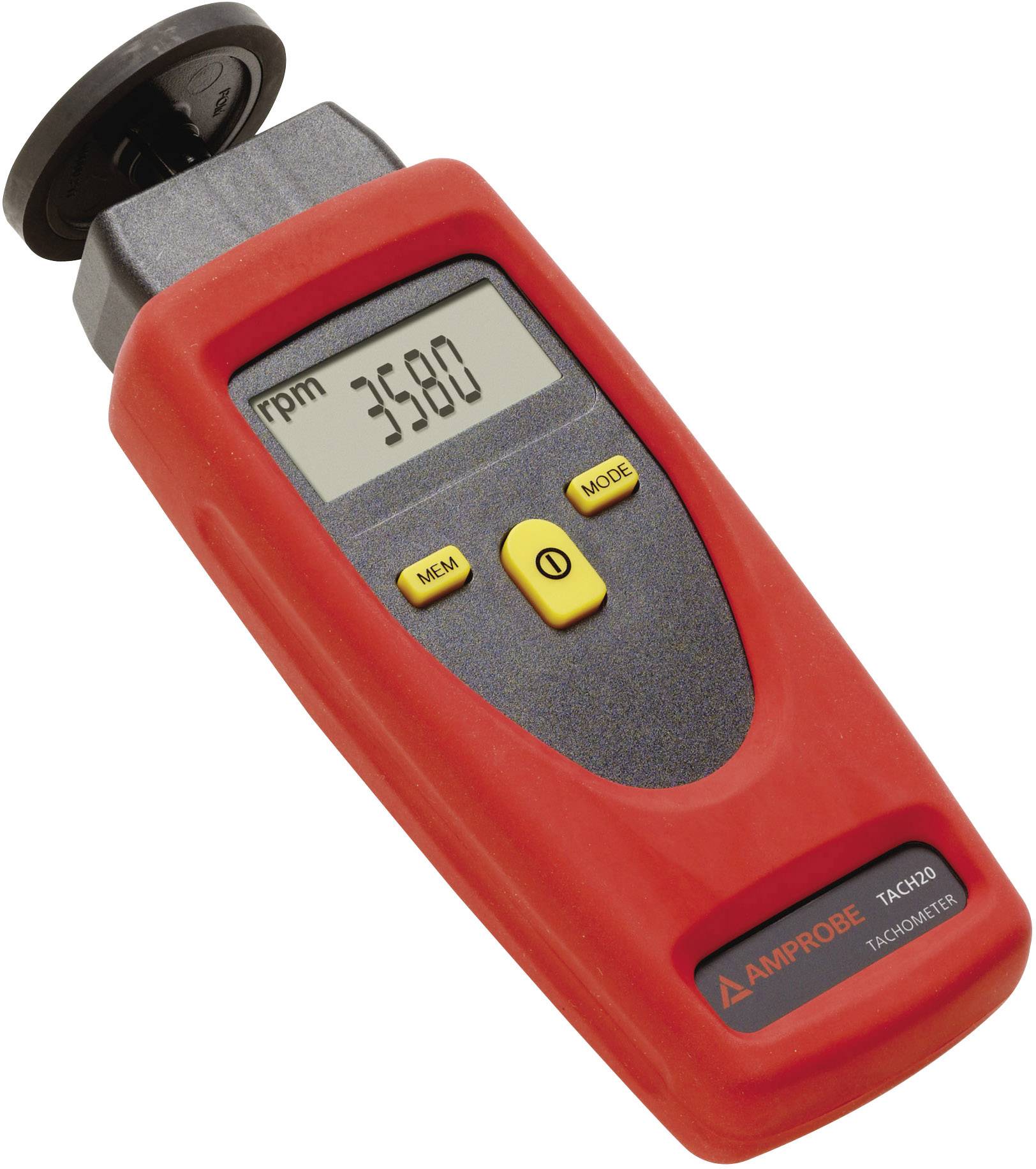

A red hand tachometer with a digital display shows a rotational speed of 3,580 rpm. Buttons for 'Mean', 'Mode' and 'On/Off' are visible.

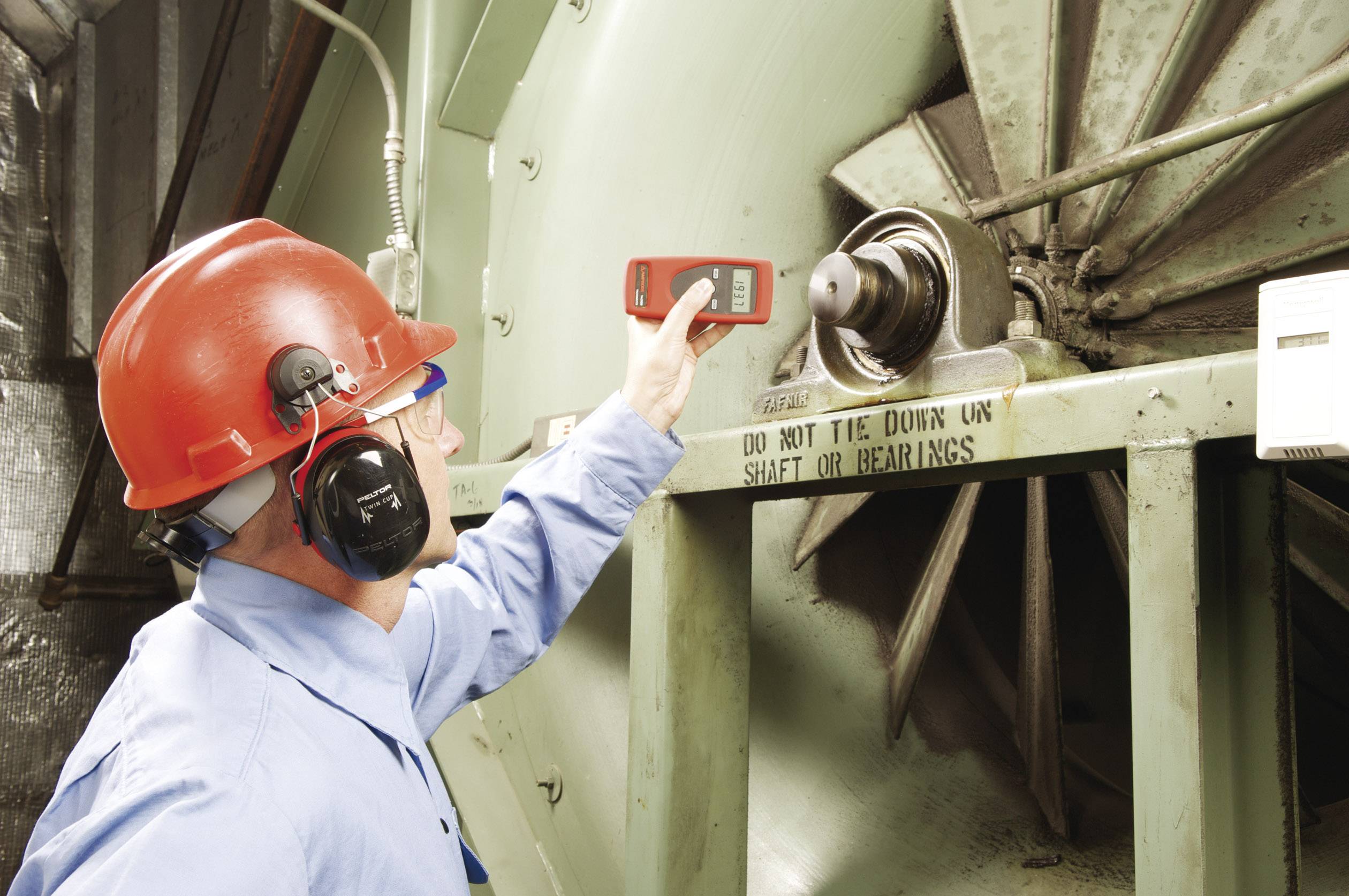

A worker wearing a hard hat and ear protection is checking an industrial fan with a device. Safety precautions are evident.

1/5

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 621.01 / piece)

€ 621.01

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Combo-turn teeth alme closer TACH 20

Speed measurement
Speed measurement
Length measurement
Optical and mechanical measurement

Technical specifications

RPM accuracy: 0.02

Speed resolution: 1 U/min

Reading distance: max. 600 mm

Operating voltage: 3 V/DC (2 AA batteries)

Dim: (L x W x H) 17.5 x 6 x 17.5 mm

Weight: 250 g

Height: 17.5 mm

Length: 17.5 mm

Width: 6 mm

Rotational speed range (max.): 1 - 19999 U/min

Rotational speed (optical): 1 - 99999 U/min

: Manufacturer's standards (no certificate)

Display: LCD

Measuring type: Mechanical
Optical

Type: TACH20

Rotational speed, mechanical (max.): 19999 U/min

Rotational speed, mechanical (min.): 1 U/min

Rotational speed, optical (max.): 99999 U/min

Rotational speed, optical (min.): 1 U/min

UKCA: not relevant

Product type: Tachometer

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1374232 Beha Amprobe 3311961 Tachometer Mechanical, Optical 1 - 19999 U/min 1 - 99999 U/min

Description

Digital speed measuring device with 3 functions in one • speed measurement • speed measurement • length measurement.
With the tach 20 movable parts optically and mechanically can be measured. There are various recording adapter for the contacts are available.

This text is machine translated.

Features

Display of speed
Display of the speed at the surface in m/min, ft/min, in/min
Display of the length measurement in m, ft and inch
Integrated measured value storage
It will be the last value, the maximum value or the minimum value is shown in the display
Optical (contactless) or mechanically coupled measurement
The optical measurement is indicated by a red modulated light beam visible
Auto power-off approx. 30 sec. (Data will be saved)
Speed measurement in m/min, ft/min, in/min, m/s, ft/s
Length measurement up to 99 999 m.
