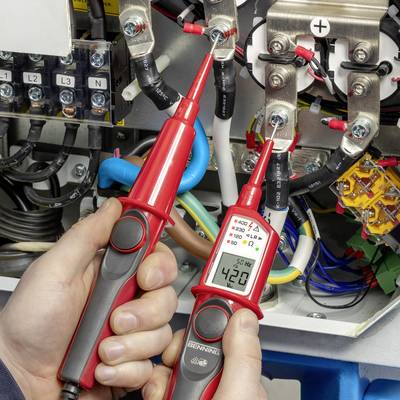

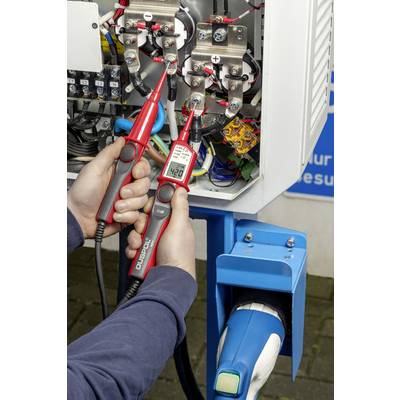

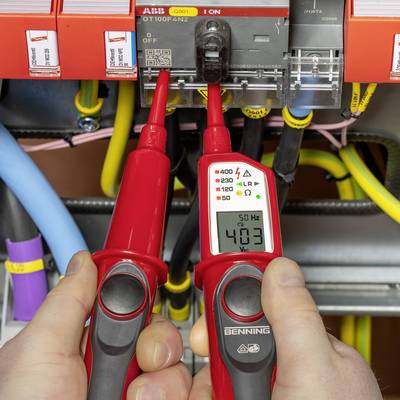

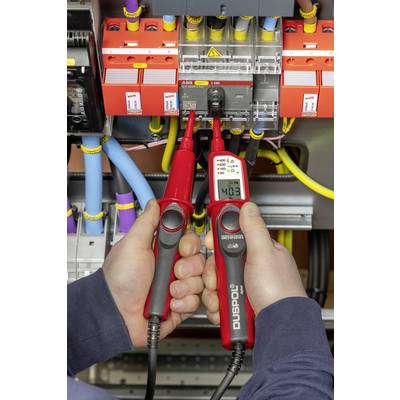

Benning DUSPOL digital Two-pole voltage tester CAT III 1000 V, CAT IV 600 V LCD, Vibration, Acoustic
EAN:
Part number:
Item no:
Number
Total (€ 105.03 / piece)
€ 113.45
-7 %
€ 105.03
plus VAT.
Highlights & Details
Digital voltage and continuity tester DUSPOL digital
- Voltage of 1 - 1000 V AC TRMS/1200 V DC
- Continuity test up to 100 kΩ
- Resistance up to 300 kΩ
- Frequency of 1 - 1000 Hz
- Diode test up to 2 V
- Rotational field direction, Phase, polarity check
- VDE approved
- CAT IV 600V
- Load connection with vibration alarm
- Conscious trigger a 30 mA FI circuit-breaker
- Check rotating field direction in rotary current network
- Single-pole outer conductor test (phase)
- Acoustic continuity test on volume test buzzer and visual display via yellow LED
- Measuring point lighting via white high-power LED
- Rotating field direction test via green LED (left/right)
- Detector for the contact-less localization of cable breaks in cables lying open and under voltage
- Voltage test up to 1000 V AC TRUE RMS/1200 V DC
- Real-effective value procedure TRUE RMS
- Low-voltage range: 1.0 V to 11.9 V
- Frequency display up to 1000 Hz
- Resistance measurement up to 300 kΩ
- Measurement of the on-state voltage of diodes
- Automatic LC display lighting via light sensor
Technical specifications
- Continuity test up to 100 kΩ
- Diode test 0.3 V - 2 V
- Power supply: 2x AAA battery
- Product type
Two-pole voltage tester
- Reading type
Rotating magnetic field
Continuity
FI
Phase
Resistance
- Display
LCD
Vibration
Acoustic
- V AC reading range
12 up to 1000 V
- V DC reading range
12 up to 1200 V
- Reading category
CAT III 1000 V
CAT IV 600 V
IP65
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 330 x 85 x 55 mm
- Weight
500 g
- Max. frequency
1000 Hz
- Min. frequency
15 Hz
- Frequency range
15 Hz - 1000 Hz
- V AC reading range (max.)
1000 V
- V AC reading range (min.)
12 V
- Voltage DC reading range (max.)
1200 V
- Voltage reading range DC (min.)
12 V
- Width
85 mm
- Height
55 mm
- Length
330 mm
- Type
DUSPOL digital
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 103702 Benning DUSPOL digital Two-pole voltage tester CAT III 1000 V, CAT IV 600 V LCD, Vibration, Acoustic
User & Safety Instructions 103702 Benning DUSPOL digital Two-pole voltage tester CAT III 1000 V, CAT IV 600 V LCD, Vibration, Acoustic
Information
Information 103702 Benning DUSPOL digital Two-pole voltage tester CAT III 1000 V, CAT IV 600 V LCD, Vibration, Acoustic
Conformity certificate
Conformity certificate 103702 Benning DUSPOL digital Two-pole voltage tester CAT III 1000 V, CAT IV 600 V LCD, Vibration, Acoustic
Description
The duspol digital is a digital TRUE RMS voltage and continuity tester with resistance and frequency range. The voltage tester is suitable for the areas of electrical, industrial, Maintenance, Service (troubleshooting), photovoltaics.
This text is machine translated.
This text is machine translated.
Features
- Voltage of 1 V - 1000 V AC TRUE RMS/1200 V DC (LCD)
- The display stages: 50, 120, 230, 400 V AC/DC (LED)
- Backlit double display for display of frequency (small display) and voltage (large display) or resistance
- Optical continuity test up to 100 kΩ (yellow LED)
- Resistance measurement: 0.1 kΩ - 300 kΩ (LCD)
- Diode test: 0.3 V - 2 V (LCD)
- Rotating field direction (green LED)/phase testing (red LED), polarity check (LCD)
- Frequency measurement: 15 Hz - 1000 Hz
- Direct display without pushbutton operation (high-resistance testing)
- Load connection via push button (low-resistance testing)
- Conscious triggering of the FI circuit-breaker
- Vibration alarm in the test handle
- Measuring points and display lighting
- Protection class IP 65 (dust-proof/splash-water protected)
- Robust housing design with rubberised grip area
- Tested and approved according to DIN EN 61243-3 and VDE 0682-401
- Overvoltage category CAT IV 600 V, CAT III 1000 V.
Scope of delivery
- With 6 bits. Test prod protection, 2 x 1.5 V Micro batteries (LR03/AAA), operating instructions.
