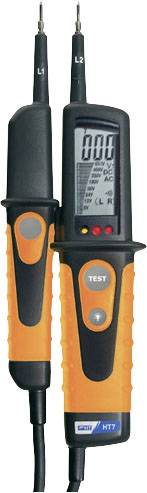

HT Instruments HT7 Two-pole voltage tester CAT III 1000 V, CAT IV 600 V LCD, LED, Acoustic
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
Highlights & Details
Digital voltage tester HT7 with load switching
- CAT III 1000 V, CAT IV 600 V
- 19 mm contact gap for one-handed testing
Technical specifications
- Load control: 200 mA, impedance< 6 kΩ
- Working temperature: -15°C to +55°C
- Internal resistance: 1 MΩ
- Power supply: 2x AAA battery
- Power consumption: 1.5 mA
- Product type
Two-pole voltage tester
- Reading type
Rotating magnetic field
Phase
Continuity
FI
- Display
LCD
LED
Acoustic
- V AC reading range
6 up to 690 V
- V DC reading range
6 up to 690 V
- Load switching
200 mA
- Reading category
CAT III 1000 V
CAT IV 600 V
IP64
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 250 x 60 x 40 mm
- Weight
240 g
- Max. frequency
60 Hz
- Min. frequency
50 Hz
- Frequency range
50 Hz - 60 Hz
- V AC reading range (max.)
690 V
- V AC reading range (min.)
6 V
- Voltage DC reading range (max.)
690 V
- Voltage reading range DC (min.)
6 V
- Width
60 mm
- Height
40 mm
- Length
250 mm
- Type
HT7
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1491939 HT Instruments HT7 Two-pole voltage tester CAT III 1000 V, CAT IV 600 V LCD, LED, Acoustic
User & Safety Instructions
User & Safety Instructions 1491939 HT Instruments HT7 Two-pole voltage tester CAT III 1000 V, CAT IV 600 V LCD, LED, Acoustic
Description
The voltage tester is built and tested according to EN 61243-3/VDE0682 and ensures safe and reliable working. It corresponds to the protection class IP64 (dust and splash-water protected) and is molded by the soft rubber grips are extremely robust, making it ideal for harsh applications for crafts or industrial sector. Through the fixed probe tip protection, the risk of injury when carried in clothing bags or in the tool bag is excluded.
This text is machine translated.
This text is machine translated.
Features
- Voltage of 6 - 690 V AC/DC
- Button for load connection
- Large LCD display with backlight
- Bar graph display
- Measuring point lighting with white LED.
Scope of delivery
- Batteries
- Protective cover
- 2 metal sleeves 4 mm with inner thread
- User manual.
