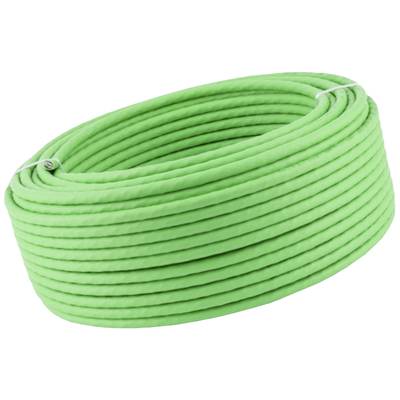

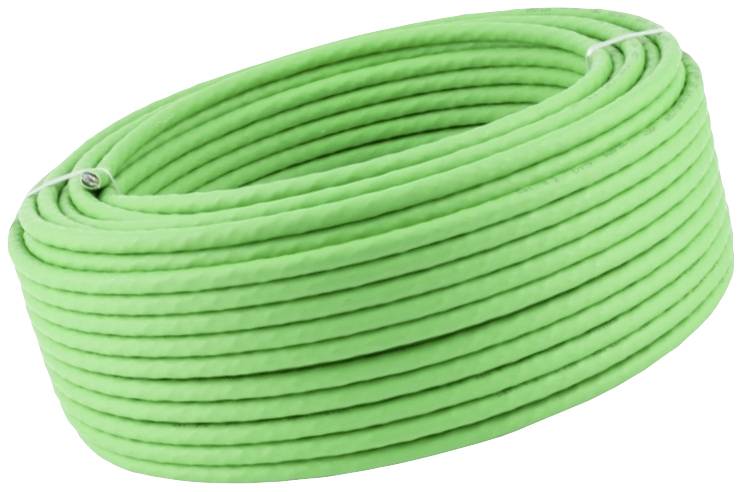

BKL Electronic 10121227 Network cable CAT 8.2 S/FTP Green 1 pc(s)
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 8.2
Shielding
S/FTP
Cable type
S/FTP
No. of leads
8 x
Datasheet (PDF)
Number
Total (1 m = € 1.76)
€ 176.46
plus VAT.
Highlights & Details
CAT 8.2 laying cable, S/FTP, ProLine, green, 100 m
Our service for you
Technical specifications
- Product type
Network cable
CAT 8.2
S/FTP
- Cable type
S/FTP
- No. of leads
8 x
- Cable features
Symmetrical
- Outside Ø
8.4 mm
- Factory colour
Green
- Max. frequency
2000 MHz
- Content
1 pc(s)
- AWG max.
22
- Packaged
Yes
- Sold per metre
No
- Manufacturer part #
10121227
- Type
10121227
- Insulation material
LSZH
- RoHS-compliant
Yes
- Halogen-free
Yes
- Max. length sold by the metre
100 m
- Twisted pair cabling (part 1)
Yes (1)
Documents & Downloads
Datasheet
Datasheet 3280534 BKL Electronic 10121227 Network cable CAT 8.2 S/FTP Green 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3280534 BKL Electronic 10121227 Network cable CAT 8.2 S/FTP Green 1 pc(s)
Description
Professional laying cable with GHMT certification according to ISO/IEC 11801-1 Ed..1.0 (2017-11), IEC 61156-9 Ed..3.0 (2020-04). Also compatible with CAT. 8.1 (class I), observe the maximum length of 30m (2x marshaling cable 3M + installation cable 24m).
This text is machine translated.
This text is machine translated.
Features
- Number of shields: 2-fold
- Shielding 1: Aluminium film coated PIMF (100% sealed)
- Shielding 2: Braid (tin-plated copper)
- AWG 22/1 cable configuration
- Core material: Copper
- Wires type: Solid conductor/rigid (solid)
- Number of wires 8 (4 x 2 twisted pair)
- Specification: CAT. 8 (class II)
- Certificates:
- GHMT Type Approval
- Symmetrical Cable, Copper, Category 8.2
- ETL verified to ANSI/TIA-568.2-D and ISO/IEC 11801-1 CATEGORY 8.2
- Transmission frequency up to 2000MHz
- Bandwidth up to: 40Gbps
- Standards:
- EN 50290-2-27, EN 50173, EN 60332-1-2, EN 60754-1/2,
- EN 61034-2, EN 50173-1, IEC 61156-10
- Cable type: Round cable
- Cable jacket: LSZH (halogen-free)
- Diameter (approx.): 8.4 mm
- B2ca-S1A, d1, a1
- Supports: 10GBASE-T, 25GBase-T, 40GBase-T,
- Power over Ethernet IEEE 802.3af class 1-3 (PD-type 1, 2-pairs),
- IEEE 802.3at class 4 (PD type 2, 2-pairs), IEEE 802.3at class 5-6
- (PD type 3, 4-pairs), IEEE 802.3bert class 7-8 (PD type 4, 4-pairs)
- Winding: Ring and foil
- Length: 100 m
