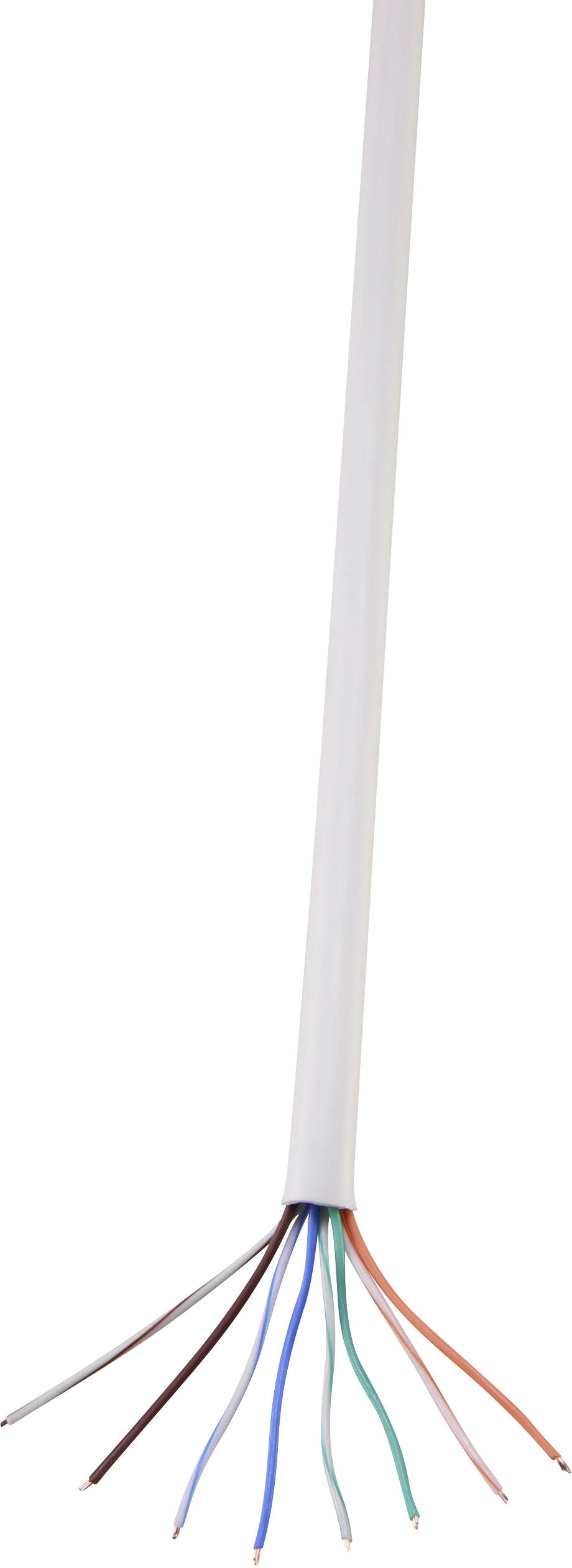

TRU COMPONENTS Network cable CAT 5e U/UTP 4 x 2 x 0.14 mm² White 100 m
EAN:
Part number:
Item no:
Specification
CAT 5e
Shielding
U/UTP
No. of leads
8 x
Cross section (each core)
0.14 mm²
Cable features
Simplex
CCAW
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 0.27
€ 26.88
3
1 M = € 0.26
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 0.27)
€
Highlights & Details
Conrad SH1998C253 networking cable
- Enables data transfer speeds of up to 1000 Mbps
- Suitable for frequencies up to 100 MHz
- U/UTP (unshielded)
- Cable cross-section: 4 x 2 x 0.14 mm²
Technical specifications
- Conductor construction: 7 x 0.16 mm
CAT 5e
U/UTP
- No. of leads
8 x
- Cross section (each core)
0.14 mm²
- Cross section
4 x 2 x 0.14 mm²
- Cable features
Simplex
CCAW
- Outside Ø
5.20 mm
- Factory colour
White
- Max. frequency
100 MHz
- Content
100 m
- AWG max.
26
- Packaged
Yes
- Sold per metre
No
- Manufacturer part #
1567146
- Type
CAT 5e/CCA
- Insulation material
PVC
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+70 °C
- Halogen-free
No
- Twisted pair cabling (part 1)
Yes (1)
- Product type
Network cable
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1567146 TRU COMPONENTS Network cable CAT 5e U/UTP 4 x 2 x 0.14 mm² White 100 m
Description
Reliable data transfer for your network
The TRU COMPONENTS network cable category 5e is completely adequate for Internet applications and networks with 1,000 MBit/s (Ethernet). Which makes this highly flexible patch cable a viable Wi-Fi alternative. The advantages are obvious: No radiation exposure, maximum security, but above all no speed loss - whatever is fed on one side, comes out on the other side.
Data transfer by means of CCA (aluminum)
CCA marks bi-metallic one- and multi-wired lines/cables with copper-plated aluminium core for high-frequency usage areas. The skin effect, also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density in the inside of the conductor becomes lower with increasing frequency than that at the outer surface. The inner cross-section area of a conductor through which high-frequency alternating current is flowing practically does not do any transmission function.
The network cable - CCA is thus a really economical and weight-reduced alternative to the conventional full-copper line and this at equivalent power and transmission characteristcs.
This text is machine translated.
Scope of delivery
- Packing (100 m).
- This text is machine translated.
