Buy Camille Bauer 175308 Signal converter 1 pc(s)

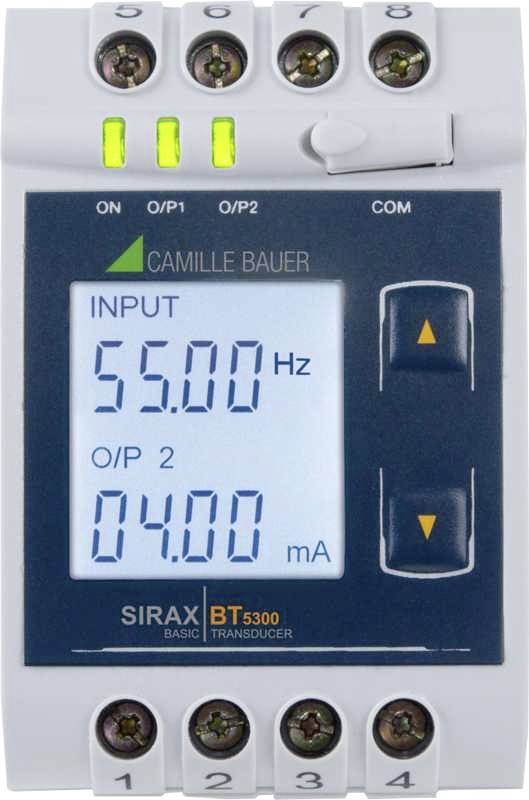

Electrical measuring device with display showing 'INPUT 55.00 Hz' and 'O/P 2 04.00 mA'. Three green LED indicators at the top, control buttons below.

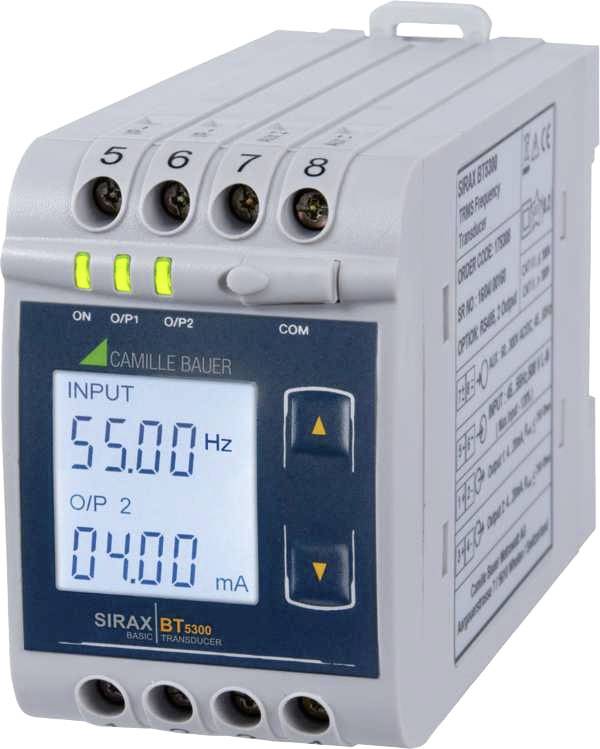

Measuring instrument for recording electrical frequency and current intensity, displaying 55.00 Hz and 4.00 mA on a digital display.

1/2

Product type

Signal converter

Type

175308

Dim

(L x W x H) 106.5 x 43.75 x 65.5 mm

Connection

Clamp

Output (voltage)

0 - 10 V

Datasheet (PDF)

Dispatches on Mon, 28 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 256.30 / piece)

€ 256.30

plus VAT.

Report legal concerns

Technical specifications

Type: 175308

Product type: Signal converter

Dim: (L x W x H) 106.5 x 43.75 x 65.5 mm

Connection: Clamp

Output (voltage): 0 - 10 V

Output (current): 4 - 20 mA

Operating voltage: 60 - 300 V DC/AC

Max. operating voltage: 300 V DC/AC

Min. operating voltage: 60 V DC/AC

Input signal (voltage): 45 - 65 Hz

Content: 1 pc(s)

Configuration: Software

Width: 43.75 mm

Height: 65.5 mm

Length: 106.5 mm

Max. ambient temperature: 45 °C

Min. ambient temperature: 0 °C

Documents & Downloads

Datasheet

Datasheet 2140417 Camille Bauer 175308 Signal converter 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2140417 Camille Bauer 175308 Signal converter 1 pc(s)

Description

Transmitter for frequency.
The transmitter SIRAX BT5300 is a DIN rail rail device that is used to convert an input frequency into a DC current or voltage output signal proportional to the measured value. The input frequency and the output current/voltage are shown on the display and shown on the Modbus interface.

This text is machine translated.

Features

Connection type single-phase (frequency)
2 configurable analogue outputs linear or
With kink in a range of 0/4…20 mA, 0/2…10 V.
Quick on-site programming by push buttons or via CB Configurator software
Simple on-site device operation
Clear and easy-to-read display of measurement data via LCD display
Flexible communication and remote reading via integrated Modbus RTU interface
DIN rail mounting
0.2% basic accuracy
CB Configurator
The CB Configurator software makes it even easier to program the measured values
