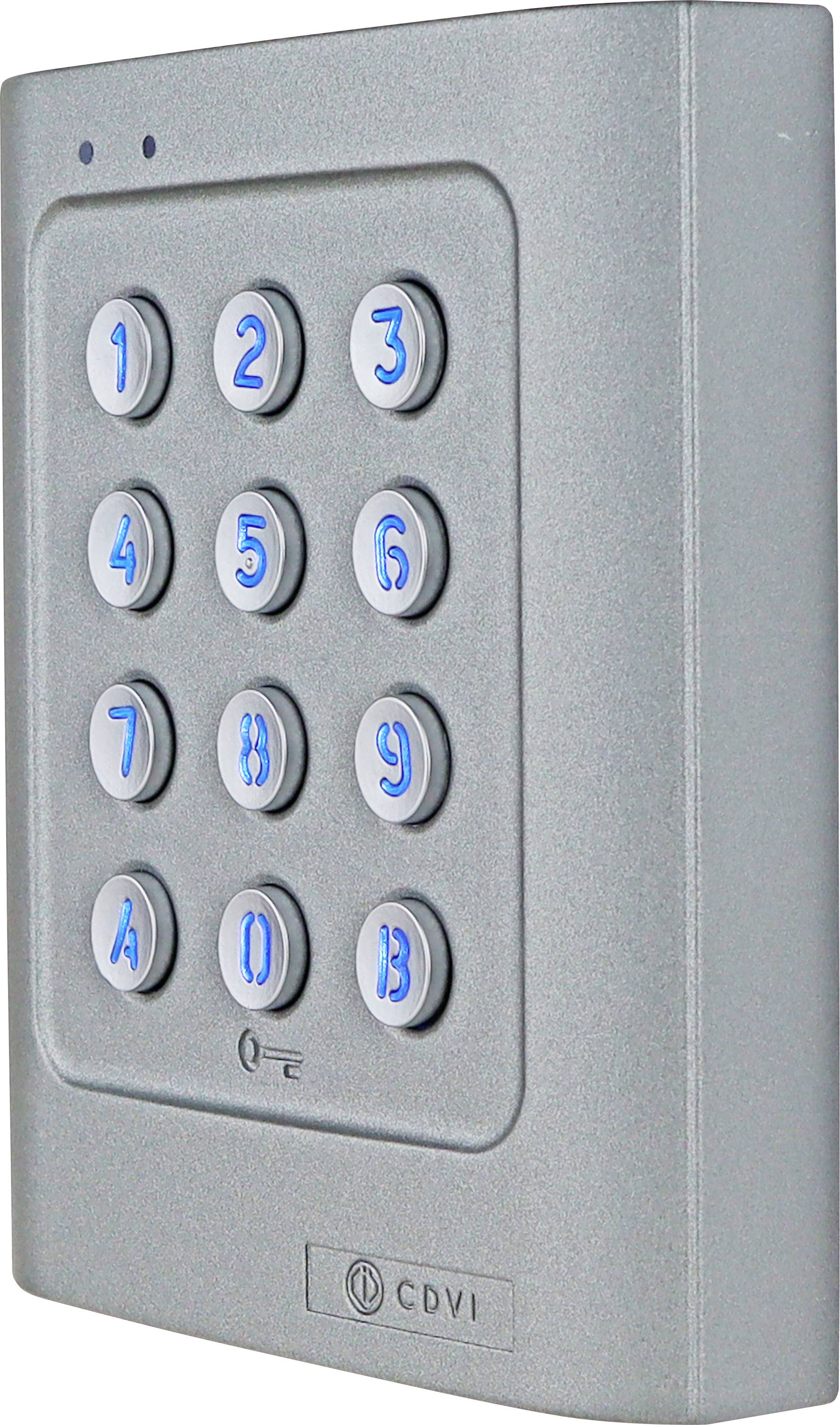

CDVI Security F0201000053-G Code lock 12 V, 24 V, 48 V IP65 Bluetooth support, + backlit keypad
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 399.16 / piece)
€ 399.16
plus VAT.
Only 1 Piece(s) available
Highlights & Details
CDVI stainless steel keyboard, Bluetooth, IP65
- Vandal-proof stainless steel housing
- Suitable for outdoor use (IP65)
- Operation via app
Technical specifications
- POWER SUPPLY 12 - 24 V AC/DC
- Dim. (L x W x H) Controller (BOXCODE): 147 x 124 x 56 mm
- Power supply 12 V to 24 V AC, 12 V to 48 V DC
- Product type
Code lock
- Operating voltage
12 V
24 V
48 V
- Current consumption
60 - 200 mA
- Triggered by
Numerical code
- No. of codes/combinations
100
IP65
- Dim
(W x H x D) 85 x 110 x 15 mm
- Features
Bluetooth support
+ backlit keypad
- Factory colour
Stainless steel
- Width
85 mm
- Height
110 mm
- Depth
15 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2482982 CDVI Security F0201000053-G Code lock 12 V, 24 V, 48 V IP65 Bluetooth support, + backlit keypad
User & Safety Instructions
User & Safety Instructions 2482982 CDVI Security F0201000053-G Code lock 12 V, 24 V, 48 V IP65 Bluetooth support, + backlit keypad
Description
The KCIN BT stainless steel keyboard is the innovative keyboard that combines design with robustness and vandal-proof protection. The operation is done either conventionally via the keyboard or via Bluetooth via IOS or Android app. Access via the app can be set very precisely to the access requirement: Time limitation of the access possibility is possible as well as the limitation to a certain number of access entries (access is rejected after x access).
The KCIN BT is supplied with a remote controller - this means that the controller can be mounted in the protected area and is thus protected against manipulation. The keyboard itself has no connection to the locking elements.
This text is machine translated.
The KCIN BT is supplied with a remote controller - this means that the controller can be mounted in the protected area and is thus protected against manipulation. The keyboard itself has no connection to the locking elements.
This text is machine translated.
Features
- KCIN - stainless steel keyboard with Bluetooth connection
- Housing made of stainless steel
- Fully potted, therefore suitable for outdoor use
- 3 meter connection cable
- Visual/acoustic feedback
- Backlit keyboard (can be switched off/set)
- 3 internal individually controllable relays (NO/NC)
- 100 different access codes can be programd
- Vandal-proof die-cast zinc housing
- Access authorizations can be sent to third parties via messenger services or e-mail - the 128bit AES encryption ensures sufficient data security
- A second keyboard can be connected to the remote controller (TMKCIN)
Scope of delivery
- Mounting material.
Hints
Power supply not included.
System requirements
- app for IOS 8.1 or later only and Android 5.0 or later
