Name: Chauvin Arnoux C.A 10141 Conductivity tester Temperature, Conductivity, Salinity , Salt
Brand: Chauvin Arnoux
SKU: 2793063
Availability: BackOrder

Conductivity meter with digital display shows measurement value of 0.113 μS/cm at 28.3°C. Cable and sensor attached.

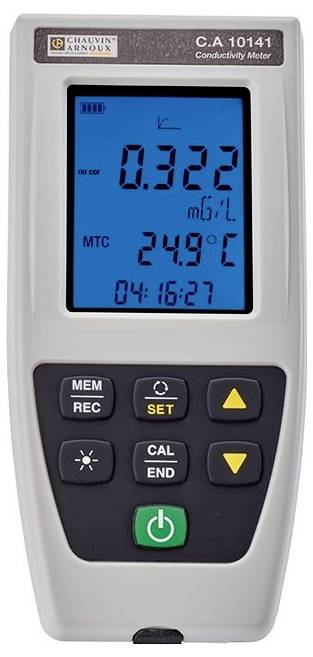

A portable conductivity metre with a digital display shows readings: '0.322 mg/L', '24.9°C', time '04:16:27'.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 17 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,185.00 / piece)

€ 1,185.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

C.A 10141 Conductivity tester

Portable, waterproof conductivity meter for monitoring water quality
Measurement of the hydrogen character - conductivity, TDS-value, spec Resistance, salt content, temperature
User friendly, robust and waterproof (IP 67)
Manual or automatic storage of more than 100,000 measured values with date and time
Displays the signal stability for reproducible measurements
PC-software for data evaluation included in delivery

Technical specifications

Product type: Conductivity tester

Reading type: Temperature
Conductivity
Salinity
Salt

Display: LCD
Digital

: Manufacturer's standards (no certificate)

Automatic temperature compensation: Yes

Operating temperature: -10 to +55 ℃

Dim: (L x W x H) 127 x 54 x 211 mm

Weight: 600 g

Conductivity reading range: 0.05 - 500000 µS/cm

Conductivity reading range (max.): 500000 µS/cm

Conductivity reading range (min): 0.05 µS/cm

TDS reading range: 0.001 - 499900 mg/l

TDS reading range (max.): 499900 mg/l

TDS reading range (min.): 0.001 mg/l

Temperature reading range: -10 up to +120 °C

Temperature reading range (max.): +120 °C

Temperature reading range (min.): -10 °C

Width: 54 mm

Height: 211 mm

Length: 127 mm

Interfaces: Micro USB

Documents & Downloads

Datasheet

Datasheet 2793063 Chauvin Arnoux C.A 10141 Conductivity tester Temperature, Conductivity, Salinity , Salt

User & Safety Instructions

User & Safety Instructions 2793063 Chauvin Arnoux C.A 10141 Conductivity tester Temperature, Conductivity, Salinity , Salt

Warranty Terms

Warranty Terms 2793063 Chauvin Arnoux C.A 10141 Conductivity tester Temperature, Conductivity, Salinity , Salt

Description

The CA 10141 is designed for assessment and routine measurements of conductivity, total dissolved solids (TDS), specific resistance and temperature. Its wide range of applications range from the limit value monitoring of drinking water to the control of wastewater treatment by measurements on site, in the laboratory and for process control. The CA 10141 is also suitable for measurements in natural waters thanks to its preset non-linear temperature compensation according to ISO-DIN standard 7888. The conductivity probe XCP4ST1 included with the device enables exact, temperature-compensated measurements.

This text is machine translated.

Scope of delivery

1 hard shell case with 1 conductive measuring probe XCP4ST1 with integrated temperature sensor
4 AA or LR6 alkaline batteries
1 protective sleeve placed on the device
1 Ready-to-use conductivity standard (NIST-compliant) with 1408 μS/cm
1 plastic test cups
1 connection cable USB / Micro USB
1 carry loop
Quick instructions (1 each per language)

Description

Scope of delivery

1 hard shell case with 1 conductive measuring probe XCP4ST1 with integrated temperature sensor
4 AA or LR6 alkaline batteries
1 protective sleeve placed on the device
1 Ready-to-use conductivity standard (NIST-compliant) with 1408 μS/cm
1 plastic test cups
1 connection cable USB / Micro USB
1 carry loop
Quick instructions (1 each per language)
