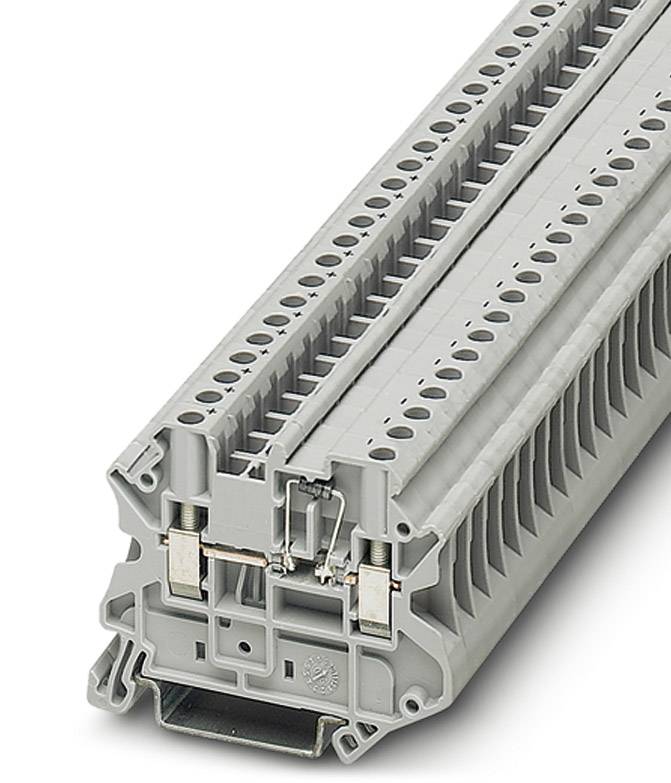

Component terminal block UT 2,5-MTD-DIO/L-R 3064137 Phoenix Contact
Packaging type
Piece
Product type
Serial terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 3.60 / piece)
€ 179.99
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Serial terminal
- Features
+ 1 diode
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Nominal voltage
800 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3064137
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UT 2,5-MTD-DIO/L-R
- Dim
(L x W x H) 57.8 x 5.2 x 47.5 mm
- Width
5.2 mm
- Height
47.5 mm
- Length
57.8 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566280 Component terminal block UT 2,5-MTD-DIO/L-R 3064137 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566280 Component terminal block UT 2,5-MTD-DIO/L-R 3064137 Phoenix Contact
Description
Component terminal block, Connection method: Screw connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Width: 5.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
