Connfly DS1009-20AT1NX-0A2 IC socket Contact spacing: 2.54 mm Number of pins: 20 1 pc(s) Tube

A black IC socket with 16 pins for soldering. It raises the integrated circuit from the circuit board for easy mounting.

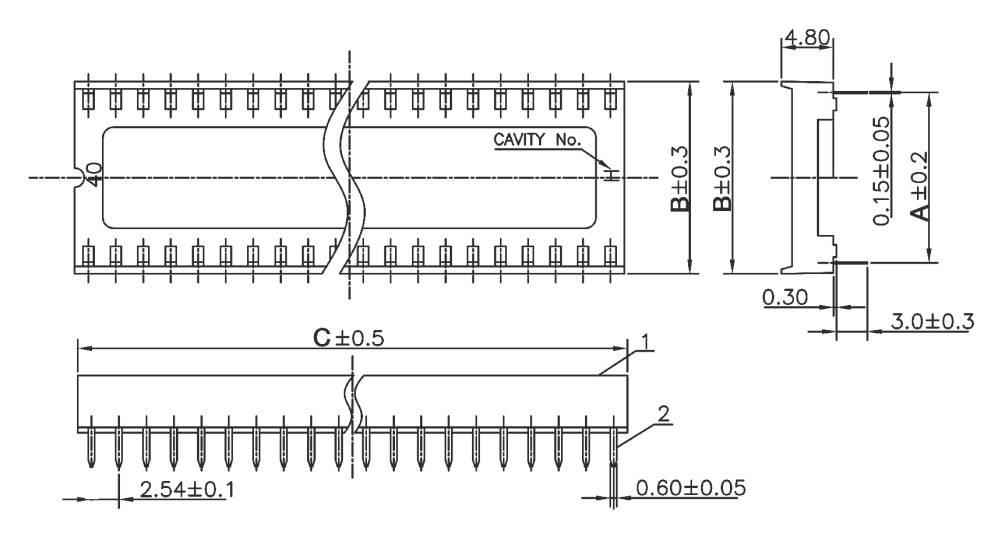

Technical drawing of an electronic component with dimensions and connection details, showing front and side views.
1/2
Packaging type
Tube
Product type
IC socket
Number of pins
20
CS
2.54 mm
Material
Thermoplastic
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
906 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 30
Total (€ 0.11 / piece)
€ 0.11
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Tube

Product type

IC socket

Number of pins

20

CS

2.54 mm

Material

Thermoplastic

Width

10.16 mm

Height

4.8 mm

Dim

(W x H) 10.16 mm x 4.8 mm

Min. temperature

-20 °C

Max. temperature

105 °C

Content

1 pc(s)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2859996 Connfly DS1009-20AT1NX-0A2 IC socket Contact spacing: 2.54 mm Number of pins: 20 1 pc(s) Tube

User & Safety Instructions

User & Safety Instructions 2859996 Connfly DS1009-20AT1NX-0A2 IC socket Contact spacing: 2.54 mm Number of pins: 20 1 pc(s) Tube
