Buy Contrinex 620 000 509 LTS-4050-103

A blue sensor with the inscription 'CONTRINEX LTS-4050-103'. Connections are marked: VDC, GND, OUT. Swiss manufacture.

Technical drawing of a cylindrical part with dimensions: Length 57.6 mm, Width 40 mm, Height 10 mm, Thread M12x1.

Technical drawing of an enclosure with dimensions marked in millimetres: width 9.7, height 5, depth 2. Square and round apertures.

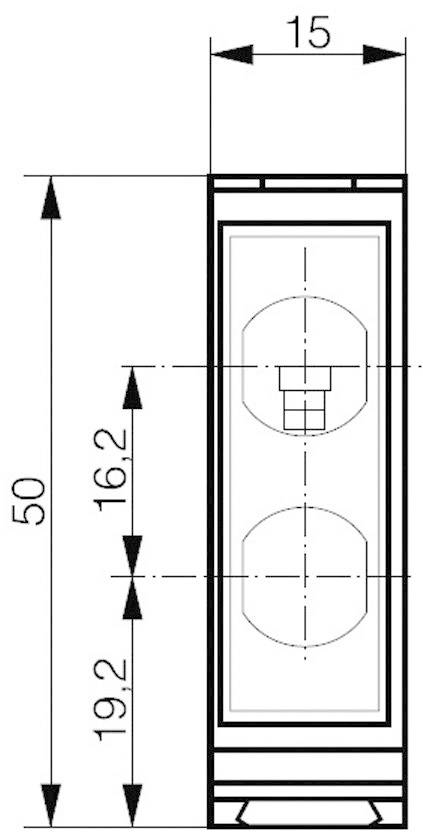

Technical drawing shows the side view of a rectangular object with dimensions: height 50, width 15, details at 16.2 and 19.2.

1/4

Packaging type

Piece

Product type

Retroreflective photo sensor

Functions

Retroreflective

Max. operating voltage

36 V DC

Connector

M12 (4-pin)

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 105.03 / piece)

€ 147.06

-29 %

€ 105.03

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Retroreflective photo sensor

Type: LTS-4050-103

Functions: Retroreflective

Min. operating voltage: 10 V DC

Max. operating voltage: 36 V DC

Operating voltage: 10 - 36 V DC

Outputs: PNP Antivalent

Switching frequency: 1500 Hz

Connector: M12 (4-pin)

Transmitter type: LED red

: 1200 mm

Features: LED indicator

: IP67

Min. temperature: -5 °C

Max. temperature: +55 °C

Length: 40 mm

Width: 15 mm

Height: 50 mm

Dim: (L x W x H) 40 x 15 x 50 mm

RoHS-compliant: Yes

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 504528 Contrinex 620 000 509 LTS-4050-103

Description

Compact standard casing, visible red light, this simplified alignment. Adjustment of the sensitivity via 3-speed potentiometer. High temperature stability by regulated light intensity, switching status and function reserve display by two-colored LED. The plug connection is at 0°, 45° and 90°.
