Contrinex 620 100 492 LAS-3130-119
EAN:
Part number:
Item no:
Product type
Retroreflective photo sensor
Max. operating voltage
36 V DC
Connector
M8 (4-pin)
Type
LAS-3130-119
Min. operating voltage
15 V DC
Datasheet (PDF)
Number
Total (€ 117.64 / piece)
€ 168.07
-30 %
€ 117.64
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Product type
Retroreflective photo sensor
- Type
LAS-3130-119
- Min. operating voltage
15 V DC
- Max. operating voltage
36 V DC
- Operating voltage
15 - 36 V DC
- Outputs
Current (analogue)
Voltage (analogue)
- Connector
M8 (4-pin)
100 mm
IP67
- Min. temperature
-25 °C
- Max. temperature
+55 °C

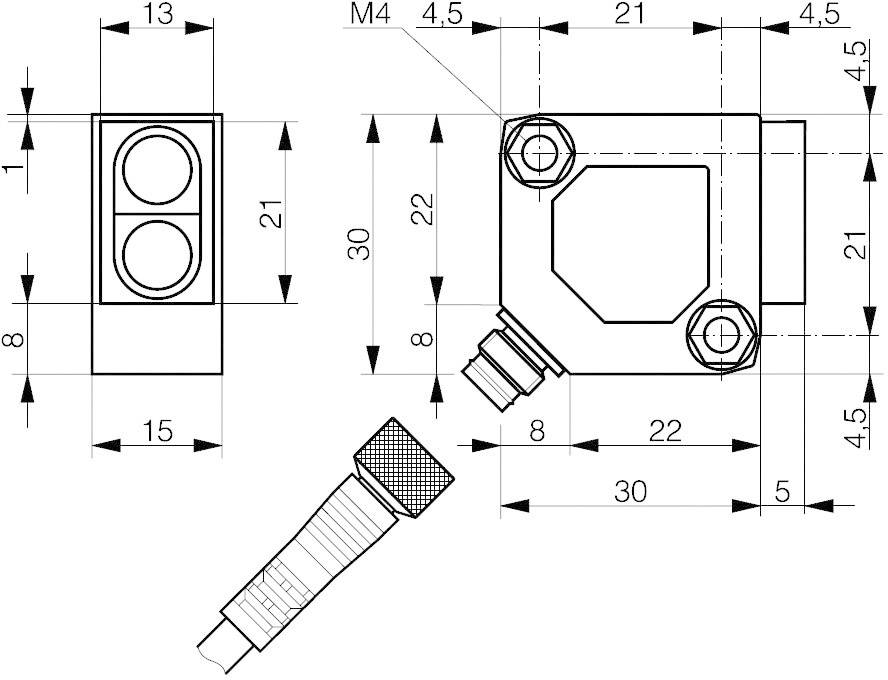

- Length
30 mm
- Width
30 mm
- Height
15 mm
- Dim
(L x W x H) 30 x 30 x 15 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 504564 Contrinex 620 100 492 LAS-3130-119
Description
Small, rugged, square design, visible red light, glass window is scratch-resistant and easy to clean.
This text is machine translated.
This text is machine translated.
Hints
For more information on this 620 100 492, please refer to its datasheet under 'downloadable documents'
