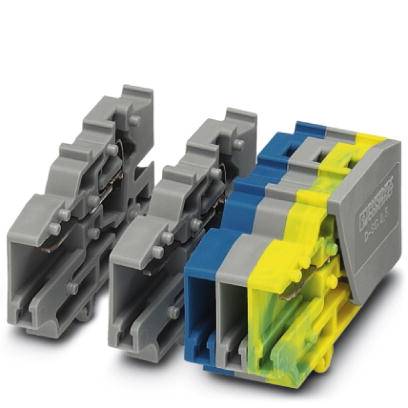

Coupling SC 2,5-RZ/ 1-L 3042214 Phoenix Contact
Product type
Connector
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 1.24 / piece)
€ 61.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Connector
- Features
+ snap-in nibs
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3042214
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
SC 2,5-RZ/ 1-L
- Dim
(L x W x H) 37.2 x 5.2 x 21.8 mm
- Width
5.2 mm
- Height
21.8 mm
- Length
37.2 mm
- Contamination level
3
- Flammability rating
V0
- Connector colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565713 Coupling SC 2,5-RZ/ 1-L 3042214 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565713 Coupling SC 2,5-RZ/ 1-L 3042214 Phoenix Contact
Description
Coupling, Connection method: Spring-cage connection, Number of positions: 1, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Width: 5.2 mm, Height: 21.8 mm, Color: gray, Mounting type: On mounting plate
