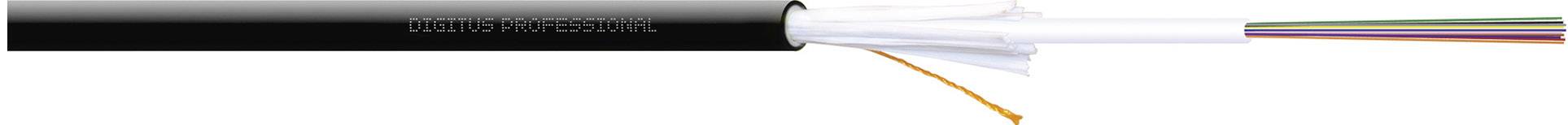

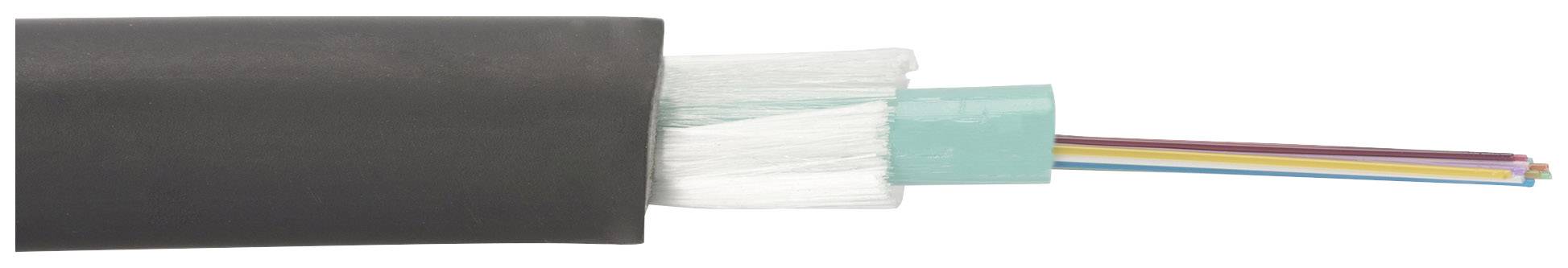

Digitus DK-39121-U FO cable A/I-DQ (ZN) BH 9/125 µ Singlemode OS2 Black Sold per metre
EAN:
Part number:
Item no:
Product type
FO cable
Cable type
A/I-DQ (ZN) BH
Fibre type
9/125 µ
Content
Sold per metre
No. of fibres
12
Datasheet (PDF)
Quantity (meter)
Savings
Package size (plus VAT.)
10
-
€ 1.25
30
6% = € 0.07
€ 1.18
50
8% = € 0.10
€ 1.15
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 1.25 / piece)
€ 12.50
plus VAT.
Fiber optic cable A-I-DQ(ZN)BH 12E9/125µ, SM, OS2, 12 fibers inside/outside, LSZH, DCA, black, length 1 m.
Highlights & Details
- LSZH - low smoke zero halogen
- UV-resistant
- Longitudinal and cross-water resistant
- Glass-yarn reinforcement
Technical specifications
- LSZH - low smoke zero halogen
- UV-resistant
- Longitudinal and cross-water resistant
- Glass-yarn reinforcement
- Non-metallic rodent protection
- Metal-free
- Damping at 1310nm : ≤ max. 0.34 dB/km (before wiring) ; ≤ max. 0.36 dB/km (after wiring)
- Attenuation at 1550nm: ≤ max. 0.21 dB/km (before wiring) ; ≤ max. 0.22 dB/km (after wiring)
- Damping at 1625nm : ≤ max. 0.23 dB/km (before wiring) ; ≤ max. 0.25 dB/km (after wiring)
- Dispersion zero point : 1302 ~ 1324 nm
- Dispersion increase : ≤ 0.092 ps/nm 2 x km.
- PMD link value (M=20 cable Q= 0.01%) max. PMDQ : 0.2 ps/√km.
- Limit wavelength (λcc) : ≤ 1260 nm
- Makro bend loss (100 rotations ; Φ50nm) at 1550 nm : ≤ 0.05 dB
- Makro bend loss (100 rotations ; Φ50nm) at 1625 nm : ≤ 0.10 dB
- Mode field diameter at 1310nm : 9.2 ± 0.4 µm
- Sheath diameter : 125 ± 1 µm
- Core sheath run error : ≤ 0.6 µm
- Shell rounding : ≤ 1.0 %
- Elongation limit : ≥ 0.69 GPA
- Number of fibers (OS2 G.
- Max. Number of bundle strands: 1 off
- Number of fibers per bundle load : 2-12 pcs.
- Bundle ties : 2.0 ± 0.2 mm
- Outer sheath material : LSZH, BauPVO DCA, EN 50575: 2014+A1: 2016
- Cable outer diameter : 6.5 ± 0.5 mm
- Max. Permissible tensile force : 1400 N.
- Dust resistance : 1000/200 N/100mm
- Temperature range : Transport and storage : - 40°C to + 70°C ; Installation : - 40°C to + 60°C ; in operation : - 40°C to + 70°C.
- Min Bending radius : Installation : 20 x OD ; in operation : 10 x OD
- Application: Inside/outside
- Fiber type: Multimode 50/125
- Number of fibers: 4
- Strain relief: Yes
- Reinforcement: no.
- Chemical resistant: no.
- Sheath color: turquoise
- Sheath material: PE
- Wire type: Hohoof charger
- Metal-free cable: Yes
- Cable longitudinally watertight: Yes
- Cable cross-resistant: Yes
- Inflatable: no.
- With rodent protection: no.
- Low smoke in accordance with EN 61034-2: no.
- Fiber category: OM3
- Halogen-free according to EN 60754-1/2: Yes
- Oil resistant according to EN 60811-404: no.
- Product type
FO cable
- Cable type
A/I-DQ (ZN) BH
- No. of fibres
12
- Fibre type
9/125 µ
Singlemode OS2
- Cable features
Round
UV-resistant
incl. anti-rodent protection
- Factory colour
Black
- Content
Sold per metre
- Halogen-free
Yes
- Manufacturer part #
DK-39121-U
- Type
DK-39121-U
- Max. length sold by the metre
1 m
Documents & Downloads
Datasheet
Datasheet 2235115 Digitus DK-39121-U FO cable A/I-DQ (ZN) BH 9/125 µ Singlemode OS2 Black Sold per metre
User & Safety Instructions
User & Safety Instructions 2235115 Digitus DK-39121-U FO cable A/I-DQ (ZN) BH 9/125 µ Singlemode OS2 Black Sold per metre
Description
With the central bundle loader a design is offered, which has a high tensile strength and flexibility in a compact cable size. Our central bundle loader offers fiber optic data transmission and excellent technical performance. Through our regular quality control programs in accordance with ISO90001, REACH and RoHS, we selected a high quality level. We guarantee a high level of reliability through a thorough qualification test of each of our products from the portfolio. Both quality processes are designed to ensure the longevity in the interior and exterior as well as the performance of our cables.
This text is machine translated.
This text is machine translated.
Features
- Non-metallic rodent protection
- Metal-free
