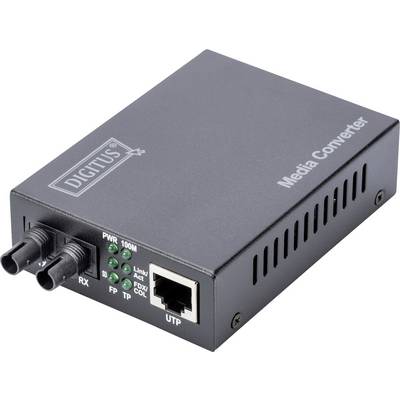

Digitus DN-82010-1 LAN, ST Simplex Network media converter 100 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 26.04 / piece)
€ 26.04
plus VAT.
Fast Ethernet Media Converter, RJ45 / ST
Highlights & Details
- The perfect converter solution for various fiber media
- Transmits data in high quality and additionally provides excellent reliability
- Long range up to 2km by the multimode fiber dual
- Automatic cable detection
Technical specifications
- Product type
Network media converter
- Interfaces
1x LAN (10/100 Mbps)
1x ST Simplex
- Link
LAN
ST Simplex
- Transfer rate
100 MBit/s
- Length
120 mm
- Width
70 mm
- Height
26 mm
- Weight
180 g
- Version
Cable
- Type A
RJ45 8p8c plug
- Type B
RJ45 8p8c plug
- Cable use
RJ45
- Connection type
RJ45
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1345762 Digitus DN-82010-1 LAN, ST Simplex Network media converter 100 MBit/s
User & Safety Instructions
User & Safety Instructions 1345762 Digitus DN-82010-1 LAN, ST Simplex Network media converter 100 MBit/s
Conformity certificate
Conformity certificate 1345762 Digitus DN-82010-1 LAN, ST Simplex Network media converter 100 MBit/s
Description
The Media Converters from DIGITUS are the ideal solution for the migration of Copper and Fiber Network Signals. From now on, you are able to access the Fiber Technology and transfer network signals over several kilometers without renewing your whole Network Infrastructure. The huge variety of Products fulfil your individual needs. The intiutive operation guarantees a quick and easy Installation. The Link Fault Pass Through function offers a no-fear-networking. Your Network Administrator will be able to find and solve Network problems easily. Years of Experience and a wide range of products lets DIGITUS become a reliable Partner for your Network.
· Transforms wire based network media to fiber optic
· High quality and excellent reliability
· 10/100Base-TX to 100Base-FX
· Connectors: 1x RJ45, 1x ST Duplex
· Distance: up to 2km
· Wavelength: 1310nm
· Multimode dual fiber
· Automatic cable detection - auto MDI / MDI-X function
· Auto-negotiation of full- and half-duplex
· Diagnostic and monitoring LEDs for the status of power, link and act of the ports
· Link Fault Pass Through (LFP) function for easier network maintenance
· Suitable for 50/125µm and 62.5/125µm Fiber Cables
· Transmission power: minimum -22 dBm, maximum -12 dBm
· Sensitivity receiving power: minimum -30 dBm
· Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
· 128kB data buffer
· Operating temperature: 0 to 55°C
· Dimensions (L x W x H): 95mm x 70mm x 26mm
· Weight: 200g
· Standalone Converter with external power supply

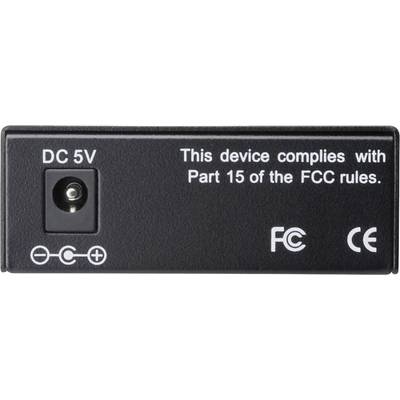

· Input Supply Voltage: 5V DC
· Max. Current: 800mA
· Power Consumption: 2.5W
· Transforms wire based network media to fiber optic
· High quality and excellent reliability
· 10/100Base-TX to 100Base-FX
· Connectors: 1x RJ45, 1x ST Duplex
· Distance: up to 2km
· Wavelength: 1310nm
· Multimode dual fiber
· Automatic cable detection - auto MDI / MDI-X function
· Auto-negotiation of full- and half-duplex
· Diagnostic and monitoring LEDs for the status of power, link and act of the ports
· Link Fault Pass Through (LFP) function for easier network maintenance
· Suitable for 50/125µm and 62.5/125µm Fiber Cables
· Transmission power: minimum -22 dBm, maximum -12 dBm
· Sensitivity receiving power: minimum -30 dBm
· Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
· 128kB data buffer
· Operating temperature: 0 to 55°C
· Dimensions (L x W x H): 95mm x 70mm x 26mm
· Weight: 200g
· Standalone Converter with external power supply
· Input Supply Voltage: 5V DC
· Max. Current: 800mA
· Power Consumption: 2.5W
Features
- Converts wire-based network signals in fiber-optic signals
- High quality and maximum reliability
- 10/100Base-TX to 100Base-FX
- Connections: 1 x RJ45, 1 x ST duplex
- Range: Up to 2 km
- Shaft length: 1310 nm
- Multi-mode Dual Fiber
- Automatic cable detection - Auto-MDI/MDI-X function
- Auto detection of full- and half-duplex
- Diagnostic LEDs for status and activity monitoring
- Link Fault pass-through (LFP) function for a simple error detection
- Suitable for 50/125 µm and 62.5/125 μm fiber-optic cable
- Transmission power: Minimum -22 dBm, Maximum -12 dBm
- Reception sensitivity: Minimum -30 dBm
- Supported standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
- 128 kB data buffer
- Operating temperature 0 to 55 °C
- Dimensions (L x W x H): 95 mm x 70 mm x 26 mm
- Weight: 200 g
- Standalone converter with external power supply unit
- Input voltage 5V/DC
- Max current consumption: 800mA
- Power consumption: 2.5W.
Scope of delivery
- Media Converter
- Quick installation guide
- Power adapter
