Digitus DS-45323 4 ports HDMI splitter LED display, Steel casing, Ultra HD compatibility 4096 x 2160 p Black
EAN:
Part number:
Item no:
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
Highlights & Details

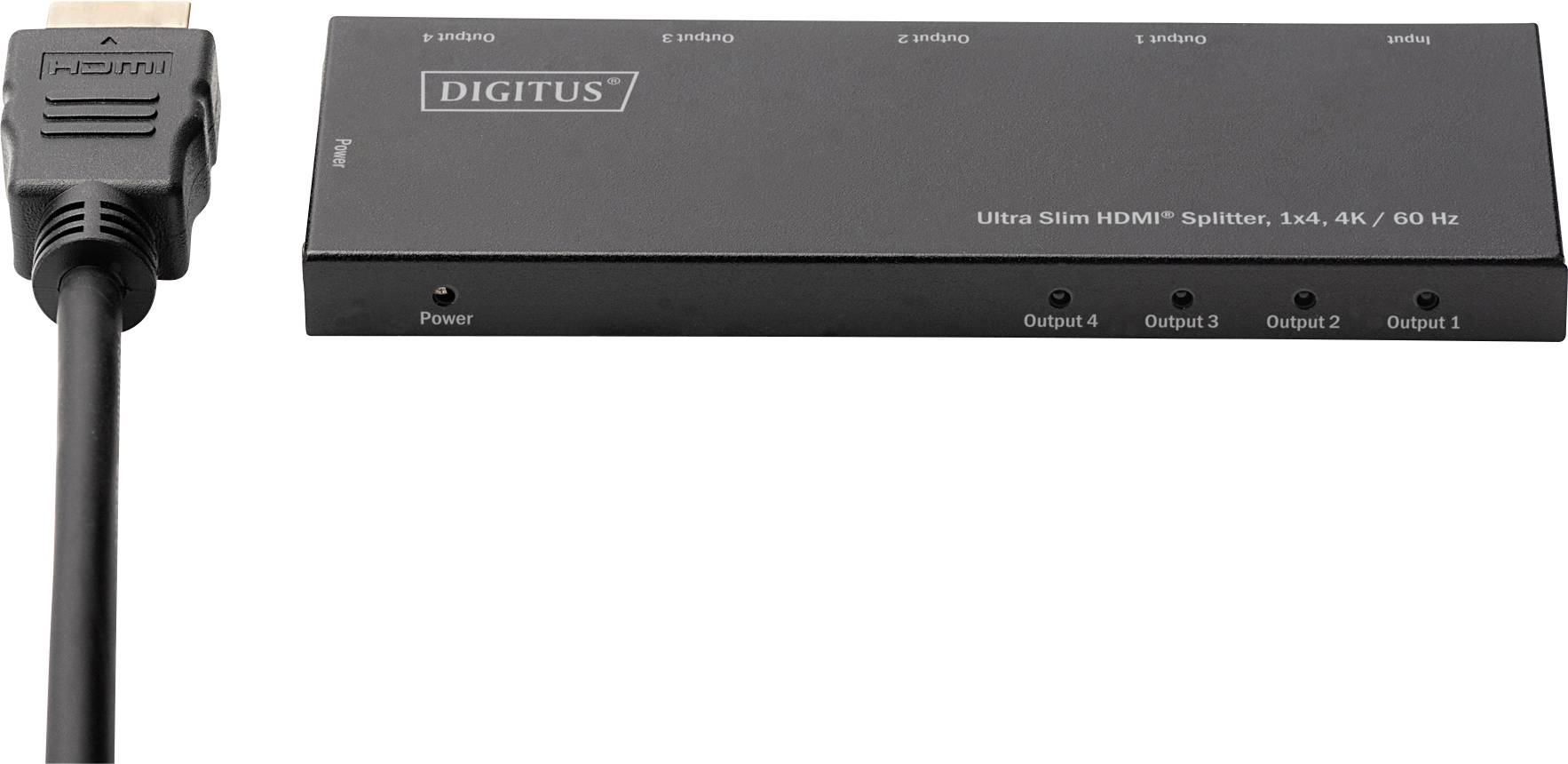

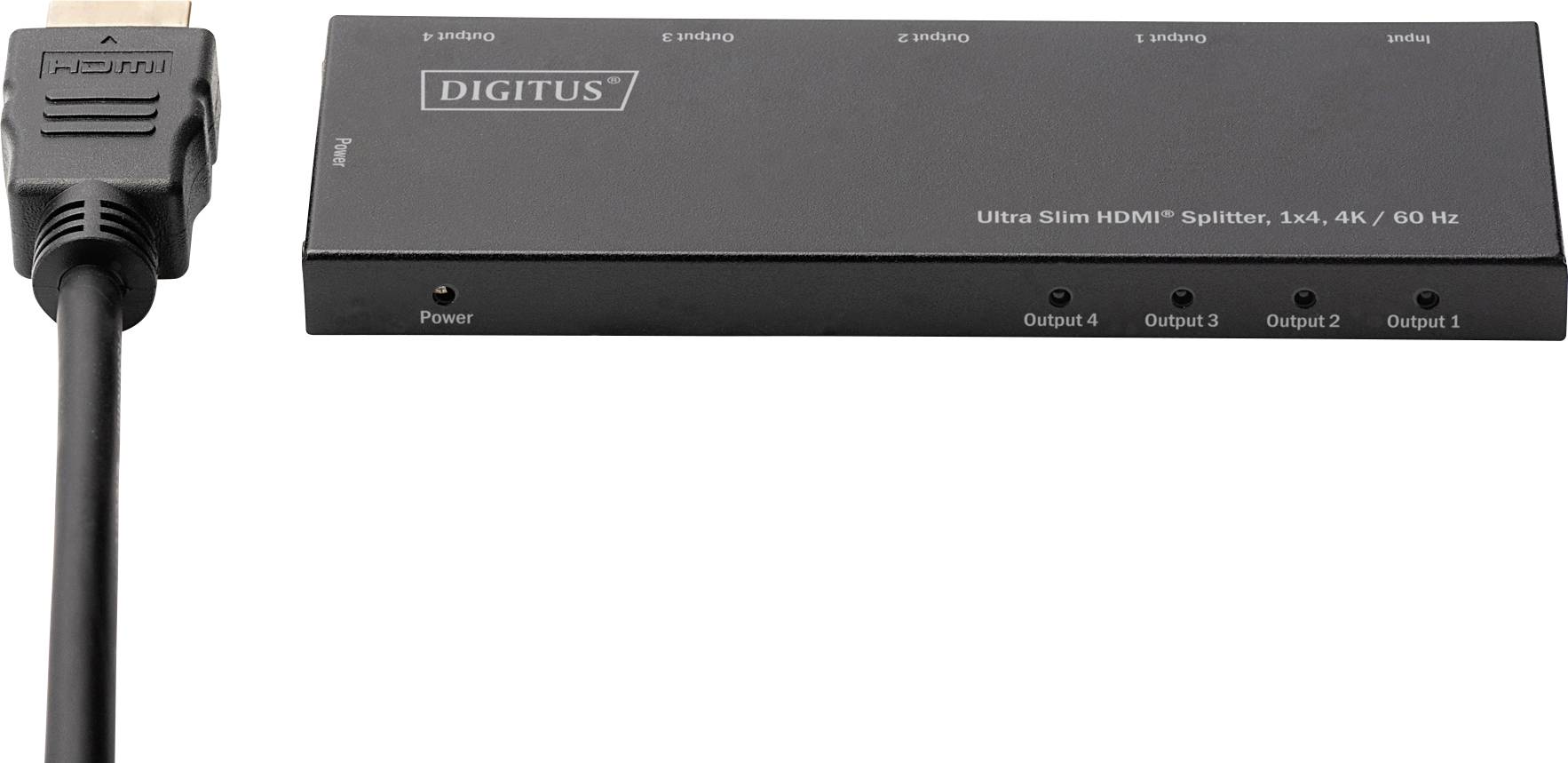

Digitus DS-45323 Ultra Slim HDMI Splitter, 1x4, 4K/60Hz HDR, HDCP 2.2, 18 Gbps, Micro USB power
- Resolutions up to 4K / 60 Hz (4:4:4)
- Full 18 Gbps - for crystal-clear playback of UHD content
- Supports HDR & HDCP 2.2

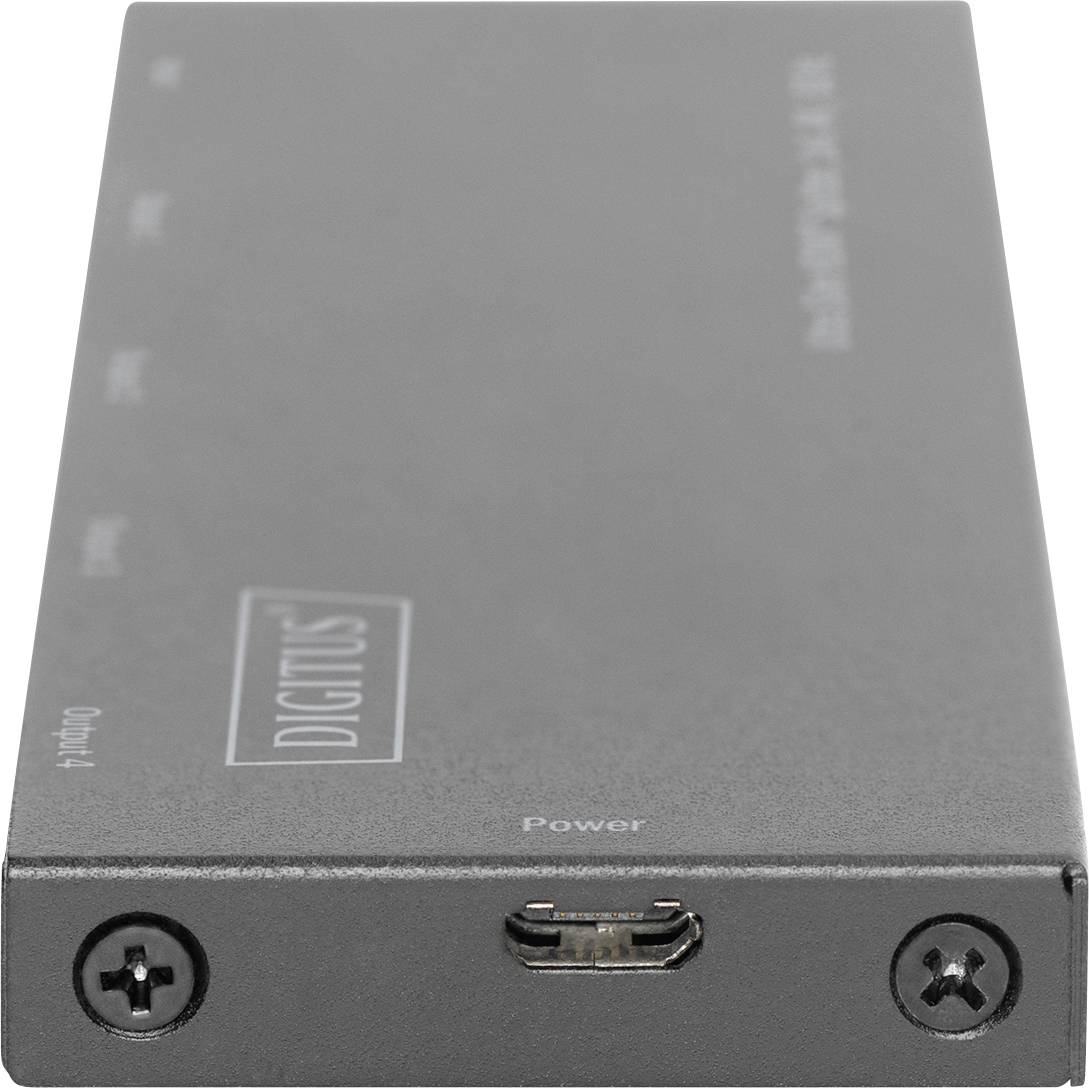

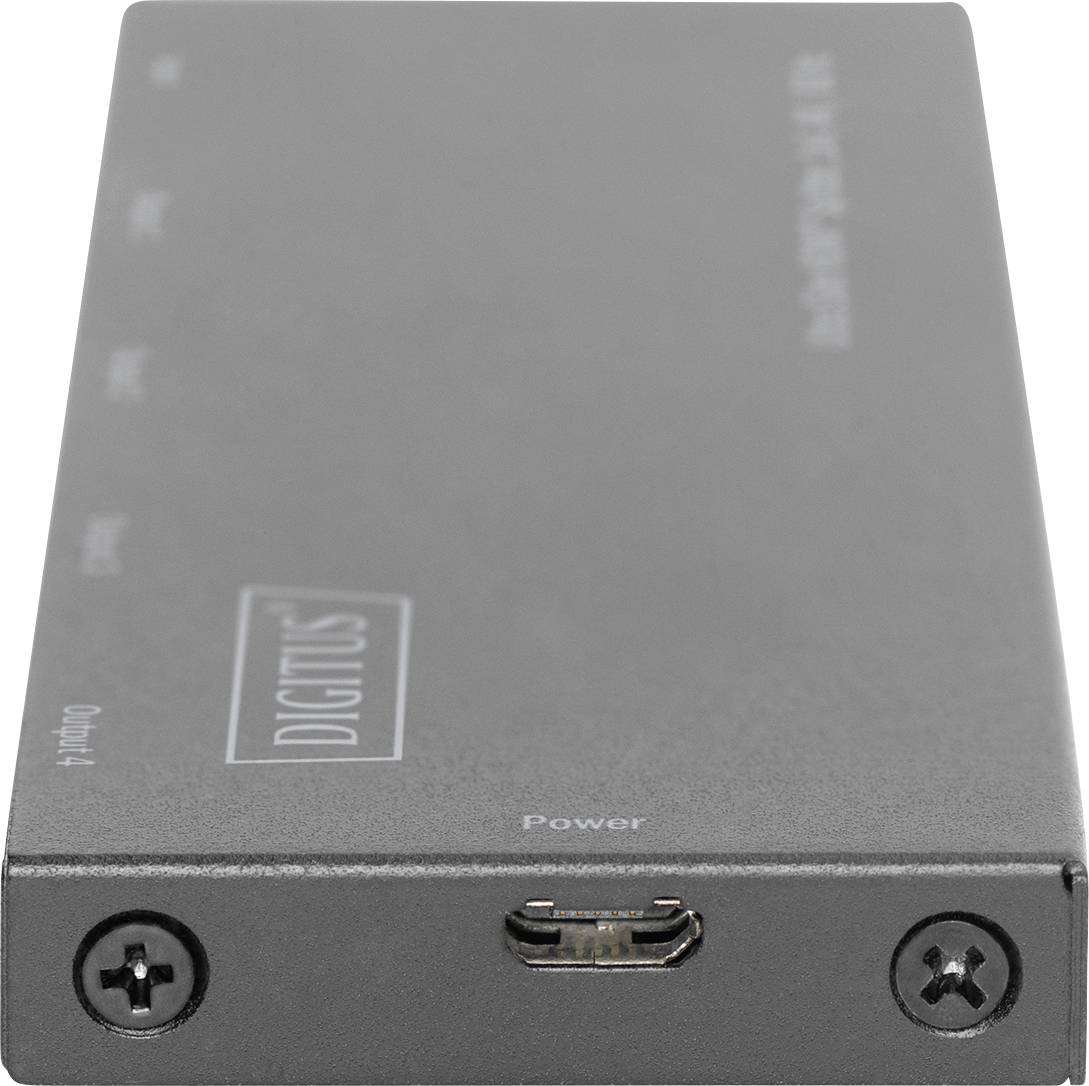

- Power supply via Micro USB (charging adapter, TV, notebook)
- Cascading of up to 8 splitters in a row is possible
- Ultra-slim design
Technical specifications
- Data transfer rate: 18 Gbps (6 Gbps per channel)
- Supports: RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 / YCbCr 4:2:0
- Supports HDCP 2.2 / 1.4
- Supports 3D
- Supports HDR (High Dynamic Range)
- Operating temperature: 0 °C ~ 45°C
- Operating humidity: 10% - 85% RH (non-condensing)
- POWER CONSUMPTION 2.5 W (5 V / 0.5 A)
- ESD protection: +/- 8 kV air-isolation discharge, +/- 4 kV contact discharge
- Housing: metal
- Colour, black
- Weight 80 g

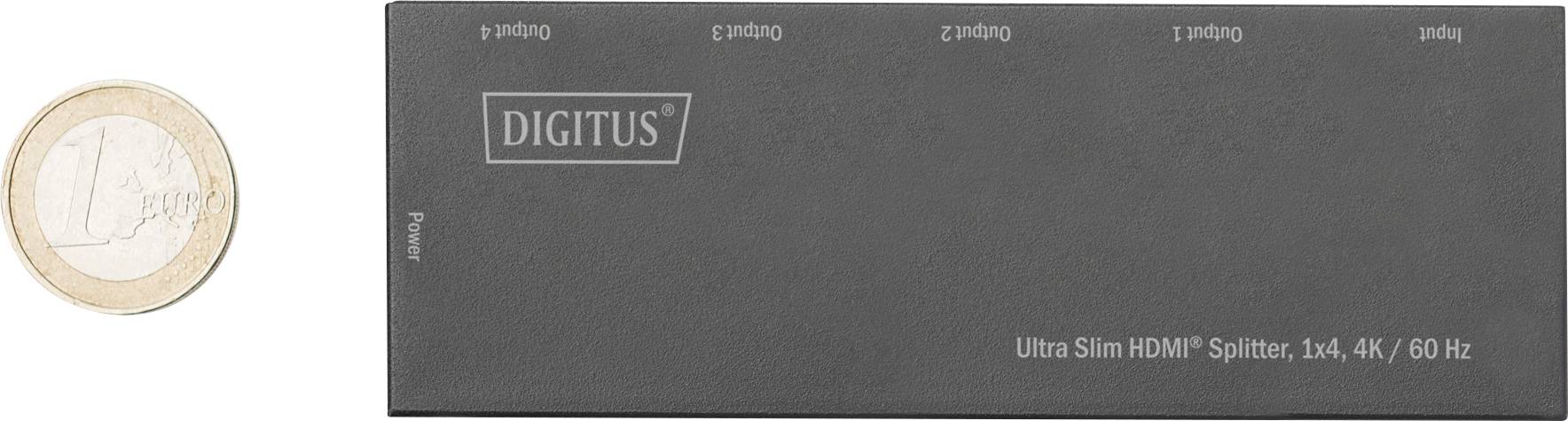

- Dimensions: L 11.2 x D 4 x H 0.9 cm
- Product type
HDMI splitter
- Supported monitors
4

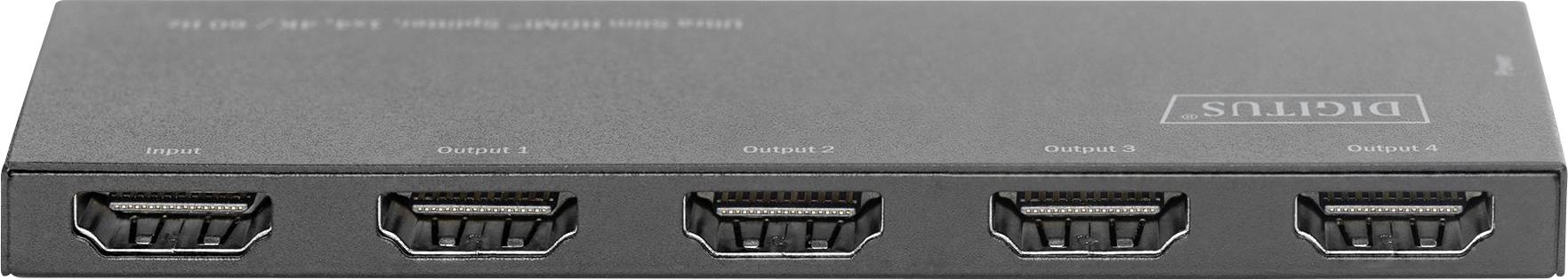

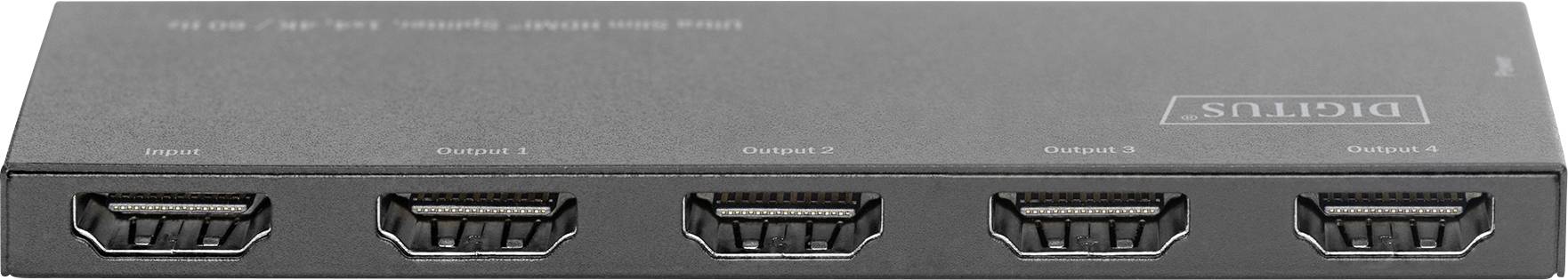

- No. of inputs
1 x
- Interfaces (input)
HDMI™
- No. of outputs
4 x
- Interfaces (output)
HDMI™
- Resolution (max.)
4096 x 2160 p
- Power supply (LOV)
via USB
- Distributor/switch features

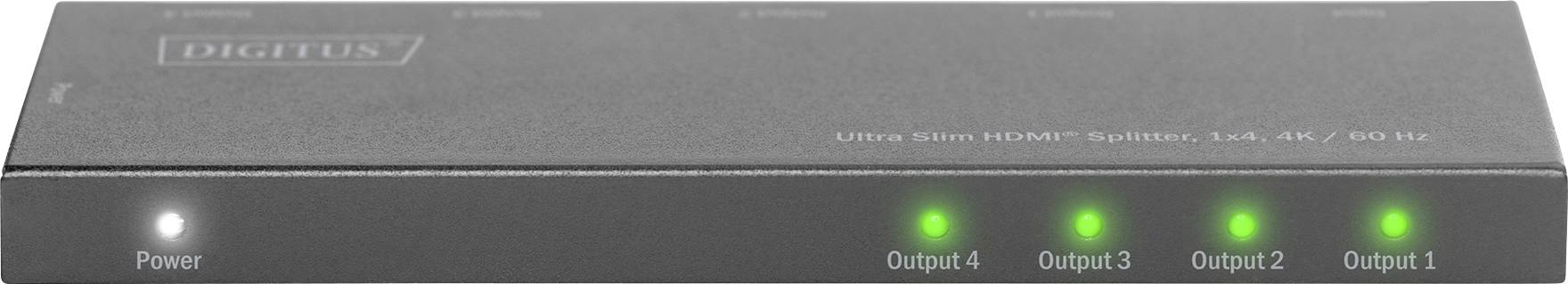

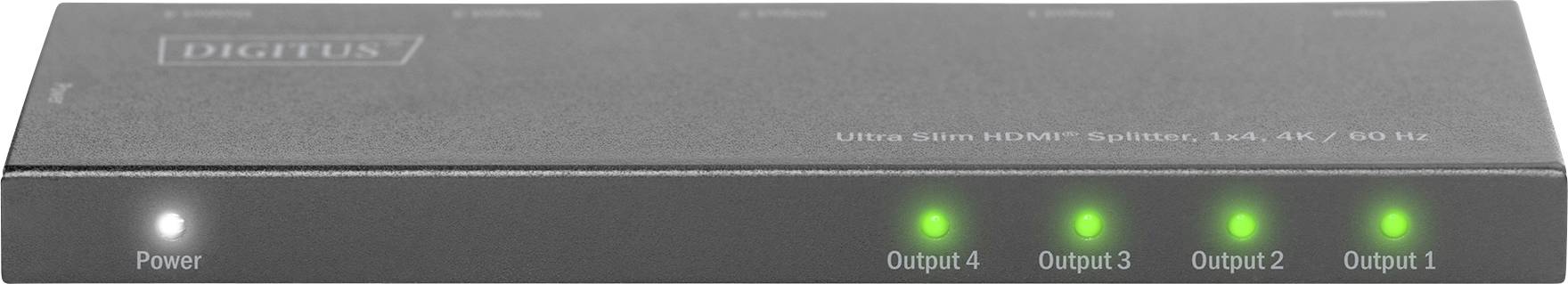

LED display
Steel casing
Ultra HD compatibility
- Factory colour
Black
- Weight
80 g
- Width
112 mm
- Height
9 mm
- Depth
40 mm
- Dim
(W x H x D) 112 x 9 x 40 mm
- Port
4 ports
- Supported audio file formats
DTS
LPCM 2.0
LPCM 5.1
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2317380 Digitus DS-45323 4 ports HDMI splitter LED display, Steel casing, Ultra HD compatibility 4096 x 2160 p Black
User & Safety Instructions 2317380 Digitus DS-45323 4 ports HDMI splitter LED display, Steel casing, Ultra HD compatibility 4096 x 2160 p Black
User & Safety Instructions 2317380 Digitus DS-45323 4 ports HDMI splitter LED display, Steel casing, Ultra HD compatibility 4096 x 2160 p Black
User & Safety Instructions 2317380 Digitus DS-45323 4 ports HDMI splitter LED display, Steel casing, Ultra HD compatibility 4096 x 2160 p Black
Description

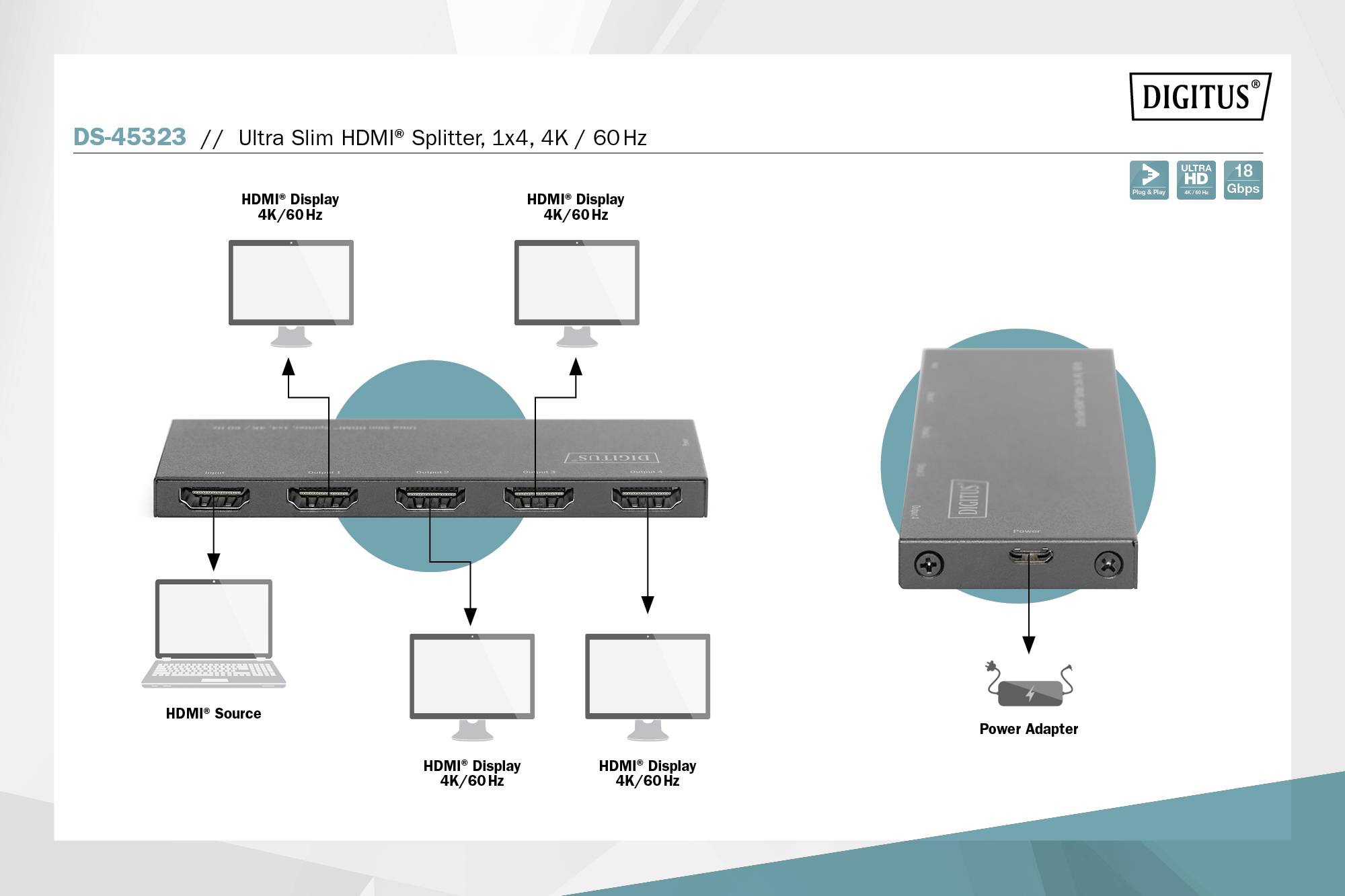

The high-performance Digitus HDMI splitter 4K No more fiddling with cables. In addition, HDR, HDCP 2.2 and 3D are also supported - in addition, a total bandwidth of 18 Gbps for smooth playback in brilliant quality. The HDMI splitter can be supplied with power via an existing USB port on the TV set or alternatively via USB charging adapter. You can cascade multiple splitters to up to 8 levels.
This text is machine translated.
This text is machine translated.
Features
- Compatible with the latest Ultra High Definition (UHD) standard
- protection Before electrostatic discharge (ESD)
- Plug and Play
- supports HDMI® resolutions From up to 4K / 60 Hz (4096 x 2160p)
- Supports 36bit Deep Color (12 Gbps per channel)
- Supports cascading of up to 8 splitters
Scope of delivery

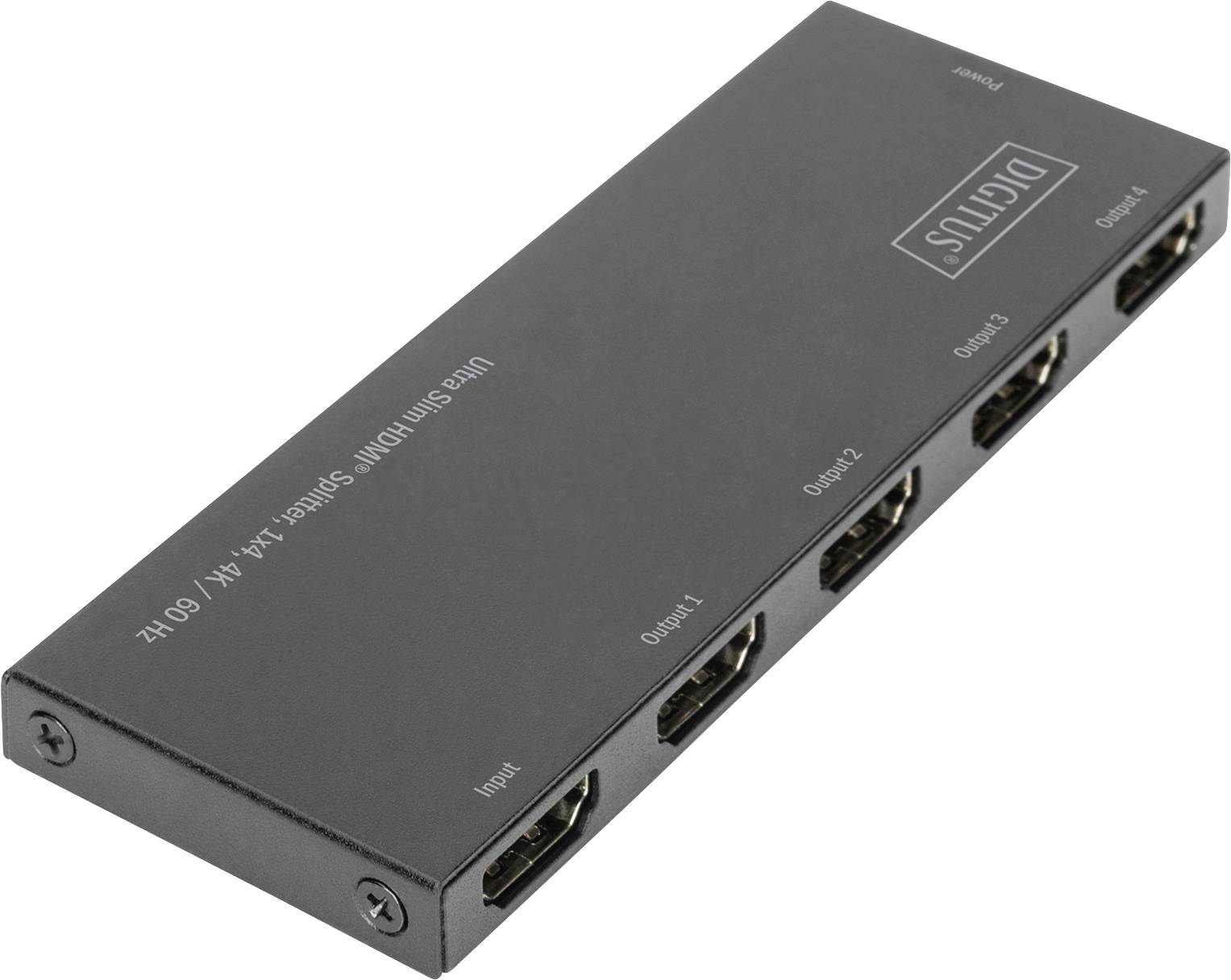

- Ultra slim HDMI splitter, 1x4, 4K / 60 Hz
- USB A to Micro USB connection cable (power supply)
- User manual
