Name: Double-level terminal block PTTBS 1,5/S-PV 3214686 Phoenix Contact
Brand: Phoenix Contact
SKU: 588993
Availability: InStock

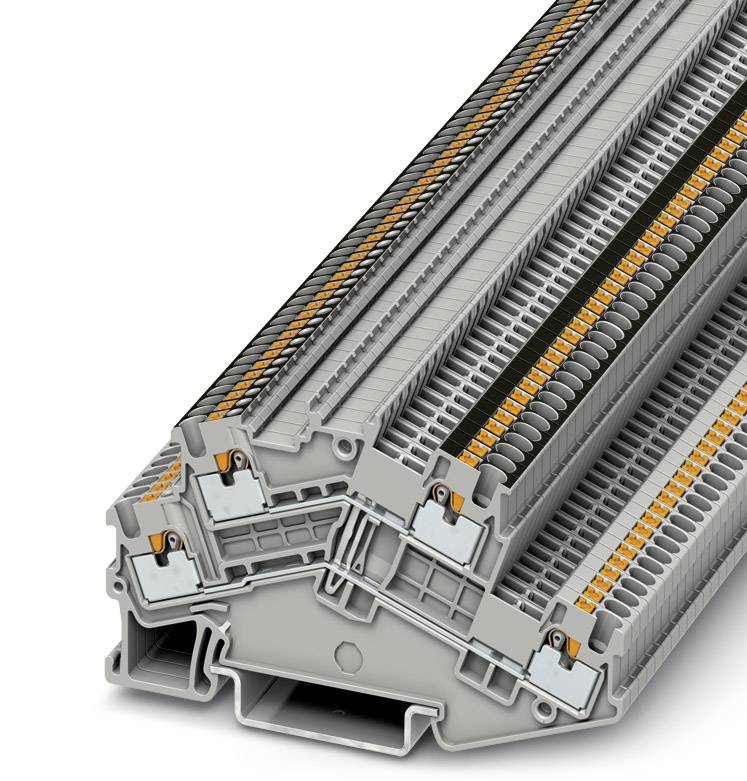

Grey, stacked clamps with orange and black details, show a complex electrical connection module for control cabinets.

Image similar

Product type

Dual port terminal

Connection

Quick-connect

Cross section (flexible) (max.)

1.5 mm²

Cross section (inflexible) (max.)

1.5 mm²

Nominal current - rounded value

16 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

291 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 3.50 / piece)

€ 174.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Double-level terminal block PTTBS 1,5/S-PV

PTTBS 1,5/S-PV

Technical specifications

Product type: Dual port terminal

Features: + push-in spring bracket

Connection: Quick-connect

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 1.5 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 1.5 mm²

AWG (min.): 26

AWG max.: 14

Clamp width: 3.5 mm

No. of rows: 2

Number of pins: 4

Factory colour: Grey

Nominal current: 16 A

Nominal current - rounded value: 16 A

Nominal voltage: 500 V

Min. stripping length: 8 mm

Stripping length (max.): 10 mm

Manufacturer part #: 3214686

Content: 50 pc(s)

Industrial packaging: Yes

Type: PTTBS 1,5/S-PV

Dim: (L x W x H) 78.8 x 3.5 x 48.2 mm

Width: 3.5 mm

Height: 48.2 mm

Length: 78.8 mm

Flammability rating: V0

Connector colour: Grey

Insulation material: PA

Insulation: PA

UKCA: yes
