DRAKA 60108923 Network cable CAT 7 S/FTP 4 x 2 x 0.14 mm² Black Sold per metre
Part number:
Item no:
Product type
Network cable
Specification
CAT 7
Shielding
S/FTP
No. of leads
8 x
Cross section (each core)
0.14 mm²
Datasheet (PDF)
Quantity (meter)
Unit Price
Package size (plus VAT.)
1
1 M = € 2.93
€ 2.93
10
1 M = € 2.71
€ 2.71
25
1 M = € 2.62
€ 2.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 2.93)
€ 2.93
plus VAT.

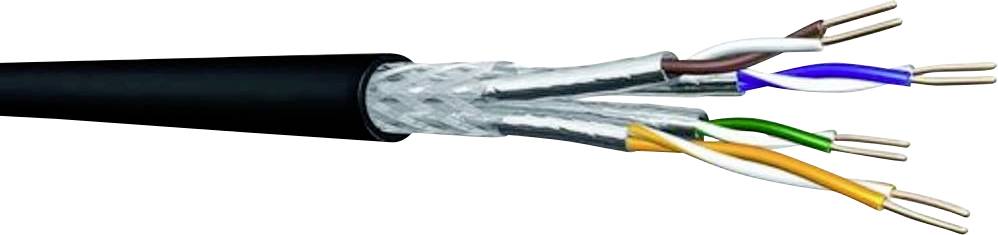

DRAKA data cable DR UC900 Flex C7 S/FTP 4P LSHF BK 100RW
Highlights & Details
- Highly flexible CAT.7 S/FTP patch cable
- CPR protection rating DCA-s2,d2,a1
- Future-proof up to 1000 MHz
- Flame-resistant and halogen-free (LSHF)
Technical specifications
- Jacket material: LSHF-FR (flame resistant, low smoke)
- Surge impedance 100 Ohm
- Product type
Network cable
CAT 7
S/FTP
- No. of leads
8 x
- Cross section (each core)
0.14 mm²
- Cross section
4 x 2 x 0.14 mm²
- Cable features
Flame-retardant
Flexible
UV-resistant
Halogen-free
- Outside Ø
5.9 mm
- Width
290 mm
- Height
80 mm
- Factory colour
Black
- Length
80 mm
- Max. frequency
900 MHz
- Content
Sold per metre
- AWG max.
26
- Packaged
No
- Sold per metre
Yes (software)
- Manufacturer part #
60108923
- Type
DR UC900 FLEX C7 S/FTP 4P LSHF BK 100RW
- Insulation material
PE
- Min. temperature range (flexible installation)
0 °C
- Max. temperature range (flexible installation)
50 °C
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
60 °C
- Standards
EN 50173-1
ISO / IEC 11801
IEC 61156-6
- Halogen-free
Yes
- Max. length sold by the metre
100 m
- Twisted pair cabling (part 1)
Yes (1)
Documents & Downloads
Datasheet
Datasheet 3773810 DRAKA 60108923 Network cable CAT 7 S/FTP 4 x 2 x 0.14 mm² Black Sold per metre
User & Safety Instructions
User & Safety Instructions 3773810 DRAKA 60108923 Network cable CAT 7 S/FTP 4 x 2 x 0.14 mm² Black Sold per metre
Description
UC900 Flex C7 S/FTP 4P LSHF BK is a flexible data cable for general applications in buildings with optimized fire properties in accordance with EN 50575.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Sold by the metre
