Name: Eberle 053601140002 Instat 868 - a1S / r1, Set Wireless indoor thermostat set Wall 1 pc(s)
Brand: Eberle
SKU: 1650774
Availability: BackOrder

A white socket thermostat with temperature control. On the left, a control unit with a rotary knob for settings, on the right a plug-in unit.

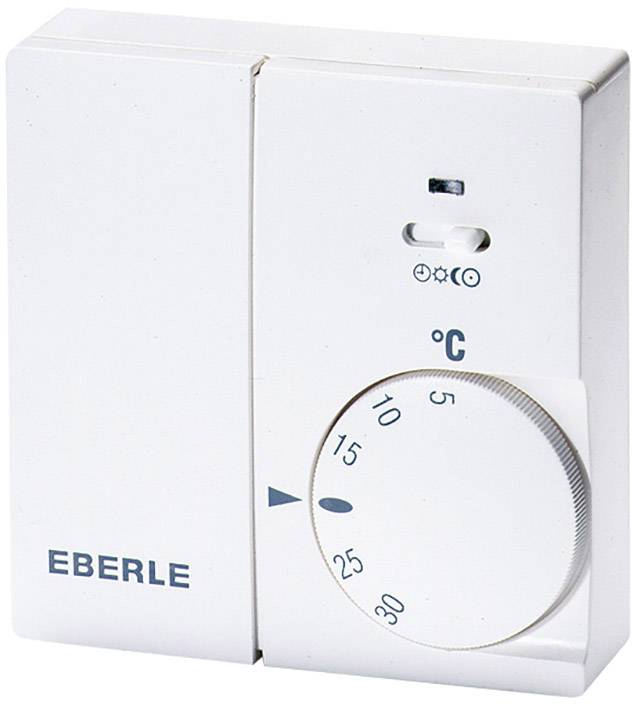

A white wall-mounted thermostat with a rotary dial shows temperatures from 5°C to 30°C. At the top, a small sliding switch with symbols.

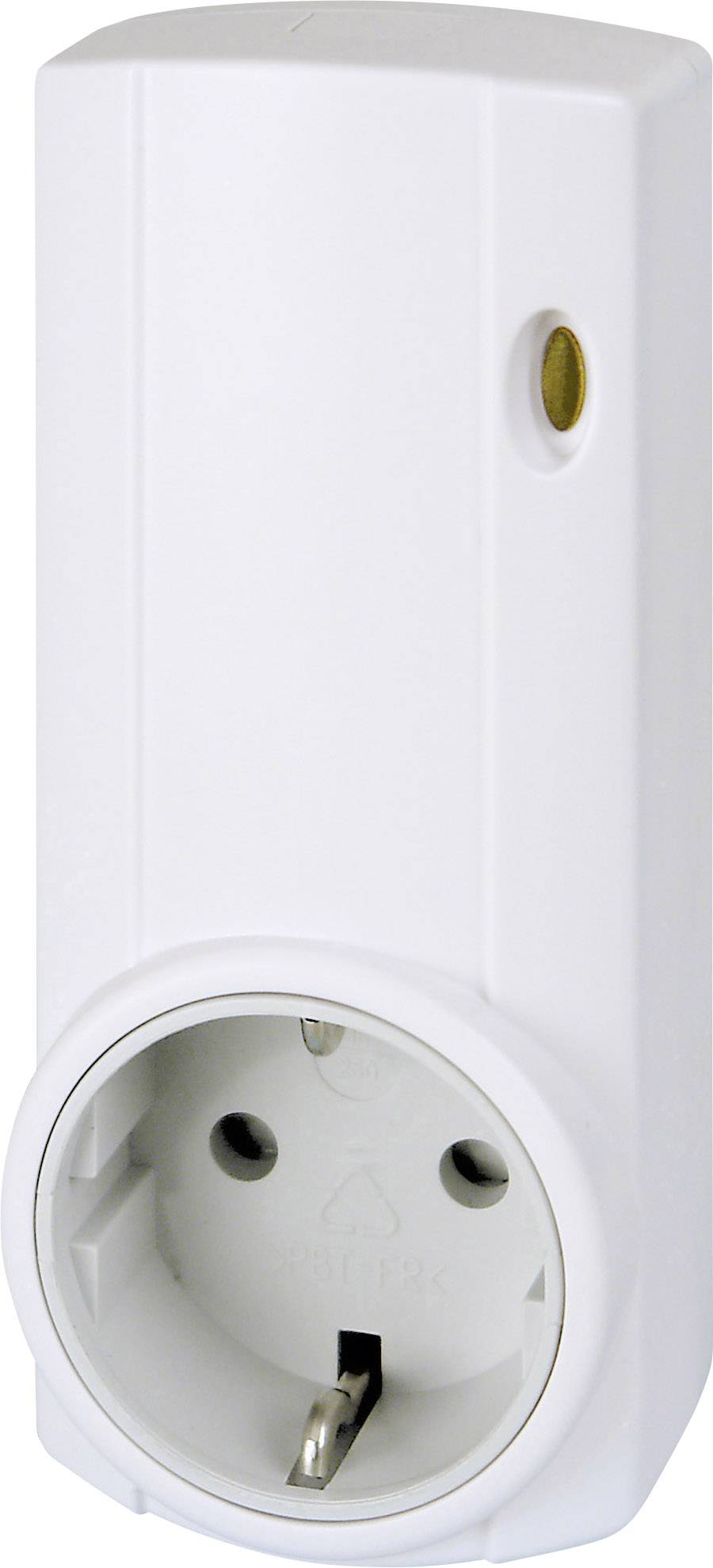

White socket with side button for on/off switching.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 23 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 234.99 / piece)

€ 234.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Instat 868-a1 S/R1, radio set is programd

Can be used as a single room or zone control
No cabling required
Easy to use

Technical specifications

Radio receiver:
Power consumption: 1.5 A
Relay for load: 1 closer 16 (2) A
Protection class: IP20
Dimensions: 71 x 142 x 21.1 mm
Room Temperature Controller:
Power supply: 2 x 1.5 V (Alkaline LR03 batteries
Control method, alternatively: fuzzy method with PWM or 2-point procedure
Frequency: 868 MHz
Transmission power: max. 4 dBm (2.5 mW)

Product type: Wireless indoor thermostat set

Operation type: electronical

Max. temperature setting: 30 °C

Temperature settings: 5 up to 30 °C

Display: No

Compatible with: Underfloor heating

Mounting type: Wall

Power supply (LOV): battery-powered

Operating voltage: 1.5 V

Width: 75 mm

Height: 75 mm

Length: 25.5 mm

: IP30

Dim: (L x W x H) 25.5 x 75 x 75 mm

Contact type: 1 maker

Min. temperature setting: 5 °C

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1650774 Eberle 053601140002 Instat 868 - a1S / r1, Set Wireless indoor thermostat set Wall 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1650774 Eberle 053601140002 Instat 868 - a1S / r1, Set Wireless indoor thermostat set Wall 1 pc(s)

Description

The set consists of: Wireless room temperature control and radio receiver.
The instat 868-A1S socket wireless receiver converts the information on the transmitter is in the control signals for the consumer. Can be used universally for the control of electrical heating devices (electric radiators, wall-mounted heating equipment, - towel dryers).
The transmitter and receiver are already factory-tuned and ready for immediate operation.

This text is machine translated.

Features

Room Temperature Controller:
Can be used as single room regulator or as zone control for home or offices (in combination with radio clock thermostat Instat 868-r)
Suitable for the control of oil and gas-hot water heaters, actuators for radiator heating, Elektro-Fu floors or direct heating, circulation pumps
Energy-saving / timer / party function
Heating/Cooling switching.

Scope of delivery

Room temperature controller with switch with batteries
Radio receiver
Instructions.
