EBM Papst 4114 N/2H8P Axial fan 24 V DC 570 m³/h (L x W x H) 119 x 119 x 38 mm

A black computer fan with five blades, mounted in a square frame, for cooling hardware components.

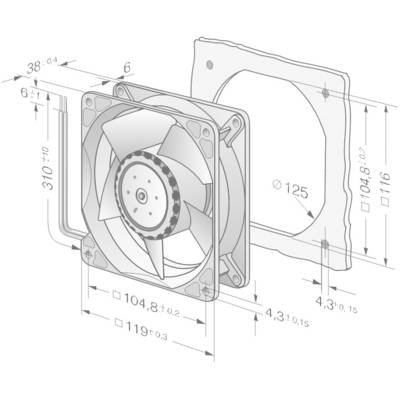

Technical drawing of a fan with dimensional specifications in millimetres, showing front and side views with sizes and mounting hole references.
1/2
Product type
Axial fan
Nominal voltage
24 V DC
Air flow rate
570 m³/h
Material
Plastic
Length
119 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
9 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 209.99 / piece)
€ 209.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 9 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

EBM Papst 4114 N/2H8P Axial fan 24 V DC 570 m³/h (L x W x H) 119 x 119 x 38 mm

  • With ball bearings.
  • Dim. 119 x 119 x 38mm
  • 570m³/h.
  • 16 - 30V

Technical specifications

Product type

Axial fan

Type

4114 N/2H8P

Nominal voltage

24 V DC

Max. current consumption

7500 mA

Rotational speed

11000 U/min

Noise emission (max.)

78 dB

Air flow rate

570 m³/h

Material

Plastic

Weight

425 g

Min. temperature

-20 °C

Max. temperature

+75 °C

Length

119 mm

Width

119 mm

Height

38 mm

Dim

(L x W x H) 119 x 119 x 38 mm

Material (details)

Plastic

Type

Ball bearings

Output (max.) (details)

570 m³/h

Max. noise generation

78 dBa

Nominal RPM

11000 U/min

Nominal voltage (details)

16 - 30 V

Current consumption

4000 V / 7500 mAh

Temperature range

-20 °C Up to +75 °C

Documents & Downloads

Datasheet

Datasheet 560133 EBM Papst 4114 N/2H8P Axial fan 24 V DC 570 m³/h (L x W x H) 119 x 119 x 38 mm

User & Safety Instructions

User & Safety Instructions 560133 EBM Papst 4114 N/2H8P Axial fan 24 V DC 570 m³/h (L x W x H) 119 x 119 x 38 mm

Information

Information 560133 EBM Papst 4114 N/2H8P Axial fan 24 V DC 570 m³/h (L x W x H) 119 x 119 x 38 mm

Description

Axial fan with variable voltage range from 16 - 30 V / DC. The Housing and Impeller are made of Plastic.

Hints

For connection we recommend the ventilation cable (order no. 53 74 89-1R) with a double insulated cable and protective insulation connection pins.
