Connectors & CablesCables & WiresMulticore CablesRibbon Cables

econ connect 28AWG10RM1 Ribbon cable Contact spacing: 1 mm 10 x 0.08 mm² Grey 30.50 m

A transparent, flexible tube section with a wave-like pattern, likely suitable for liquids or gases.

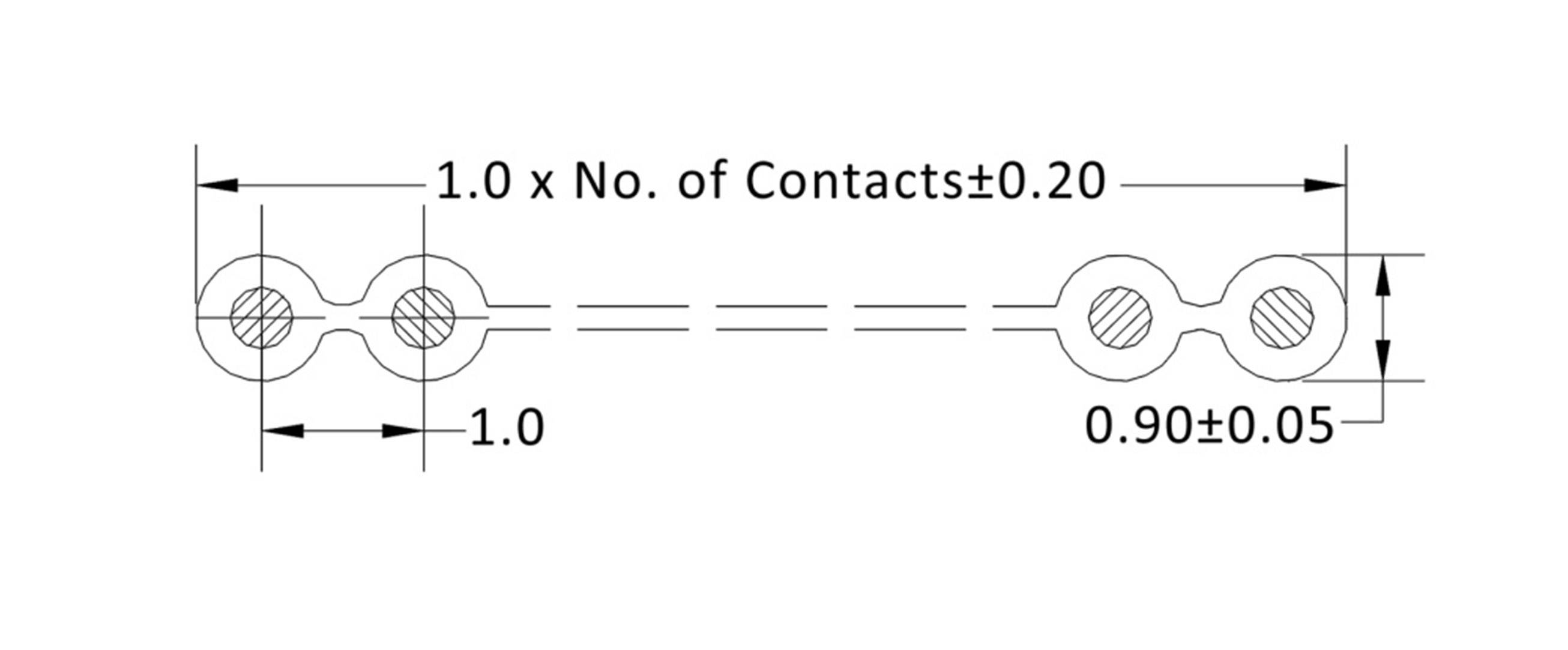

Diagram of a two-pole connector: Vertical contacts, spacing 1.0 mm. Total length varies with 'No. of Contacts'.
1/2
Image similar
Product type
Ribbon cable
CS
1 mm
No. of leads
10 x
Cross section (each core)
0.08 mm²
Content
30.50 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
19 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (1 m = € 0.88)
€ 26.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Ribbon cable

CS

1 mm

No. of leads

10 x

Cross section (each core)

0.08 mm²

Cross section

10 x 0.08 mm²

Height

0.90 mm

Factory colour

Grey

Content

30.50 m

Nominal voltage

300 V

Packaged

Yes

28

Sold per metre

No

Insulation material

Polyvinyl chloride

Core layout

7 x 0.125 mm

Max. temperature range (fixed installation)

+105 °C

Manufacturer part #

28AWG10RM1

Type

28AWG10RM1

Max. length sold by the metre

30.5 m

Documents & Downloads

Datasheet

Datasheet 1656447 econ connect 28AWG10RM1 Ribbon cable Contact spacing: 1 mm 10 x 0.08 mm² Grey 30.50 m
