Name: Emko ESM-3711-CN.8.12.0.1/00.00/1.0.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65
Brand: Emko
SKU: 2352444
Availability: BackOrder

The image shows a digital temperature controller of the ESM-3711CN model by Emko, displaying a temperature of 25 degrees Celsius.

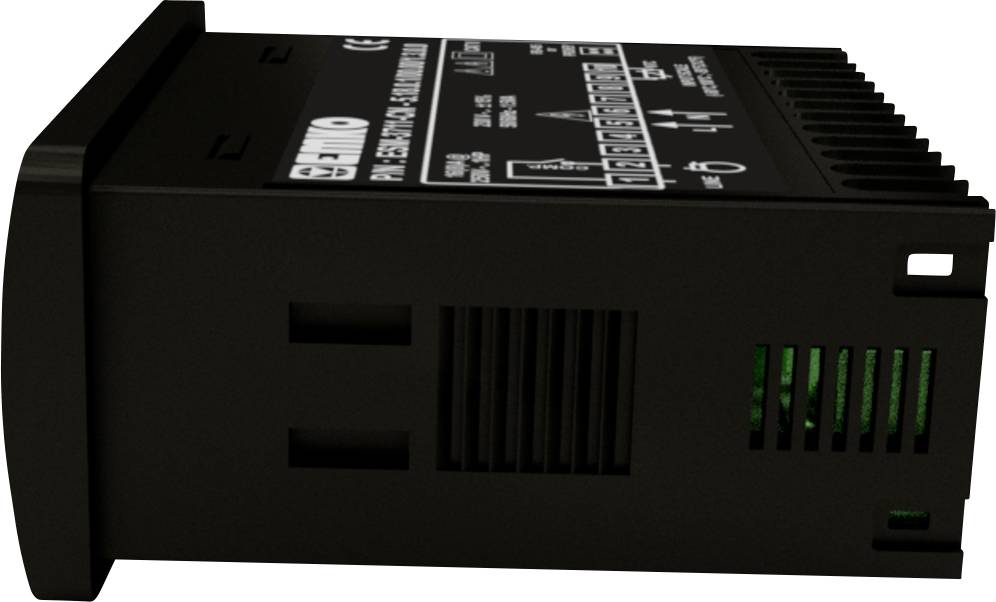

Black, rectangular electronic device, possibly a thermostat or controller, with technical details and connections on the top surface.

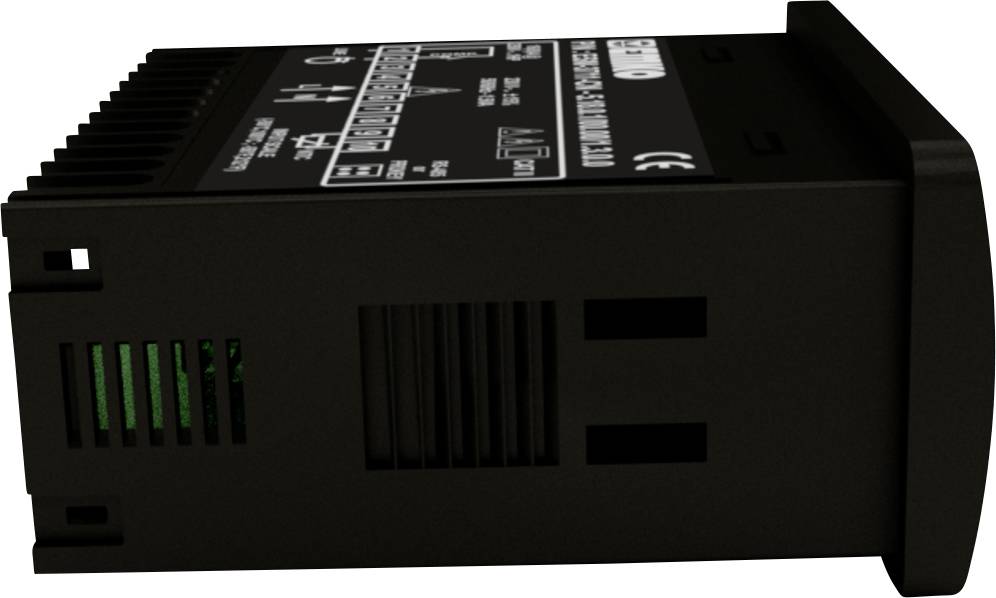

Black, rectangular electronic device with side ventilation slots and labels on the top surface.

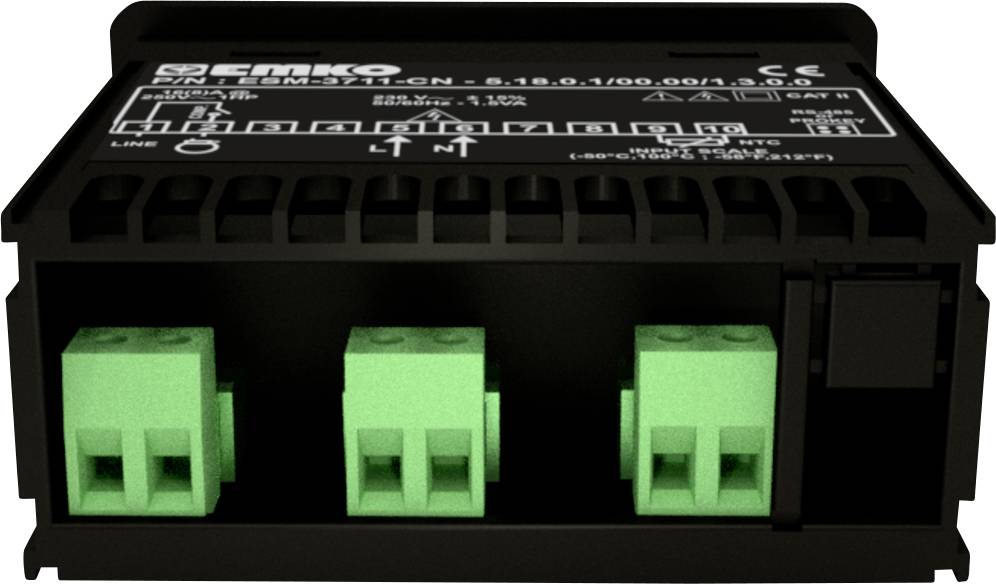

'A digital temperature controller with a black housing and green terminal connections, suitable for industrial applications.'

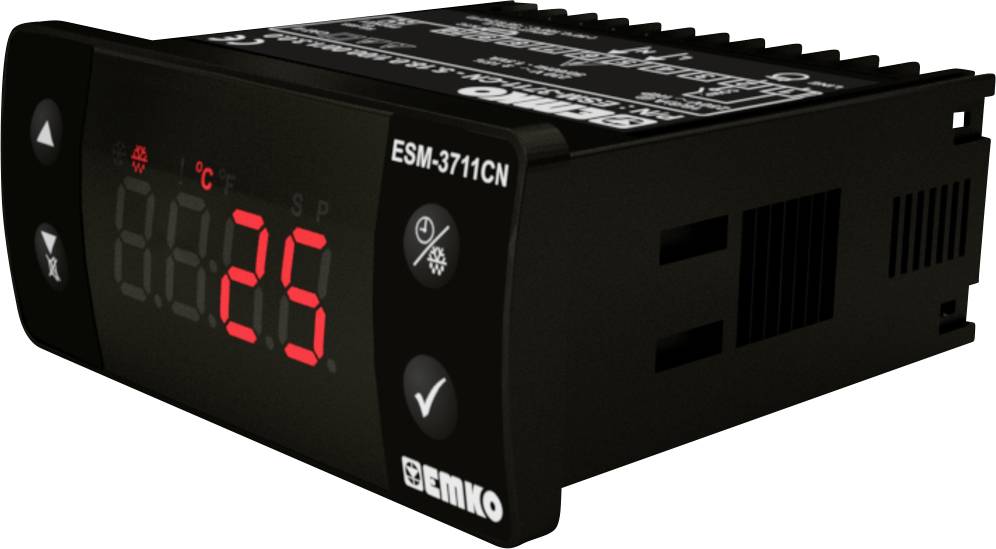

Electronic temperature controller, Model ESM-3711CN by EMKO, displays '25°C' on digital display. Compact black casing.

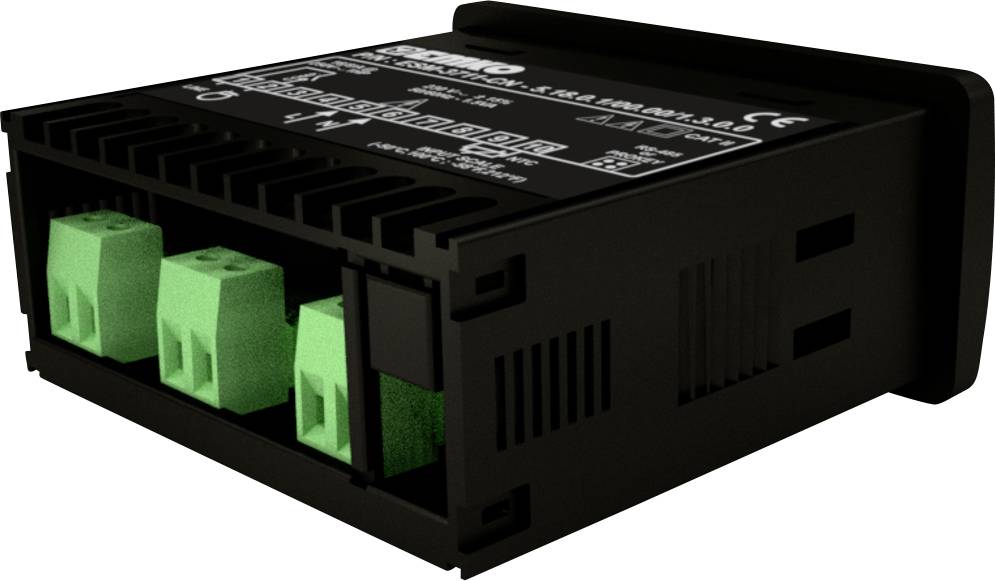

Black electrical terminal block with green connection terminals. Used for connecting electrical wires.

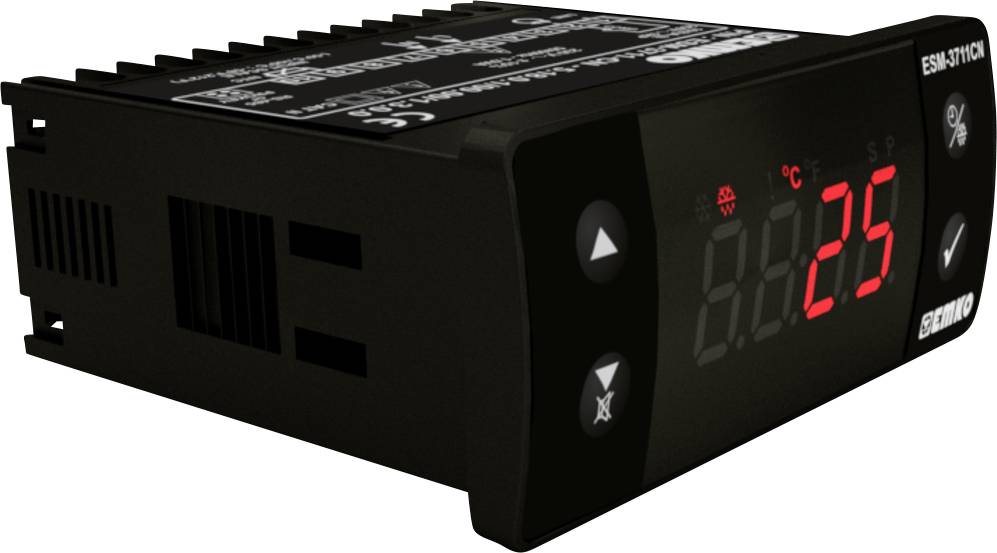

A digital temperature controller displays '25°C' on an LED display. The device has side-mounted control buttons for adjustment.

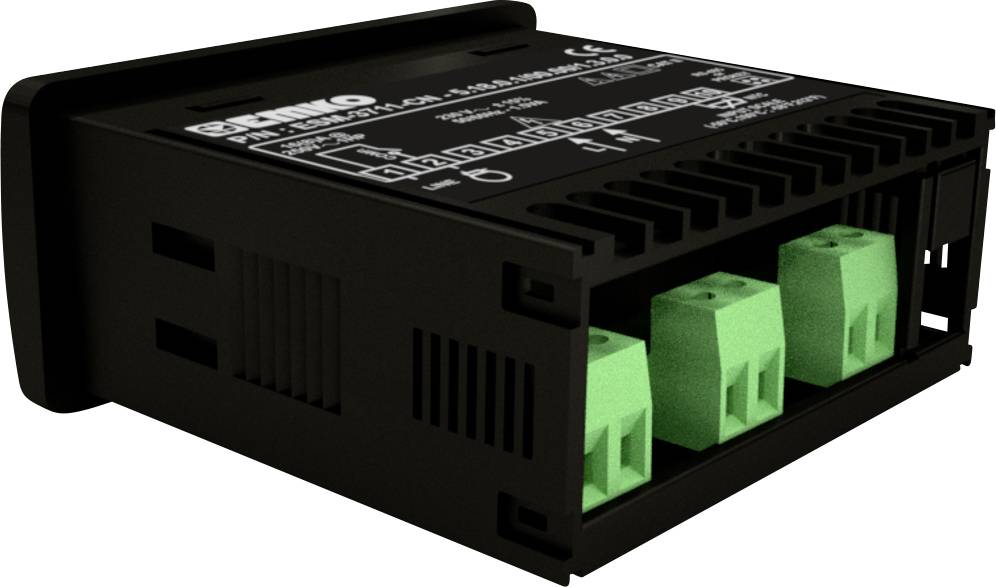

A black electronic device with green connection terminals. Label with technical information on the top surface.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang

Operating voltage

10 V DC

12 V DC

24 V DC

30 V DC

Max. temperature reading

130 °C

Outputs (thermostats)

16 A relay

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 87.99 / piece)

€ 87.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Emko ESM-3711-CN.8.12.0.1/00.00/1.0.0.0 Bang-bang

4-digit display
2-point temperature control
Defrost function with timer
Hysteresis
Adjustable temperature offset values
Function can be set to on, off or cyclic in the event of a sensor failure
Compressor protection through adjustable pause times
Buzzer if sensor defective
Password protection for program settings
Can be extended with RS-485 MODULES RS485 Modbus RTU interface
Expandable with PROKEY programming module

Technical specifications

Product type: Temperature controller

Type: ESM-3711-CN.8.12.0.1/00.00/1.0.0.0

Thermostat type: Bang-bang

Operating voltage: 10 V DC
12 V DC
24 V DC
30 V DC

Reading range: -50 up to 130 °C

Max. temperature reading: 130 °C

Min. temperature reading: -50 °C

Outputs (thermostats): 16 A relay

No. of relay outputs: 1

Dim: (L x W x H) 65 x 76 x 35 mm

Factory colour: Black

Height: 35 mm

Length: 65 mm

Width: 76 mm

: Front: IP65 / connection: IP20

Sensor type: PTC

Manufacturer part #: ESM-3711-CN.8.12.0.1/00.00/1.0.0.0

Recess depth: 65 mm

Mounting type: Recess-mount

Sensor type: PTC

Weight: 200 g

Variants(All information include VAT, plus shipping costs)

Max. temperature reading

No. of relay outputs

Operating voltage

Outputs (thermostats)

Sensor type

Thermostat type

Emko ESM-3711-CN.8.12.0.1/00.00/1.0.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352444

Available soon

Conrad Electronic

This article

130 °C

10 V DC

16 A relay

PTC

Bang-bang

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 87.99^*

Emko ESM-3711-CN.5.12.0.1/00.00/1.0.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352446

Fast track dispatch on Thu 29 Oct

5 Piece(s)Conrad Electronic

130 °C

230 V AC

16 A relay

PTC

Bang-bang

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 65.99^*

Emko ESM-3711-CN.5.12.0.1/00.00/1.1 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:1417413

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

130 °C

230 V AC

16 A relay

PTC

Bang-bang

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

Emko ESM-3711-CN.5.18.0.1/00.00/1.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352445

Available soon

Conrad Electronic

100 °C

230 V AC

16 A relay

NTC

Bang-bang

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 65.99^*

Emko ESM-3711-CN.8.18.0.1/00.00/1.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352443

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

100 °C

10 V DC

16 A relay

NTC

Bang-bang

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

Emko ESM-3722.5.5.5.0.2/01.01/1.0.0 Temperature controller 3 A relay, SSR (L x W x H) 65 x 76 x 35 mm

Item no:1417414

Dispatches on Mon 9 Nov

Conrad Electronic

230 V AC

3 A relay

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

Emko ESM-3722.5.6.6.0.2/01.01/1.6.6 Bang-bang, PID Temperature controller ProNem Mini -30 up to 80 °C 3 A relay, SSR (L x W x H) 65 x 76 x 35 mm

Item no:1417415

Dispatches on Mon 9 Nov

Conrad Electronic

80 °C

230 V AC

3 A relay

ProNem Mini

Bang-bang, PID

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Documents & Downloads

Datasheet

Datasheet 2352444 Emko ESM-3711-CN.8.12.0.1/00.00/1.0.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65

User & Safety Instructions

User & Safety Instructions 2352444 Emko ESM-3711-CN.8.12.0.1/00.00/1.0.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65

Description

ESM-3711-CN is a 2-point cooling controller for control panel installation. The regulator was developed especially for cooling applications and with the defrost function offers an ideal solution for food manufacturers, supermarkets and restaurants. The areas of application are cooling, freezing, cooling storage and air conditioning. With the separately available PROKEY stick the program settings can be transferred to other devices, so the parameters do not have to be set individually on each device. With the separately available RS-485 MODULE stick the controller can be extended by a RS485 Modbus RTU interface.
