Name: Emko ESM-3711-HN.5.12.0.1/00.00/1.2.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65
Brand: Emko
SKU: 128879
Availability: InStock

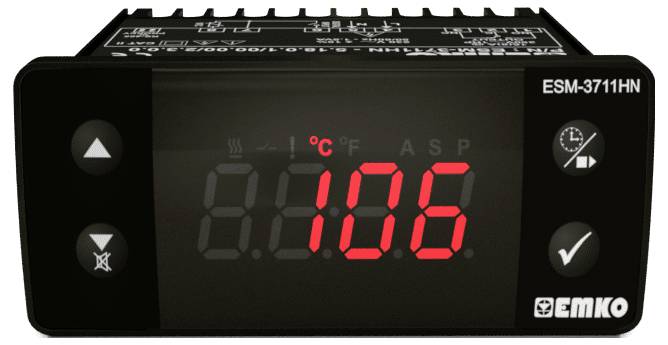

Digital temperature controller showing '106°C' on the display, with buttons for adjustment and indicators for settings.

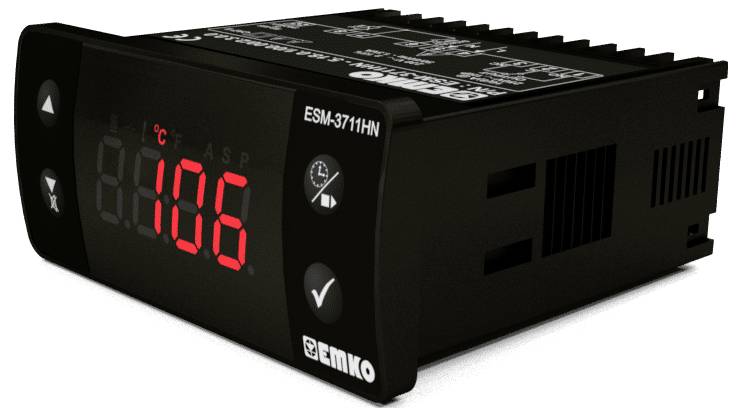

'EMKO ESM-3711HN temperature controller displaying 106°C, black casing, red LED display, operational buttons on the front.'

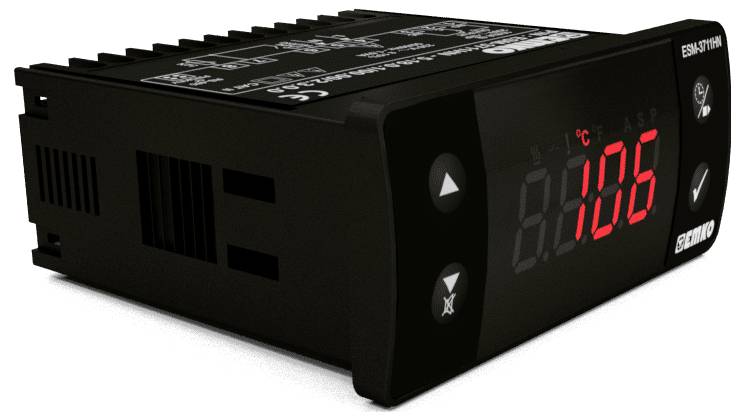

A digital temperature controller with a red LED display showing '105°C'. Black casing with navigation and check buttons on the front.

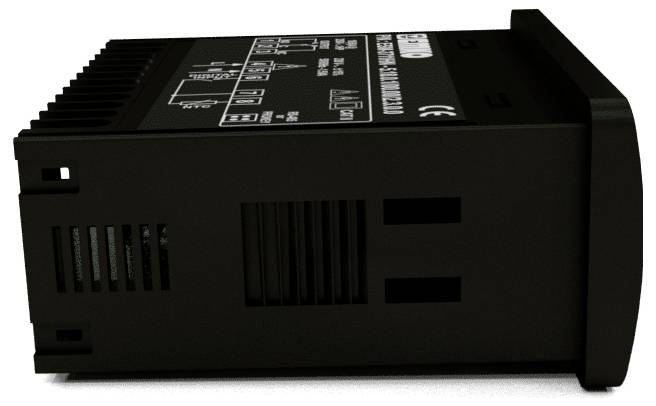

A black electronic device with labeled controls and vents, used for industrial automation applications, placed horizontally.

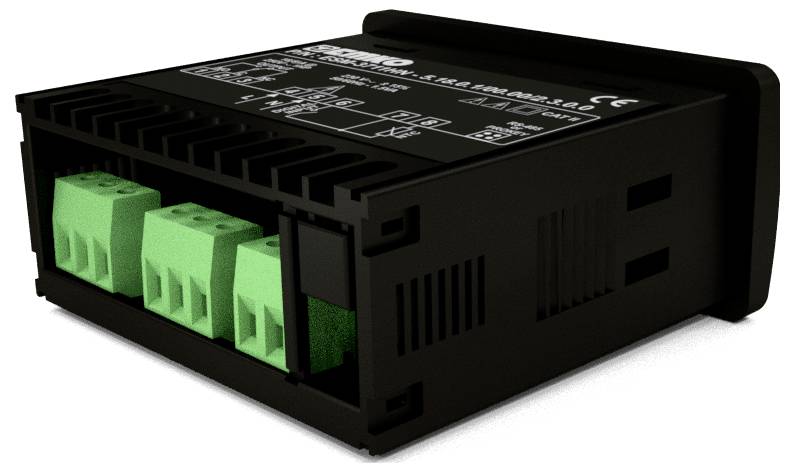

A black electronic device with three green connectors and labeled with technical specifications is shown facing left.

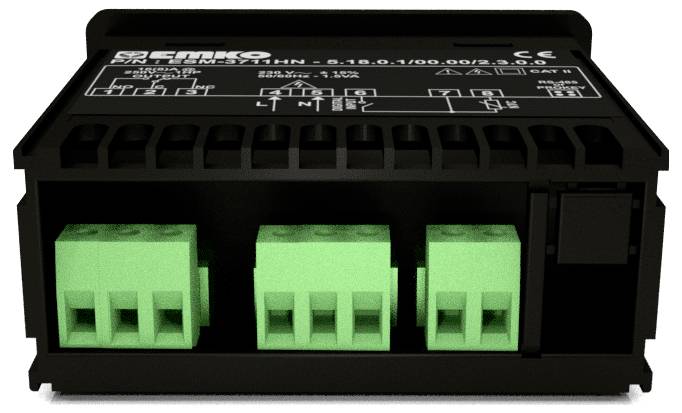

A black electronic device with three green terminal blocks, featuring white printed circuit symbols and specifications on top.

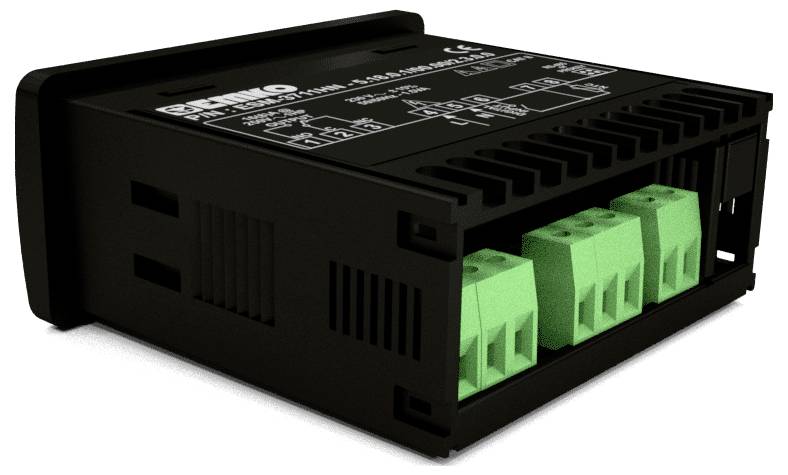

Emko ESM-3711-HN.5.12.0.1/00.00/1.2.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65 -6

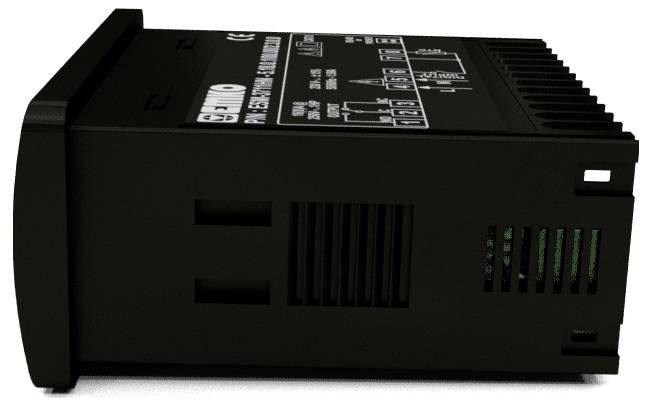

A black electronic device viewed from the side, featuring multiple connectors and labeled control panel on the top.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang

Max. temperature reading

130 °C

Outputs (thermostats)

16 A relay

No. of relay outputs

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 77.99 / piece)

€ 77.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

3-digit programmable ON/OFF temperature controller with Timer and buzzer including PTC resistance thermometer

Including PTC threaded sensor -50 °C to +130°C with 1.50 m cable length
4-digit display
2-point temperature control
Timer with versatile setting options
Digital input start/stop timer
Hysteresis
Adjustable temperature offset values
Buzzer for timer and sensor failure
Password protection for program settings
Can be extended with RS-485 MODULES RS485 Modbus RTU interface
Expandable with PROKEY programming module

Technical specifications

Including PTC threaded sensor -50 °C to +130°C with 1.50 m cable length

Product type: Temperature controller

Type: ESM-3711-HN.5.12.0.1/00.00/1.2.0.0

Thermostat type: Bang-bang

Reading range: -50 up to 130 °C

Max. temperature reading: 130 °C

Min. temperature reading: -50 °C

Outputs (thermostats): 16 A relay

No. of relay outputs: 1

Outputs: 1x relay

Dim: (L x W x H) 65 x 76 x 35 mm

Factory colour: Black

Height: 35 mm

Length: 65 mm

Width: 76 mm

: Front: IP65 / connection: IP20

Sensor type: PTC

Manufacturer part #: ESM-3711-HN.5.12.0.1/00.00/1.2.0.0

Recess depth: 65 mm

Mounting type: Recess-mount

Digital inputs: 1

Assembly dimensions: 29 x 71 mm

Sensor type: PTC

Weight: 200 g

Variants(All information include VAT, plus shipping costs)

Max. temperature reading

Sensor type

Emko ESM-3711-HN.5.12.0.1/00.00/1.2.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:128879

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

This article

130 °C

PTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

Emko ESM-3711-HN.2.05.0.1/00.00/1.0.0.0 Bang-bang Temperature controller J 0 up to 800 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352417

Available soon

Conrad Electronic

800 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 87.99^*

Emko ESM-3711-HN.2.10.0.1/00.00/1.0.0.0 Bang-bang Temperature controller K 0 up to 999 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352416

Available soon

Conrad Electronic

999 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Emko ESM-3711-HN.2.11.0.1/00.00/1.0.0.0 Bang-bang Temperature controller Pt100 -50 up to 400 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352423

Available soon

Conrad Electronic

400 °C

Pt100

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 87.99^*

Emko ESM-3711-HN.2.12.0.1/00.00/1.0.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352418

Available soon

Conrad Electronic

130 °C

PTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Emko ESM-3711-HN.2.14.0.1/00.00/1.0.0.0 Bang-bang Temperature controller Pt1000 -50 up to 400 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352419

Available soon

Conrad Electronic

400 °C

Pt1000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

Emko ESM-3711-HN.2.18.0.1/00.00/1.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352420

Available soon

Conrad Electronic

100 °C

NTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

Emko ESM-3711-HN.5.05.0.1/00.00/1.0.0.0 Bang-bang Temperature controller J 0 up to 800 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352425

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

800 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 71.99^*

Emko ESM-3711-HN.5.10.0.1/00.00/1.0.0.0 Bang-bang Temperature controller K 0 up to 999 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352421

Available soon

Conrad Electronic

999 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 71.99^*

Emko ESM-3711-HN.5.11.0.1/00.00/1.0.0.0 Bang-bang Temperature controller Pt100 -50 up to 400 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:1273966

Fast track dispatch on Thu 29 Oct

22 Piece(s)Conrad Electronic

400 °C

Pt100

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

Documents & Downloads

Datasheet

Datasheet 128879 Emko ESM-3711-HN.5.12.0.1/00.00/1.2.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65

User & Safety Instructions

User & Safety Instructions 128879 Emko ESM-3711-HN.5.12.0.1/00.00/1.2.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65

Description

Emko ESM-3711-HN is a 2-point temperature controller with timer for panel mounting. The controller is ideal for time-controlled heating applications such as oven control. The timer offers versatile setting options and can be controlled via buttons on the front or a digital input. With the separately available PROKEY stick the program settings can be transferred to other devices, so the parameters do not have to be set individually on each device. With the separately available RS-485 MODULE stick the controller can be extended by a RS485 Modbus RTU interface.
