Name: Emko ESM-3711-HN.5.18.0.1/00.00/1.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 16 A relay (L x W x H) 65
Brand: Emko
SKU: 2352426
Availability: BackOrder

Emko ESM-3711-HN.5.18.0.1/00.00/1.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 16 A relay (L x W x H) 65 -1

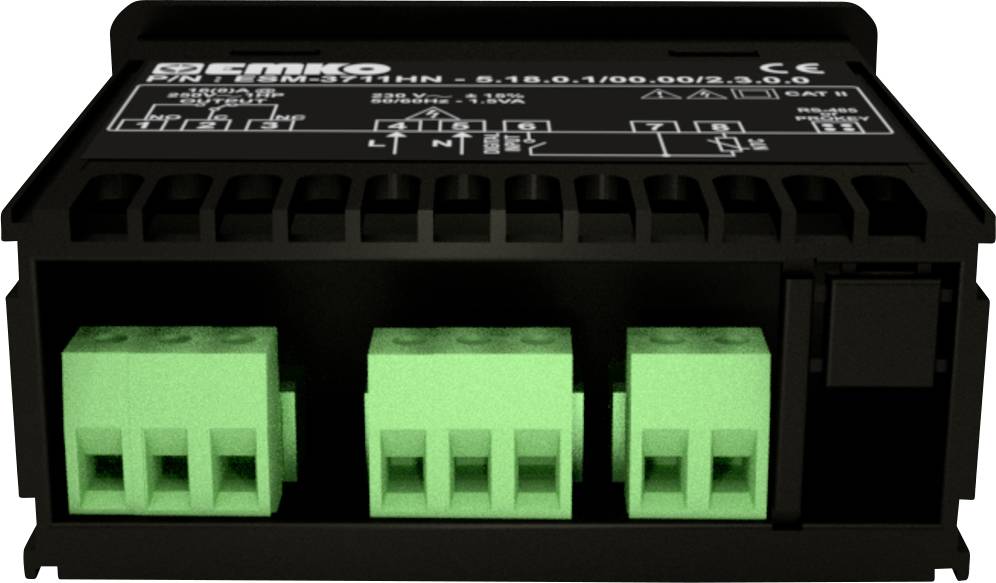

Electronic device with multiple green connectors and a black casing, suitable for electrical installations and wiring.

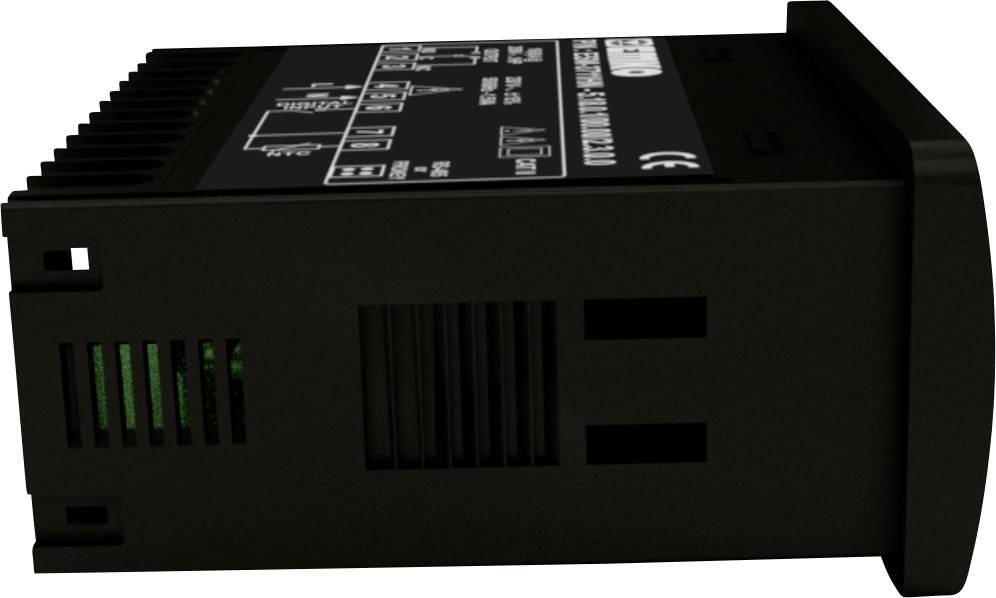

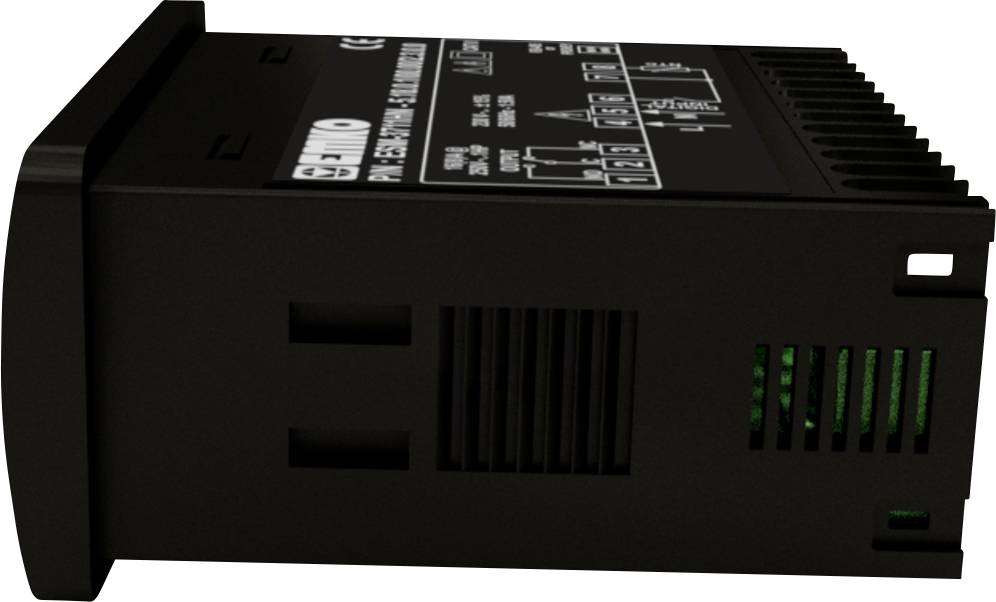

A black electronic device with ventilation slots and control elements on the top surface, positioned sideways.

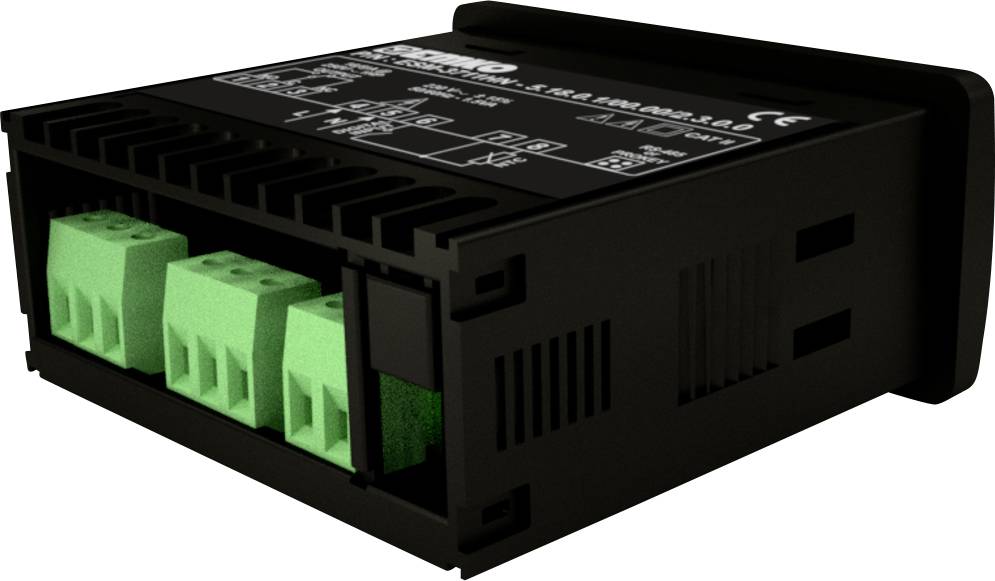

Black electronic device with green connection terminals and visible labelling, suitable for technical applications.

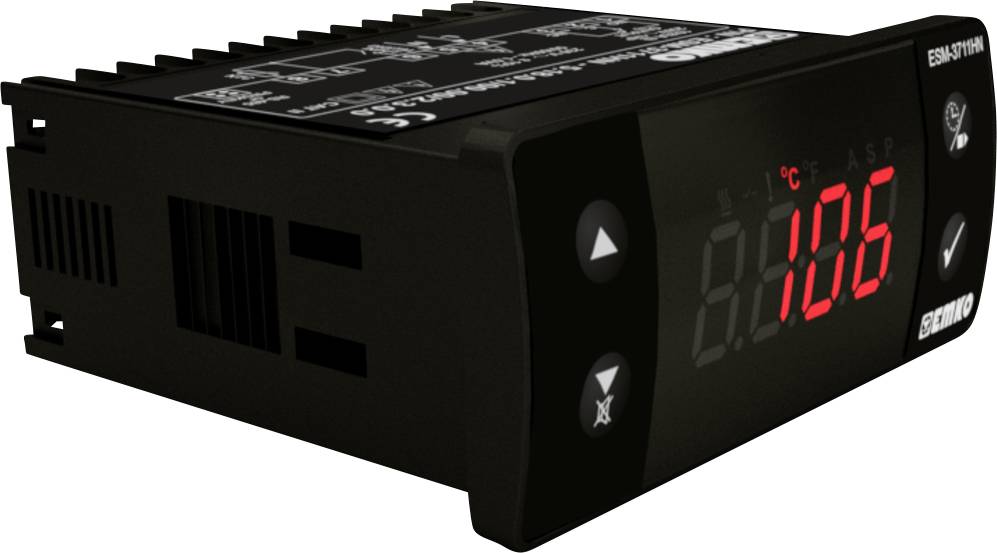

Digital temperature control device with red LED display showing '106 °C'. Compact, black unit with control buttons and setting symbols.

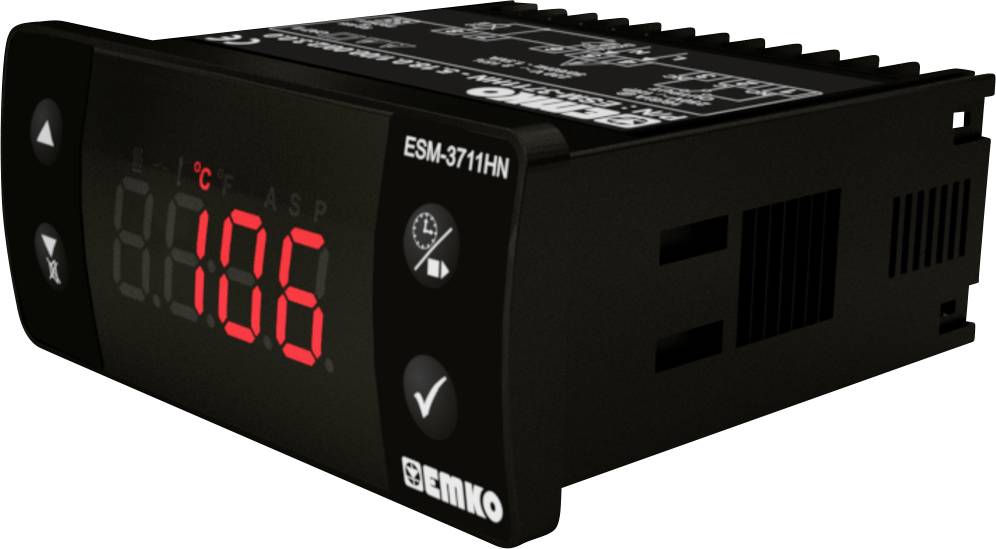

Electronic temperature controller ESM-3711HN by Emko with digital display, showing '106°C', suitable for industrial applications.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang

Max. temperature reading

100 °C

Outputs (thermostats)

16 A relay

No. of relay outputs

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 71.99 / piece)

€ 71.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

ESM -3711 temperature controller

4-digit display
2-point temperature control
Timer with versatile setting options
Digital input start/stop timer
Hysteresis
Adjustable temperature offset values
Buzzer for timer and sensor failure
Password protection for program settings
Can be extended with RS-485 MODULES RS485 Modbus RTU interface
Expandable with PROKEY programming module

Technical specifications

Product type: Temperature controller

Type: ESM-3711-HN.5.18.0.1/00.00/1.0.0.0

Thermostat type: Bang-bang

Reading range: -50 up to 100 °C

Max. temperature reading: 100 °C

Min. temperature reading: -50 °C

Outputs (thermostats): 16 A relay

No. of relay outputs: 1

Dim: (L x W x H) 65 x 76 x 35 mm

Factory colour: Black

Height: 35 mm

Length: 65 mm

Width: 76 mm

: Front: IP65 / connection: IP20

Sensor type: NTC

Manufacturer part #: ESM-3711-HN.5.18.0.1/00.00/1.0.0.0

Recess depth: 65 mm

Mounting type: Recess-mount

Digital inputs: 1

Sensor type: NTC

Weight: 200 g

Variants(All information include VAT, plus shipping costs)

Max. temperature reading

Sensor type

Emko ESM-3711-HN.5.18.0.1/00.00/1.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352426

Available soon

Conrad Electronic

This article

100 °C

NTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 71.99^*

Emko ESM-3711-HN.2.05.0.1/00.00/1.0.0.0 Bang-bang Temperature controller J 0 up to 800 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352417

Available soon

Conrad Electronic

800 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 87.99^*

Emko ESM-3711-HN.2.10.0.1/00.00/1.0.0.0 Bang-bang Temperature controller K 0 up to 999 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352416

Available soon

Conrad Electronic

999 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Emko ESM-3711-HN.2.11.0.1/00.00/1.0.0.0 Bang-bang Temperature controller Pt100 -50 up to 400 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352423

Available soon

Conrad Electronic

400 °C

Pt100

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 87.99^*

Emko ESM-3711-HN.2.12.0.1/00.00/1.0.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352418

Available soon

Conrad Electronic

130 °C

PTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Emko ESM-3711-HN.2.14.0.1/00.00/1.0.0.0 Bang-bang Temperature controller Pt1000 -50 up to 400 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352419

Available soon

Conrad Electronic

400 °C

Pt1000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

Emko ESM-3711-HN.2.18.0.1/00.00/1.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352420

Available soon

Conrad Electronic

100 °C

NTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

Emko ESM-3711-HN.5.05.0.1/00.00/1.0.0.0 Bang-bang Temperature controller J 0 up to 800 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352425

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

800 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 71.99^*

Emko ESM-3711-HN.5.10.0.1/00.00/1.0.0.0 Bang-bang Temperature controller K 0 up to 999 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352421

Available soon

Conrad Electronic

999 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 71.99^*

Emko ESM-3711-HN.5.11.0.1/00.00/1.0.0.0 Bang-bang Temperature controller Pt100 -50 up to 400 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:1273966

Fast track dispatch on Thu 29 Oct

22 Piece(s)Conrad Electronic

400 °C

Pt100

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

Documents & Downloads

Datasheet

Datasheet 2352426 Emko ESM-3711-HN.5.18.0.1/00.00/1.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 16 A relay (L x W x H) 65

User & Safety Instructions

User & Safety Instructions 2352426 Emko ESM-3711-HN.5.18.0.1/00.00/1.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 16 A relay (L x W x H) 65

Description

Emko ESM-3711-HN is a 2-point temperature controller with timer for panel mounting. The controller is ideal for time-controlled heating applications such as oven control. The timer offers versatile setting options and can be controlled via buttons on the front or a digital input. With the separately available PROKEY stick the program settings can be transferred to other devices, so the parameters do not have to be set individually on each device. With the separately available RS-485 MODULE stick the controller can be extended by a RS485 Modbus RTU interface.
