Name: Emko ESM-3712-CN.5.18.0.1/01.01/1.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 16 A relay, 5 A relay (L x
Brand: Emko
SKU: 2352450
Availability: BackOrder

Highlights & Details

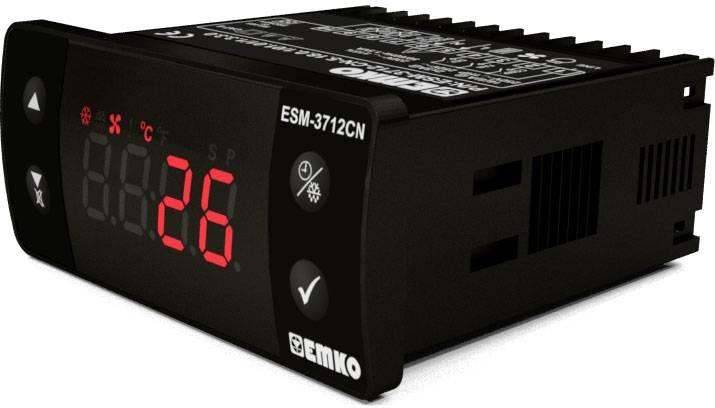

Emko ESM-3712-CN.5.18.0.1/01.01/1.0.0.0 Bang-bang Temperature controller

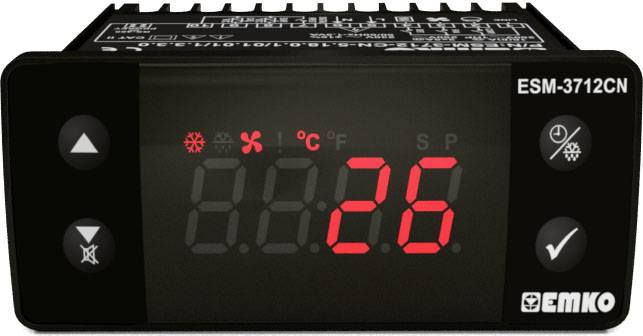

4-digit display
2-point temperature control
2 sensor inputs for cabinet and evaporator
3 relay outputs for compressor, fan and defrost function
1 digital input
Defrost function with timer
Defrost function can be set to electrical or hot gas
Hysteresis
Adjustable temperature offset values
Function can be set to on, off or cyclic in the event of a sensor failure
Buzzer for timer and sensor failure
Compressor protection through adjustable pause times
Password protection for program settings
Can be extended with RS-485 MODULES RS485 Modbus RTU interface
Expandable with PROKEY programming module

Technical specifications

Product type: Temperature controller

Type: ESM-3712-CN.5.18.0.1/01.01/1.0.0.0

Thermostat type: Bang-bang

Operating voltage: 230 V AC

Reading range: -50 up to 100 °C

Max. temperature reading: 100 °C

Min. temperature reading: -50 °C

Outputs (thermostats): 16 A relay
5 A relay

No. of relay outputs: 3

Dim: (L x W x H) 65 x 76 x 35 mm

Factory colour: Black

Height: 35 mm

Length: 65 mm

Width: 76 mm

: Front: IP65 / connection: IP20

Sensor type: NTC

Manufacturer part #: ESM-3712-CN.5.18.0.1/01.01/1.0.0.0

Recess depth: 65 mm

Mounting type: Recess-mount

Digital inputs: 1

Sensor type: NTC

Weight: 200 g

Documents & Downloads

Datasheet

Datasheet 2352450 Emko ESM-3712-CN.5.18.0.1/01.01/1.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 16 A relay, 5 A relay (L x

User & Safety Instructions

User & Safety Instructions 2352450 Emko ESM-3712-CN.5.18.0.1/01.01/1.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 16 A relay, 5 A relay (L x

Description

ESM-3712-CN is a 2-point cooling controller for control panel installation. The regulator was developed especially for cooling applications and with the defrost function offers an ideal solution for food manufacturers, supermarkets and restaurants. The areas of application are cooling, freezing, cooling storage and air conditioning. With the separately available PROKEY stick the program settings can be transferred to other devices, so the parameters do not have to be set individually on each device. With the separately available RS-485 MODULE stick the controller can be extended by a RS485 Modbus RTU interface.
ESM-3712-CN is ideal for freezers and refrigerators that store goods below 0 °C. These cooling systems require short defrosting times and the temperature must not deviate from the set value for a longer period of time. With electrical or hot gas defrost function, the system can go through rapid defrosting cycles.
