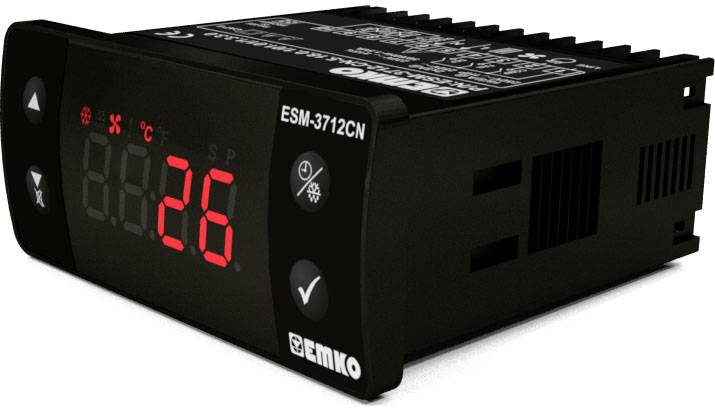

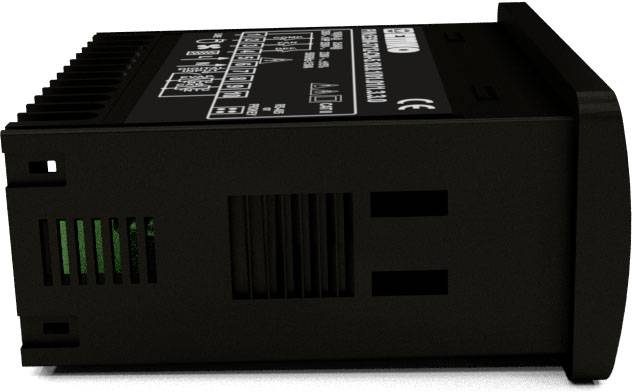

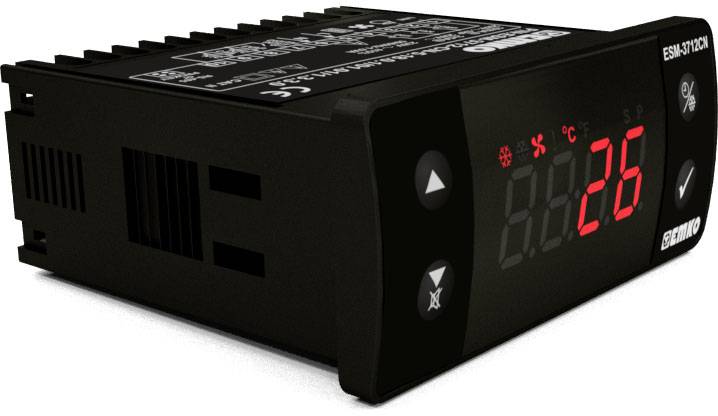

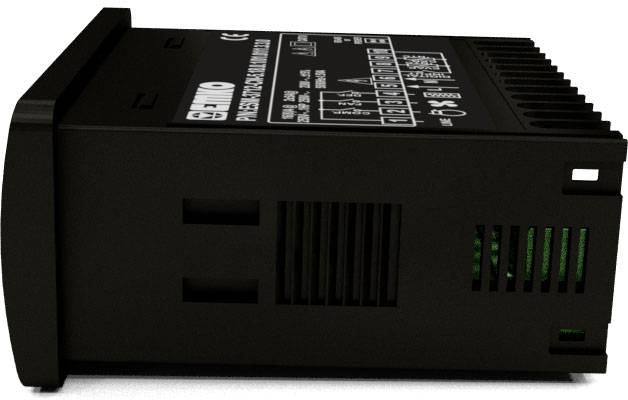

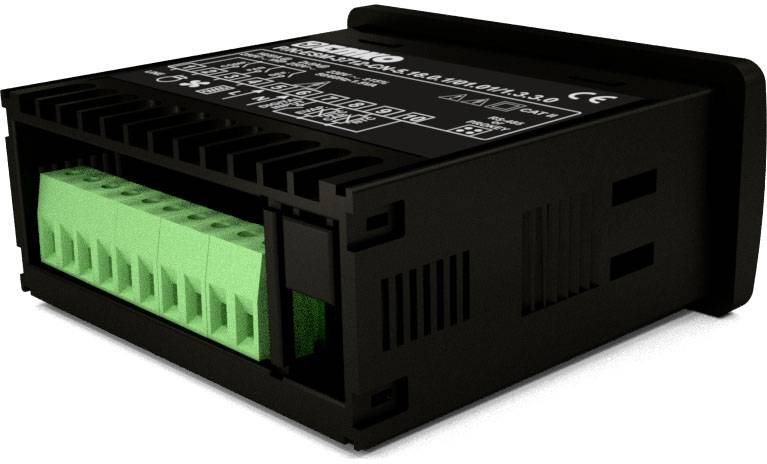

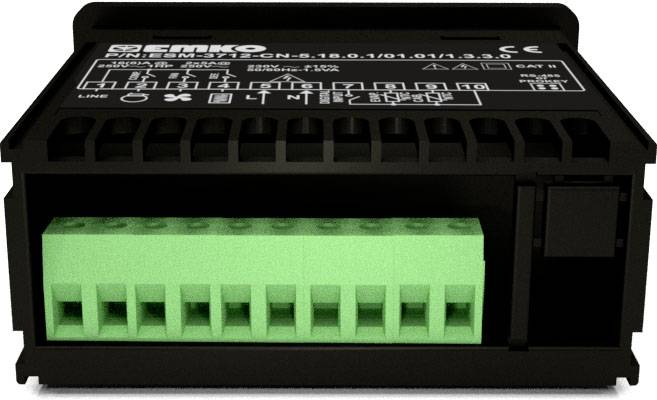

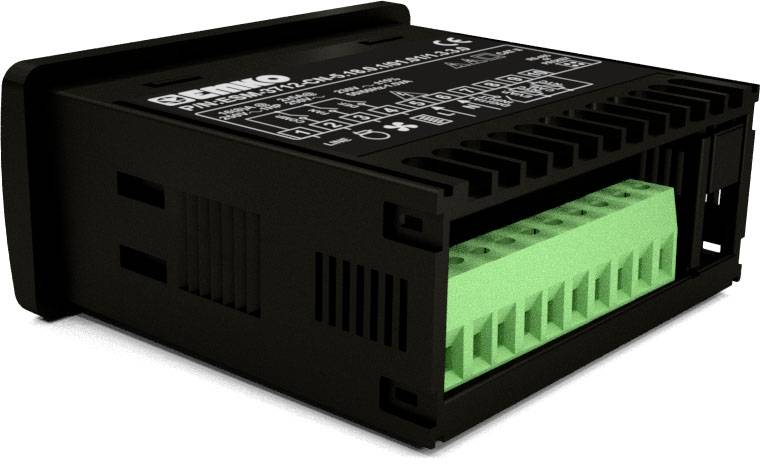

Emko ESM-3712-CN.8.12.0.1/01.01/1.0.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay, 5 A relay (L x
Product type
Temperature controller
Thermostat type
Bang-bang
Operating voltage
10 V DC
12 V DC
24 V DC
30 V DC
Max. temperature reading
130 °C
Outputs (thermostats)
16 A relay
5 A relay
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 75.99 / piece)
€ 75.99
incl. VAT
Only 4 Piece(s) available
Highlights & Details
Emko ESM-3712-CN.8.12.0.1/01.01/1.0.0.0 Bang-bang Temperature controller

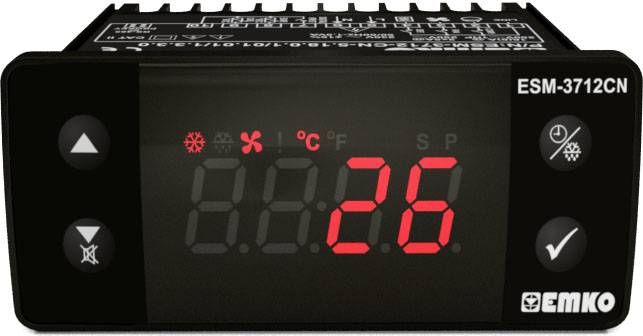

- 4-digit display
- 2-point temperature control
- 2 sensor inputs for cabinet and evaporator
- 3 relay outputs for compressor, fan and defrost function
- 1 digital input
- Defrost function with timer
- Defrost function can be set to electrical or hot gas
- Hysteresis
- Adjustable temperature offset values
- Function can be set to on, off or cyclic in the event of a sensor failure
- Buzzer for timer and sensor failure
- Compressor protection through adjustable pause times
- Password protection for program settings
- Can be extended with RS-485 MODULES RS485 Modbus RTU interface
- Expandable with PROKEY programming module
Technical specifications
- Product type
Temperature controller
- Type
ESM-3712-CN.8.12.0.1/01.01/1.0.0.0
- Thermostat type
Bang-bang
- Operating voltage
10 V DC
12 V DC
24 V DC
30 V DC
- Reading range
-50 up to 130 °C
- Max. temperature reading
130 °C
- Min. temperature reading
-50 °C
- Outputs (thermostats)
16 A relay
5 A relay
- No. of relay outputs
3
- Dim
(L x W x H) 65 x 76 x 35 mm
- Factory colour
Black
- Height
35 mm
- Length
65 mm
- Width
76 mm
Front: IP65 / connection: IP20
- Sensor type
PTC
- Manufacturer part #
ESM-3712-CN.8.12.0.1/01.01/1.0.0.0
- Recess depth
65 mm
- Mounting type
Recess-mount
- Digital inputs
1
- Sensor type
PTC
- Weight
200 g
Documents & Downloads
Datasheet
Datasheet 2352448 Emko ESM-3712-CN.8.12.0.1/01.01/1.0.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay, 5 A relay (L x
User & Safety Instructions
User & Safety Instructions 2352448 Emko ESM-3712-CN.8.12.0.1/01.01/1.0.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 16 A relay, 5 A relay (L x
Description
ESM-3712-CN is a 2-point cooling controller for control panel installation. The regulator was developed especially for cooling applications and with the defrost function offers an ideal solution for food manufacturers, supermarkets and restaurants. The areas of application are cooling, freezing, cooling storage and air conditioning. With the separately available PROKEY stick the program settings can be transferred to other devices, so the parameters do not have to be set individually on each device. With the separately available RS-485 MODULE stick the controller can be extended by a RS485 Modbus RTU interface.
ESM-3712-CN is ideal for freezers and refrigerators that store goods below 0 °C. These cooling systems require short defrosting times and the temperature must not deviate from the set value for a longer period of time. With electrical or hot gas defrost function, the system can go through rapid defrosting cycles.
This text is machine translated.
ESM-3712-CN is ideal for freezers and refrigerators that store goods below 0 °C. These cooling systems require short defrosting times and the temperature must not deviate from the set value for a longer period of time. With electrical or hot gas defrost function, the system can go through rapid defrosting cycles.
This text is machine translated.
