Name: Emko ESM-3720.5.10.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller K 0 up to 999 °C 16 A relay (L x W x H) 65 x
Brand: Emko
SKU: 2352504
Availability: InStock

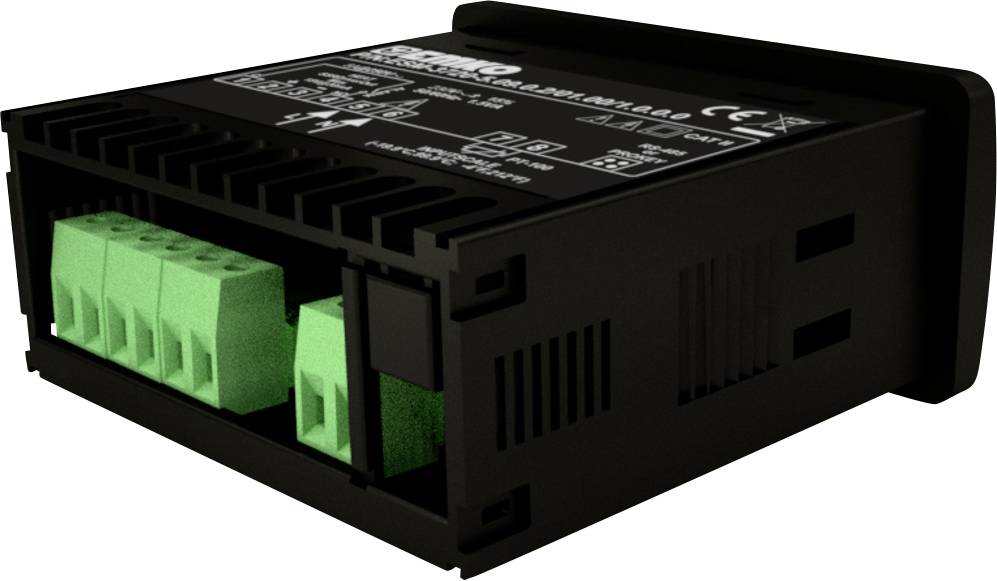

Black electrical device with green connection terminals, likely an electronic control unit or module.

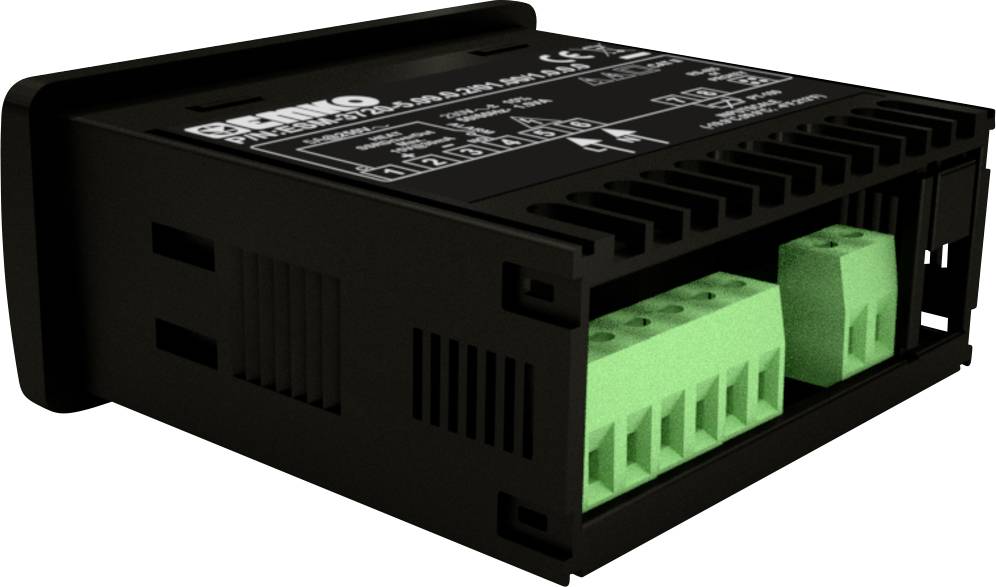

Black electronic component with green connectors, side view. Device shows technical information on the top surface.

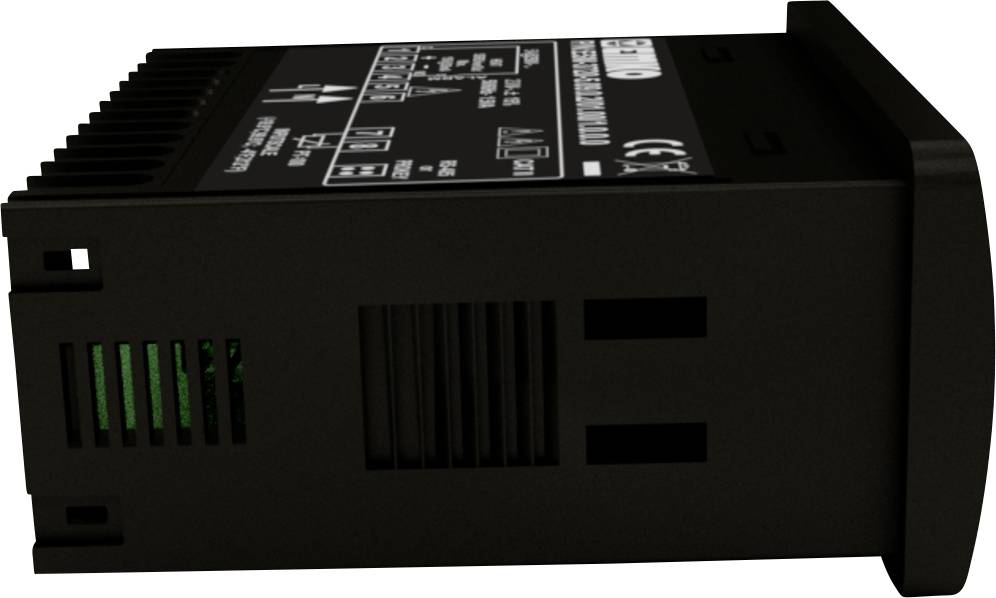

'Black electronic controller with heat sinks and green connectors on the side, suitable for temperature control.'

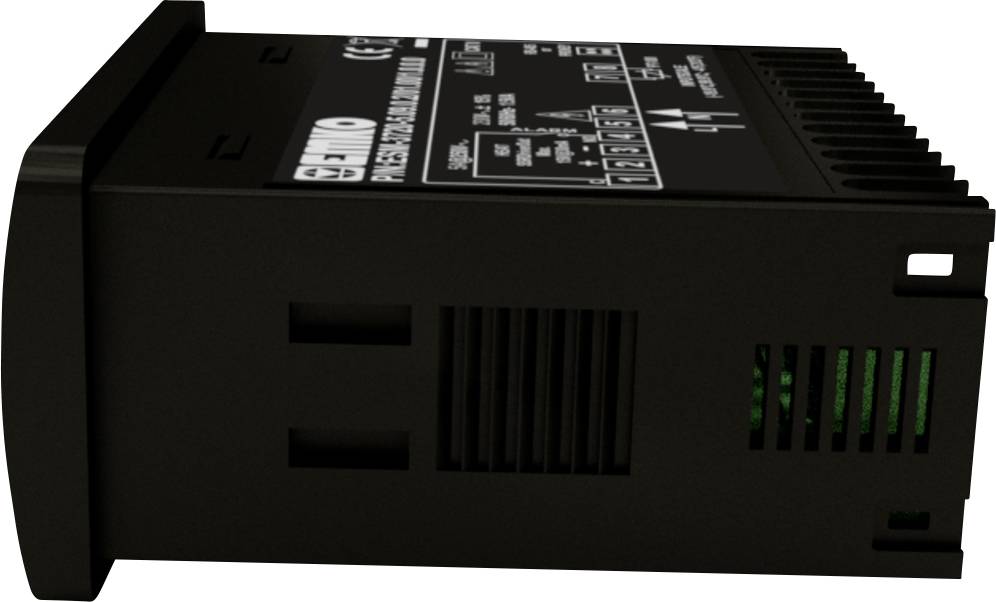

Black electronic device with ventilation slots, lying on its side. Top surface shows white technical labelling.

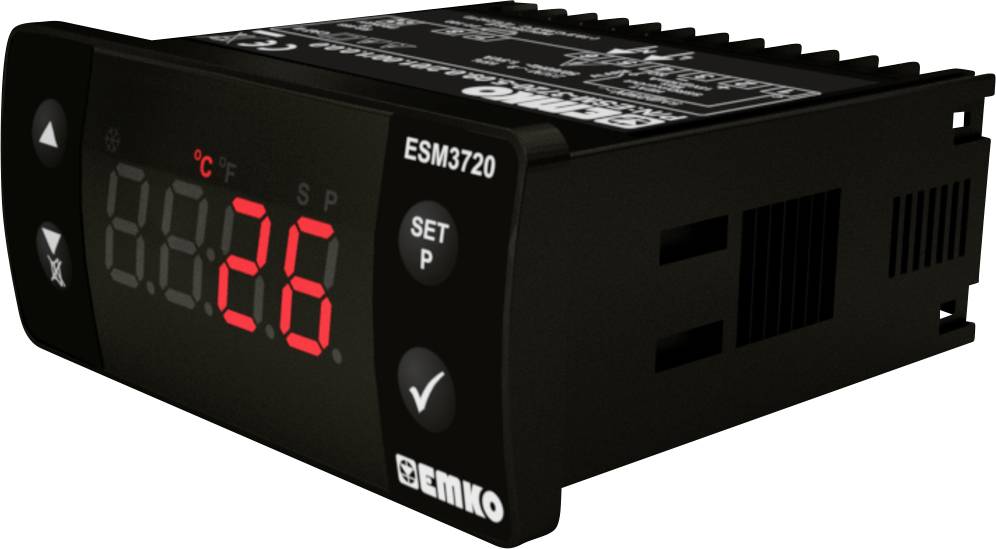

A black digital temperature controller with a red LED display shows '26°C'. Control buttons are located to the right of the display.

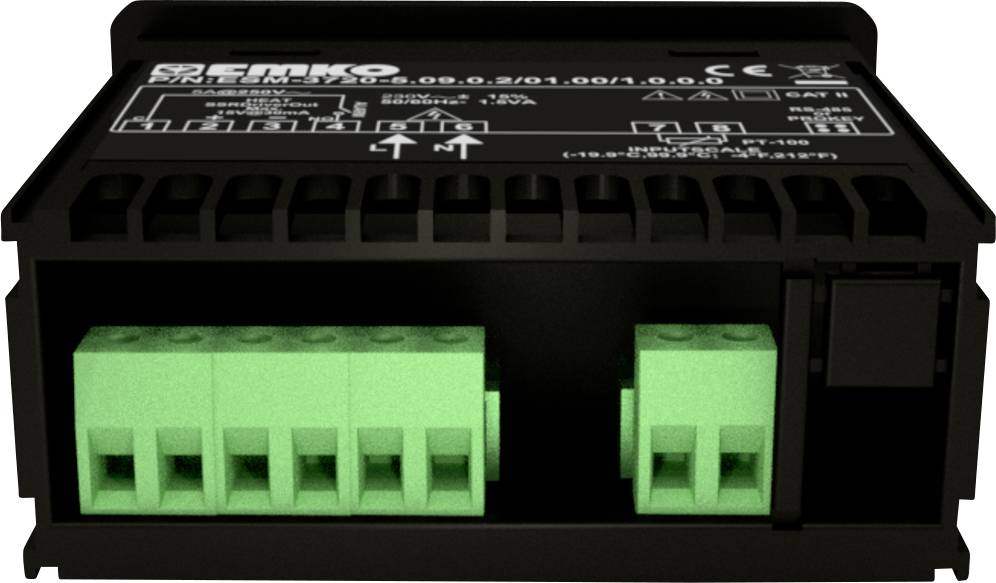

An electronic device with multiple green terminal connectors and labels on top. It appears technical and functional.

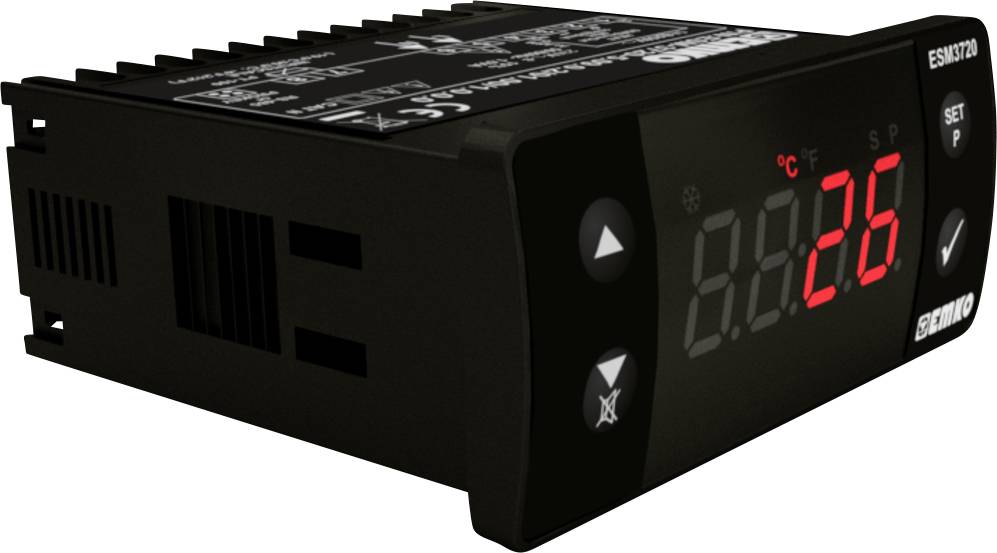

Black digital temperature control device with red LED display showing '26 °C'. Multiple control buttons on the front.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang, PID

Operating voltage

230 V AC

Max. temperature reading

999 °C

Outputs (thermostats)

16 A relay

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 79.99 / piece)

€ 79.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Emko ESM-3720.5.10.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller

4-digit display
2-point or PID temperature control
Heating or cooling function can be selected
Alarm values with alarm output
Hysteresis
Adjustable temperature offset values
Adjustable minimum and maximum setpoints
Function can be set to on, off or cyclic in the event of a sensor failure
Compressor protection through adjustable pause times
Buzzer for alarm value and in case of sensor fault
Password protection for program settings
Can be extended with RS-485 MODULES RS485 Modbus RTU interface
Expandable with PROKEY programming module

Technical specifications

Product type: Temperature controller

Type: ESM-3720.5.10.0.1/01.00/1.0.0.0

Thermostat type: Bang-bang, PID

Operating voltage: 230 V AC

Reading range: 0 up to 999 °C

Max. temperature reading: 999 °C

Min. temperature reading: 0 °C

Outputs (thermostats): 16 A relay

No. of relay outputs: 2

Dim: (L x W x H) 65 x 76 x 35 mm

Factory colour: Black

Height: 35 mm

Length: 65 mm

Width: 76 mm

: Front: IP65 / connection: IP20

Sensor type: K

Manufacturer part #: ESM-3720.5.10.0.1/01.00/1.0.0.0

Recess depth: 65 mm

Mounting type: Recess-mount

Sensor type: K

Weight: 200 g

Variants(All information include VAT, plus shipping costs)

Max. temperature reading

Operating voltage

Outputs (thermostats)

Sensor type

Emko ESM-3720.5.10.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller K 0 up to 999 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352504

Fast track dispatch on Thu 29 Oct

5 Piece(s)Conrad Electronic

This article

999 °C

230 V AC

16 A relay

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Emko ESM-3720 Bang-bang, PID Temperature controller Pt100 -50 up to 400 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:1717654

Fast track dispatch on Thu 29 Oct

29 Piece(s)Conrad Electronic

400 °C

230 V AC

16 A relay

Pt100

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

Emko ESM-3720.5.05.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller J 0 up to 800 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352513

Fast track dispatch on Thu 29 Oct

8 Piece(s)Conrad Electronic

800 °C

230 V AC

16 A relay

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Emko ESM-3720.5.05.0.2/01.00/1.0.0.0 Bang-bang, PID Temperature controller J 0 up to 800 °C SSR (L x W x H) 65 x 76 x 35 mm

Item no:2352497

Dispatches on Mon 9 Nov

Conrad Electronic

800 °C

230 V AC

SSR

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 69.99^*

Emko ESM-3720.5.10.0.2/01.00/1.0.0.0 Bang-bang, PID Temperature controller K 0 up to 999 °C SSR (L x W x H) 65 x 76 x 35 mm

Item no:2352495

Available soon

Conrad Electronic

999 °C

230 V AC

SSR

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Emko ESM-3720.5.11.0.2/01.00/1.0.0.0 Bang-bang, PID Temperature controller Pt100 -50 up to 400 °C SSR (L x W x H) 65 x 76 x 35 mm

Item no:2352502

Fast track dispatch on Thu 29 Oct

9 Piece(s)Conrad Electronic

400 °C

230 V AC

SSR

Pt100

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Emko ESM-3720.5.12.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352511

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

130 °C

230 V AC

16 A relay

PTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Emko ESM-3720.5.12.0.2/01.00/1.0.0.0 Bang-bang, PID Temperature controller PTC -50 up to 130 °C SSR (L x W x H) 65 x 76 x 35 mm

Item no:2352499

Available soon

Conrad Electronic

130 °C

230 V AC

SSR

PTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Emko ESM-3720.5.14.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller Pt1000 -50 up to 400 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352509

Available soon

Conrad Electronic

400 °C

230 V AC

16 A relay

Pt1000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Emko ESM-3720.5.14.0.2/01.00/1.0.0.0 Bang-bang, PID Temperature controller Pt1000 -50 up to 400 °C SSR (L x W x H) 65 x 76 x 35 mm

Item no:2352512

Available soon

Conrad Electronic

400 °C

230 V AC

SSR

Pt1000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Documents & Downloads

Datasheet

Datasheet 2352504 Emko ESM-3720.5.10.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller K 0 up to 999 °C 16 A relay (L x W x H) 65 x

User & Safety Instructions

User & Safety Instructions 2352504 Emko ESM-3720.5.10.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller K 0 up to 999 °C 16 A relay (L x W x H) 65 x

Description

Emko ESM-3720 is a 2-point and PID temperature controller for control panel installation. With adjustable temperature setpoint, the controller is used for heating or cooling applications. The controller has an alarm function with alarm output and internal buzzer. With the separately available PROKEY stick the program settings can be transferred to other devices, so the parameters do not have to be set individually on each device. With the separately available RS-485 MODULE stick the controller can be extended by a RS485 Modbus RTU interface.

This text is machine translated.
